headlamp Citroen BERLINGO RHD 2014 2.G User Guide

Changing a bulb
122

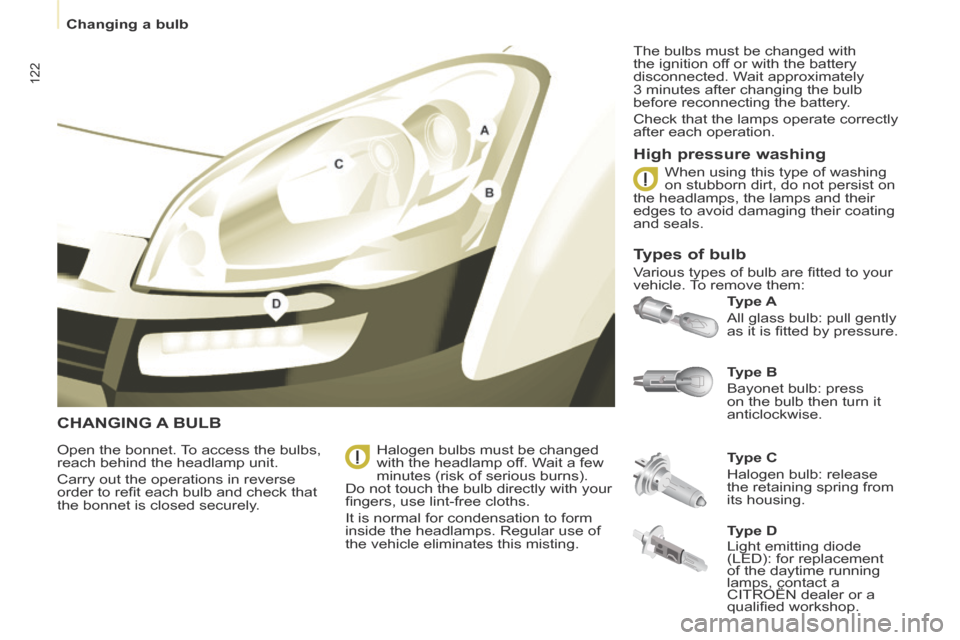

CHANGING A BULB
Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise. Type A
All glass bulb: pull gently
as it is fi tted by pressure.
Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refi t each bulb and check that
the bonnet is closed securely. Type C
Halogen bulb: release
the retaining spring from
its housing.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi ngers, use lint-free cloths.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lamps operate correctly
after each operation.
High pressure washing
Types of bulb
Various types of bulb are fi tted to your
vehicle. To remove them:
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
edges to avoid damaging their coating
and seals.
Type D
Light emitting diode
(LED): for replacement
of the daytime running
lamps, contact a
CITROËN dealer or a
qualifi ed workshop.

Changing a bulb
123
QUICK HELP
7
3. Direction indicators
Type B , PY21W - 21W (amber)
- Remove the cover by pulling the fl exible rubber tab.
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.
- Ensure that the cover is refi tted correctly all round to assure
correct sealing.
2. Sidelamps

Type A , W5W - 5W
- Remove the cover by pulling the fl exible rubber tab.
- Remove the bulb holder fi tted by pressure by pulling the connector.
- Change the bulb.
- Ensure that the cover is refi tted correctly all round to assure
correct sealing.

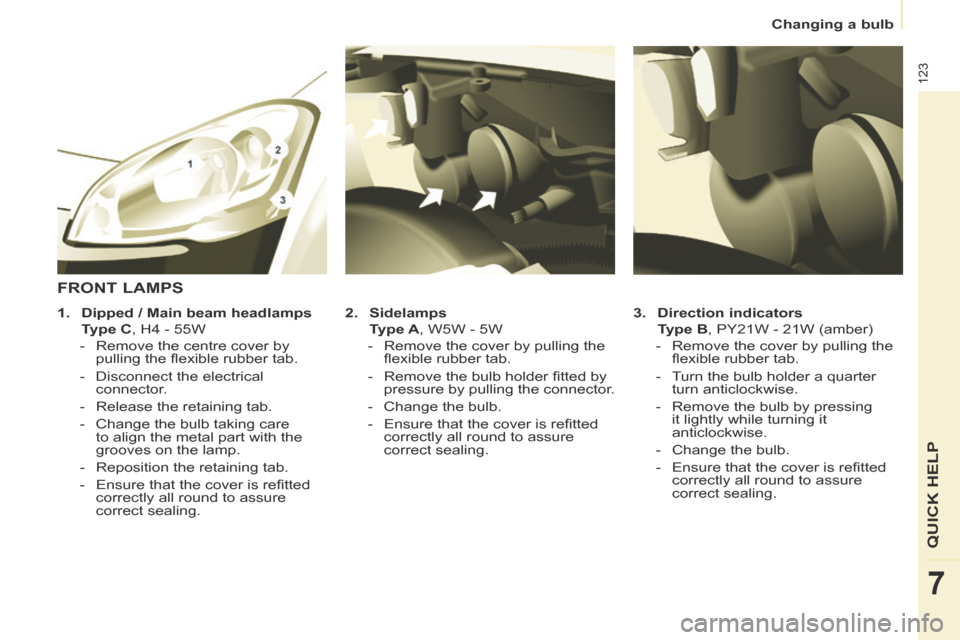

FRONT LAMPS
1. Dipped / Main beam headlamps
Type C , H4 - 55W
- Remove the centre cover by pulling the fl exible rubber tab.
- Disconnect the electrical connector.
- Release the retaining tab.
- Change the bulb taking care to align the metal part with the
grooves on the lamp.
- Reposition the retaining tab.
- Ensure that the cover is refi tted correctly all round to assure
correct sealing.

Changing a bulb
125
QUICK HELP
7
For more information concerning the
bulbs, refer to the "Types of bulb".
1. Brake lamps / sidelamps
Type B , P21/5W - 21/5W
2. Direction indicators
Type B , PY21W - 21W (amber)
3. Reversing lamps
Type B , P21W - 21W
4. Foglamps
Type B , P21W - 21W - Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Access" section of chapter 2.
- Remove the two fi xing bolts using the screwdriver stored in the tool kit
under the right-hand seat.
- Pull the lamp unit from the outside.
- Holding the lamp, disconnect the electrical connector. - Move aside the 4 tabs then extract
the bulb holder.
- Remove the faulty bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.
When removing the lamp unit:
- with tailgate, pull the lamp unit towards the centre of the vehicle,
- with hinged doors, pull the lamp unit towards you.
When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping
the wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes.
REAR LAMPS
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals.

Changing a fuse
128

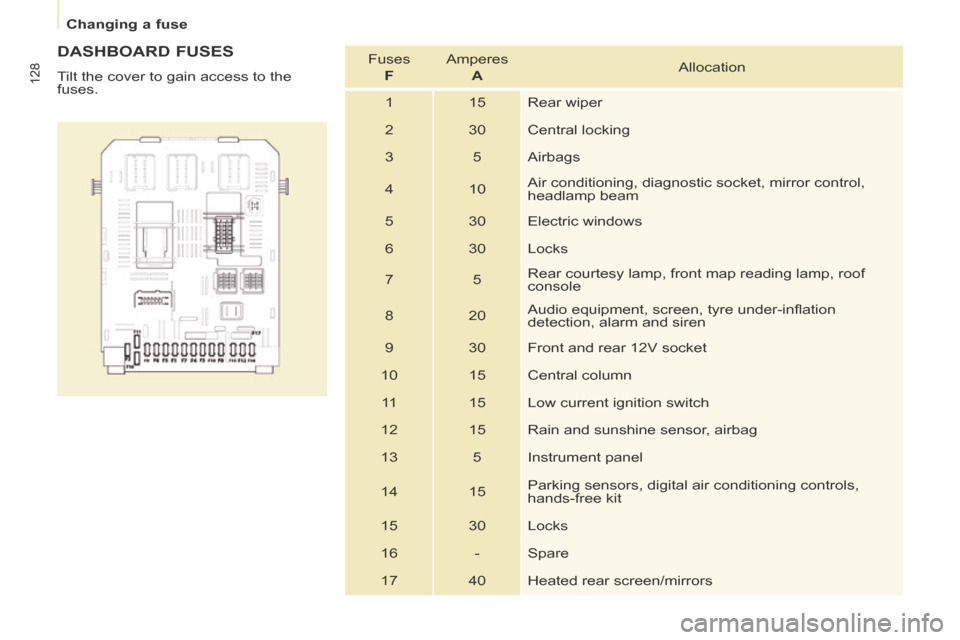

DASHBOARD FUSES
Tilt the cover to gain access to the
fuses. Fuses
F Amperes

A Allocation
1 15 Rear wiper
2 30 Central locking
3 5 Airbags
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-infl ation
detection, alarm and siren
9 30 Front and rear 12V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free kit
15 30 Locks
16 - Spare
17 40 Heated rear screen/mirrors

Changing a fuse
130

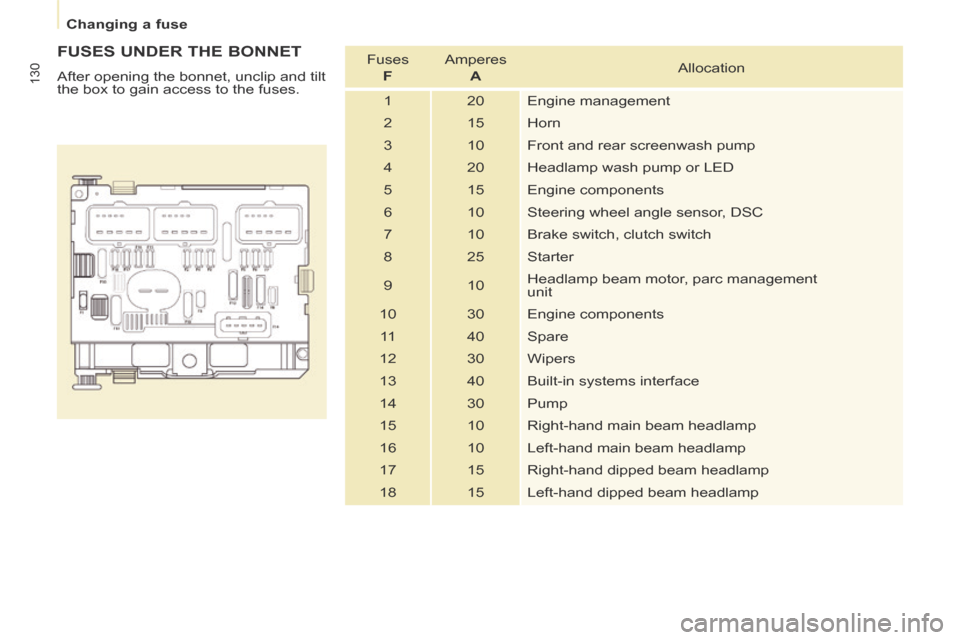

FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F Amperes

A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump or LED
5 15 Engine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management
unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

9.48

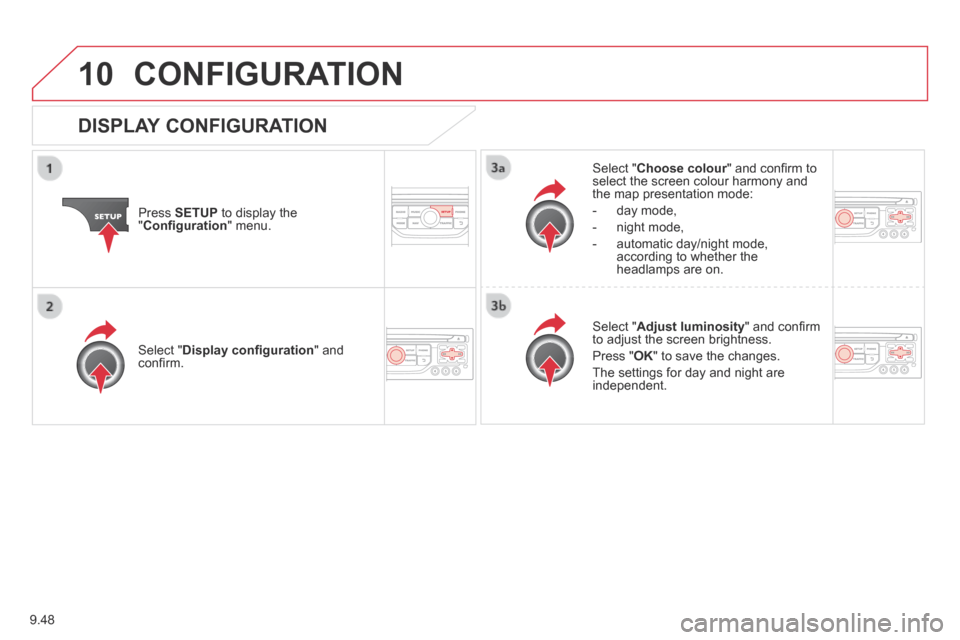

10 CONFIGURATION
Press SETUP to display the " Confi guration " menu.
Select " Choose colour " and confi rm to Choose colour " and confi rm to Choose colourselect the screen colour harmony and the map presentation mode:
- day mode,
- night mode,
- automatic day/night mode, according to whether the headlamps are on.
Select " Adjust luminosity " and confi rm to adjust the screen brightness.
Press " OK " to save the changes.
The settings for day and night are independent.
Select " Display confi guration " and confi rm.
DISPLAY CONFIGURATION

9.55

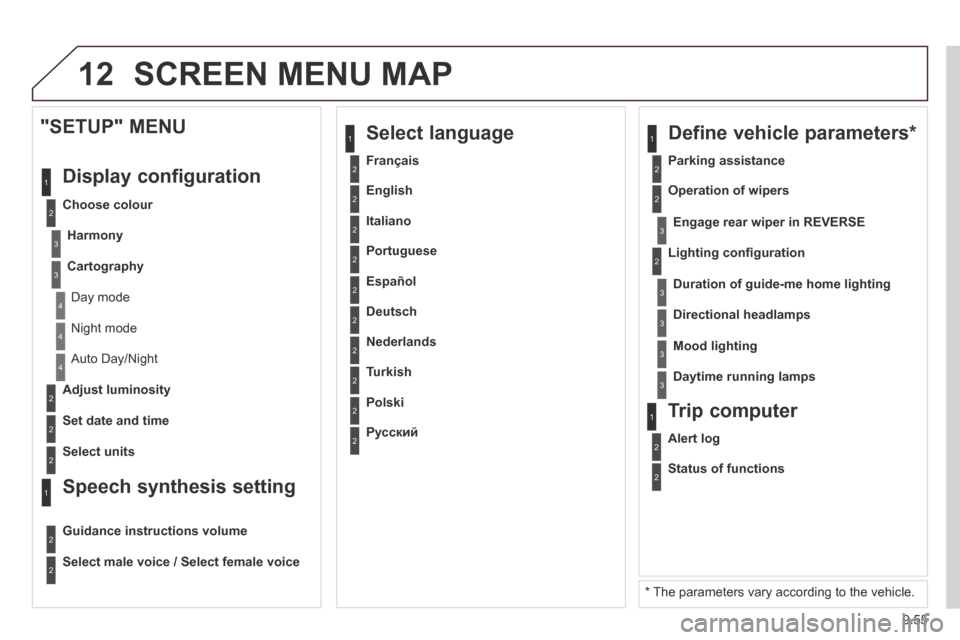

12 SCREEN MENU MAP
2
3
3
1
4
2
2
1
4
4
2
2
Night mode
Auto Day/Night
Adjust luminosity
Set date and time
"SETUP" MENU
Display configuration
Choose colour
Harmony
Cartography
Day mode
Speech synthesis setting
Guidance instructions volume
Select male voice / Select female voice
2 Select units
2
3
3
2 Lighting confi guration
Parking assistance
Engage rear wiper in REVERSE
Duration of guide-me home lighting
1 Define vehicle parameters *
2 Operation of wipers
3Directional headlamps
3Mood lighting
3Daytime running lamps
* The parameters vary according to the vehicle.
2 Alert log
1 Trip computer
2 Status of functions
2 Français
1 Select language
2 English
2 Italiano
2 Portuguese
2 Español
2 Deutsch
2 Nederlands
2 Turkish
2 Polski
2 Русский

141
Exterior
VISUAL SEARCH
10

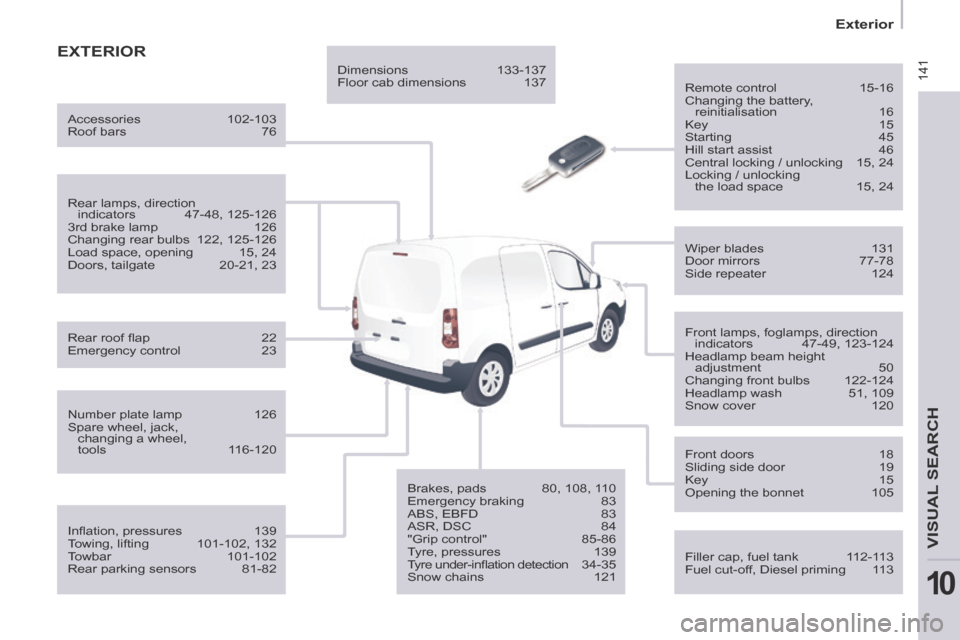

EXTERIOR
Remote control 15-16
Changing the battery,
reinitialisation 16 Key 15
Starting 45
Hill start assist 46
Central locking / unlocking 15, 24
Locking / unlocking the load space 15, 24
Filler cap, fuel tank 112-113
Fuel cut-off, Diesel priming 113 Wiper blades 131
Door mirrors 77-78
Side repeater 124
Front lamps, foglamps, direction indicators 47-49, 123-124
Headlamp beam height
adjustment 50 Changing front bulbs 122-124
Headlamp wash 51, 109
Snow cover 120
Front doors 18
Sliding side door 19
Key 15
Opening the bonnet 105
Infl ation, pressures 139
Towing, lifting 101-102, 132
Towbar 101-102
Rear parking sensors 81-82 Number plate lamp 126
Spare wheel, jack, changing a wheel,
tools 116-120
Rear lamps, direction
indicators 47-48, 125-126
3rd brake lamp 126
Changing rear bulbs 122, 125-126
Load space, opening 15, 24
Doors, tailgate 20-21, 23 Accessories 102-103
Roof bars 76
Rear roof fl ap 22
Emergency control 23 Dimensions
133-137
Floor cab dimensions 137
Brakes, pads 80, 108, 110
Emergency braking 83
ABS, EBFD 83
ASR, DSC 84
"Grip control" 85-86
Tyre, pressures 139
Tyre under-infl ation detection 34-35
Snow chains 121

142
Instruments and controls
DSC 84
Parking sensors 81-82
Electric mirrors 77-78
Headlamp beam height adjustment 49
Stop & Start 42-44 Starter motor, ignition switch 45 Wipers controls
50-51
Automatic wiping 50
Windscreen / headlamp wash 51, 109
Trip computer Section 9
Cruise control 52-54
Speed limiter 55-57
Lighting controls
47-49
Automatic illumination of headlamps 48-49
Foglamps 48
LED daytime runing lamps 48

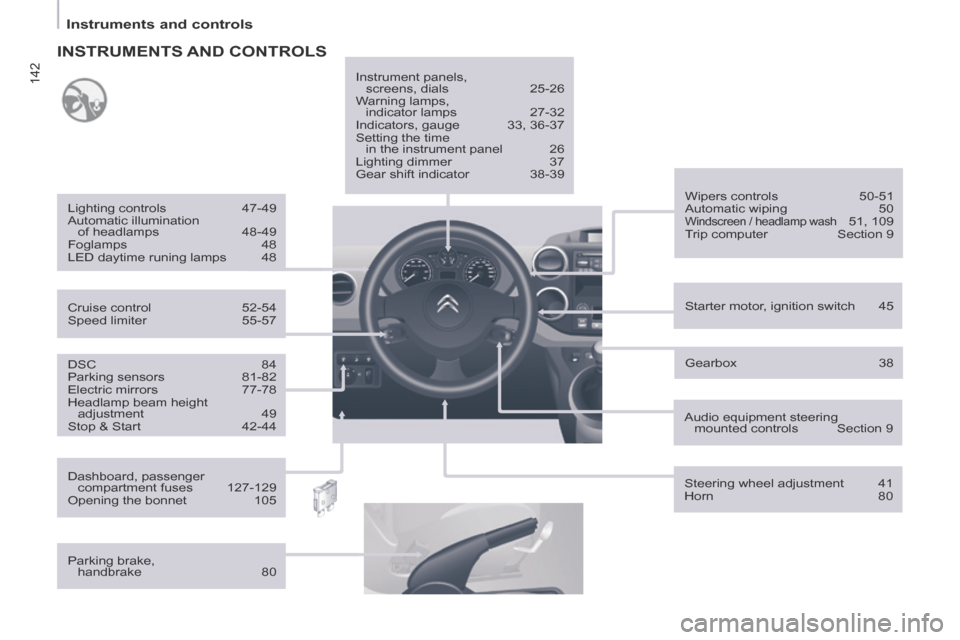

INSTRUMENTS AND CONTROLS
Dashboard, passenger compartment fuses 127-129
Opening the bonnet 105
Parking brake, handbrake 80 Instrument panels,
screens, dials 25-26
Warning lamps, indicator lamps 27-32
Indicators, gauge 33, 36-37
Setting the time in the instrument panel 26
Lighting dimmer 37
Gear shift indicator 38-39
Audio equipment steering mounted controls Section 9
Steering wheel adjustment 41
Horn 80
Gearbox
38

143
Instruments and controls
VISUAL SEARCH
10

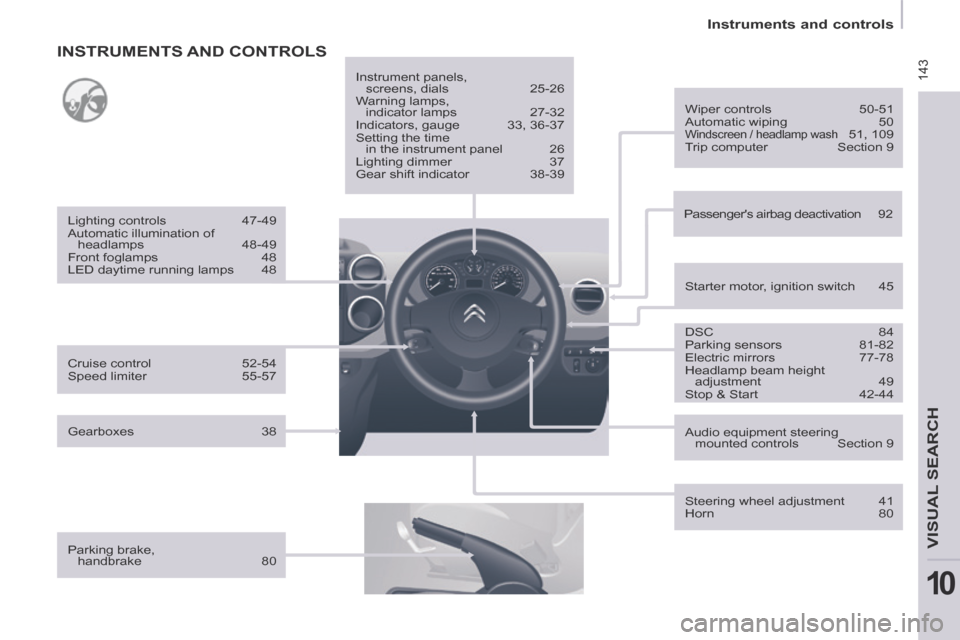

INSTRUMENTS AND CONTROLS
Parking brake, handbrake 80 Instrument panels,
screens, dials 25-26
Warning lamps, indicator lamps 27-32
Indicators, gauge 33, 36-37
Setting the time in the instrument panel 26
Lighting dimmer 37
Gear shift indicator 38-39
Passenger's airbag deactivation 92
DSC 84
Parking sensors 81-82
Electric mirrors 77-78
Headlamp beam height
adjustment 49 Stop & Start 42-44
Starter motor, ignition switch 45 Wiper controls
50-51
Automatic wiping 50
Windscreen / headlamp wash 51, 109
Trip computer Section 9
Audio equipment steering mounted controls Section 9
Steering wheel adjustment 41
Horn 80
Cruise control
52-54
Speed limiter 55-57
Lighting controls
47-49
Automatic illumination of headlamps 48-49
Front foglamps 48
LED daytime running lamps 48
Gearboxes 38
