Towing a trailer
Berlingo-2-VU_en_Chap06_accessoire_ed02-2015
TOWBAR WITH SWAN NECK
T

OWBALL ,
LOCKABLE AND QUICKLY DETACHABLE
Presentation
This swan neck towbar, delivered
assembled, can be removed and fitted
easily. No tools are needed.

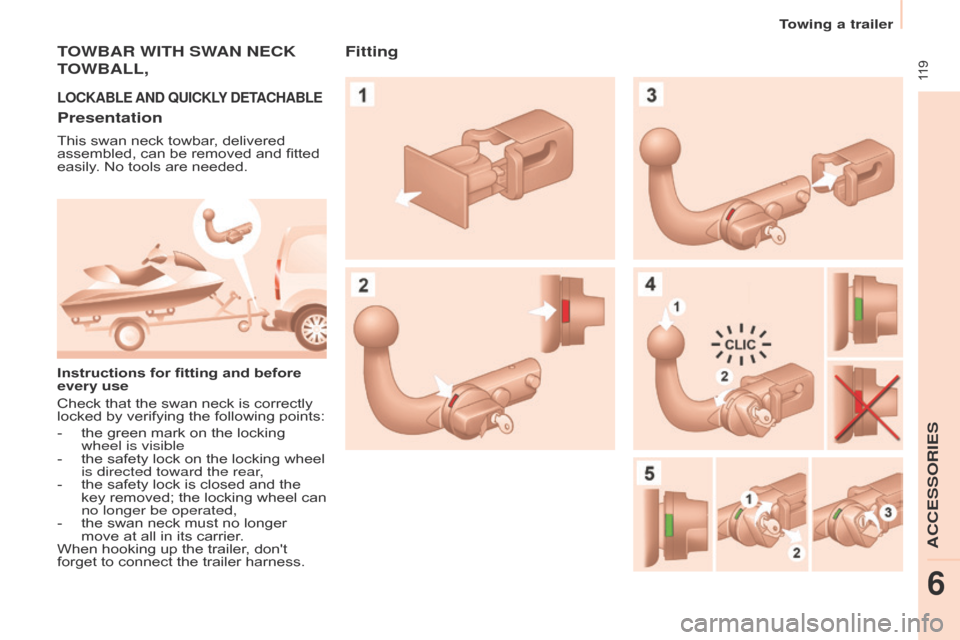

Instructions for fitting and before
every use
Check that the swan neck is correctly
locked by verifying the following points:
-

the green mark on the locking
wheel is visible
-


the safety lock on the locking wheel
is directed toward the rear

,
-

the safety lock is closed and the
key removed; the locking wheel can
no longer be operated,
-


the swan neck must no longer
move at all in its carrier

.
When hooking up the trailer, don't
forget to connect the trailer harness.
Fitting
ACCESSORIES
6

120
Towing a trailer
Berlingo-2-VU_en_Chap06_accessoire_ed02-2015

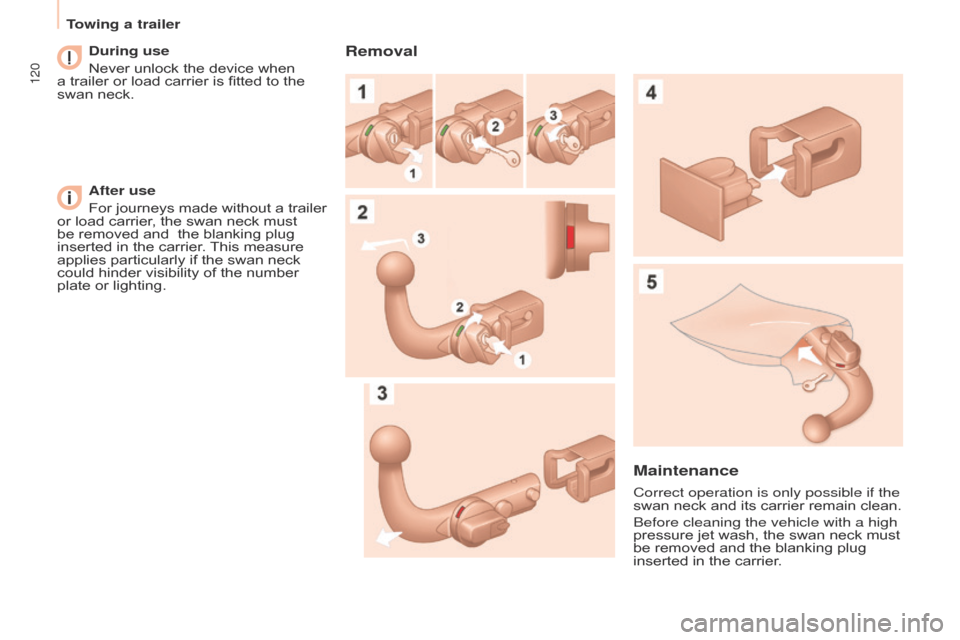

During use
Never unlock the device when
a trailer or load carrier is fitted to the
swan neck.
After use
For journeys made without a trailer
or load carrier, the swan neck must
be removed and
the blanking plug
inserted in the carrier. This measure
applies particularly if the swan neck
could hinder visibility of the number
plate or lighting.Removal
Maintenance
Correct operation is only possible if the
swan neck and its carrier remain clean.
Before cleaning the vehicle with a high
pressure jet wash, the swan neck must
be removed and the blanking plug
inserted in the carrier.

121
Berlingo-2-VU_en_Chap06_accessoire_ed02-2015Berlingo-2-VU_en_Chap06_accessoire_ed02-2015
Audio equipment, hands-free kit, speakers,
CD changer, satellite navigation system,
USB Box, video kit, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints associated with the
fitting of equipment of these families of
products mean that the special features of
the equipment and its compatibility with the
capacities of the your vehicle's standard
equipment must be taken into account.
Please contact a CITROËN dealer for more
information before fitting such equipment.
To prevent the mat from becoming
caught under the pedals:
-

ensure that the mat and its fixings
are positioned correctly

,
-

never fit one mat on top of another
.
Maximum weights on bars
-

Roof rack: 120 kg.
-


T
ransverse bars on roof: 100 kg.
-

T
ransverse bars on longitudinal
bars: 75 kg. Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with
an external aerial on your vehicle, you
are advised to contact a CITR
o Ë n
dealer.
A CITROËN dealer can inform you of
the specifications (frequency band,
maximum output power, aerial position,
specific installation conditions) of the
transmitters which can be fitted, in
accordance with the Motor Vehicle
Electromagnetic Compatibility
Directive
(2004/104/CE).
Front mud flaps, rear mud flaps,
15/17
inch alloy wheels, wheelarch
trim, leather steering wheel, ...
Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs, ...
Anti-theft alarm, window etching, first
aid kit, high visibility vest, front and
rear parking sensors, warning triangle,
security bolts for alloy wheels, ... Front seat covers compatible with
airbags, bench, rubber mats, carpet
mats, snow chains, blind, tailgate
bicycle carrier.

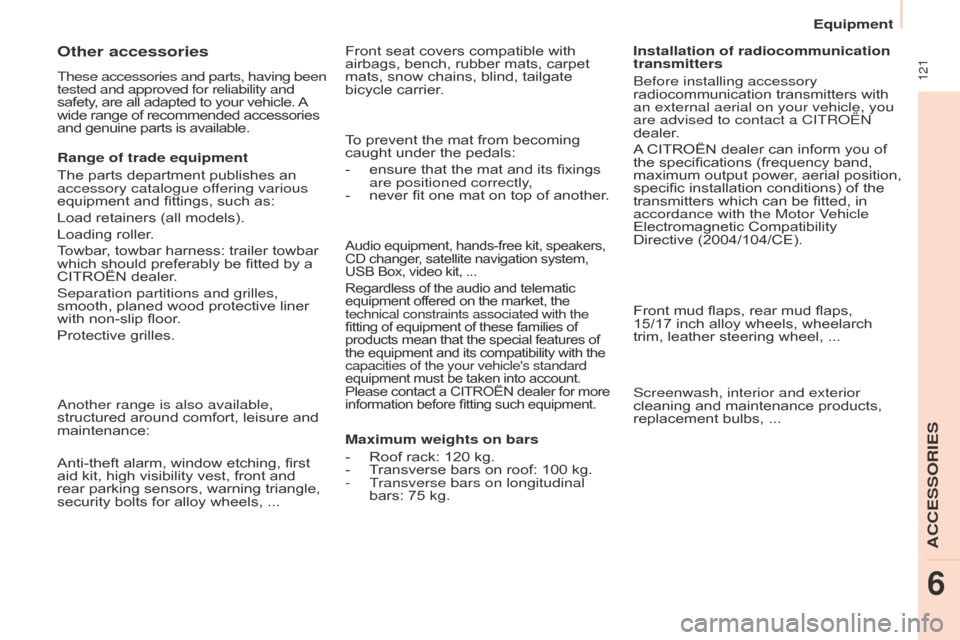

Other accessories
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle. A
wide range of recommended accessories
and genuine parts is available.
Range of trade equipment
The parts department publishes an
accessory catalogue offering various
equipment and fittings, such as:
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer towbar
which should preferably be fitted by a
CITROËN dealer.
Separation partitions and grilles,
smooth, planed wood protective liner
with non-slip floor.
Protective grilles.
a

nother range is also available,
structured around comfort, leisure and
maintenance:
aCCESSoRIES
6
Equipment

122
Berlingo-2-VU_en_Chap06_accessoire_ed02-2015Berlingo-2-VU_en_Chap06_accessoire_ed02-2015

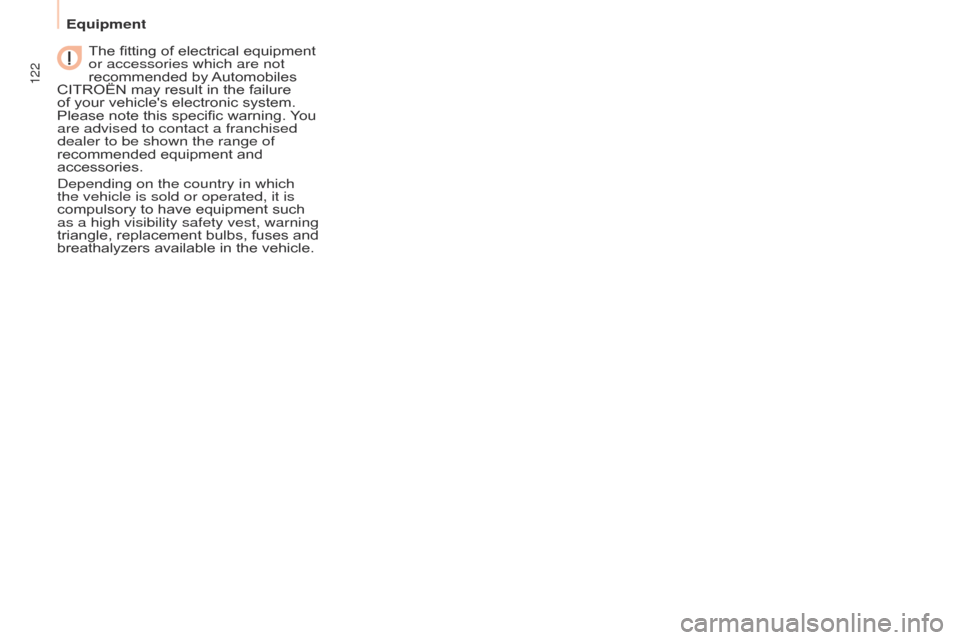

The fitting of electrical equipment
or accessories which are not
recommended by Automobiles
CITROËN may result in the failure
of your vehicle's electronic system.
Please note this specific warning. You
are advised to contact a franchised
dealer to be shown the range of
recommended equipment and
accessories.
d

epending on the country in which
the vehicle is sold or operated, it is
compulsory to have equipment such
as a high visibility safety vest, warning
triangle, replacement bulbs, fuses and
breathalyzers available in the vehicle.
Equipment

Berlingo-2-VU_en_Chap07_Verification_ed02-2015
123
TOTAL & CITROËN
Partners in performance and
protecting the environment
Innovation in the search for
performance
For over 40 year, the T
o
T
a
L Research and
Development departments have developed
for CITROËN, lubricants to match the
latest technical innovations on CITR
o Ë n
vehicles, both for competition and for
everyday motoring.
For you, this is an assurance that you will
obtain of the best performance from your
engine.
Optimum protection for your
engine
By having your CITR
o Ë n
vehicle serviced with T
o

T
a
L
lubricants, you are contributing
towards improving the life and
performance of your engine,
while also protecting the
environment.
prefers
Maintenance with TOTAL
CHECKS
7

124
Berlingo-2-VU_en_Chap07_Verification_ed02-2015

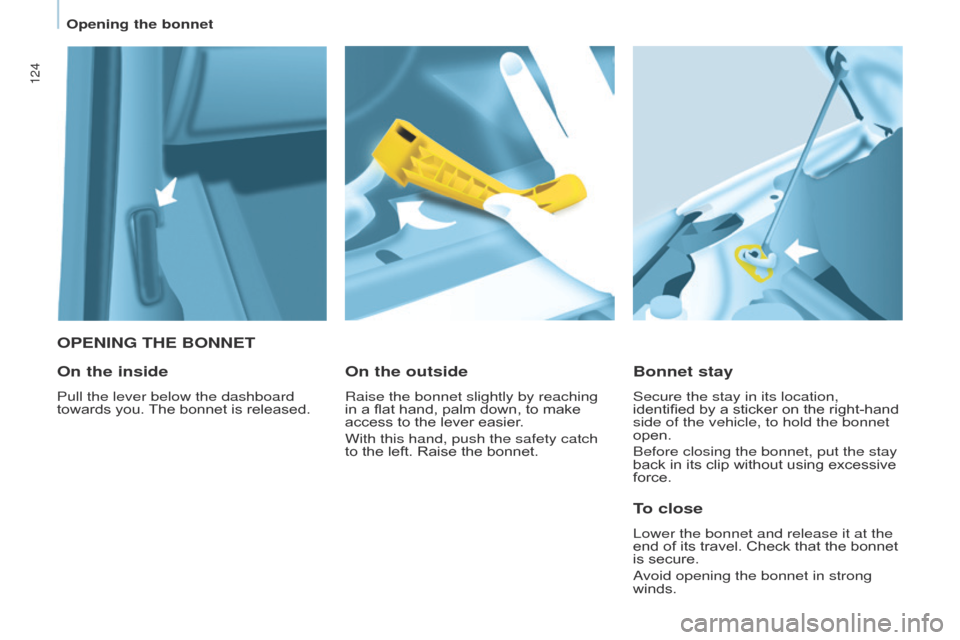

OPENING THE BONNET
Bonnet stay
Secure the stay in its location,
identified by a sticker on the right-hand
side of the vehicle, to hold the bonnet
open.
Before closing the bonnet, put the stay
back in its clip without using excessive
force.
On the outside
Raise the bonnet slightly by reaching
in a flat hand, palm down, to make
access to the lever easier.
With this hand, push the safety catch
to the left. Raise the bonnet.
On the inside
Pull the lever below the dashboard
towards you. The bonnet is released.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is secure.
avoid opening the bonnet in strong
winds.
opening the bonnet

125
Berlingo-2-VU_en_Chap07_Verification_ed02-2015Berlingo-2-VU_en_Chap07_Verification_ed02-2015

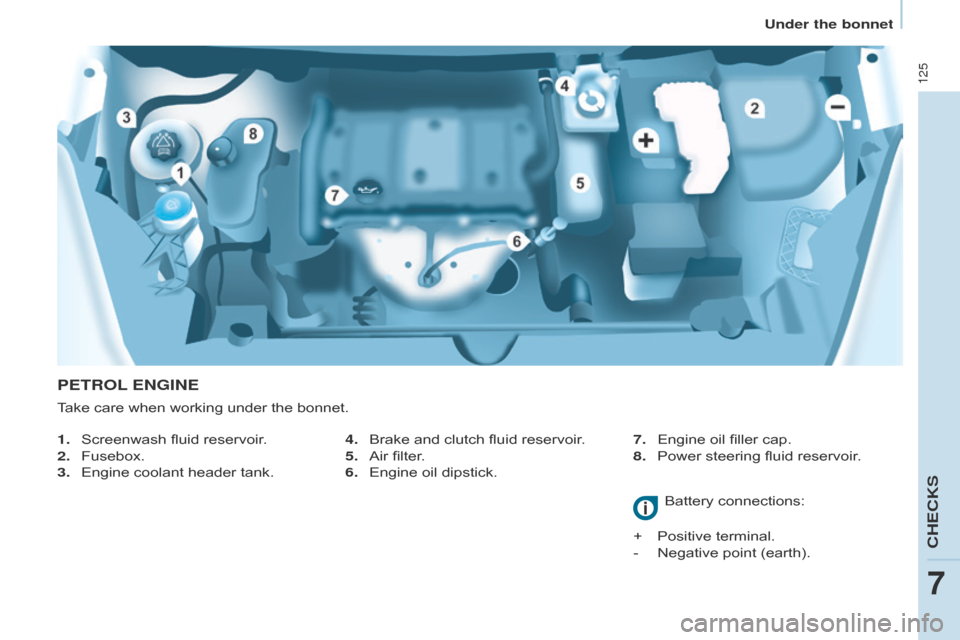

PETROL ENGINE
1. Screenwash fluid reservoir .
2.
Fusebox.
3.


Engine coolant header tank. Battery connections:
+


Positive terminal.
-


Negative point (earth).
T

ake care when working under the bonnet.
4. Brake and clutch fluid reservoir .
5.
Air filter
.
6.

Engine oil dipstick.7.

Engine oil filler cap.
8.
Power steering fluid reservoir
.
CHECkS
7
Under the bonnet

126
Berlingo-2-VU_en_Chap07_Verification_ed02-2015Berlingo-2-VU_en_Chap07_Verification_ed02-2015
DIESEL ENGINE
4. Brake and clutch fluid reservoir .
5.
Air filter
.
6.

Engine oil dipstick. 7.

Engine oil filler cap.
8.
Power steering fluid reservoir
.
9.

Priming pump.
1.

Screenwash fluid reservoir
.
2.

Fusebox.
3.


Engine coolant header tank.
Battery connections:
+


Positive terminal.
-


Negative point (earth).
T

ake care when working under the bonnet.
Under the bonnet

127
Berlingo-2-VU_en_Chap07_Verification_ed02-2015Berlingo-2-VU_en_Chap07_Verification_ed02-2015

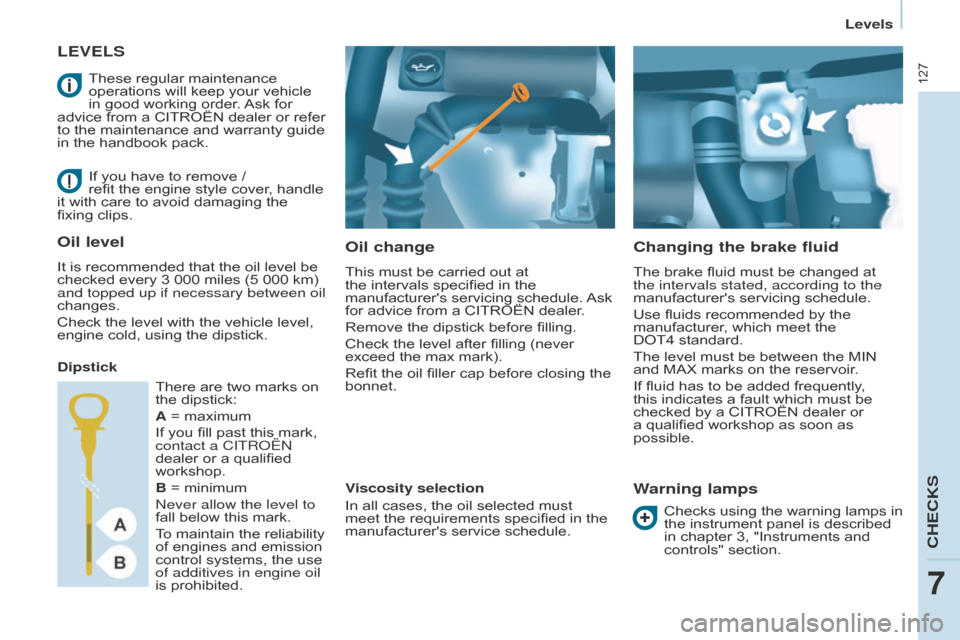

LEVELS
Oil change
This must be carried out at
the intervals specified in the
manufacturer's servicing schedule. Ask
for advice from a CITROËN dealer.
Remove the dipstick before filling.
Check the level after filling (never
exceed the max mark).
Refit the oil filler cap before closing the
bonnet.
Changing the brake fluid
The brake fluid must be changed at
the intervals stated, according to the
manufacturer's servicing schedule.
Use fluids recommended by the
manufacturer, which meet the
DOT4 standard.
The level must be between the MIN
and MAX marks on the reservoir.
If fluid has to be added frequently,
this indicates a fault which must be
checked by a CITROËN dealer or
a qualified workshop as soon as
possible.
Warning lamps
If you have to remove /
refit the engine style cover, handle
it with care to avoid damaging the
fixing clips.
Oil level
It is recommended that the oil level be
checked every 3 000 miles (5 000 km)
and topped up if necessary between oil
changes.
Check the level with the vehicle level,
engine cold, using the dipstick.
Dipstick
Viscosity selection
In all cases, the oil selected must
meet the requirements specified in the
manufacturer's service schedule.
These regular maintenance
operations will keep your vehicle
in good working order. Ask for
advice from a CITROËN dealer or refer
to the maintenance and warranty guide
in the handbook pack.
Checks using the warning lamps in
the instrument panel is described
in chapter 3, "Instruments and
controls" section.
There are two marks on
the dipstick:
A = maximum
If you fill past this mark,
contact a CITR
o Ë n
dealer or a qualified
workshop.
B = minimum
n

ever allow the level to
fall below this mark.
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited.
CHECKS
7
Levels

128
Berlingo-2-VU_en_Chap07_Verification_ed02-2015Berlingo-2-VU_en_Chap07_Verification_ed02-2015

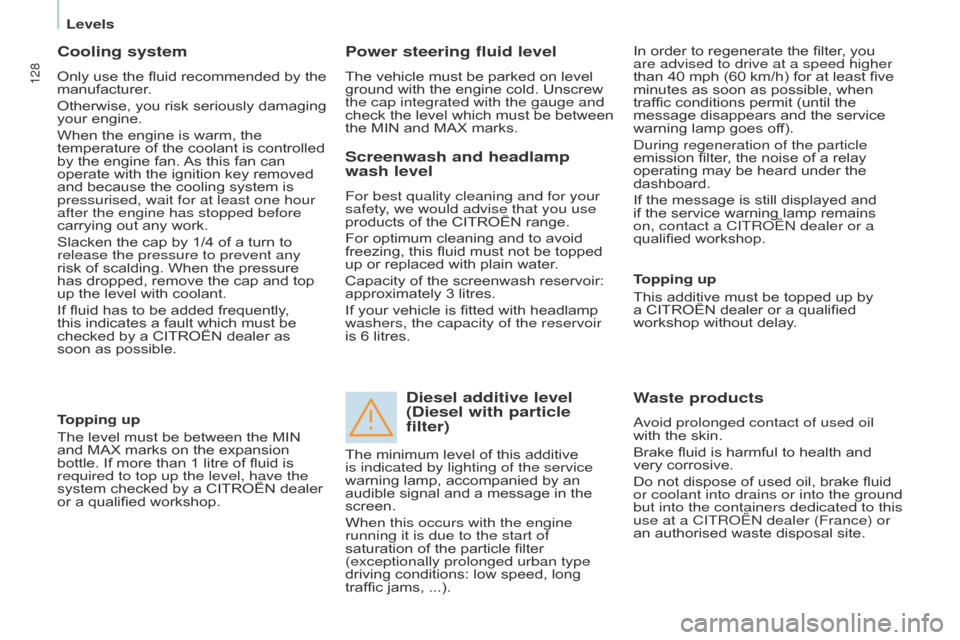

Cooling system
Only use the fluid recommended by the
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
If fluid has to be added frequently,
this indicates a fault which must be
checked by a CITROËN dealer as
soon as possible.
Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks.In order to regenerate the filter, you
are advised to drive at a speed higher
than 40 mph (60 km/h) for at least five
minutes as soon as possible, when
traffic conditions permit (until the
message disappears and the service
warning lamp goes off).
d

uring regeneration of the particle
emission filter, the noise of a relay
operating may be heard under the
dashboard.
If the message is still displayed and
if the service warning lamp remains
on, contact a CITR
o Ë n dealer or a
qualified workshop.
Topping up
The level must be between the MIN
and MAX marks on the expansion
bottle. If more than 1 litre of fluid is
required to top up the level, have the
system checked by a CITROËN dealer
or a qualified workshop.
Screenwash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the CITROËN range.
For optimum cleaning and to avoid
freezing, this fluid must not be topped
up or replaced with plain water.
Capacity of the screenwash reservoir:
approximately 3 litres.
If your vehicle is fitted with headlamp
washers, the capacity of the reservoir
is 6 litres.
Diesel additive level
(Diesel with particle
filter)
Topping up
This additive must be topped up by
a CITROËN dealer or a qualified
workshop without delay.
Waste products
avoid prolonged contact of used oil
with the skin.
Brake fluid is harmful to health and
very corrosive.
Do not dispose of used oil, brake fluid
or coolant into drains or into the ground
but into the containers dedicated to this
use at a CITR
o Ë n dealer (France) or
an authorised waste disposal site.
The minimum level of this additive
is indicated by lighting of the service
warning lamp, accompanied by an
audible signal and a message in the
screen.
When this occurs with the engine
running it is due to the start of
saturation of the particle filter
(exceptionally prolonged urban type
driving conditions: low speed, long
traffic jams, ...).
Levels
