Citroen BERLINGO RHD 2017 2.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2017, Model line: BERLINGO RHD, Model: Citroen BERLINGO RHD 2017 2.GPages: 260, PDF Size: 8.59 MB
Page 251 of 260
249
Berlingo2VU_en_Chap10b_RD45_ed02-2016

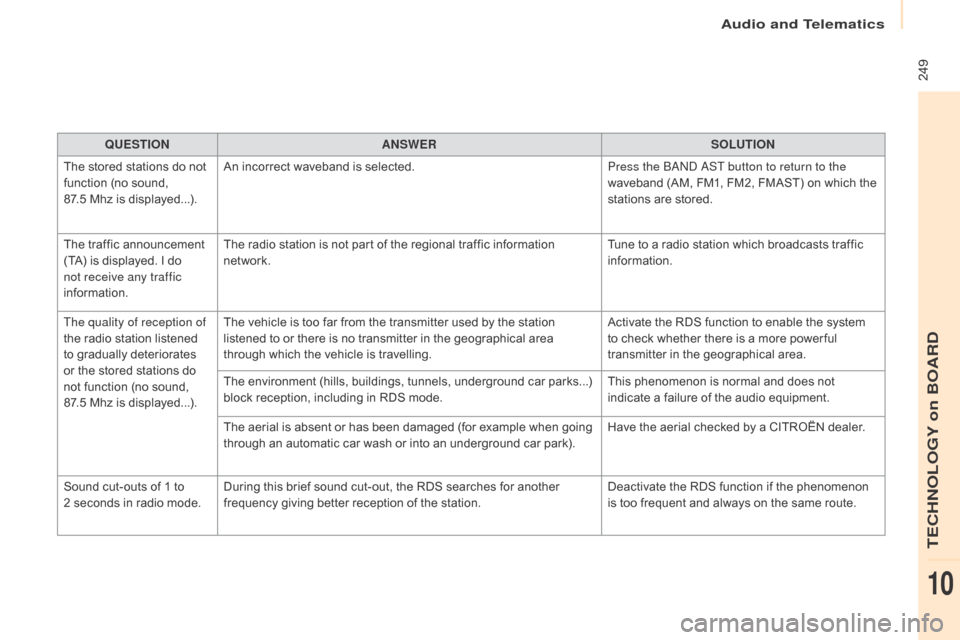

QUESTIONANSWER SOLUTION
The stored stations do not
function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information. The radio station is not part of the regional traffic information
network.
Tune to a radio station which broadcasts traffic
information.
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5
Mhz is displayed...). The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more power ful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, underground car parks...)
block reception, including in RDS mode. This phenomenon is normal and does not
indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through an automatic car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to
2
seconds in radio mode. During this brief sound cut-out, the RDS searches for another
frequency giving better reception of the station. Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
Audio and Telematics
TECHNOLOGY on BOARD
10
Page 252 of 260
250
Berlingo2VU_en_Chap10b_RD45_ed02-2016

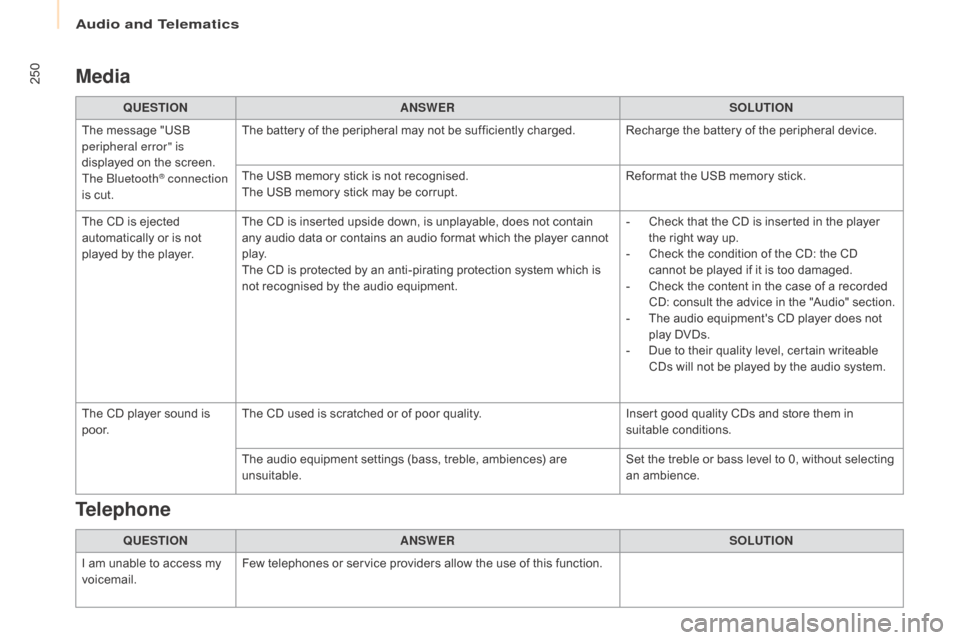

Media
QUESTIONANSWER SOLUTION
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth
® connection
is cut. The battery of the peripheral may not be sufficiently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The USB memory stick may be corrupt.
Reformat the USB memory stick.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain
any audio data or contains an audio format which the player cannot
p l ay.
The CD is protected by an anti-pirating protection system which is
not recognised by the audio equipment. -
C
heck that the CD is inserted in the player
the right way up.
-
C
heck the condition of the CD: the CD
cannot be played if it is too damaged.
-
C
heck the content in the case of a recorded
CD: consult the advice in the "Audio" section.
-
T
he audio equipment's CD player does not
play DVDs.
-
D
ue to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
p o o r. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in
suitable conditions.
The audio equipment settings (bass, treble, ambiences) are
unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
QUESTION ANSWER SOLUTION
I am unable to access my
voicemail. Few telephones or service providers allow the use of this function.
Telephone
Audio and Telematics
Page 253 of 260
251
Berlingo2VU_en_Chap10c_BTA-3R_ed02-2016

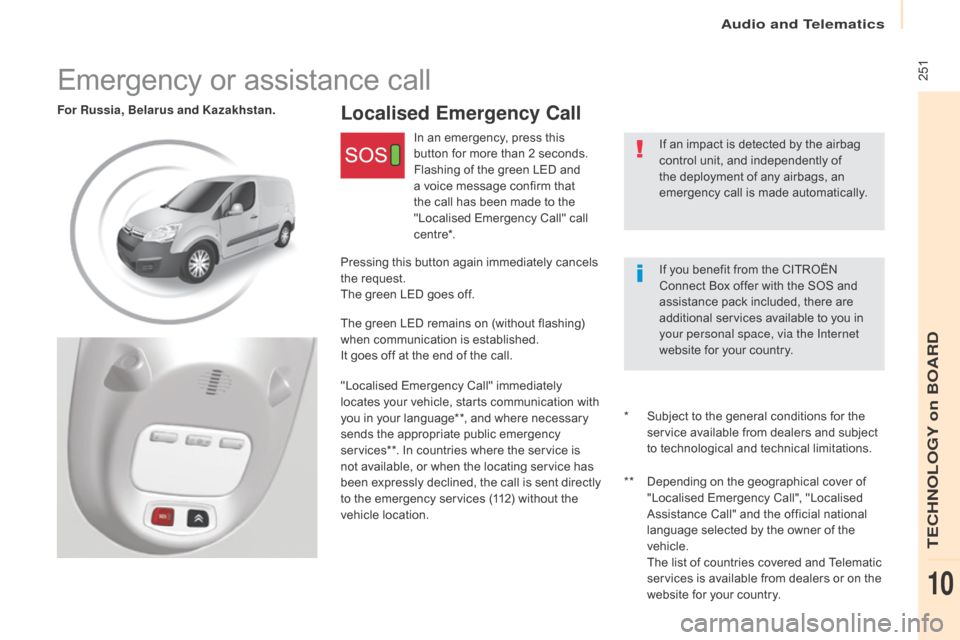

Localised Emergency CallFor Russia, Belarus and Kazakhstan.If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
If you benefit from the CITROËN
Connect Box offer with the SOS and
assistance pack included, there are
additional services available to you in
your personal space, via the Internet
website for your country.
In an emergency, press this
button for more than 2 seconds.
Flashing of the green LED and
a voice message confirm that
the call has been made to the
"Localised Emergency Call" call
c e nt re*.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call. Pressing this button again immediately cancels
the request.
The green LED goes off.
"Localised Emergency Call" immediately
locates your vehicle, starts communication with
you in your language**, and where necessary
sends the appropriate public emergency
services**. In countries where the service is
not available, or when the locating service has
been expressly declined, the call is sent directly
to the emergency services (112) without the
vehicle location. *
S
ubject to the general conditions for the
service available from dealers and subject
to technological and technical limitations.
**
D
epending on the geographical cover of
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.
T
he list of countries covered and Telematic
services is available from dealers or on the
website for your country.
Emergency or assistance call
Audio and Telematics
TECHNOLOGY on BOARD
10
Page 254 of 260
252
Berlingo2VU_en_Chap10c_BTA-3R_ed02-2016

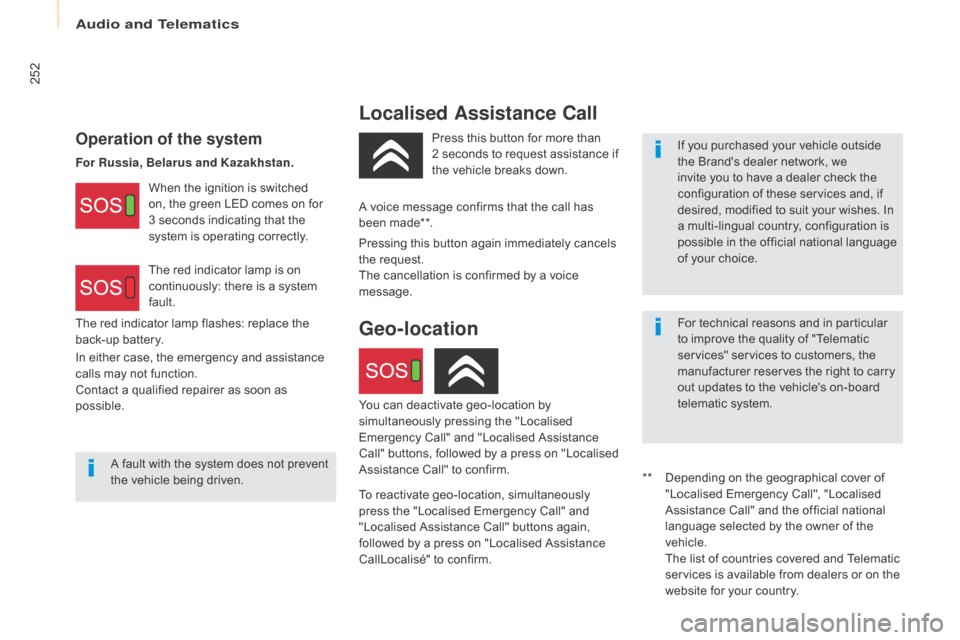

Localised Assistance Call
Operation of the systemIf you purchased your vehicle outside
the Brand's dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes. In
a multi-lingual country, configuration is
possible in the official national language
of your choice.
For technical reasons and in particular
to improve the quality of "Telematic
services" services to customers, the
manufacturer reserves the right to carry
out updates to the vehicle's on-board
telematic system.
When the ignition is switched
on, the green LED comes on for
3 seconds indicating that the
system is operating correctly.
The red indicator lamp is on
continuously: there is a system
fault.
A fault with the system does not prevent
the vehicle being driven. Press this button for more than
2
seconds to request assistance if
the vehicle breaks down.
**
D
epending on the geographical cover of
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.
T
he list of countries covered and Telematic
services is available from dealers or on the
website for your country.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.
To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
CallLocalisé" to confirm.
The red indicator lamp flashes: replace the
back-up battery.
A voice message confirms that the call has
been made**.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible. For Russia, Belarus and Kazakhstan.
Audio and Telematics
Page 255 of 260
Page 256 of 260
Page 257 of 260
Page 258 of 260
Page 259 of 260
07-16

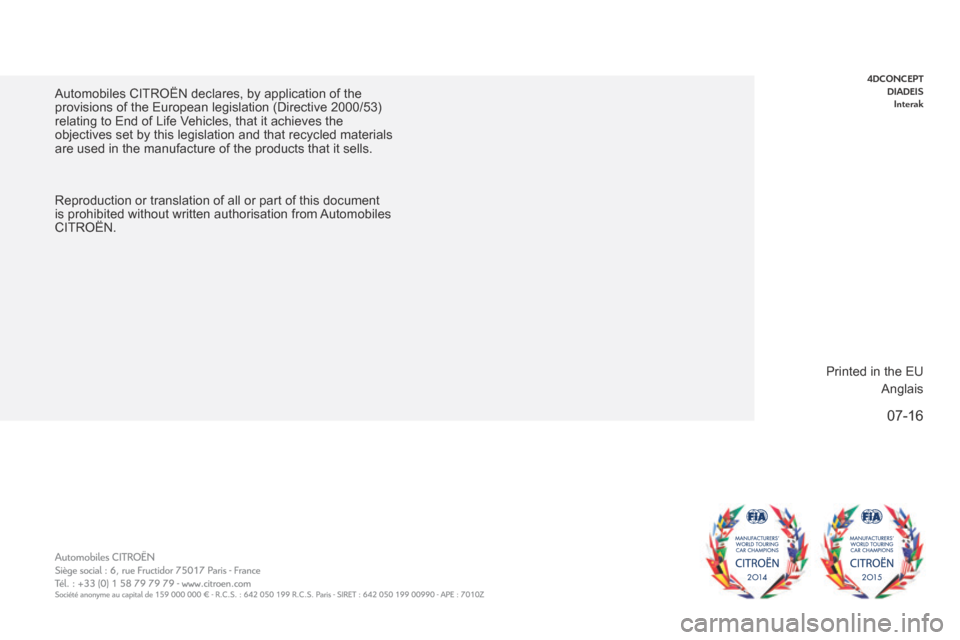

Automobiles CITROËN declares, by application of the
provisions of the European legislation (Directive 2000/53)
relating to End of Life V
ehicles, that it achieves the
objectives set by this legislation and that recycled materials
are used in the manufacture of the products that it sells.
Reproduction or translation of all or part of this document
is prohibited without written authorisation from Automobiles
CITROËN.
Printed in the EUAnglais4DconceptDia D eis
i
nterak
Page 260 of 260
Anglais
16BGO.0641*16BGO.0641*
