Page 131 of 195
1 2 4
Changing a fuse
PASSENGER COMPARTMENT FUSES
Fuses
F A m p e r e s
A A l l o c a t i o n
1 - S p a r e
2 20 H e a t e d s e a t s
3 - S p a r e
4 1 5 F o l d i n g m i r r o r s r e l a y
5 1 5 R e f r i g e r a t i o n e q u i p m e n t s o c k e t r e l a y
TOWING/TOWBAR/
COACHBUILDERS/
PLATFORM CAB FUSES
T h e d e s i g n a t i o n s c o m m u n i c a t e d a r e
a n i n d i c a t i o n o n l y a s t h i s a d d i t i o n a l
b o x r e l a t e s t o o t h e r i n f o r m a t i o n w h i c h
d e p e n d s o n t h e m o d i fi e r - c o a c h b u i l d e r
f o r w h i c h t h e h a n d b o o k c a n n o t b e
u s e d a s a t e c h n i c a l s u p p o r t . Fuses
F A m p e r e s
A A l l o c a t i o n
1 1 5 S p a r e
2 1 5 I g n i t i o n , g e n e r a t o r o p e r a t i n g r e l a y
3 1 5 T r a i l e r 1 2 V s u p p l y
4 1 5 P e r m a n e n t s u p p l y f o r t h e m o d i fi e r s
5 40 H a z a r d w a r n i n g l a m p s
Page 132 of 195
1 2 5
QUICK HELP
7
Changing a fuse
FUSES UNDER THE BONNET
A f t e r o p e n i n g t h e b o n n e t , u n c l i p a n d t i l t
t h e b o x t o g a i n a c c e s s t o t h e f u s e s . Fuses
F A m p e r e s
A A l l o c a t i o n
1 20 E n g i n e m a n a g e m e n t
2 1 5 H o r n
3 1 0 F r o n t a n d r e a r s c r e e n w a s h p u m p
4 20 H e a d l a m p w a s h p u m p
5 1 5 E n g i n e c o m p o n e n t s
6 1 0 S t e e r i n g w h e e l a n g l e s e n s o r , E S P
7 1 0 B r a k e s w i t c h , c l u t c h s w i t c h
8 25 S t a r t e r
9 1 0 H e a d l a m p b e a m m o t o r , p a r c m a n a g e m e n t
u n i t
1 0 30 E n g i n e c o m p o n e n t s
1 1 40 S p a r e
1 2 30 Wipers
1 3 40 B u i l t - i n s y s t e m s i n t e r f a c e
1 4 30 P u m p
1 5 1 0 R i g h t - h a n d m a i n b e a m h e a d l a m p
1 6 1 0 L e f t - h a n d m a i n b e a m h e a d l a m p
1 7 1 5 R i g h t - h a n d d i p p e d b e a m h e a d l a m p
1 8 1 5 L e f t - h a n d d i p p e d b e a m h e a d l a m p
Page 133 of 195
1 2 6
Changing a wiper blade
Placing the wiper blades in the
special position
- L e s s t h a n a m i n u t e a f t e r s w i t c h i n g o f f t h e i g n i t i o n , p r e s s t h e w i p e r s
s t a l k d o w n w a r d s t o p o s i t i o n t h e
w i p e r b l a d e s a l o n g t h e w i n d s c r e e n
u p r i g h t s ( s p e c i a l p o s i t i o n ) . Changing a front wiper blade
- L i f t t h e w i p e r a r m .
- U n c l i p t h e b l a d e a n d r e m o v e i t .
- F i t t h e n e w b l a d e .
- P u s h b a c k t h e w i p e r a r m .
T o r e t u r n t h e w i n d s c r e e n w i p e r s t o t h e i r
n o r m a l p o s i t i o n , s w i t c h o n t h e i g n i t i o n
a n d o p e r a t e t h e w i p e r s s t a l k . Changing the rear wiper blade
- L i f t t h e w i p e r a r m , t h e n u n c l i p t h e
b l a d e a n d r e m o v e i t .
- F i t t h e n e w b l a d e a n d p u s h b a c k t h e w i p e r a r m .
CHANGING A WINDSCREEN WIPER BLADE
Page 134 of 195
1 2 7
QUICK HELP
7
Having your vehicle towed
Without lifting
(4 wheels on the road)
Y o u s h o u l d a l w a y s u s e a t o w b a r .
BEING TOWED From the front
- U n c l i p t h e c o v e r b y p r e s s i n g t h e b o t t o m p a r t .
- S c r e w i n t h e r e m o v a b l e t o w i n g e y e u n t i l i t l o c k s .
From the rear
- U n c l i p t h e c o v e r u s i n g a c o i n o r t h e fl a t p a r t o f t h e t o w i n g e y e ,
- S c r e w i n t h e r e m o v a b l e t o w i n g e y e u n t i l i t l o c k s . W h e n t o w i n g w i t h t h e e n g i n e
s w i t c h e d o f f , t h e r e i s n o b r a k i n g o r
s t e e r i n g a s s i s t a n c e .
Lifting
(2 wheels on the road only)
I t i s p r e f e r a b l e t o r a i s e t h e v e h i c l e
u s i n g p r o f e s s i o n a l l i f t i n g e q u i p m e n t .
T h e t o w i n g e y e i s s t o r e d i n t h e t o o l k i t ,
l o c a t e d u n d e r t h e r i g h t - h a n d s e a t .
Vehicles fitted with a manual
gearbox (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
b e i n t h e n e u t r a l p o s i t i o n , f a i l u r e t o
o b s e r v e t h i s s p e c i a l c o n d i t i o n m a y
r e s u l t i n d a m a g e t o c e r t a i n b r a k i n g
c o m p o n e n t s a n d t h e a b s e n c e o f
b r a k i n g a s s i s t a n c e w h e n t h e e n g i n e i s
s t a r t e d a g a i n .
Page 135 of 195
1 2 8
Dimensions
Page 136 of 195
1 2 9
Dimensions
TECHNICAL DATA
8
VAN (mm)
S h o r t - L 1 L o n g - L 2
625 850 750
L O v e r a l l l e n g t h 4 380 4 628
H O v e r a l l h e i g h t 1 8 0 5 - 1 8 3 4
A W h e e l b a s e 2 728
B F r o n t o v e r h a n g 925
C R e a r o v e r h a n g 727 975
D W i d t h o v e r p a n e l s : w i t h o u t m i r r o r s
1 8 1 0
w i t h m i r r o r s 2 1 1 2
E W i d t h o f f r o n t t r a c k s 1 5 0 5
F W i d t h o f r e a r t r a c k s 1 5 5 4
G U s e f u l l e n g t h o f r e a r fl o o r 1 8 0 0 2 050
I U s e f u l l e n g t h w i t h f r o n t p a s s e n g e r s e a t
f o l d e d 3 000 3 250 DIMENSIONS DIMENSIONS
T h e v e h i c l e i s a v a i l a b l e i n 2 l e n g t h s ( L 1 a n d L 2 ) ,
r e f e r t o t h e t a b l e s :
Page 137 of 195
1 3 0
Dimensions
REAR DOORS (mm)
L 1 - 6 2 5 L 1 - 8 5 0 L2
M M a x i m u m t h r e s h o l d w i t h 1 9 5 / 6 5 R 1 5 t y r e 584 609 6 1 2
H i n g e d d o o r s T a i l g a t e
S m a l l L a r g e
N U s e f u l o p e n i n g h e i g h t ( u n d e r p a n e l ) 1 1 4 8 1 3 1 3
O W i d t h 495 543 1 5 8 2
Page 138 of 195
Dimensions
TECHNICAL DATA
8

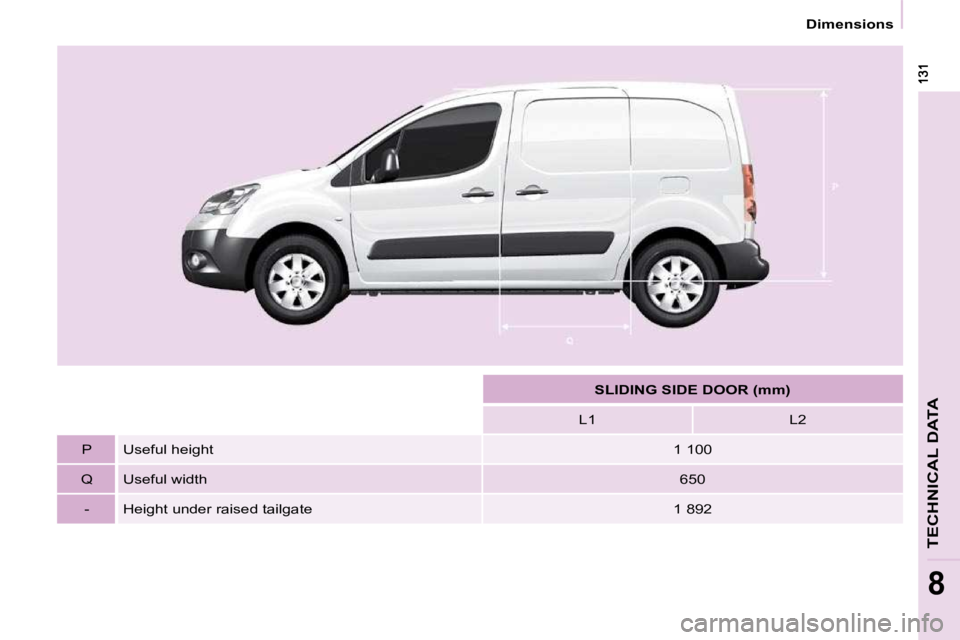

SLIDING SIDE DOOR (mm)
L 1 L2
P U s e f u l h e i g h t 1 1 0 0
Q U s e f u l w i d t h 650
- H e i g h t u n d e r r a i s e d t a i l g a t e 1 8 9 2
Page 139 of 195
1 3 2
Dimensions

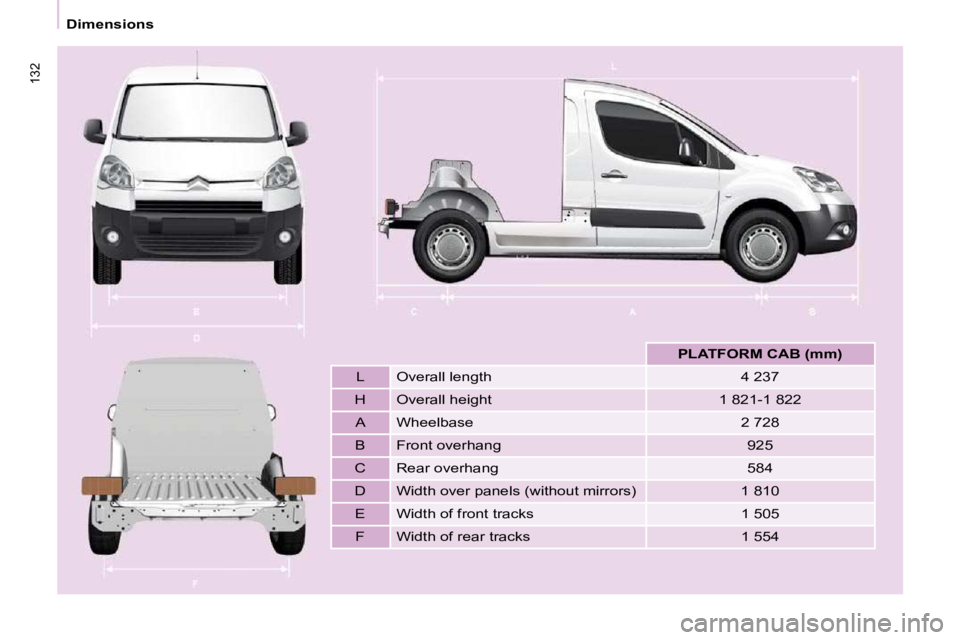

PLATFORM CAB (mm)
L O v e r a l l l e n g t h 4 237
H O v e r a l l h e i g h t 1 8 2 1 - 1 8 2 2
A W h e e l b a s e 2 728
B F r o n t o v e r h a n g 925
C R e a r o v e r h a n g 584
D W i d t h o v e r p a n e l s ( w i t h o u t m i r r o r s ) 1 8 1 0
E W i d t h o f f r o n t t r a c k s 1 5 0 5
F W i d t h o f r e a r t r a c k s 1 5 5 4
Page 140 of 195
1 3 3
TECHNICAL DATA
8
Masses
WEIGHTS AND TOWED LOADS (KG)
General points T h e G T W a n d t o w e d l o a d v a l u e s
i n d i c a t e d a r e v a l i d u p t o a m a x i m u m
a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d
l o a d m e n t i o n e d m u s t b e r e d u c e d b y
1 0 % f o r e a c h a d d i t i o n a l 1 0 0 0 m e t r e s .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t
e x c e e d 5 0 m p h ( 8 0 k m / h ) ( c o m p l y w i t h
t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
T h e b r a k e d t o w e d w e i g h t w i t h l o a d
t r a n s f e r c a n b e i n c r e a s e d o n c o n d i t i o n
t h a t t h e e q u i v a l e n t o f t h i s l o a d i s
r e m o v e d f r o m t h e v e h i c l e s o t h a t t h e
G T W i s n o t e x c e e d e d . W a r n i n g : t o w i n g
u s i n g a l i g h t l y l o a d e d t o w i n g v e h i c l e
m a y h a v e a n a d v e r s e e f f e c t o n i t s r o a d
h o l d i n g . H i g h a m b i e n t t e m p e r a t u r e s m a y r e s u l t
i n a r e d u c t i o n i n t h e p e r f o r m a n c e
o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e
e n g i n e ; w h e n t h e a m b i e n t t e m p e r a t u r e
i s h i g h e r t h a n 3 7 ° C , l i m i t t h e t o w e d
w e i g h t .
T h e k e r b w e i g h t i s e q u a l t o t h e w e i g h t
w i t h o u t l o a d + d r i v e r ( 7 5 k g ) + f u e l t a n k
fi l l e d t o 9 0 % .
F o r m o r e i n f o r m a t i o n , r e f e r t o y o u r
r e g i s t r a t i o n c e r t i fi c a t e .
I n e a c h c o u n t r y , i t i s i m p e r a t i v e t h a t
t h e t o w e d l o a d s a u t h o r i s e d b y l o c a l
l e g i s l a t i o n a r e c o m p l i e d w i t h . T o fi n d
o u t y o u r v e h i c l e ' s t o w i n g c a p a c i t i e s
a n d i t s g r o s s t r a i n w e i g h t , c o n s u l t a
C I T R O Ë N d e a l e r .
