glove box CITROEN BERLINGO VAN 2022 Owners Manual

4
Overview
Presentation
Presentation
These illustrations and descriptions are intended
as a guide. The presence and location of some
components varies according to the version, trim
level and country of sale.
Instruments and controls



1. Bonnet release
2. Dashboard fuses
3. Horn
4. Instrument panel
5. Alarm
Courtesy lamp
Emergency or assistance call
Interior rear view mirror or Surround Rear
Vision reproduction screen (Citroën Berlingo
Van)
Monitoring mirror (Citroën Berlingo)
Warning lamps display for seat belts and
front passenger airbag (Citroën Berlingo)
Panoramic roof blind control (Citroën
Berlingo)
6. Touch screen BLUETOOTH audio system
Touch screen with CITROËN Connect Radio
or CITROËN Connect Nav
7. USB socket
8. Heating/Air conditioning
Front demisting – de-icing
Rear screen demisting – de-icing
9. Electric parking brake
"START/STOP" button
10. Gearbox (Petrol or Diesel)
Drive selector
11 . 12
V socket
12. 230
V accessory socket
13. Glove box
14. Storage compartment
Glove box 15.
Front passenger airbag deactivation (on the
side of the glove box, with the door open)
Steering-mounted controls
1.External lighting/direction indicators control
stalk
Surround Rear Vision view change button
(Citroën Berlingo Van)
Voice recognition activation button
2. Wiper/screenwash/trip computer control stalk
3. Controls to select the multimedia source
(SRC), manage music (LIST) and manage
phone calls (" telephone" symbol)
4. Speed Limiter/Programmable Cruise Control/
Adaptive cruise control controls
5. Instrument panel display mode selection
wheel
6. Voice control
Volume adjustment
7. Audio system setting controls

72
Ease of use and comfort

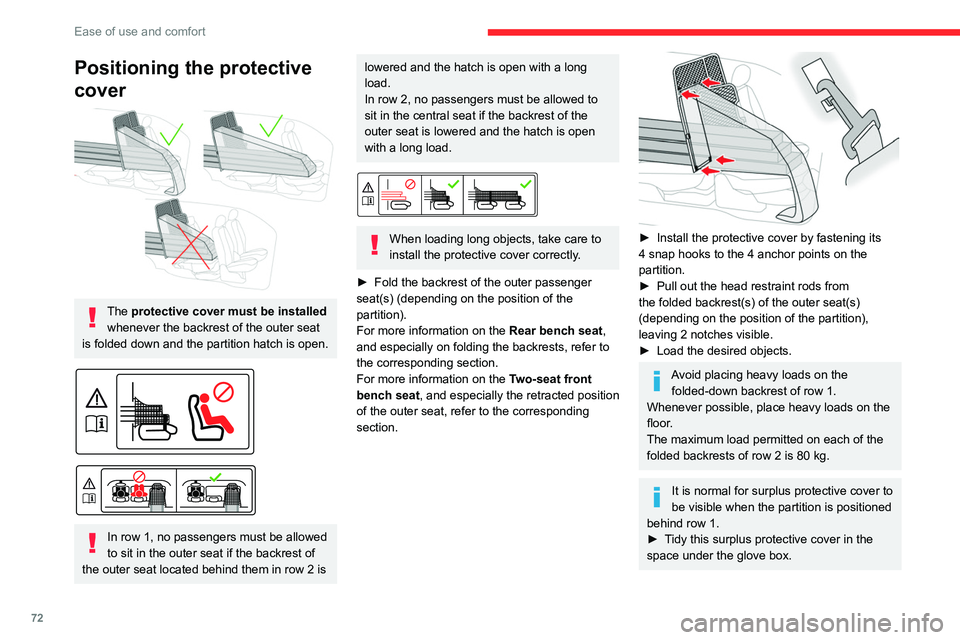

Positioning the protective
cover


The protective cover must be installed whenever the backrest of the outer seat
is folded down and the partition hatch is open.




In row 1, no passengers must be allowed
to sit in the outer seat if the backrest of
the outer seat located behind them in row 2 is
lowered and the hatch is open with a long
load.
In row 2, no passengers must be allowed to
sit in the central seat if the backrest of the
outer seat is lowered and the hatch is open
with a long load.


When loading long objects, take care to
install the protective cover correctly.
►

Fold the backrest of the outer passenger
seat(s) (depending on the position of the
partition).
For more information on the Rear bench seat,
and especially on folding the backrests, refer to
the corresponding section.
For more information on the T

wo-seat front
bench seat, and especially the retracted position
of the outer seat, refer to the corresponding
section.


► Install the protective cover by fastening its
4 snap hooks to the 4 anchor points on the
partition.
►

Pull out the head restraint rods from
the folded backrest(s) of the outer seat(s)
(depending on the position of the partition),
leaving 2 notches visible.
►


Load the desired objects.
Avoid placing heavy loads on the folded-down backrest of row 1.
Whenever possible, place heavy loads on the
floor.
The maximum load permitted on each of the
folded backrests of row 2 is 80
kg.
It is normal for surplus protective cover to
be visible when the partition is positioned
behind row 1.
►

T

idy this surplus protective cover in the
space under the glove box.

290

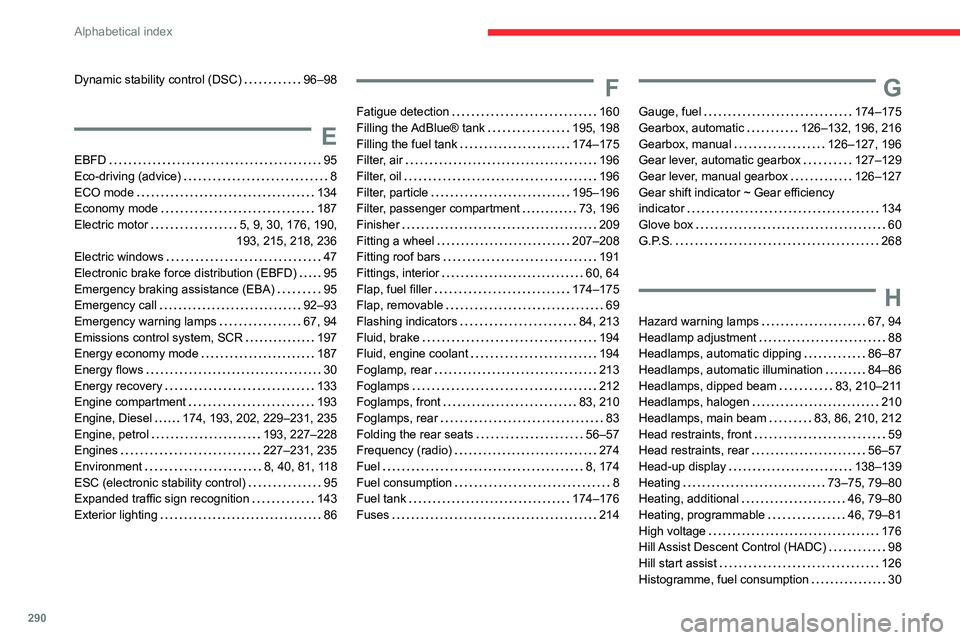

Alphabetical index
Dynamic stability control (DSC) 96–98
E
EBFD 95
Eco-driving (advice)
8
ECO mode

134
Economy mode

187
Electric motor

5, 9, 30, 176, 190,
193, 215, 218, 236
Electric windows

47
Electronic brake force distribution (EBFD)

95
Emergency braking assistance (EBA)

95
Emergency call

92–93
Emergency warning lamps

67, 94
Emissions control system, SCR

197
Energy economy mode

187
Energy flows

30
Energy recovery

133
Engine compartment

193
Engine, Diesel

174, 193, 202, 229–231, 235
Engine, petrol

193, 227–228
Engines

227–231, 235
Environment

8, 40, 81, 118
ESC (electronic stability control)

95
Expanded traffic sign recognition

143
Exterior lighting

86
F
Fatigue detection 160
Filling the AdBlue® tank
195, 198
Filling the fuel tank

174–175
Filter, air

196
Filter, oil

196
Filter, particle

195–196
Filter, passenger compartment

73, 196
Finisher

209
Fitting a wheel

207–208
Fitting roof bars

191
Fittings, interior

60, 64
Flap, fuel filler

174–175
Flap, removable

69
Flashing indicators

84, 213
Fluid, brake

194
Fluid, engine coolant

194
Foglamp, rear

213
Foglamps

212
Foglamps, front

83, 210
Foglamps, rear

83
Folding the rear seats

56–57
Frequency (radio)

274
Fuel

8, 174
Fuel consumption

8
Fuel tank

174–176
Fuses

214
G
Gauge, fuel 174–175
Gearbox, automatic
126–132, 196, 216
Gearbox, manual

126–127, 196
Gear lever, automatic gearbox

127–129
Gear lever, manual gearbox

126–127
Gear shift indicator ~ Gear efficiency
indicator

134
Glove box

60
G.P.S.

268
H
Hazard warning lamps 67, 94
Headlamp adjustment
88
Headlamps, automatic dipping

86–87
Headlamps, automatic illumination

84–86
Headlamps, dipped beam

83, 210–211
Headlamps, halogen

210
Headlamps, main beam

83, 86, 210, 212
Head restraints, front

59
Head restraints, rear

56–57
Head-up display

138–139
Heating

73–75, 79–80
Heating, additional

46, 79–80
Heating, programmable

46, 79–81
High voltage

176
Hill Assist Descent Control (HADC)

98
Hill start assist

126
Histogramme, fuel consumption

30
