glove box Citroen C CROSSER 2008 1.G Owner's Manual

C O M F O R T
II
63
Upper glove box with
air conditioning
Storage box
Press the front part of the lid to open.
To close, fold down the lid until it locks. Press button
A on the lid to open it.
To close it, push the lid up.
It is fi tted with a ventilation nozzle which
can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment.
Spectacles storage
Press the cover to open it.
To close it, push the cover until it locks.

C O M F O R T
II
64

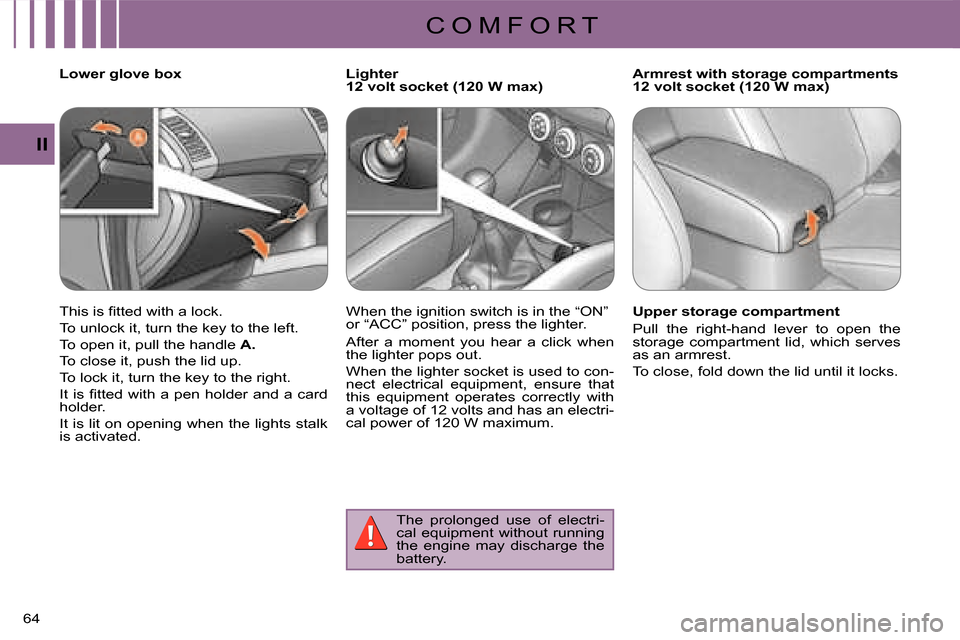

Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle A .
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is lit on opening when the lights stalk
is activated. Lighter
12 volt socket (120 W max)
When the ignition switch is in the “ON”
or “ACC” position, press the lighter.
After a moment you hear a click when
the lighter pops out.
When the lighter socket is used to con-
nect electrical equipment, ensure that
this equipment operates correctly with
a voltage of 12 volts and has an electri-
cal power of 120 W maximum.
The prolonged use of electri-
cal equipment without running
the engine may discharge the
battery. Armrest with storage compartments
12 volt socket (120 W max)
Upper storage compartment
Pull the right-hand lever to open the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks.

P R A C T I C A L I N F O R M A T I O N
137

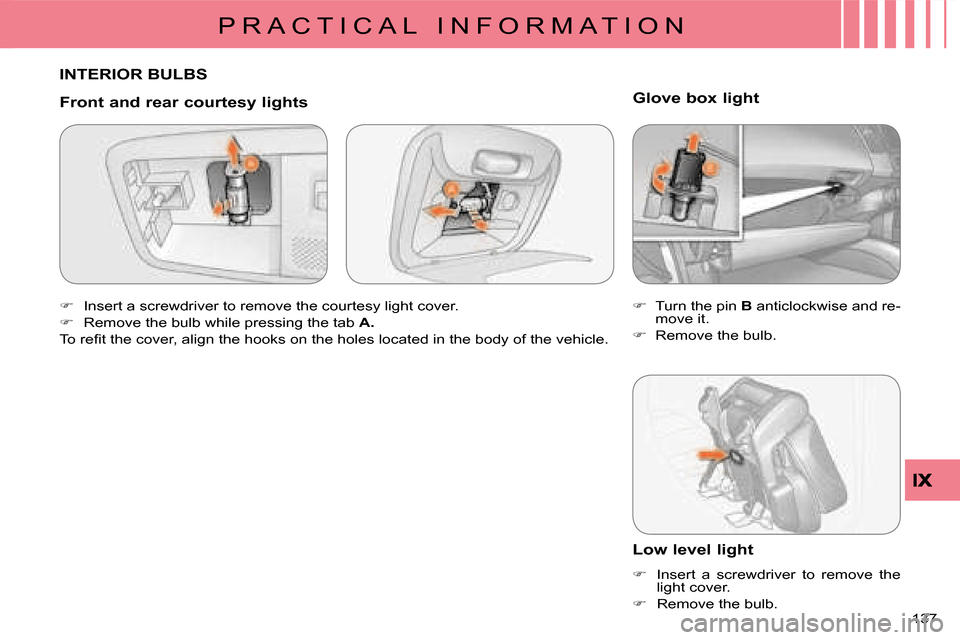

INTERIOR BULBS
Front and rear courtesy lights

 Insert a screwdriver to remove the courtesy light cover.

 Remove the bulb while pressing the tab A .
To refi t the cover, align the hooks on the holes located in the body of the vehicle. Glove box light

 Turn the pin B anticlockwise and re-
move it.

 Remove the bulb.
Low level light

 Insert a screwdriver to remove the
light cover.

 Remove the bulb.
