I N S T R U M E N T S a n d C O N T R O L S
I
19

1. Speedometer.

2. Left-hand direction indicator and
hazard warning lights indicator
light.

3. Main beam headlamps indicator
light.

4. Diesel pre-heating indicator light.

5. Side lights indicator light.

6. Front fog lamps indicator light.

7. Seat belt not fastened / unfastened
warning light.
DIESEL MANUAL GEARBOX INSTRUMENT PANEL

18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.

8. Rear fog lamps indicator light.

9. Anti-lock braking system (ABS)
warning light.

10. Battery charge fault warning light.

11. Handbrake applied and brake fl uid
level warning light.

12. Cruise control mode indicator light.

13. Air bags warning light.

14. Engine management warning light.

15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator
light.

16. Rev counter.

17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).

I N S T R U M E N T S a n d C O N T R O L S
I
24
Warning messages (ignition at “ON”)
Message is on
Associated
warning light
Cause Solution - action Observations
ABS
Fixed
Anti-lock braking
system (ABS)
fault. Consult a CITROËN
dealer. The vehicle retains
conventional braking
without assistance
but you are advised
to stop.
Braking
system Fixed
and The level of
brake fl uid in the
reservoir is too
low.
Stop and top up,
otherwise contact a
CITROËN dealer. If the message
remains on after
topping up, contact a
CITROËN dealer.
Braking system
fault. Consult a CITROËN
dealer.
It is essential
to stop.
Handbrake on
Fixed
You have moved
off with the
handbrake still
applied.
Release the handbrake.

Coolant
temperature Flashing -
High engine
temperature. If the message
fl ashes ,
wait for the engine to
cool before topping up
the level, if necessary.
It is essential to
stop your vehicle in
a safe place.
Flashing If the message
fl ashes
and the service
warning light comes
on , contact a CITROËN
dealer without delay.
Seat belt
Fixed
The driver has
not fastened or
has unfastened
his seat belt.
Fasten your seat belt. An intermittent
audible signal is
heard above 5 mph
(8 km/h).

I N S T R U M E N T S a n d C O N T R O L S
I
25

Message is on Cause Solution - action Observations
Air bags
Fixed
Fault in the
air bags or
pretensioners. Consult a CITROËN
dealer.

Service
Fixed - Problem in one
of the systems
which does not
have a specifi c
message. Stop the vehicle and
contact a CITROËN
dealer.
To identify the problem,
contact a CITROËN
dealer.
Engine oil
pressure Fixed
- Engine oil
pressure too low
or fault in the oil
circuit. Stop the vehicle and
contact a CITROËN
dealer.

Engine oil
level Fixed
- Engine oil level
too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of oil,
top up the level.
Fuel level
warning Fixed
- The fuel tank
level is low. Fill your fuel tank as
soon as possible.

Fuel circuit
Fixed - Fuel circuit fault. Consult a CITROËN
dealer.

Accesses
not closed correctly Fixed
- One of the doors
or the tailgate
is not closed
correctly. Close the door or the
tailgate.
The access concerned
is indicated on the
display.

I N S T R U M E N T S a n d C O N T R O L S
I
28
Prevention messages
Information messages (ignition at “ON”)

Message is on Status of the system
2WD two wheel
drive system Flashing When the “2WD” (2 wheel drive) mode is selected using the
transmission mode selector.
4WD four wheel
drive system Flashing When the “4WD” (4 wheel drive) mode is selected using the
transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the “LOCK” (4 wheel drive) mode is selected using the
transmission mode selector.
Dynamic stability
control system (ASC) Fixed
When the dynamic stability control system (ASC) is active.
Exterior
temperature Fixed This indicates the exterior temperature.
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not correspond to the
exterior temperature.

Display is on Cause Solution - action Observations
Service
indicator Fixed Informs the driver of
the time remaining
before the vehicle’s
scheduled service. Consult a
CITROËN dealer.
This is displayed for a few
seconds when the ignition is
switched on.
Break
advised Fixed Informs the driver that
he should stop to take
a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard every
5 minutes until the vehicle stops.

I N S T R U M E N T S a n d C O N T R O L S
I
29
The total distance is
displayed in zone 1
of the display and the
trip distance in zone 2
(refer to the “Distance
recorders” section).
Distance recorder (A and B)
INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
Data displays
With the ignition on, press the
INFO
button, located on the fascia to the
right of the instrument panel, to display
the various information displays in
succession:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu. This displays the dis-
tance and the number
of months remaining be-
fore the next service to
be carried out in accord-
ance with the manufac-
turer’s servicing sched-
ule (refer to the “Service
indicator” section).
Service indicator
When the engine is
running, this indicates
the temperature of the
coolant (refer to the
“Coolant temperature
indicator” section).
Coolant temperature
When the engine is run-
ning, this indicates the
number of miles (kilome-
tres) which can still be
travelled with the fuel re-
maining in the tank in re-
lation to the average con-
sumption over the last
few miles (kilometres)
travelled (refer to the “Range” section).
Range
This indicates the aver-
age consumption, the
average speed and the
current consumption (re-
fer to the “Trip computer”
section).
Trip computer

When the vehicle is
stationary , this allows
the user to change the
following parameters
(refer to the “Function
parameters” section):
- the display language,
- the temperature dis- play unit,
- the fuel consumption unit,
- the option to reinitialise the aver- age consumption and the average
speed,
- the break (rest) reminder display in- terval.
Setting menu

I N S T R U M E N T S a n d C O N T R O L S
I
30
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .
DISTANCE RECORDERS (A / B)
System for measuring the total distance
travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO

button for more than 2 seconds until
zeros appear. When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to
the
critical position
located on the right, the
temperature is too high.
The symbol fl ashes when your engine
is overheating.

It is imperative that you stop your
vehicle safely.

Wait a few minutes before switching
off the engine.
Wait for the engine to cool
before topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped,
remove the cap and top up the level, if
necessary.
Consult a CITROËN dealer. This fi gure may increase following a
change in the style of driving or the
relief, resulting in a reduction in the
current consumption.
If you only add a few litres, the
value displayed will be incorrect.
Therefore, you must fi ll the tank
whenever possible.
When you disconnect
the battery, the previous
consumption data is lost and
the value displayed will be different
from that displayed before the battery
was disconnected. The distance
displayed must be considered an
approximate indication.

I N S T R U M E N T S a n d C O N T R O L S
I
31
SERVICE INDICATOR Resetting the service indicator
to zero
Your CITROËN dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service yourself, the zero reset
procedure is the following:

 switch off the ignition.

 press the INFO button several times
in succession until the service indi-
cator is displayed.

 press and hold the INFO button for
a few seconds until the spanner
fl ashes .

 press the INFO button while the
spanner is fl ashing to change the
display “---” to “CLEAR” then the
time remaining before the next serv-
ice is due is displayed.
Service overdue
Operation
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
certain time, the displaying of “---”
is reinitialised and the display
indicates the time remaining before
the next service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer’s servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles
(km)),
- the time elapsed since the last serv- ice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user’s driving habits.
Example: the display indicates that
7300 miles (kilometres) remain before
the next service is due.
The symbol “---” remains displayed
until the fi rst service of a new vehicle
has been carried out.

Example: the display indicates that the
service is overdue. This service must
be carried out by a CITROËN dealer.
Each time the ignition is switched on,
the display
“PERIODIC INSPECTION”
is displayed for a few seconds to
indicate that the service must be carried
out without delay.

C H E C K S
VIII
122
Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warn-
ing light, accompanied by an audible
signal and a message on the multifunc-
tion display.
Topping up
It is imperative that this additive is
topped up by a CITROËN dealer with-
out delay.
Used products CHECKS
Battery Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the “Practical information” sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (e.g. dusty atmosphere) and the
use of the vehicle (e.g. city driving), re-
place them twice as often if necessary
(refer to the “Engines” paragraph).
A clogged passenger compartment fi l-
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a CITROËN dealer.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance of the vehicle or on the
environment.
Avoid any prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corrosive.
Do not discard used oil or fl uids into
sewers or onto the ground.
Empty used oil into the containers
provided for this purpose in the
CITROËN network. Do not discard the oil fi lter through
public channels, deposit it in the con-
tainers dedicated to this use in the
CITROËN network.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
CITROËN dealer.

C H E C K S
VIII
122
Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warn-
ing light, accompanied by an audible
signal and a message on the multifunc-
tion display.
Topping up
It is imperative that this additive is
topped up by a CITROËN dealer with-
out delay.
Used products CHECKS
Battery Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the “Practical information” sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (e.g. dusty atmosphere) and the
use of the vehicle (e.g. city driving), re-
place them twice as often if necessary
(refer to the “Engines” paragraph).
A clogged passenger compartment fi l-
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a CITROËN dealer.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance of the vehicle or on the
environment.
Avoid any prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corrosive.
Do not discard used oil or fl uids into
sewers or onto the ground.
Empty used oil into the containers
provided for this purpose in the
CITROËN network. Do not discard the oil fi lter through
public channels, deposit it in the con-
tainers dedicated to this use in the
CITROËN network.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
CITROËN dealer.

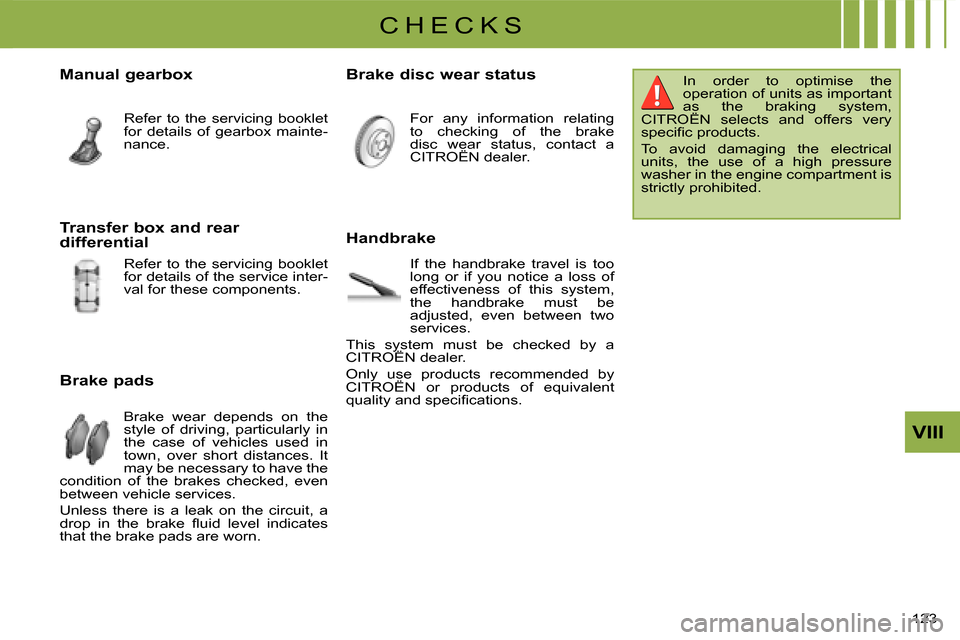

C H E C K S
VIII
123
Manual gearbox Refer to the servicing booklet
for details of gearbox mainte-
nance.
Brake pads Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn. Brake disc wear status
For any information relating
to checking of the brake
disc wear status, contact a
CITROËN dealer.
Handbrake If the handbrake travel is too
long or if you notice a loss of
effectiveness of this system,
the handbrake must be
adjusted, even between two
services.
This system must be checked by a
CITROËN dealer.
Only use products recommended by
CITROËN or products of equivalent
quality and specifi cations. In order to optimise the
operation of units as important
as the braking system,
CITROËN selects and offers very
specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment is
strictly prohibited.
Transfer box and rear
differential Refer to the servicing booklet
for details of the service inter-
val for these components.
