Page 6 of 230
9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment controls.
2. Telephone controls.
3. Steering wheel adjustment control.
4. Front and rear wipers/wash-wipe
control.
5. Instrument panel.
6. Driver’s air bag.
Horn.
7. Cruise control switches.
8. Gear lever.
9. Handbrake.
10. B o n n e t r e l e a s e .
11. Enclosed storage compartment.
12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
assistance.
13. Cup holder.
14. Side adjustable and closing vent.
15. Information button.
16. Window de-icing and demisting
vent.
17. Windscreen de-icing vent.
Page 7 of 230
10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Exterior mirror controls.
Electric window and rear electric window deactivation controls.
3. Lights and direction indicators controls.Headlamp wash control.
4. Central adjustable and closing vents.
5. Sunshine sensor.
6. Upper glove box with air conditioning.
7. Lower glove box with lock. Passenger air bag disarming.
Fuse box.
8. Heated seat controls.
9. Armrest with storage compartments.
12 volt socket (120 W max).
10. Cup holder.
11. Four wheel drive system position selector.
12. Removable ashtray/
12 volt socket (120 W max).
13. Automatic air conditioning controls.
14. Temperature sensor.
15. Hazard warning lights switch.
16. Colour display/Audio equipment.
Page 16 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
19
DIESEL MANUAL GEARBOX INSTRUMENT PANEL - TYPE 1
1. Speedometer.
2. Left-hand direction indicator and
hazard warning lights indicator
light.
3. Main beam headlamps indicator
light.
4. Diesel pre-heating indicator light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Seat belt not fastened/unfastened
warning light.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)
warning light.
10. Battery charge fault warning light.
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Cruise control mode indicator light.
13. Air bags warning light.
14. Engine management warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Rev counter.
17. Fascia lighting rheostat.
18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.
Page 17 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
20
DIESEL MANUAL GEARBOX INSTRUMENT PANEL - TYPE 2
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
1. Rev counter.
2. Battery charge fault warning light.
3. Main beam headlamps indicator
light.
4. Left-hand direction indicator and
hazard warning lights indicator
light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Directional lighting off indicator light
(AFS OFF).
8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)
warning light.
10. Dynamic stability control warning
light (ASC).
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Engine management warning light.
13. Cruise control mode indicator light.
14. Seat belt not fastened/unfastened
warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Air bags warning light.
17. Speedometer.
18. Fascia lighting rheostat.
19. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.
20. Diesel preheating warning light.
Page 18 of 230
I
21
INSTRUMENT PANEL INDICATOR LIGHTS
Indicator light is on Cause Actions/
Observations
Left-hand direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
press the lights stalk
down. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Right-hand direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
push the lights stalk up. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Main beam headlamps Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights Fixed This comes on when
the lights stalk is in the
"Side lights" or "Dipped
headlamps" position. T u r n t h e s t a l k t o t h e p o s i t i o n r e q u i r e d .
Front fog lamps Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog lamps Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.
Page 24 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
27
Message is on Cause Solution - action Observations
Dynamic stability control
system (ASC) Fixed
Dynamic stability control system
(ASC) fault. Consult a CITROËN
dealer.
Four wheel
drive system Fixed Four wheel drive transmission
system fault. Consult a CITROËN
dealer.
Four wheel
drive system temperature Fixed The temperature of the four
wheel drive transmission
system is too high. Stop the vehicle and
contact a CITROËN
dealer. The vehicle switches
to front wheel
drive (2 WD) mode
automatically.
Automatic headlamp
adjustment system Fixed
The automatic headlamp
adjustment is faulty. Consult a CITROËN
dealer. O n l y o n v e h i c l e fi t t e d
with xenon bulbs.
Battery charge Fixed Battery charge fault. Stop the vehicle and
contact a CITROËN
dealer.
Exterior
temperature Fixed The exterior temperature 3 °C
(37 °F) or below. Road icy.
Pay attention and
drive slowly. Caution: The road
may be icy even
when this screen is
not displayed.
Page 92 of 230
IV
V I S I B I L I T Y
86
LIGHTS STALK
Additional lighting
O t h e r l i g h t s a r e i n s t a l l e d t o f u l fi l t h e r e -
q u i r e m e n t s o f p a r t i c u l a r d r i v i n g c o n d i -
tions:
- r e a r f o g l a m p s t o b e s e e n f r o m a distance,
-
f r o n t f o g l a m p s f o r e v e n b e t t e r v i s i b i l i t y,
- d a y t i m e l i g h t s t o b e s e e n d u r i n g t h e d a y . Certain functions of the lights stalk
( a u t o m a t i c l i g h t i n g , s e n s i t i v i t y ) c a n
b e c o n fi g u r e d v i a t h e c o l o u r d i s p l a y
" E q u i p m e n t " m e n u . Manual controls
The lighting commands are issued
d i r e c t l y b y t h e d r i v e r b y m e a n s o f t h e
ring
A and the stalk B . lamps off,
automatic lighting,
s i d e l a m p s o n l y ,
B.
S t a l k f o r s w i t c h i n g h e a d l a m p s b y
pulling: dipped headlamps/main
b e a m h e a d l a m p s .
In the lamps off and sidelamps modes,
t h e d r i v e r c a n s w i t c h o n t h e m a i n b e a m
h e a d l a m p s t e m p o r a r i l y ( " h e a d l a m p
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e s t a l k .
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the selective switching on of the lighting
s e l e c t e d .
A. Main lighting mode selection ring,
with:
dipped headlamps or main
b e a m h e a d l a m p s .
Main lighting
The various front and rear lights of the
vehicle are designed to adapt the driver's
v i s i b i l i t y p r o g r e s s i v e l y i n r e l a t i o n t o t h e
climatic conditions:
- s i d e l i g h t s , t o b e s e e n ,
- d i p p e d h e a d l a m p s t o s e e w i t h o u t dazzling other drivers,
- m a i n b e a m h e a d l a m p s t o s e e c l e a r l y w h e n t h e r o a d i s c l e a r .
Page 96 of 230
IV
V I S I B I L I T Y
89

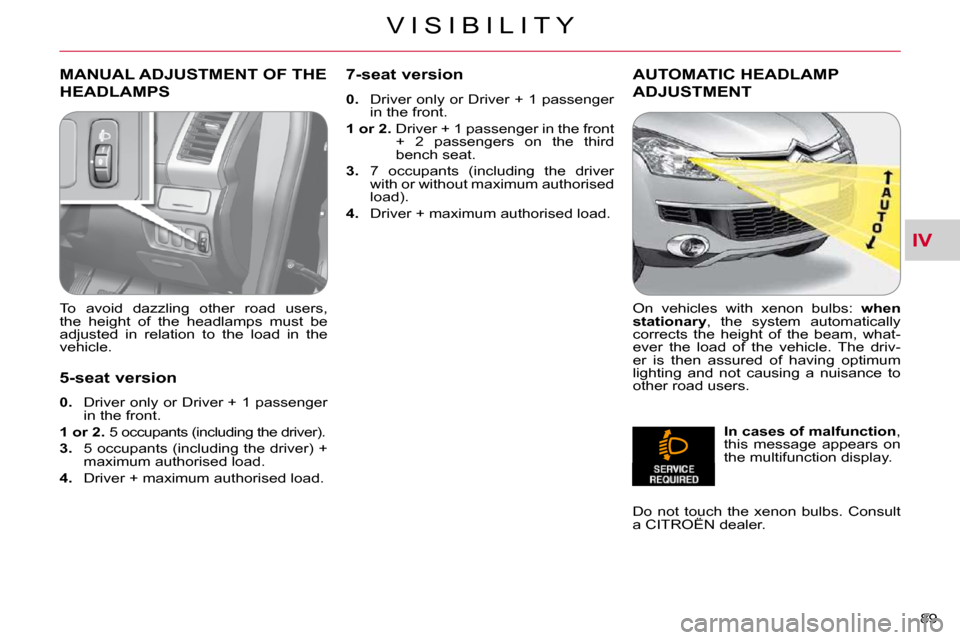

MANUAL ADJUSTMENT OF THE
HEADLAMPS
To avoid dazzling other road users,
t h e h e i g h t o f t h e h e a d l a m p s m u s t b e
adjusted in relation to the load in the
v e h i c l e .
AUTOMATIC HEADLAMP
ADJUSTMENT
O n v e h i c l e s w i t h x e n o n b u l b s : when
stationary , t h e s y s t e m a u t o m a t i c a l l y
c o r r e c t s t h e h e i g h t o f t h e b e a m , w h a t -
e v e r t h e l o a d o f t h e v e h i c l e . T h e d r i v -
er is then assured of having optimum
lighting and not causing a nuisance to
o t h e r r o a d u s e r s .
In cases of malfunction ,
this message appears on
t h e m u l t i f u n c t i o n d i s p l a y .
7-seat version
0. D r i v e r o n l y o r D r i v e r + 1 p a s s e n g e r
i n t h e f r o n t .
1 or 2. D r i v e r + 1 p a s s e n g e r i n t h e f r o n t
+ 2 p a s s e n g e r s o n t h e t h i r d
b e n c h s e a t .
3. 7 occupants (including the driver
with or without maximum authorised
l o a d ) .
4. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
5-seat version
0. D r i v e r o n l y o r D r i v e r + 1 p a s s e n g e r
i n t h e f r o n t .
1 or 2. 5 o c c u p a n t s ( i n c l u d i n g t h e d r i v e r ) .
3.
5 o c c u p a n t s ( i n c l u d i n g t h e d r i v e r ) +
m a x i m u m a u t h o r i s e d l o a d .
4.
D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
D o n o t t o u c h t h e x e n o n b u l b s . C o n s u l t
a C I T R O Ë N d e a l e r .
Page 135 of 230
VIII
128
PETROL ENGINE
1. Wash-wipe and headlamp wash
reservoir.
2. Coolant reservoir.
3. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. "CVT" gearbox gauge.
8. Radiator cap.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. A i r fi l t e r .
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a
n d r e p l a c e c e r t a i n c o m p o n e n t s .
Page 136 of 230
VIII
129
DIESEL ENGINE
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a n d r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
3. Wash-wipe and headlamp wash
reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. Dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. A i r fi l t e r .
