Page 151 of 217
X
T E C H N I C A L D A T A
155
ENGINES AND GEARBOXES
Model codes
VUSFY0 -
VVSFY0
VUSFY9 -
VVSFY9
V
U4HK8 -
VV4HK8
VU4HK8
VU4HK8/1P
VV4HK8
VV4HK8/
1P
Engine
2.4 litre 16V 2.2 litre HDI PEF 16V
Cubic capacity (cc) 2 360 2 179
Bore x stroke (mm) 88 x 97 85 x 96
EU standard maximum power (kW) 125 115
Max power engine speed (rpm) 6 000 4 000
EU standard max torque (Nm) 232 380
Max torque engine speed (rpm) 4 100 2 000
Fuel Unleaded Diesel
Catalytic converter yes yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) no yes
Gearbox Manual
(5-speed) CVT
(6-speed) Manual
(6-speed) DCS
(6-speed)
Oil capacity (in litres)
Engine - 5.25
Page 152 of 217
X
T E C H N I C A L D A T A
156
WEIGHTS AND TOWED LOADS (IN KG)
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing cap acities of the vehicle on a 12 % gradient.
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; reduce
the towed weight by 450 kg when your altitude increases by 1 000 m.
Engines
2.4 litre 16V 2.2 litre HDI PEF 16V
Gearbox
Manual
(5-speed)
CVT
(6-speed)
Manual
(6-speed)
DCS
(6-speed)
Model codes VUSFY0 VVSFY0 VUSFY9 VVSFY9 VU4HK8 VV4HK8
VU4HK8
VU4HK8/
1P
VV4HK8
VV4HK8/
1P
Version 5 seats 7 seats 5 seats 7 seats 5 seats 7 seats 5 seats 7 seats
Page 153 of 217
X
T E C H N I C A L D A T A
157
DIMENSIONS (IN MM)
Page 154 of 217
X
T E C H N I C A L D A T A
158

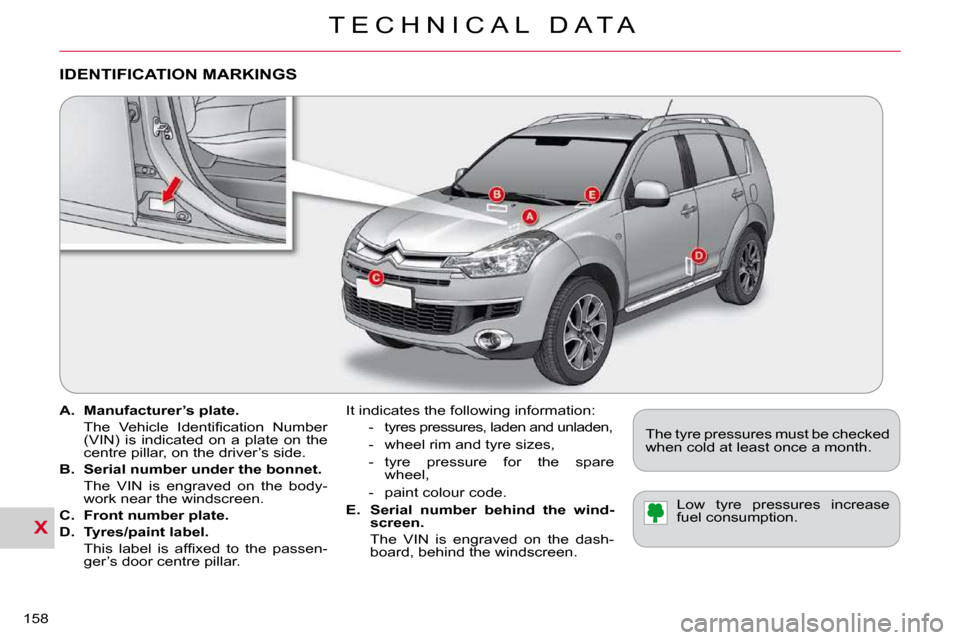

A. Manufacturer’s plate.
T h e V e h i c l e I d e n t i fi c a t i o n N u m b e r (VIN) is indicated on a plate on the
centre pillar, on the driver’s side.
B. Serial number under the bonnet.
The VIN is engraved on the body- work near the windscreen.
C. Front number plate.
D. Tyres/paint label.
T h i s l a b e l i s a f fi x e d t o t h e p a s s e n - ger’s door centre pillar. It indicates the following information:
-
tyres pressures, laden and unladen,
- wheel rim and tyre sizes,
- tyre pressure for the spare wheel,
- paint colour code.
E. Serial number behind the wind-
screen.
The VIN is engraved on the dash- board, behind the windscreen.
IDENTIFICATION MARKINGS
The tyre pressures must be checked
when cold at least once a month.
Low tyre pressures increase
fuel consumption.
Page 155 of 217
XI
160
A U D I O a n d T E L E M A T I C S
Audio
system
On/Off.
Decrease
/
Increase
volume.
Selection of
CD/
Changer mode.
Automatic search for a
lower radio frequency
.
Search for the previous
track.
Selection and
adjustment
of
audio
settings
(BASS,
TREBLE, ...).
Manual search for a lower
or higher radio frequency/ PTY.
Functions setting mode
(AF, REG, TP, SCV, ...).
Search for the previous or
next MP3 folder.
Eject
one or more CDs.
CD slot.
Load
one or more discs.
AUDIO CD SYSTEM
Selection of
radio mode.
Selection of
waveband
(FM, MW, LW).
Automatic station storing
(autostore).
Automatic search for a
higher radio frequency.
Search for the next track.
Page 156 of 217
XI
161
A U D I O a n d T E L E M A T I C S
Scroll
information by page.
Display
CD-Text/MP3/
Tag ID3 information.
Repeat (track/
MP3 folder/disc).
Manual storing and
recall
of
radio stations/
PTY (12 to 17).
Random play (tracks/
MP3 folder/disc).
Multifunction
screen
.
Fast backwards play.
Fast forwards play.
S e a r c h f o r T P t r a f fi c
information.
Activation/Deactivation of
PTY.
Play
the beginning of each
track (MP3 folder/disc).
Selection of
the previous disc.
Selection of the next disc.
Page 157 of 217
XI
162
A U D I O a n d T E L E M A T I C S
STEERING MOUNTED CONTROLS
1. On/Off and selection of
radio or
CD mode
2. Volume decrease
3. Volume increase
4.
Search for a higher radio frequency/
Next track/Fast forwards play
5.
Search for a lower radio frequency/
Previous track/Fast backwards play
Switching off
Press button 1 for more than two seconds.
Selecting the source
Press button 1 .
The source changes in the following order: FM1/FM2/FM3/MW/LW/CD/FM1... Searching in radio mode
Press button
4 or 5 to search for a
higher or lower radio frequency respec-
tively.
Searching in CD mode
Press button 4 or 5 to select the next or
previous track on the CD respectively.
Press and hold button 4 or 5 for fast for-
wards or fast backwards playing of the
current track of the CD respectively.
Switching on
Press button
1 for more than two seconds.
The last source selected before switching
off comes back into operation.
Adjusting the volume
Press and hold button 2 or 3 to decrease
or increase the volume respectively. While a track is being played, press
button
5 once to return to the beginning
of this track.
They can be used when the ignition
switch is in the "ON" or "ACC" position.
Page 158 of 217
XI
163
A U D I O a n d T E L E M A T I C S
GENERAL FUNCTIONS
Switching on
Press the "PWR" button.
The last source selected be-
fore switching off resumes
operation.
Adjusting the volume
Turn the "VOL" dial respec-
tively to the left to decrease
the volume or to the right to
increase it.
Switching off
Press the "PWR" button again.
Setting the audio modes
Press the "SOUND" but-
ton several times; the audio
modes change in the follow-
ing order:
SUB PUNCH/TYPE/FIELD/
BASS/MID/TREBLE/FADER/
BALANCE/OFF.
Quick access mode
To access the personalised sound func-
tions quickly, press and hold this button,
then turn it to reach the personalised
sound setting of your choice.
Release the button to store the setting.
"Hold" mode
If you press this button for more than
2 seconds in the audio setting mode,
the system switches to "Hold" mode.
The audio mode selected will be re-
tained until you press this button again
for more than 2 seconds.
Selecting the musical ambience "TYPE"
Turn the "SOUND" dial; the
musical ambiences change
in the following order:
CLASSIC/JAZZ/POP/ROCK/
HIP-HOP.
Once the ambience has been selected,
p r e s s t h e " S O U N D " b u t t o n t o c o n fi r m .
"CLASSIC": optimises the acoustics to
obtain perfect equalisation of the sound
for classical music.
"JAZZ": optimises the acoustics to ob-
t a i n a n a m b i e n t s o u n d w i t h s p e c i fi c
modulations in the bass, mid tone and
treble for jazz.
"POP": optimises the acoustics to ob-
tain clear vocals and modulation of the
bass and treble for pop music.
"ROCK": optimises the acoustics to ob-
tain a sound in harmony with the rhythm
which places the emphasis on the mid
tone for rock music.
"HIP-HOP": optimises the acoustics to
obtain a powerful sound and accentua-
tion of the bass for hip-hop music.
If the "TYPE" is changed, the sound
c u t s o u t b r i e fl y .
The audio setting mode is deactivat-
ed when the radio is operated or a
CD is played or after approximately
10 seconds without any action.
The audio equipment functions can be
used when the ignition switch is in the
"ON" or "ACC" position.
Page 159 of 217
XI
164
A U D I O a n d T E L E M A T I C S
Selecting the surround effect "FIELD"
Turn the "SOUND" dial; the
surround effects change in
the following order:
NORMAL/STAGE/LIVE/HALL.
"NORMAL": produces a sound in which
the voices are at the front and the in-
struments surround the listener.
"STAGE": produces a sound in which
the voices are immediately facing the
listener, as on a stage.
"LIVE": produces a sound similar to
that of a live show, in which the sound
reaches the listener from all directions.
"HALL": produces a sound similar to
t h a t o f a c o n c e r t h a l l w i t h d e fl e c t i o n o f
the sound.
Setting the bass "BASS"
Turn the "SOUND" dial to
set the required bass value.
Setting the mid tone "MID"
Turn the "SOUND" dial to set the
required mid tone value.
Setting the treble "TREBLE"
Turn the "SOUND" dial to set the re-
quired treble value.
Setting the front/rear sound distribution "FADER"
Turn the "SOUND" dial to set the bal-
ance of the volume of the front and rear
speakers.
Setting the right/left sound distribution "BALANCE"
Turn the "SOUND" dial to set the bal-
ance of the volume of the right and left
speakers.
If the "FIELD" is changed, the sound
c u t s o u t b r i e fl y . If the value "0" is set, an audible signal
will be heard.
Automatic volume adjustment "SCV"
This permits automatic adjustment of
the "VOLUME", "BASS", "MID" and
"TREBLE" settings in relation to the
vehicle speed.
Press the "SOUND" button
for more than two seconds to
gain access to the functions
setting mode.
Then, press this same button
several times; the functions
setting mode changes in the following
order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "SOUND" dial respectively to
the left to deactivate the function or to
the right to activate it. If the "SUB PUNCH" is changed, the
s o u n d c u t s o u t b r i e fl y .
Setting the volume of the bass unit "SUB PUNCH"
Turn the "SOUND" dial to set the vol-
ume of the bass unit.
O n l y v e h i c l e s fi t t e d w i t h t h e " P r e m i u m
Sound" system can offer the "SUB
PUNCH" setting.
Once the surround effect has been se-
lected, press the "SOUND" button to
c o n fi r m .
Page 160 of 217
XI
165
A U D I O a n d T E L E M A T I C S
RADIO
Selecting radio mode
Press the "PWR" button
or the "AM/FM" button to
switch on the radio. Disconnecting the battery terminals
clears the stored radio stations.
Selecting the waveband
Press the "AM/FM" button
several times in succession
to select the waveband; it
changes in the following
order: FM1/FM2/FM3/MW/
LW/FM1...
Automatic station search
Press the "SEEK " or
"SEEK " button to search
the lower frequencies or the
higher frequencies respec-
tively.
Manual station search
Turn the "TUNE" dial re-
spectively to the left to
search the lower frequen-
cies or to the right to search
the higher frequencies.
Manual station storing
Press one of the six buttons "1" to "6"
until an audible signal is heard.
The sound cuts out then becomes au-
dible again when the station has been
stored.
The number of the button and the as-
sociated radio frequency appear on the
screen.
Automatic station storing
Press the "AM/FM" button
for more than two seconds.
Recalling stored stations
Press one of the six buttons "1" to "6".
The station corresponding to the wave-
band selected appears on the screen.
The search begins automatically and
s t o p s a t t h e fi r s t s t a t i o n f o u n d . The six stations offering the best recep-
t i o n a r e s t o r e d a n d c l a s s i fi e d f r o m t h e
weakest to the strongest on the six cor-
responding buttons.
You can store up to six stations on each
waveband.
Storing a new station replaces the pre-
vious station. Stations can only be stored automati-
cally on wavebands FM3, MW and LW.
Storing new stations replaces the pre-
vious stations.
This storing can be activated automatically
irrespective of the waveband selected.
To recall the pre-set stored setting,
press the button and release it within
two seconds.
