VI
!
107

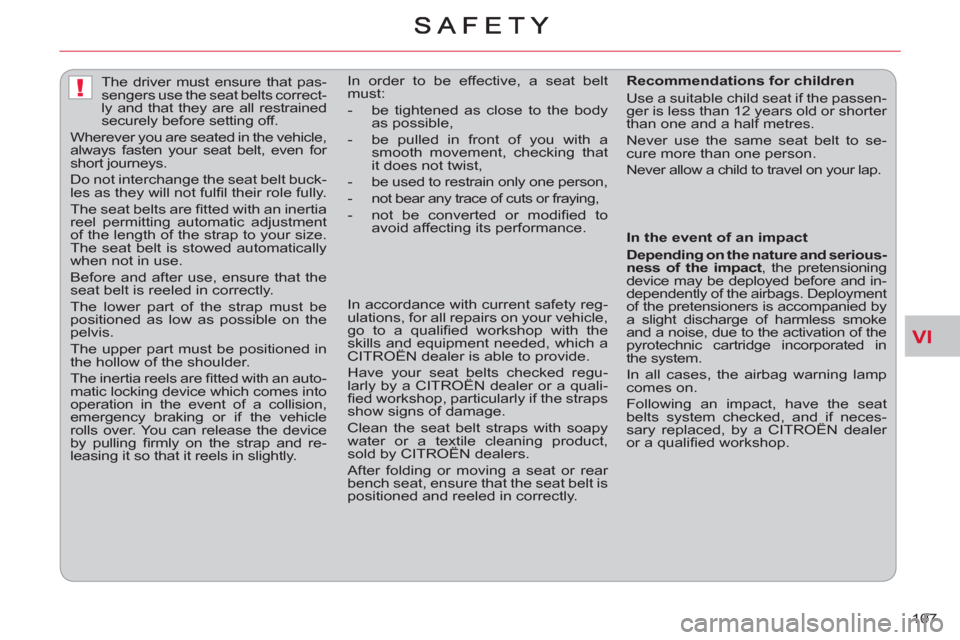

The driver must ensure that pas-
sengers use the seat belts correct-
ly and that they are all restrained
securely before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for
short journeys.
Do not interchange the seat belt buck-
les as they will not fulfi l their role fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stowed automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an auto-
matic locking device which comes into
operation in the event of a collision,
emergency braking or if the vehicle
rolls over. You can release the device
by pulling fi rmly on the strap and re-
leasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passen-
ger is less than 12 years old or shorter
than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your lap. In order to be effective, a seat belt
must:


- be tightened as close to the body
as possible,

- be pulled in front of you with a
smooth movement, checking that
it does not twist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modifi ed to
avoid affecting its performance.
In accordance with current safety reg-
ulations, for all repairs on your vehicle,
go to a qualifi ed workshop with the
skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regu-
larly by a CITROËN dealer or a quali-
fi ed workshop, particularly if the straps
show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt is
positioned and reeled in correctly.
In the event of an impact

Depending on the nature and serious-
ness of the impact
, the pretensioning
device may be deployed before and in-
dependently of the airbags. Deployment
of the pretensioners is accompanied by
a slight discharge of harmless smoke
and a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer
or a qualifi
ed workshop.

IX
PRACTICAL INFORMATION
147

Dashboard fuses

The fuseboxes are placed in the lower
dashboard behind the glove box.

Access to the fuses


)
Open the glove box,

)
Push the two opening guides A
in-
wards to pass the fi rst notch,

)
Remove the retaining tab B
pulling
it outwards,

)
Support the cover and tilt it down-
wards,

)
Change the fuse (refer to the cor-
responding paragraph).

Fuse N°



Rating



Functions




1*



30 A

Heating.


2



15 A

Brake lamps, third brake lamp, built-in systems
interface.


3



10 A

Rear foglamps.


4



30 A

Windscreen wipers and screenwash.


5



10 A

Diagnostic socket.


6



20 A

Central locking, door mirrors.


7



15 A

Audio system, telematics, multifunction screen,
hands-free kit.


8



7.5 A

Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.


9



15 A

Multifunction screen, instrument panel.


10



15 A

Built-in systems interface.


11



15 A

Rear wiper.


12



7.5 A

Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.


13



-

Not used.


14



10 A

Ignition switch.


15



20 A

Sunroof.


16



10 A

Door mirrors, audio system, telematics.

XI
212
AUDIO and TELEMATICS

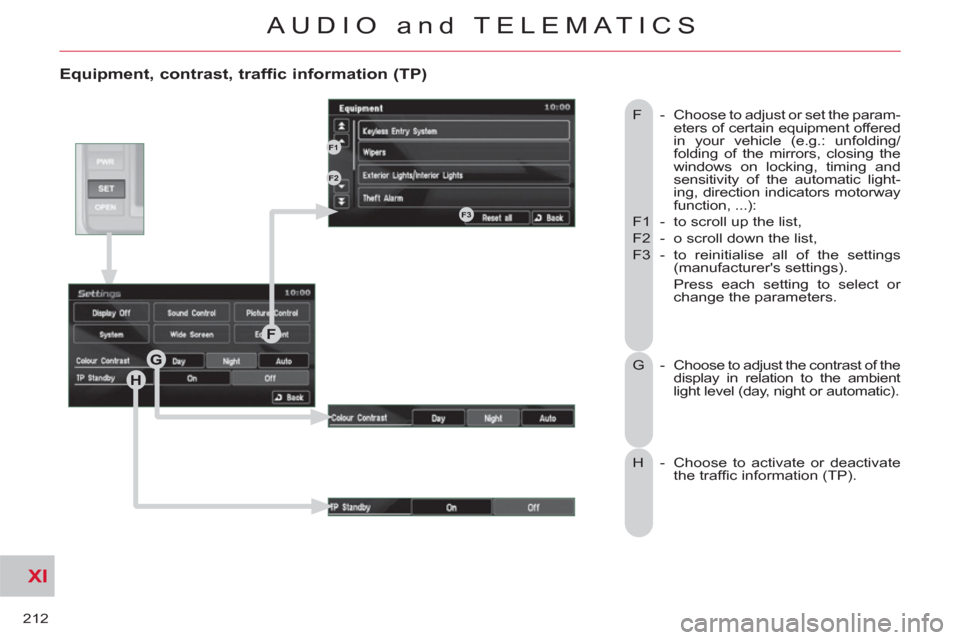

Equipment, contrast, traffic information (TP)

F - Choose to adjust or set the param-
eters of certain equipment offered
in your vehicle (e.g.: unfolding/
folding of the mirrors, closing the
windows on locking, timing and
sensitivity of the automatic light-
ing, direction indicators motorway
function, ...):
F1 - to scroll up the list,
F2 - o scroll down the list,
F3 - to reinitialise all of the settings
(manufacturer's settings).
Press each setting to select or
change the parameters.
G -
Choose to adjust the contrast of the
display in relation to the ambient
light level (day, night or automatic).
H - Choose to activate or deactivate
the traffi c information (TP).
H
G
F
F1
F2
F3

224
VISUAL SEARCH

EXTERIOR FRONT

Remote control key,
starting, battery ............................ 73-76
Central locking ...................................79
Sunroof ........................................ 82-83
Windscreen wipers ...................... 90-91
Rain sensor .......................................90
Opening the bonnet .........................126
Engine ..................................... 127-128
Towing .............................................154 Door mirrors .......................................61
Opening/closing the doors ........... 79-80
Filling with fuel ...................................84
Fuel gauge.........................................84
Lighting, direction indicators, foglamps,
headlamps ................................... 86-89
Changing bulbs........................ 137-141
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................162
Brake pads ......................................131
Alloy wheels.....................................132
