Citroen C CROSSER 2011 1.G Owner's Manual

XI
219
AUDIO and TELEMATICS

Matching your Bluetooth®
telephone
The system can register up to 7 Bluetooth®
compatible mobile telephones.
The telephone which has the highest
level of priority is connected automati-
cally.
It is absolutely essential that the vehicle
is parked in a safe place with the park-
ing brake applied.
1 - Press the SPEAK button.
7 - Say a 4-digit number which
will be recorded as the match-
ing code. 11 - When it detects a Bluetooth®
compatible mobile telephone,
the system says "Please say
the name of the telephone
after the bleep". If the system does not detect the
Bluetooth® compatible mobile tele-
phone, the matching process stops
accompanied by an audible signal.
If you select a level of priority which
has already been allocated to an-
other telephone, the system asks
you if you wish to replace this level
of priority. Remember this matching code as
you must enter it in the telephone
in one of the following steps of the
matching procedure.
9 - The system says "Start the matching
procedure on the telephone. Con-
sult the instructions in the telephone
manual".
2 - Say "Confi gure".
3 - Say "Matching options".
5 - Say "Match a telephone". 8 - The system confi rms the va-
lidity of the number spoken,
answer "Yes". Say "No" to re-
turn to step 7.
10 - Consult your mobile tele-
phone's user manual and
enter the matching code
recorded in step 7 in the
telephone. 12 - After the audible signal, allo-
cate a name to the telephone
by saying the name of your
choice.
13 - The system says "Allocate an order
of priority between 1 and 7. One is
the highest level of priority".
14 - Say a number between 1
and 7 to establish the level
of priority of the mobile tele-
phone.
15 - The system says and confi rms the
and the
of its priority.
4 - The system says "Do you wish to
match a telephone, delete a tele-
phone or obtain the list of matched
telephones?".
6 - The systems says "Please say the
4 digits of a matching code". If the code is incorrect, the system
locks. To clear the code:


- check that the telephone's voice
recognition is not activated,

- with the ignition on and the audio
system active, press the HANG UP
button for 2 seconds, 3 times in
succession. 16 - Answer "Yes" or say "No" to
return to step 13.
17 - The systems says "Matching
complete" then emits an audible
signal and deactivates the voice
recognition.

XI
220
AUDIO and TELEMATICS
Making a telephone call using a number, phone book
A Bluetooth® compatible mobile telephone
must be matched with the system.

Using a telephone number
If your vehicle is fi tted with the audio-
telematics screen, you can use the
press buttons to dial a number then
make a call.
Recording a name in the system's
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
4 - Say the telephone number.
5 - The system asks you to con-
fi rm this number, answer
"Yes". Say "No" to return to
the previous step. 2 - Say "Phone book".
4 - Say "New entry".
6 - Say the name of your choice. 8 - Say the location which cor-
responds to the number that
you wish to record.
10 - Answer "Yes" or say "No" to
return to step 7.
12 - If you do not wish to change
the telephone number, re-
peat the original number to
retain it, otherwise say the
new number.
14 - Answer "Yes" or say "No" to
return to step 11.
1 - Press the SPEAK button.
3 - The system says "Number please".
3 - The system says "Select one of the
following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
5 - The system says "Name please". To enter a new number: 9 - The system asks you to confi rm the
location.
11 - If a telephone number has already
been recorded for this location, the
system says "The current number
is , number please".
13 - The system asks you to confi rm the
number.

XI
221
AUDIO and TELEMATICS

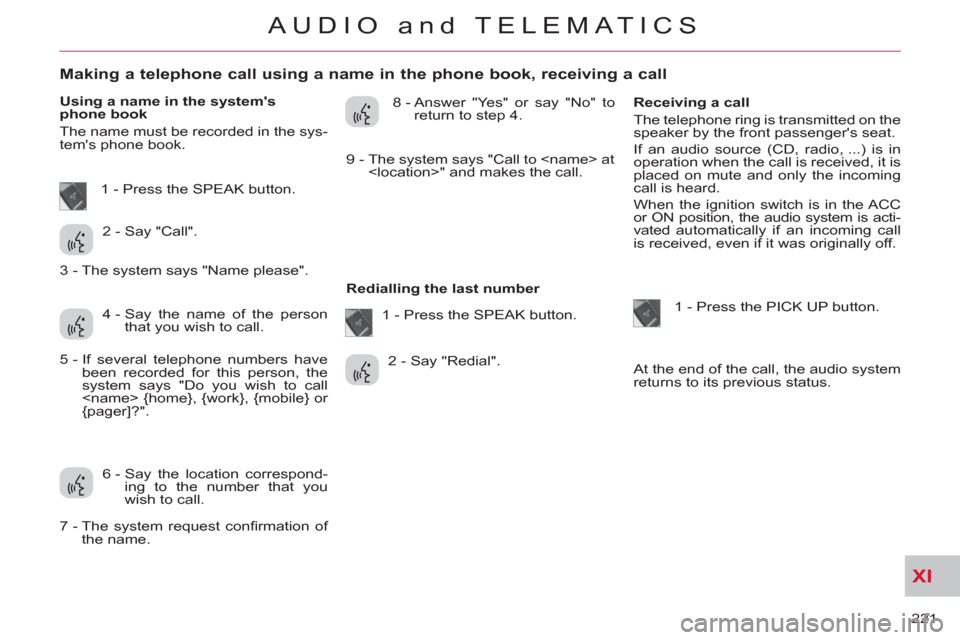

Making a telephone call using a name in the phone book, receiving a call


Using a name in the system's
phone book
The name must be recorded in the sys-
tem's phone book. 8 - Answer "Yes" or say "No" to
return to step 4.

Redialling the last number
Receiving a call
The telephone ring is transmitted on the
speaker by the front passenger's seat.
If an audio source (CD, radio, ...) is in
operation when the call is received, it is
placed on mute and only the incoming
call is heard.
When the ignition switch is in the ACC
or ON position, the audio system is acti-
vated automatically if an incoming call
is received, even if it was originally off.
1 - Press the PICK UP button.
At the end of the call, the audio system
returns to its previous status.
1 - Press the SPEAK button.
2 - Say "Call".
4 - Say the name of the person
that you wish to call.
6 - Say the location correspond-
ing to the number that you
wish to call. 1 - Press the SPEAK button.
2 - Say "Redial". 3 - The system says "Name please".
5 - If several telephone numbers have
been recorded for this person, the
system says "Do you wish to call
{home}, {work}, {mobile} or
{pager]?".
7 - The system request confi rmation of
the name. 9 - The system says "Call to at
" and makes the call.

XI
222
AUDIO and TELEMATICS


When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the current
situation.
Voice commands (1/2)

Press this button to start the voice recognition.
Confi gure
Phone book
Dial
Call
Redial
Emergency number
Matching options
Match a telephone
Delete a telephone
List of matched telephones
Select a telephone
Previous Divert the call
Add a location
Confi gure the confi rmation requests
Language
New entry
Delete
Change
Call this number
Change another entry
Try again
Clear all
List of names Home, at home
Work, at work
Mobile, on mobile
Pager, on pager
Help
Continue
All
Cancel
Mute
Deactivate mute
Yes
No

XI
223
AUDIO and TELEMATICS
Voice commands (2/2)

Zero
One
Two
Three
Four
Five
Six
Seven
Eight
Nine
Star (*)
Hash (#) Word training
PIN
Repeat training
Activate
Deactivate
Incorporate the call
Send English
Phone book New entry
Phone book Change
Phone book Delete
Phone book Clear All
Phone book List of names
Confi gure the confi rmation requests
Confi gure Select a telephone
Confi gure the matching options
Delete a name
Confi gure the language
Confi gure the PIN Press this button to start the voice recognition.
When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the current
situation.

224
VISUAL SEARCH

EXTERIOR FRONT

Remote control key,
starting, battery ............................ 73-76
Central locking ...................................79
Sunroof ........................................ 82-83
Windscreen wipers ...................... 90-91
Rain sensor .......................................90
Opening the bonnet .........................126
Engine ..................................... 127-128
Towing .............................................154 Door mirrors .......................................61
Opening/closing the doors ........... 79-80
Filling with fuel ...................................84
Fuel gauge.........................................84
Lighting, direction indicators, foglamps,
headlamps ................................... 86-89
Changing bulbs........................ 137-141
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................162
Brake pads ......................................131
Alloy wheels.....................................132

225
VISUAL SEARCH

EXTERIOR REAR

3rd brake lamp.................................142
Tailgate ........................................ 80-81
Rear wiper .........................................91
Spare wheel, jack,
changing, fi tting ....................... 132-136
Lower tailgate ....................................81
Towbar .............................................156
Rear parking sensors .............. 123-124
Towing .............................................154
Rear lamps, direction indicators,
foglamps ...................................... 86-89
Changing bulbs........................ 142-144 Door mirror ........................................61
Side repeaters .................................140
Opening/closing the doors ........... 79-80
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................162
Brake pads ......................................131
Alloy wheels.....................................132 Accessories .....................................158
Roof bars .........................................157

226
VISUAL SEARCH

INSTRUMENTS AND CONTROLS

Instrument panels, dials, speedometer .......21
Warning lamps, messages .......... 22-30
Indicators, screens ...................... 31-38
Lighting dimmer .................................43
ASC .................................................104
Fuses ....................................... 146-150
Gearbox .................................... 112-118 Parking brake,
handbrake........................................ 112 Trip computer ....................................34
Screens ....................................... 39-43
Changing the time ....................... 39-43
Audio system ........................... 164-223
Heating ........................................ 44-49


- vents, demisting/defrosting,

- automatic air conditioning,

- air recirculation,

- ventilation.
Fittings ......................................... 64-68



- 12 V socket, ashtray.


Electric windows .......................... 77-78
Electric mirrors ...................................61
Opening the bonnet .........................126 Toll card window ................................63
Courtesy lamps............................ 92-93
Rear view mirror ................................62
Opening the fuel fi ller fl ap ..................84 Hazard warning lamps .....................102

227
VISUAL SEARCH

STEERING MOUNTED CONTROLS

Lighting ........................................ 86-88


- dipped beam headlamps,

- main beam headlamps,

- foglamps.

Automatic illumination of headlamps .........88
Headlamp wash .................................90
Audio equipment controls ........166, 178
Telephone controls ..........................216 Wipers ......................................... 90-91
Screenwash ................................. 90-91
Cruise control .......................... 121-122
Steering wheel, adjustment ...............63
Horn .................................................102
Airbags ..................................... 108-111 Headlamp adjustment........................89
Parking sensors ....................... 123-124
ASC .................................................104

228

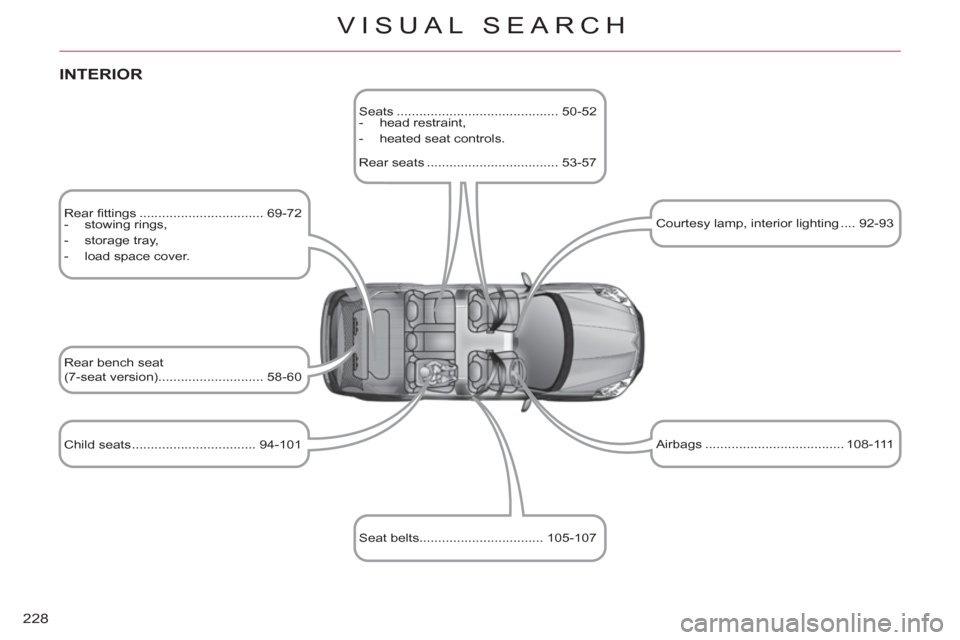

VISUAL SEARCH

INTERIOR

Rear fi ttings ................................. 69-72


- stowing rings,

- storage tray,

- load space cover.
Child seats ................................. 94-101 Seats ........................................... 50-52


- head restraint,

- heated seat controls.
Rear seats ................................... 53-57
Seat belts................................. 105-107 Courtesy lamp, interior lighting .... 92-93
Airbags ..................................... 108-111 Rear bench seat
(7-seat version)............................ 58-60
