I
31 The total distance is dis-
played in zone 1
of the
screen and the trip dis-
tance in zone 2
(refer to
the "Distance recorders"
section).
Distance recorder (A and B)
INFORMATION IN THE
IN
STRUMENT PANEL SCREEN
Information displa
y
With the ignition on, press the INFO

button, located on the dashboard to the
right of the instrument panel, to display
the various information in succession:


- distance recorder A,

- distance recorder B,

- service indicator,

- coolant temperature,

- range,

- trip computer,

- setting menu. This displays the dis-
tance and the number of
months remaining before
the next service in line
with with the manufac-
turer’s servicing sched-
ule (refer to the "Service
indicator" section).
Service indicator
When the engine is run-
ning, this indicates the
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
Coolant temperature When the engine is
running, this indicates
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the aver-
age fuel consumption,
the average speed and
the current fuel con-
sumption (refer to the
"Trip computer" section).
Trip computer

When the vehicle is sta-
tionary
, this allows the
user to change the follow-
ing settings (refer to the
"Setting menu" section):


- the display language,

- the temperature dis-
play units,

- the fuel consumption units,

- the option to reset the average
fuel consumption and the average
speed,

- the break (rest) reminder display in-
terval.


Setting menu

I
!
MONITORING
35
When the vehicle is
stationary
, it allows
the user to change the
following settings:


- resetting average fuel
consumption and av-
erage speed,

- the fuel consumption units,

- the temperature display units,

- the display language,

- activation/deactivation of the INFO

button sound,

- the break (rest) reminder display in-
terval,

- restore factory settings.
SETTING MENU

System which provides access to the
settings of certain functions.
To change the settings, you
must stop the vehicle and switch
on the ignition.
Apply the parking brake and place
the gear lever in neutral.
When the vehicle is moving
, the
setting menu screen is not displayed
when you press the INFO
button.
The various menus may differ for the
type 1 instrument panel and the type 2
instrument panel.

With the ignition on
, press the INFO

button on the dashboard, to the right of
the instrument panel, several times in
succession until the "SETTING MENU"
screen is displayed.

Operation



)
press and hold the INFO
button for
a few seconds to display the menu
screen.
Press and hold the INFO
button
for a few seconds to return to the
previous screen.
When the menus screen is
displayed, if no operation is carried
out within 15 seconds, the setting
menu screen is displayed.
)
on the menu screen, press the INFO

button to select a function from the
list:


MENU
2/3:



- a/b
(option of displaying a different
language in the instrument panel
screen and the navigation screen),

- activation/deactivation of the
INFO
button sound
,

- ALARM
(changing the "BREAK RE-
MINDER" display interval),

- choice of the direction indicators
sound,

- activation/deactivation of current
fuel consumption,



MENU
1/3
:



- 1 - 2
(options for resetting aver-
age fuel consumption and average
speed),

- UNIT
(choice of the fuel consump-
tion units),

- choice of the temperature display
unit

s
,

- LANGUAGE
(choice of display lan-
guage),
MENU 3/3:



- RESET
(restore factory settings).

I
MONITORING
37
Choice of display language(LANGUAGE)
You can choose between different
languages for the screen.
On the menus screen:


)
press the INFO
button to select
"LANGUAGE"
.

)
press and hold the INFO
button
for a few seconds to display the
"LANGUAGE"
screen.

)
press the INFO
button to scroll
through the languages (Japonais,
English, Deutsch, Français, Espa-
nol, Italiano, "---" and RETURN) in
succession.

)
press and hold the INFO
button for
a few seconds to confi rm your se-
lection.
If you select the "---" setting, no
message will be displayed in
message display situations. If the battery is disconnected, the
settings memory is cleared and
the default language (ENGLISH) is
restored automatically.


Activation/deactivation of the"INFO" button sound

You can activate or deactivate the INFO

button sound.
On the menus screen:


)
press the INFO
button to
select the INFO
button
sound activation/deactiva-
tion symbol (located on
menu 2/3)
.

)
press and hold the INFO
button for
a few seconds to alternate between
the choices (ON, OFF).
The mode selected is confi rmed.
If the battery is disconnected, the
settings memory is cleared and
the default choice (ON) is restored
automatically.


Changing the display interval
of the "BREAK REMINDER"
message
You can change the display interval of
the "BREAK REMINDER"
message.
On the menu screen:


)
press the INFO
button to select
"ALARM" (located on menu 2/3)
.

)
press and hold the INFO
button
for a few seconds to display the
"ALARM"
screen.

)
press the INFO
button to select
the display interval of the "BREAK
REMINDER"
message.

)
press and hold the INFO
button for
a few seconds to confi rm.
If the battery is disconnected, the
settings memory is cleared and
the default value (OFF) is restored
automatically.

I
MONITORING
41
COLOUR SCREEN

This permits display of the following
main menus: On the control panel, press button B
(SET)
to access the "Settings"
screen
and select:


- "Display Off"
to switch off the display,

- "Sound control"
for the sound dis-
tribution or volume, the type of music
and the sound fi eld (surround),

- "Picture control"
to set the colour,
the intensity, the brightness, the
contrast and the level of black,

- "System"
to change the time zone,
the language, the units and other
settings,

- "Wide Screen"
to change the size
of the DVD picture to 4/3 format,
wide screen mode, centred wide
screen mode or enlargement,

- "Equipment"
to set certain equip-
ment offered in the vehicle,

- "Colour Contrast"
to select the
contrast of the display in relation
to the ambient light (Day, Night or
Auto),

- "TP standby"
to activate or deacti-
vate the traffi c information.

"Audio-video" menu
"Navigation-guidance" menu
On the control panel, press button A
(MODE)
to access the "AV mode"

screen and select:


- radio (FM, MW, LW),

- CD (audio, MP3 or WMA),

- Music Server,

- DVD.
"Settings" menu
On the control panel, press button C
(MENU)
to access the "Menu"
screen
and select:


-
"Address/Junction"
to search for
a location using the address or the
name of the street,

- "POI name"
to search for a location
using the name of a point of interest
(POI),

- "Advanced search"
to search for a
location using an advanced search
based on a POI,

- "Previous 20"
to search for a loca-
tion using one of the 20 previous
destinations,

- "Address book"
to search for a
location using a stored address,

- "Home"
to navigate to your home
address,

- "Navigation settings"
to set func-
tions linked with the navigation,

- "Navigation tools"
to access the
basic information or a pre-set dem-
onstration.

The "CD" and "DVD" buttons are
active if you insert a CD or DVD in
the player.

XI
168
AUDIO and TELEMATICS

Selecting the surround effect "FIELD"

Turn the "SOUND" dial; the
surround effects change in
the following order:
NORMAL/STAGE/LIVE/HALL.

"NORMAL": produces a sound in which
the voices are at the front and the in-
struments surround the listener.
"STAGE": produces a sound in which
the voices are immediately facing the
listener, as on a stage.
"LIVE": produces a sound similar to
that of a live show, in which the sound
reaches the listener from all directions.
"HALL": produces a sound similar to
that of a concert hall with defl ection of
the sound.

Setting the bass "BASS"

Turn the "SOUND" dial to
set the required bass value.


Setting the mid tone "MID"

Turn the "SOUND" dial to set the re-
quired mid tone value.


Setting the treble "TREBLE"

Turn the "SOUND" dial to set the re-
quired treble value.


Setting the front/rear sound
distribution "FADER"
Turn the "SOUND" dial to set the bal-
ance of the volume of the front and rear
speakers.


Setting the right/left sound
distribution "BALANCE"
Turn the "SOUND" dial to set the bal-
ance of the volume of the right and left
speakers.
If the "FIELD" is changed, the sound
cuts out briefl y. If the value "0" is set, an audible signal
will be heard.


Automatic volume adjustment "SCV"

This permits automatic adjustment of
the "VOLUME", "BASS", "MID" and
"TREBLE" settings in relation to the ve-
hicle speed.
Press the "SOUND" button
for more than two seconds
to gain access to the func-
tions setting mode.
Then, press this same button
several times; the functions
setting mode changes in the following
order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "SOUND" dial respectively to
the left to deactivate the function or to
the right to activate it. If the "SUB PUNCH" is changed, the
sound cuts out briefl y.
unit "SUB PUNCH"

Turn the "SOUND" dial to set the vol-
ume of the bass unit.
Only vehicles fi tted with the "Premium
Sound" system can offer the "SUB
PUNCH" setting.
Once the surround effect has been se-
lected, press the "SOUND" button to
confi rm.

XI
171
AUDIO and TELEMATICS

Themed type of programme
"PTY"
Some stations offer the option of listen-
ing to a themed type of programme as a
priority, selected from the list available
below:
NEWS, AFFAIRS, INFO, SPORT, EDUCATE,
DRAMA, CULTURE, SCIENCE, VARIED,
POP M, ROCK M, EASY M, LIGHT M,
CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN,
TRAVEL, LEISURE, JAZZ, COUNTRY,
NATION M, OLDIES, FOLK M, DOCUMENT.

Emergency broadcasts
"ALERT"
An emergency broadcast automatically
and temporarily interrupts the FM station
or the source that you are listening to.
The message "ALERT" appears on the
display and the volume is different from
that of the previous source.
Following the emergency broadcast,
the message disappears and the volume
returns to that of the source prior to the
interruption.
Search for a "PTY" broadcast
Press the "PTY" button.
Turn the "TUNE" dial to se-
lect the type of programme
required.
Two seconds later, the radio searches
for a broadcast which corresponds to
your selection; the type of PTY selected
fl ashes on the display.
Once the station has been found, its
name appears on the display.
You can press the "SEEK
" or "SEEK
" buttons to fi nd another station.

If no station is found corresponding
to your selected type of programme,
"NONE" appears on the display for
fi ve seconds and the radio returns to
the previous station.
You can store up to six PTY programmes.
Each new programme stored replaces
the previous one.
Storing a "PTY" programme To recall the pre-set memory setting,
press the button and release it within
two seconds.

Changing the display language of
the "PTY" programme
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button several times in
succession; the functions setting mode
changes in the following order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial to the left or to the
right to select the language (ENGLISH,
FRANCAIS, DEUTSCH, SVENSK,
ESPAGNOL, ITALIANO).
The sound cuts out then becomes au-
dible again when the programme has
been stored.
The number of the button and the asso-
ciated PTY programme appear on the
display.
Turn the "TUNE" dial to set
the PTY programme to be
stored.
Press one of the six but-
tons "1" to "6" for more than
two seconds.

XI
172
AUDIO and TELEMATICS
CD PLAYER
This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs.
Selecting CD mode
If the player already con-
tains a disc, press the "CD"
button.
"CD", the track number and
the playing time appear on the screen.

Functions setting mode

This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button sev-
eral times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational at
present.
The functions setting mode is deacti-
vated after approximately 10 seconds
without any action. After inserting a disc, printed face up-
wards, the player starts automatically.
Ejecting a disc
Press this button to remove
the disc from the player.
The system automatically
switches to radio mode.
Fast search
Press and hold button "
"
or "
" to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is released.

Selecting a track
Press button "
" or "
" to
select the previous or next
track respectively.

Repeating a track
Press the "RPT" button to
repeat the play of the cur-
rent track. "RPT" appears
on the screen.
To exit this mode, press this button
again.

Random playing of a disc
Press the "RDM" button
to start random play of the
tracks on the disc. "RDM"
appears on the screen.
To exit this mode, press this button
again. Insert circular compact discs only.
8 cm compact discs must be inserted
in the centre of the player slot.
Once ejected, if the compact disc is
not removed within fi fteen seconds, it
is reloaded into the player.
Audio CDs

XI
!
208
AUDIO and TELEMATICS

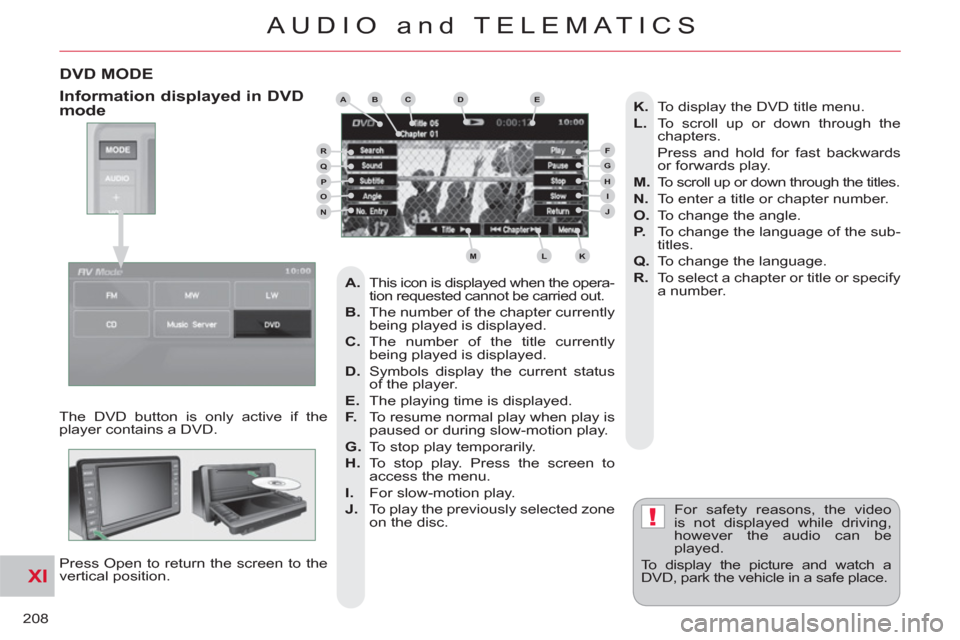

DVD MODE
The DVD button is only active if the
player contains a DVD.
Press Open to return the screen to the
vertical position. For safety reasons, the video
is not displayed while driving,
however the audio can be
played.
To display the picture and watch a
DVD, park the vehicle in a safe place.
K.
To display the DVD title menu.

L.
To scroll up or down through the
chapters.
Press and hold for fast backwards
or forwards play.

M.
To scroll up or down through the titles.

N.
To enter a title or chapter number.

O.
To change the angle.

P.
To change the language of the sub-
titles.

Q.
To change the language.

R.
To select a chapter or title or specify
a number.

A.
This icon is displayed when the opera-
tion requested cannot be carried out.

B.
The number of the chapter currently
being played is displayed.

C.
The number of the title currently
being played is displayed.

D.
Symbols display the current status
of the player.

E.
The playing time is displayed.

F.
To resume normal play when play is
paused or during slow-motion play.

G.
To stop play temporarily.

H.
To stop play. Press the screen to
access the menu.

I.
For slow-motion play.

J.
To play the previously selected zone
on the disc.

Information displayed in DVDmode ABCDE
FGHIJ
KLM
RQPON

XI
217
AUDIO and TELEMATICS
Changing the language,programming the voice

Changing the language of the voice
commands
By default, the recognition system is in
English.
Programming the user's voice
You can use the user's voice program-
ming function to create a voice model
for one person per language.
The characteristics of your voice and
your pronunciation are recorded in this
model for improved voice recognition.
It is essential that the vehicle is parked
in a safe place, with the parking brake
applied.
Switch off your telephone during the
process to avoid any interruption.
1 - Press the SPEAK button. 5 - The system says the fi rst of 45 typical
phrases.
If you do not start the program-
ming process within approximately
3 minutes after pressing the SPEAK
button, the process is cancelled.
If you press the SPEAK button with-
in 5 seconds following the reading of
a voice command, the recording of
this command is repeated.
1 - Press the SPEAK button.
2 - Say "Setup".
3 - Say "Language".
5 - Say the language of your
choice in English, example:
say "French" for French.
7 - Say "Yes" to start the change
of language process or say
"No" to return to steps 4 to 7. 2 - Say "Word training".
4 - When you are ready to start,
press and hold the SPEAK
button. 6 - Repeat each phrase in the
table on the next page.
The system records your voice and
moves on to the recording of the next
command.
Continue the process until all of the
phrases have been recorded.
4 - The system says "Select a language:
English, Spanish, French, German or
Italian".
6 - The system then says "French se-
lected. Is this correct?"
8 - The system repeats the language
chosen and completes the change
of language process. 3 - An explanation message is given. 7 - After reading all the voice com-
mands, the system says "The word
enrolment is complete" and ends the
process.

XI
220
AUDIO and TELEMATICS
Making a telephone call using a number, phone book
A Bluetooth® compatible mobile telephone
must be matched with the system.

Using a telephone number
If your vehicle is fi tted with the audio-
telematics screen, you can use the
press buttons to dial a number then
make a call.
Recording a name in the system's
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
4 - Say the telephone number.
5 - The system asks you to con-
fi rm this number, answer
"Yes". Say "No" to return to
the previous step. 2 - Say "Phone book".
4 - Say "New entry".
6 - Say the name of your choice. 8 - Say the location which cor-
responds to the number that
you wish to record.
10 - Answer "Yes" or say "No" to
return to step 7.
12 - If you do not wish to change
the telephone number, re-
peat the original number to
retain it, otherwise say the
new number.
14 - Answer "Yes" or say "No" to
return to step 11.
1 - Press the SPEAK button.
3 - The system says "Number please".
3 - The system says "Select one of the
following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
5 - The system says "Name please". To enter a new number: 9 - The system asks you to confi rm the
location.
11 - If a telephone number has already
been recorded for this location, the
system says "The current number
is , number please".
13 - The system asks you to confi rm the
number.
