Page 98 of 216
S A F E T Y
99
DIRECTION INDICATORS
HAZARD WARNING LIGHTS
HORN
Lower the lights stalk when moving
to the left (position 1 ).
Raise the lights stalk when moving
to the right (position 1 ).
The indicator light on the instrument
p a n e l fl a s h e s .
As a safety precaution in a
t r a f fi c j a m , s w i t c h o n t h e h a z -
ard warning lights when you
are the last in the queue.
Press button A , the direction indicators
fl a s h .
They can operate with the ignition off.
Press one of the spokes of the
steering wheel.
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.
The “motorway” function
System for indicating a change of lane
on a motorway.
Press up or down once (positions
2 ),
without passing the point of resistance;
the corresponding direction indicators
w i l l fl a s h t h r e e t i m e s .
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident. Audible warning to alert other road
users to an imminent danger.
Certain direction indicator functions
c a n b e c o n fi g u r e d v i a t h e c o l o u r d i s -
play “Equipment” menu.
Page 106 of 216
S A F E T Y
VI
107
Side air bags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
Each side air bag is incorporated in
the front seat back frame, on the door
side.
Activation
The side air bag is triggered unilaterally
in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudi-
nal centreline of the vehicle on a hori-
zontal plane and directed from the out-
side towards the inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Curtain air bags
System which protects the driver and
p a s s e n g e r s ( w i t h t h e e x c e p t i o n o f t h e
rear centre passenger and the passen-
gers of row 3) in the event of a serious
side impact in order to limit the risk of
injury to the head.
Each curtain air bag is incorporated in
the pillars and the upper section of the
passenger compartment. Activation
The curtain air bag is triggered at the
same time as the corresponding side
air bag in the event of a serious side
impact applied to all or part of the side
impact zone
B , perpendicular to the
longitudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact
or bump on the side of the ve-
hicle or if the vehicle rolls over,
the air bag may not be triggered.
In the event of a rear or front colli-
sion, the air bag is not triggered.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Operating fault
If this warning light comes on on the
instrument panel and this display appears
on the instrument panel display, contact
a CITROËN dealer to have the system
checked. The air bags may no longer be
triggered in the event of a serious impact.
Page 108 of 216
D R I V I N G
VII
109
HANDBRAKE
Releasing
Pull on the handle and press the
button A to release the handbrake.
Applying
Pull the handbrake to immobilise
your vehicle.
When parking on a slope, direct your
wheels towards the pavement and ap-
ply the handbrake.
6-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
When the vehicle is being
driven, the displaying of
this screen indicates that
the handbrake is still on
or has not been properly
released.
Mechanical brake to hold the vehicle
when stationary.
“CVT” GEARBOX
T h e s i x - s p e e d a u t o m a t i c g e a r b o x
offers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
T h i s g e a r b o x e n a b l e s y o u t o a c c e s s
two driving modes:
- an automated mode for automatic c o n t r o l o f t h e g e a r s b y t h e g e a r b o x
and therefore without any action on
the part of the driver,
- a sequential mode for manual changing of the gears by the driver
using the steering wheel controls or
the gear lever.
It consists of the following controls:
- a gear lever 1 on the centre console
for selecting the driving mode, re-
verse gear and neutral or for chang-
ing gear in sequential mode,
Page 109 of 216
D R I V I N G
VII
109
HANDBRAKE
Releasing
Pull on the handle and press the
button A to release the handbrake.
Applying
Pull the handbrake to immobilise
your vehicle.
When parking on a slope, direct your
wheels towards the pavement and ap-
ply the handbrake.
6-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
When the vehicle is being
driven, the displaying of
this screen indicates that
the handbrake is still on
or has not been properly
released.
Mechanical brake to hold the vehicle
when stationary.
“CVT” GEARBOX
T h e s i x - s p e e d a u t o m a t i c g e a r b o x
offers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
T h i s g e a r b o x e n a b l e s y o u t o a c c e s s
two driving modes:
- an automated mode for automatic c o n t r o l o f t h e g e a r s b y t h e g e a r b o x
and therefore without any action on
the part of the driver,
- a sequential mode for manual changing of the gears by the driver
using the steering wheel controls or
the gear lever.
It consists of the following controls:
- a gear lever 1 on the centre console
for selecting the driving mode, re-
verse gear and neutral or for chang-
ing gear in sequential mode,
Page 113 of 216
D R I V I N G
VII
113

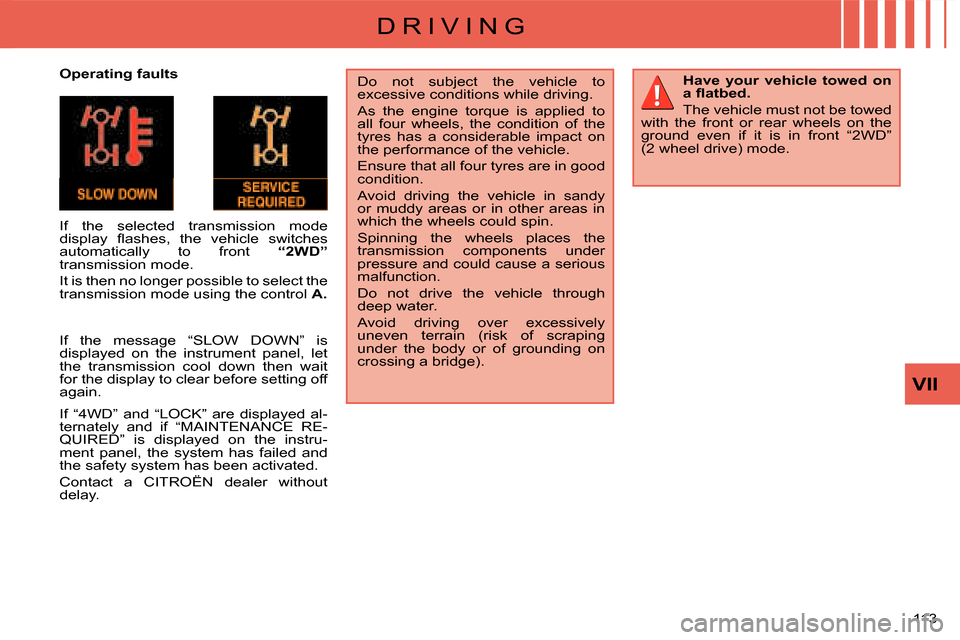

Operating faults
If the selected transmission mode
d i s p l a y fl a s h e s , t h e v e h i c l e s w i t c h e s
automatically to front “2WD”
transmission mode.
It is then no longer possible to select the
transmission mode using the control A . Do not subject the vehicle to
e x c e s s i v e c o n d i t i o n s w h i l e d r i v i n g .
As the engine torque is applied to
all four wheels, the condition of the
tyres has a considerable impact on
the performance of the vehicle.
Ensure that all four tyres are in good
condition.
Avoid driving the vehicle in sandy
or muddy areas or in other areas in
which the wheels could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a serious
malfunction.
Do not drive the vehicle through
deep water.
A v o i d d r i v i n g o v e r e x c e s s i v e l y
uneven terrain (risk of scraping
under the body or of grounding on
crossing a bridge).
Have your vehicle towed on
a fl a t b e d .
The vehicle must not be towed
with the front or rear wheels on the
ground even if it is in front “2WD”
(2 wheel drive) mode.
If the message “SLOW DOWN” is
displayed on the instrument panel, let
the transmission cool down then wait
for the display to clear before setting off
again.
If “4WD” and “LOCK” are displayed al-
ternately and if “MAINTENANCE RE-
QUIRED” is displayed on the instru-
ment panel, the system has failed and
the safety system has been activated.
Contact a CITROËN dealer without
delay.
Page 116 of 216
D R I V I N G
VII
116
AUDIBLE REAR PARKING
ASSISTANCE
It detects any obstacle (person, vehicle,
tree, gate,...) located behind the vehicle,
but it cannot detect obstacles located
immediately below the bumper. Activation
The parking assistance is activated by
engaging reverse gear.
T h e p r o x i m i t y i n f o r m a t i o n i s i n d i c a t e d
by an audible signal which becomes
more frequent as the vehicle approach-
es the obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar object
may be detected at the beginning of
the manoeuvre but may no longer
be detected when the vehicle moves
closer to it.
Location of the sensors
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
- two side sensors
A
- two central sensors B . Vehicle only
V e h i c l e fi t t e d w i t h a t o w b a r
Detection zones
The detection zones differ according to
the vehicle’s equipment, with or without
towbar.
Therefore, you can select the towbar
m o d e , t h e fi t t i n g z o n e
C i s e x c l u d e d
from the detection zones.
The parking assistance system
cannot, in any circumstances, take
the place of the need for vigilance
and responsibility on the part of the
driver.
Sensors
Distance between
vehicle and
obstacle less than:
Side A A p p r o x i m a t e l y
25 cm
Central B without
towbar A p p r o x i m a t e l y
40 cm
Central B with
towbar A p p r o x i m a t e l y
60 cm
S y s t e m c o n s i s t i n g o f p r o x i m i t y s e n s o r s ,
installed in the rear bumper.
Page 117 of 216
D R I V I N G
117
REVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indicator
light on button
A fl a s h e s w h e n r e v e r s e
gear is engaged.
Consult a CITROËN dealer.
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few sec-
onds and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance
required to open the lower tailgate.
Page 118 of 216
D R I V I N G
117
REVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indicator
light on button
A fl a s h e s w h e n r e v e r s e
gear is engaged.
Consult a CITROËN dealer.
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few sec-
onds and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance
required to open the lower tailgate.
Page 119 of 216
C H E C K S
VIII
118
Bonnet strut
OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.
From inside: pull the handle A , on the
left-hand side below the door, towards
you.
From outside: move the catch to the
left then raise the bonnet. Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.
RUNNING OUT OF FUEL
Protection system which also provides
access for checking the various levels
of the engine components.
I f y o u r u n o u t o f f u e l , fi l l t h e t a n k a n d o p -
erate the starter until the engine starts.
Several attempts must be made before
the engine re-starts.
Page 125 of 216
C H E C K S
VIII
123
Manual gearbox Refer to the servicing booklet
f o r d e t a i l s o f g e a r b o x m a i n t e -
nance.
Brake pads Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn. Brake disc wear status
For any information relating
to checking of the brake
disc wear status, contact a
CITROËN dealer.
Handbrake If the handbrake travel is too
long or if you notice a loss of
effectiveness of this system,
the handbrake must be
adjusted, even between two
services.
This system must be checked by a
CITROËN dealer.
Only use products recommended by
CITROËN or products of equivalent
q u a l i t y a n d s p e c i fi c a t i o n s . In order to optimise the
operation of units as important
as the braking system,
CITROËN selects and offers very
s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment is
strictly prohibited.
Transfer box and rear
differential Refer to the servicing booklet
for details of the service inter-
val for these components.
