A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
154

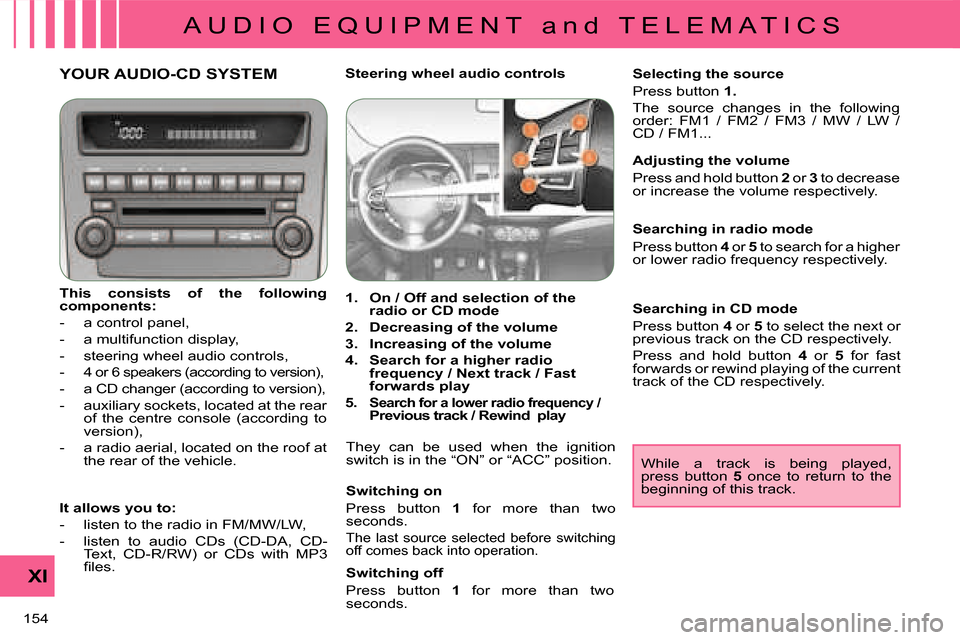

YOUR AUDIO-CD SYSTEM
This consists of the following
components:
- a control panel,
- a multifunction display,
- steering wheel audio controls,
- 4 or 6 speakers (according to version),
- a CD changer (according to version),
- a u x i l i a r y s o c k e t s , l o c a t e d a t t h e r e a r of the centre console (according to
version),
- a radio aerial, located on the roof at the rear of the vehicle. Steering wheel audio controls
1.
On / Off and selection of the
radio or CD mode
2.
Decreasing of the volume
3.
Increasing of the volume
4.
Search for a higher radio
frequency / Next track / Fast
forwards play
5
.
Search for a lower radio frequency / Previous track / Rewind play
They can be used when the ignition
switch is in the “ON” or “ACC” position.
Switching on
Press button 1 for more than two
seconds.
The last source selected before switching
off comes back into operation.
Selecting the source
Press button 1 .
The source changes in the following
order: FM1 / FM2 / FM3 / MW / LW /
CD / FM1...
Searching in radio mode
Press button 4 or
5 to search for a higher
or lower radio frequency respectively.
While a track is being played,
press button 5 once to return to the
beginning of this track.
Adjusting the volume
Press and hold button
2 or
3 to decrease
or increase the volume respectively.
It allows you to:
- listen to the radio in FM/MW/LW,
- listen to audio CDs (CD-DA, CD- T e x t , C D - R / R W ) o r C D s w i t h M P 3
fi l e s . Switching off
Press button 1 for more than two
seconds. Searching in CD mode
Press button
4 or
5 t o s e l e c t t h e n e x t o r
previous track on the CD respectively.
Press and hold button 4 or 5 for fast
forwards or rewind playing of the current
track of the CD respectively.
