I N S T R U M E N T S a n d C O N T R O L S
I
19

1. Speedometer.

2. Left-hand direction indicator and
hazard warning lights indicator
light.

3. Main beam headlamps indicator
light.

4. Diesel pre-heating indicator light.

5. Side lights indicator light.

6. Front fog lamps indicator light.

7. Seat belt not fastened / unfastened
warning light.
DIESEL MANUAL GEARBOX INSTRUMENT PANEL

18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.

8. Rear fog lamps indicator light.

9. Anti-lock braking system (ABS)
warning light.

10. Battery charge fault warning light.

11. Handbrake applied and brake fl uid
level warning light.

12. Cruise control mode indicator light.

13. Air bags warning light.

14. Engine management warning light.

15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator
light.

16. Rev counter.

17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).

I N S T R U M E N T S a n d C O N T R O L S
I
21

Indicator lights is on Cause Observations
Diesel
pre-heating Fixed
This comes on when the
ignition switch is at ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
determined by the exterior climatic conditions.

Warning lights is on Cause Observations
Handbrake /
Brake fl uid level Fixed This comes on for a
few seconds when the
ignition is turned to “ON”
then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.
The brake fl uid level is
too low. It is accompanied by a message on the
instrument panel display. Top up with brake fl uid
and contact a CITROËN dealer.
Emission
control system Fixed or
fl ashing This comes on or
fl ashes if the system
fails. Consult a CITROËN dealer.
It should switch off a few seconds after starting
the engine.
Battery charge
Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the “Battery” section).

I N S T R U M E N T S a n d C O N T R O L S
I
26

Message is on
Associated
warning light
Cause Solution - action Observations
Dynamic
stability control
system (ASC) Fixed
- Dynamic stability
control system
(ASC) fault. Consult a CITROËN
dealer.

Four wheel
drive system Fixed
- Four wheel drive
transmission
system fault. Consult a CITROËN
dealer.

Four wheel
drive system temperature Fixed
- The temperature
of the four wheel
drive transmission
system is too
high. Stop the vehicle and
contact a CITROËN
dealer.
The vehicle switches
to front wheel
drive (2 WD) mode
automatically.
Automatic
headlamp
adjustment system Fixed
- The automatic
headlamp
adjustment is
faulty. Consult a CITROËN
dealer.
Only on vehicle fi tted
with xenon bulbs.
Battery
charge Fixed
Battery charge
fault. Stop the vehicle and
contact a CITROËN
dealer.

Exterior
temperature Fixed
- The exterior
temperature 3 °C
(37 °F) or below. Road icy.
Pay attention and
drive slowly. Caution: The road may
be icy even when this
screen is not displayed.

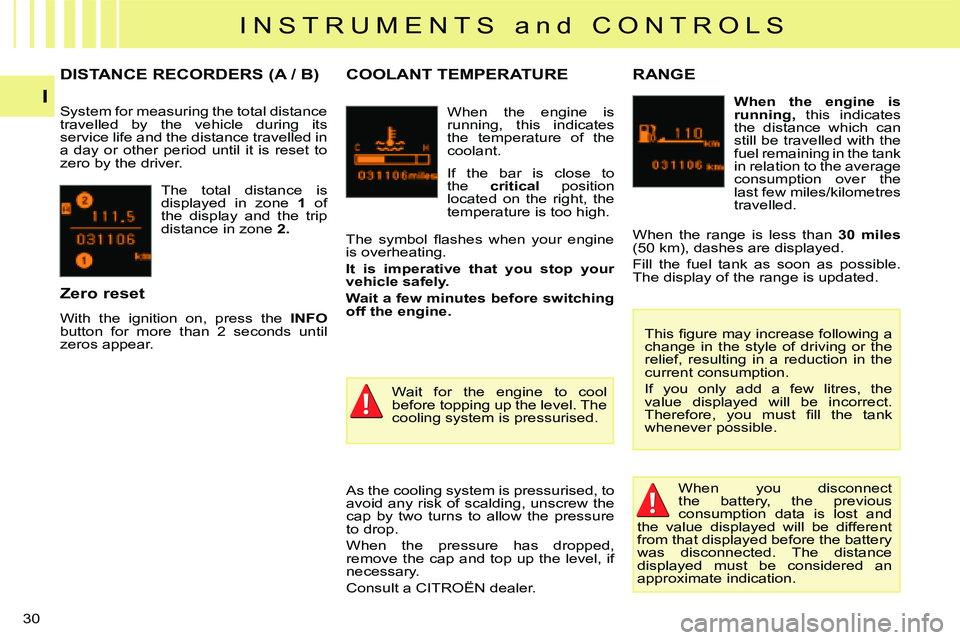

I N S T R U M E N T S a n d C O N T R O L S
I
30
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .
DISTANCE RECORDERS (A / B)
System for measuring the total distance
travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO

button for more than 2 seconds until
zeros appear. When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to
the
critical position
located on the right, the
temperature is too high.
The symbol fl ashes when your engine
is overheating.

It is imperative that you stop your
vehicle safely.

Wait a few minutes before switching
off the engine.
Wait for the engine to cool
before topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped,
remove the cap and top up the level, if
necessary.
Consult a CITROËN dealer. This fi gure may increase following a
change in the style of driving or the
relief, resulting in a reduction in the
current consumption.
If you only add a few litres, the
value displayed will be incorrect.
Therefore, you must fi ll the tank
whenever possible.
When you disconnect
the battery, the previous
consumption data is lost and
the value displayed will be different
from that displayed before the battery
was disconnected. The distance
displayed must be considered an
approximate indication.

I N S T R U M E N T S a n d C O N T R O L S
I
34
Choice of the fuel consumption
units
You can choose between different units
for displaying the fuel consumption.
On the menus screen:

 press the INFO button to select

“UNIT” .

 press and hold the INFO button for
a few seconds to display the “UNIT”
screen.
 press the INFO button to scroll the
units (km/L, L/100km, mpg(US),
mpg(UK) and PREVIOUS) in suc-
cession.

 press and hold the INFO button for
a few seconds to confi rm your se-
lection.
In this case, the distance, speed and
quantity of fuel units will also be changed
in accordance with your choice of fuel
consumption unit.
If the battery is disconnected, the
parameter memory is cleared and
the default unit (km/L) is restored
automatically. Choice of the temperature
display unit
You can choose between different units
for displaying the temperature.
On the menus screen:

 press the INFO button to select
the temperature unit param-
eters symbol (thermometer).

 press and hold the INFO button for
a few seconds to scroll the units
(°C and °F) in succession.
The mode selected is confi rmed.
If the battery is disconnected, the
parameter memory is cleared and
the default unit (°C) is restored
automatically.

I N S T R U M E N T S a n d C O N T R O L S
I
35
Choice of the display language
(LANGUAGE)
You can choose between different
languages for the display.
On the menus screen:

 press the INFO button to select
“ LANGUAGE ” .

 press and hold the INFO button for
a few seconds to display the “LAN-
GUAGE” screen.

 press the INFO button to scroll the
languages (Japonais, English, Deutsch,
Français, Espanol, Italiano, “---” and
PREVIOUS) in succession.

 press and hold the INFO button
for a few seconds to confi rm your
selection.
If you select the parameter “---”,
no message will be displayed in
message display situations. If the battery is disconnected, the
parameter memory is cleared and
the default language (ENGLISH) is
restored automatically.
Activation / deactivation of the
“INFO” button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:

 press the INFO button to
select the I NFO button
sound activation / deacti-
vation symbol (located on
menu 2/2) .

 press and hold the INFO button
for a few seconds to scroll the
choices (ON, OFF) in succession.
The mode selected is confi rmed.
If the battery is disconnected, the
parameter memory is cleared and
the default choice (ON) is restored
automatically. Changing the display interval
of the “BREAK ADVISED”
message
You can change the display interval of
the
“BREAK ADVISED” message.
On the menus screen:

 press the INFO button to select

“ALERT” (located on menu 2/2) .

 press and hold the INFO button
for a few seconds to display the

“ALERT” screen.

 press the INFO button to select
the display interval of the “BREAK
ADVISED” message.

 press and hold the INFO button for
a few seconds to confi rm.
If the battery is disconnected, the
parameter memory is cleared and
the default value (OFF) is restored
automatically.

I N S T R U M E N T S a n d C O N T R O L S
I
38
Set the time using the buttons as
indicated below:

 with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
time display fl ashes.
 Press the appropriate button to set
the time:

Button H: setting of the hour
The hours digits scroll when you press
this button.

Button M: setting of the minutes
The minutes digits scroll when you
press this button.

Button :00: resetting of the minutes to
zero.
- from 1 to 29 min
: rounded down to
the previous hour,
- from 30 to 59 min: rounded up to
the next hour.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations.
 After setting the time, press the

DISP button; the time display stops
fl ashing.
The digital clock does not display
seconds.
When the “minutes” display is set or
reset to zero, the clock starts at the
zero second of the minute selected.
The time setting is lost if the battery
is disconnected.

 Turn button B “TUNE” to the left or
to the right to select “CT ON” (auto-
matic mode) or “CT OFF” (manual
mode).

 After selecting the mode, you can
exit the “Functions setting mode”
menu by pressing button B “TUNE”
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the “functions setting mode” menu
automatically.

C O M F O R T
II
49
Electric mode (driver’s seat only)
Forwards-backwards adjustment
Push the control forwards or rearwards
to move the seat to the position
required. Driver’s seat cushion height and
angle adjustment
Pull or push the front of the control
to raise or lower the front of the seat
cushion.
Pull or push the rear of the control
to raise or lower the rear of the seat
cushion.
Pull or push the entire control to raise or
lower the entire seat cushion. Seat back angle adjustment
Tilt the control forwards or rearwards to
straighten or tilt the seat back.
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to your optimum driving
and comfort position.
To avoid discharging the battery, use
the electric mode with the engine
running.

C O M F O R T
II
64
Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle A .
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is lit on opening when the lights stalk
is activated. Lighter
12 volt socket (120 W max)
When the ignition switch is in the “ON”
or “ACC” position, press the lighter.
After a moment you hear a click when
the lighter pops out.
When the lighter socket is used to con-
nect electrical equipment, ensure that
this equipment operates correctly with
a voltage of 12 volts and has an electri-
cal power of 120 W maximum.
The prolonged use of electri-
cal equipment without running
the engine may discharge the
battery. Armrest with storage compartments
12 volt socket (120 W max)
Upper storage compartment
Pull the right-hand lever to open the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks.

C O M F O R T
II
65
Removable ashtray
Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.
Lower storage compartment
Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
12 volt socket (120 W max)
This operates when the ignition switch is
in the “LOCK”, “ACC” or “ON” position.
Open the cover to gain access to the
socket.
Check that the electrical equip-
ment operates with 12 volts
and that its maximum electri-
cal power is 120 W.
When you use the two sockets
at the same time, ensure that the two
items of equipment together operate
with 12V and that their combined
electrical power is 120W maximum.
The prolonged use of electrical
equipment without running the en-
gine may discharge the battery.
