IX
P R A C T I C A L I N F O R M A T I O N
135
Changing direction indicator
bulbs (1) C o l o u r e d b u l b s m u s t b e r e p l a c e d
w i t h b u l b s o f i d e n t i c a l s p e c i fi c a t i o n
a n d c o l o u r .
T u r n t h e b u l b h o l d e r A to the left
and remove it.
P u l l t h e b u l b a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order. Access to the bulbs on the left-hand
side
W h e n y o u c h a n g e a b u l b o n t h e l e f t -
h a n d s i d e , r e m o v e t h e r e l a y b o x fi x i n g
n u t
B a n d m o v e t h e r e l a y b o x t o w a r d s
the rear. Access to the bulbs on the right-hand side
W h e n y o u c h a n g e a b u l b o n t h e r i g h t -
h a n d s i d e :
Remove the screenwash reservoir
fi x i n g C a n d m o v e t h e r e s e r v o i r t o -
wards the rear.
R e m o v e t h e c o o l a n t r e s e r v o i r fi x i n g
n u t D .
R e m o v e t h e c l i p E a n d r a i s e t h e r e s e r -
v o i r m o v i n g i t t o w a r d s t h e f r o n t .
Page 132 of 217
IX
136
Changing sidelamp bulbs (3)
Unscrew the cover H .
Disconnect the connector.
T u r n t h e b u l b h o l d e r I a q u a r t e r o f a
t u r n a n d r e m o v e i t .
P u l l t h e b u l b a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Unscrew the cover F .
Disconnect the connector.
T u r n t h e b u l b G t o t h e l e f t a n d r e -
move it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Changing dipped beam headlamp
bulbs (2)
Changing main beam headlamp
bulbs (4)
Unscrew the cover J .
Disconnect the connector.
M o v e a s i d e t h e s p r i n g K to release
t h e b u l b a n d r e m o v e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 133 of 217
IX
P R A C T I C A L I N F O R M A T I O N
137
Changing integrated direction
indicator side repeaters Changing foglamp bulbs (5)
P u s h t h e r e p e a t e r A towards the
rear and detach it.
U n c l i p t h e r e p e a t e r .
D i s c o n n e c t t h e r e p e a t e r c o n n e c t o r
a n d c h a n g e t h e r e p e a t e r .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
T o o b t a i n r e p e a t e r s , c o n t a c t a C I T R O Ë N
dealer.
T u r n t h e w h e e l f u l l y o u t f o r e a s y
a c c e s s t o t h e fl a p A located in the
wheelarch.
U s i n g a s c r e w d r i v e r , r e m o v e t h e f o u r
c l i p s B located in the wheelarch.
Page 134 of 217
IX
P R A C T I C A L I N F O R M A T I O N
1 3 8
U s i n g a s c r e w d r i v e r , r e m o v e t h e
t h r e e c l i p s C located below the
b u m p e r .
L i f t t h e a c c e s s fl a p D located in the
wheelarch and slide it downwards.
Disconnect the connector E .
T u r n t h e b u l b F t o t h e l e f t a n d r e -
move it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 135 of 217
IX
P R A C T I C A L I N F O R M A T I O N
139
Rear lamps
1. Third brake
lamp
(
LEDs
).
2. Brake
lamps
/
Sidelamps
(21/5 -
W21W - 5 W).
3. Direction indicators
(WY21W - 21 W).
4. Reversing
lamps
(W21W - 21 W).
5. Number plate
lamps
(W5W - 5W).
6. Foglamps
(W21W - 21 W). Changing brake lamp/sidelamp and
direction indicator bulbs
T h e s e t w o b u l b s a r e c h a n g e d f r o m o u t -
s i d e w i t h t h e t a i l g a t e o p e n :
O p e n t h e t a i l g a t e ( r e f e r t o t h e " A c c e s s "
section),
R e m o v e t h e t w o l a m p fi x i n g b o l t s A ,
E x t r a c t t h e l a m p u n i t f r o m o u t s i d e ,
T u r n t h e p i n C to the left and remove it.
P u l l t h e b u l b D o u t a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
T u r n t h e p i n B to the left and remove it.
P u l l t h e b u l b o u t a n d c h a n g e i t . W h e n r e fi t t i n g t h e l a m p u n i t , a l i g n t h e
t w o p i n s
E w i t h t h e o p e n i n g s o n t h e v e -
hicle.
A m b e r c o l o u r e d b u l b s , s u c h a s t h e
d i r e c t i o n i n d i c a t o r s , m u s t b e r e p l a c e d
w i t h b u l b s o f i d e n t i c a l s p e c i fi c a t i o n
a n d c o l o u r .
Changing the third brake lamp
(LEDs)
A l l w o r k o n t h e L E D l a m p s m u s t b e c a r -
r i e d o u t b y a C I T R O Ë N d e a l e r .
Page 136 of 217
IX
140

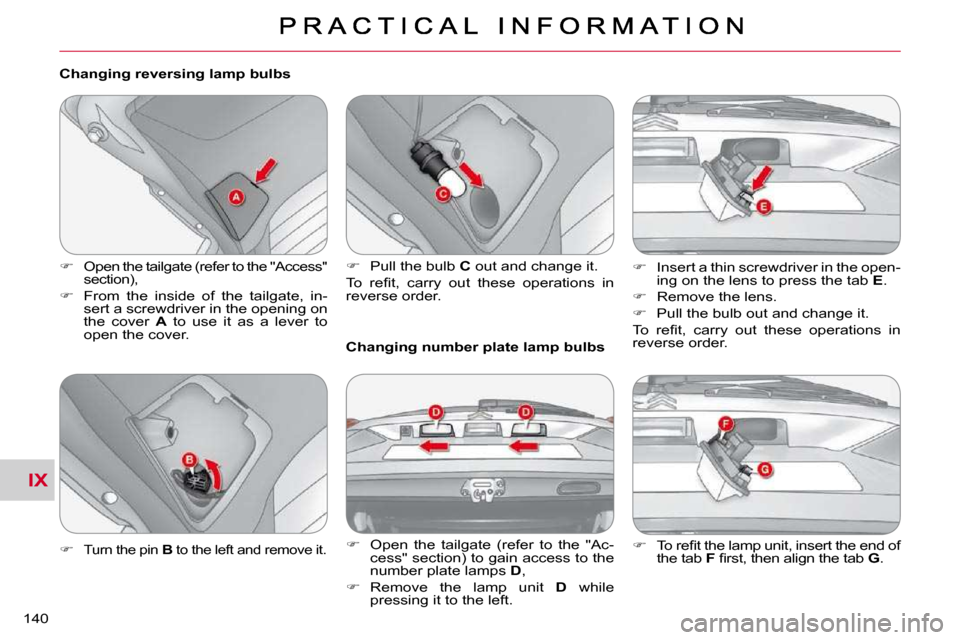

Changing reversing lamp bulbs
O p e n t h e t a i l g a t e ( r e f e r t o t h e " A c c e s s "
section),
F r o m t h e i n s i d e o f t h e t a i l g a t e , i n -
s e r t a s c r e w d r i v e r i n t h e o p e n i n g o n
the cover A t o u s e i t a s a l e v e r t o
o p e n t h e c o v e r . Changing number plate lamp bulbs
O p e n t h e t a i l g a t e ( r e f e r t o t h e " A c -
c e s s " s e c t i o n ) t o g a i n a c c e s s t o t h e
n u m b e r p l a t e l a m p s D ,
R e m o v e t h e l a m p u n i t D while
p r e s s i n g i t t o t h e l e f t .
T u r n t h e p i n B to the left and remove it.
P u l l t h e b u l b C o u t a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
I n s e r t a t h i n s c r e w d r i v e r i n t h e o p e n -
i n g o n t h e l e n s t o p r e s s t h e t a b E .
Remove the lens.
P u l l t h e b u l b o u t a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
T o r e fi t t h e l a m p u n i t , i n s e r t t h e e n d o f
the tab F fi r s t , t h e n a l i g n t h e t a b G .
Page 137 of 217
IX
P R A C T I C A L I N F O R M A T I O N
141

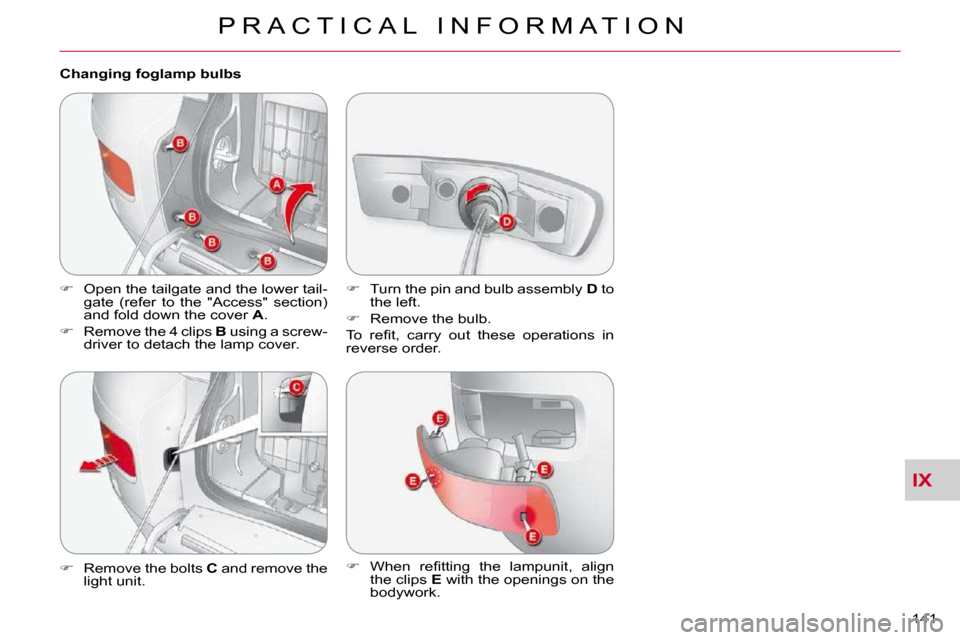

Changing foglamp bulbs
O p e n t h e t a i l g a t e a n d t h e l o w e r t a i l -
g a t e ( r e f e r t o t h e " A c c e s s " s e c t i o n )
and fold down the cover A .
R e m o v e t h e 4 c l i p s B u s i n g a s c r e w -
d r i v e r t o d e t a c h t h e l a m p c o v e r .
Remove the bolts C and remove the
l i g h t u n i t .
T u r n t h e p i n a n d b u l b a s s e m b l y D to
the left.
R e m o v e t h e b u l b .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
W h e n r e fi t t i n g t h e l a m p u n i t , a l i g n
t h e c l i p s E w i t h t h e o p e n i n g s o n t h e
b o d y w o r k .
Page 138 of 217
IX
P R A C T I C A L I N F O R M A T I O N
142

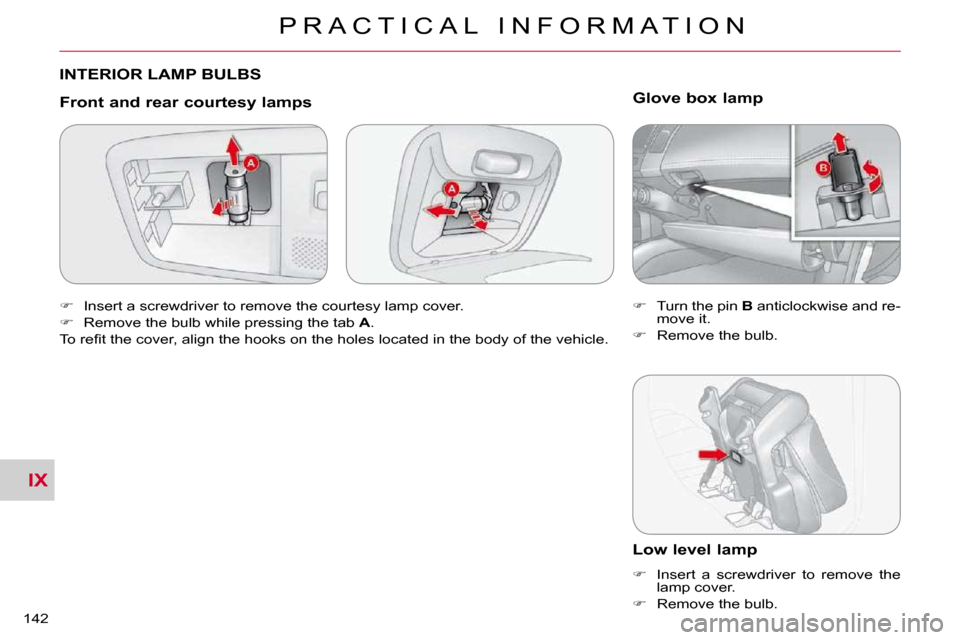

INTERIOR LAMP BULBS
Front and rear courtesy lamps
I n s e r t a s c r e w d r i v e r t o r e m o v e t h e c o u r t e s y l a m p c o v e r .
R e m o v e t h e b u l b w h i l e p r e s s i n g t h e t a b A .
T o r e fi t t h e c o v e r , a l i g n t h e h o o k s o n t h e h o l e s l o c a t e d i n t h e b o d y o f t h e v e h i c l e .
Glove box lamp
T u r n t h e p i n B a n t i c l o c k w i s e a n d r e -
move it.
R e m o v e t h e b u l b .
Low level lamp
Insert a screwdriver to remove the
l a m p c o v e r .
R e m o v e t h e b u l b .
Page 139 of 217
IX
!
P R A C T I C A L I N F O R M A T I O N
143

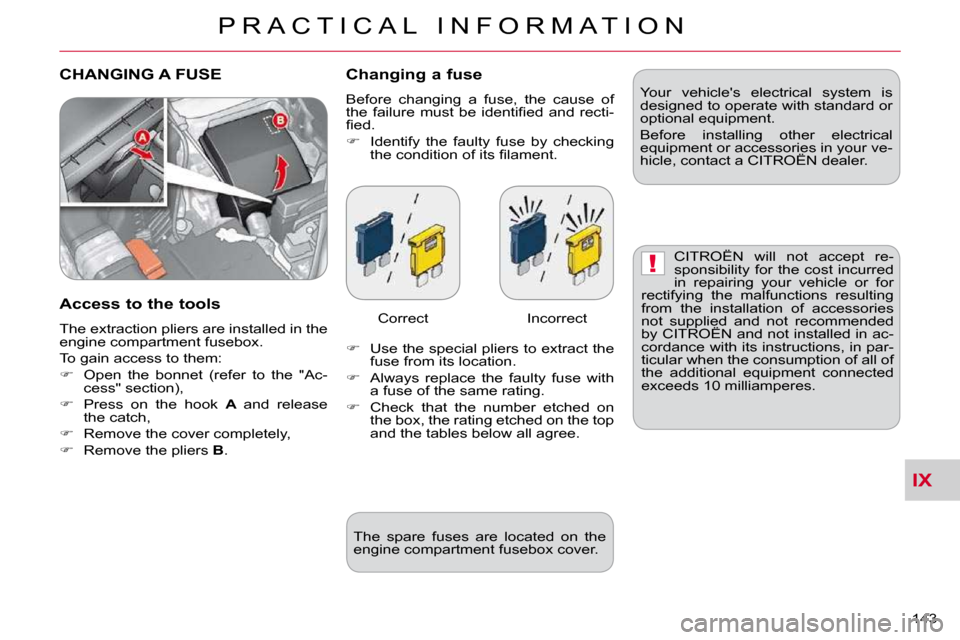

CHANGING A FUSE Changing a fuse
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
I d e n t i f y t h e f a u l t y f u s e b y c h e c k i n g
t h e c o n d i t i o n o f i t s fi l a m e n t .
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e i n s t a l l e d i n t h e
e n g i n e c o m p a r t m e n t f u s e b o x .
T o g a i n a c c e s s t o t h e m :
O p e n t h e b o n n e t ( r e f e r t o t h e " A c -
cess" section),
Press on the hook A and release
the catch,
R e m o v e t h e c o v e r c o m p l e t e l y ,
R e m o v e t h e p l i e r s B . Correct Incorrect
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
f u s e f r o m i t s l o c a t i o n .
A l w a y s r e p l a c e t h e f a u l t y f u s e w i t h
a f u s e o f t h e s a m e r a t i n g .
C h e c k t h a t t h e n u m b e r e t c h e d o n
t h e b o x , t h e r a t i n g e t c h e d o n t h e t o p
a n d t h e t a b l e s b e l o w a l l a g r e e .
T h e s p a r e f u s e s a r e l o c a t e d o n t h e
e n g i n e c o m p a r t m e n t f u s e b o x c o v e r . Y o u r v e h i c l e ' s e l e c t r i c a l s y s t e m i s
d e s i g n e d t o o p e r a t e w i t h s t a n d a r d o r
o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g o t h e r e l e c t r i c a l
e q u i p m e n t o r a c c e s s o r i e s i n y o u r v e -
h i c l e , c o n t a c t a C I T R O Ë N d e a l e r .
C I T R O Ë N w i l l n o t a c c e p t r e -
s p o n s i b i l i t y f o r t h e c o s t i n c u r r e d
i n r e p a i r i n g y o u r v e h i c l e o r f o r
r e c t i f y i n g t h e m a l f u n c t i o n s r e s u l t i n g
from the installation of accessories
n o t s u p p l i e d a n d n o t r e c o m m e n d e d
b y C I T R O Ë N a n d n o t i n s t a l l e d i n a c -
c o r d a n c e w i t h i t s i n s t r u c t i o n s , i n p a r -
t i c u l a r w h e n t h e c o n s u m p t i o n o f a l l o f
t h e a d d i t i o n a l e q u i p m e n t c o n n e c t e d
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 140 of 217
IX
P R A C T I C A L I N F O R M A T I O N
144

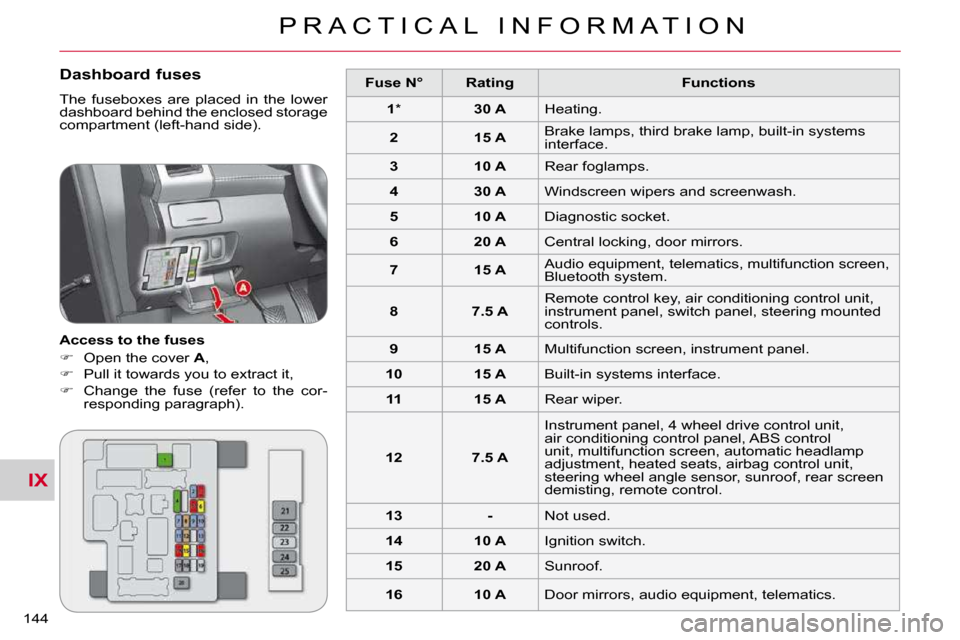

Dashboard fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
d a s h b o a r d b e h i n d t h e e n c l o s e d s t o r a g e
c o m p a r t m e n t ( l e f t - h a n d s i d e ) .
Access to the fuses
O p e n t h e c o v e r A ,
P u l l i t t o w a r d s y o u t o e x t r a c t i t ,
C h a n g e t h e f u s e ( r e f e r t o t h e c o r -
r e s p o n d i n g p a r a g r a p h ) .
Fuse N° Rating Functions
1 * 30 A H e a t i n g .
2 15 A B r a k e l a m p s , t h i r d b r a k e l a m p , b u i l t - i n s y s t e m s
interface.
3 10 A R e a r f o g l a m p s .
4 30 A W i n d s c r e e n w i p e r s a n d s c r e e n w a s h .
5 10 A D i a g n o s t i c s o c k e t .
6 20 A C e n t r a l l o c k i n g , d o o r m i r r o r s .
7 15 A A u d i o e q u i p m e n t , t e l e m a t i c s , m u l t i f u n c t i o n s c r e e n ,
B l u e t o o t h s y s t e m .
8 7.5 A R e m o t e c o n t r o l k e y , a i r c o n d i t i o n i n g c o n t r o l u n i t ,
i n s t r u m e n t p a n e l , s w i t c h p a n e l , s t e e r i n g m o u n t e d
controls.
9 15 A M u l t i f u n c t i o n s c r e e n , i n s t r u m e n t p a n e l .
10 15 A B u i l t - i n s y s t e m s i n t e r f a c e .
11 15 A R e a r w i p e r .
12 7.5 A I n s t r u m e n t p a n e l , 4 w h e e l d r i v e c o n t r o l u n i t ,
a i r c o n d i t i o n i n g c o n t r o l p a n e l , A B S c o n t r o l
u n i t , m u l t i f u n c t i o n s c r e e n , a u t o m a t i c h e a d l a m p
a d j u s t m e n t , h e a t e d s e a t s , a i r b a g c o n t r o l u n i t ,
s t e e r i n g w h e e l a n g l e s e n s o r , s u n r o o f , r e a r s c r e e n
d e m i s t i n g , r e m o t e c o n t r o l .
13 - N o t u s e d .
14 10 A I g n i t i o n s w i t c h .
15 20 A S u n r o o f .
16 10 A D o o r m i r r o r s , a u d i o e q u i p m e n t , t e l e m a t i c s .
