Page 5 of 217
I
M O N I T O R I N G
23
E a c h t i m e t h e e n g i n e i s s t a r t e d : a s e r i e s o f w a r n i n g l a m p s a n d / o r m e s s a g e s c o m e o n , a p p l y i n g a c h e c k i n g s e l f t e s t . T h e y g o
off after a few seconds. Engine running: the warning lamp o r the message becomes a warning if it remains on continuously
o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e s c r e e n . D o n o t i g n o r e t h e s e
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l a m p o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s
f r o m t h e s c r e e n a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e
by pressing the INFO button on the dashboard.
The symbol "!" is displayed.
To return to the previous screen (with the "!" s y m b o l ) , y o u m u s t p r e s s t h e INFO button several times.
Warning messages (ignition at "OFF")
You can close the warning messages which show these symbols in ord er to move on to the next screen.
T o d o t h i s , p r e s s t h e INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e s c r e e n .
Message is on Cause Solution - action Observations
K e y i n
ignition Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.
Lighting
l e f t
on Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF.
An intermittent audible
signal is heard.
Page 16 of 217
I
M O N I T O R I N G
32
TRIP COMPUTER A v e r a g e f u e l consumption (l/100 km or km/l or mpg)
This is the average fuel
consumption since the
last zero reset.
T h i s fi g u r e m a y c h a n g e f o l l o w i n g a
change in the style of driving or the re-
lief resulting in an increase or decrease
in the current fuel consumption.
Average speed (km/h or mph)
This is the average
speed calculated since
the last zero reset.
R e s e t t i n g t h e i n f o r m a t i o n t o z e r o
W h e n t h e i g n i t i o n i s s w i t c h e d o n , t h e
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed for long
periods in place of the digits while
d r i v i n g , c o n t a c t a C I T R O Ë N d e a l e r .
C u r r e n t f u e l consumption (l/100 km or km/l or mpg)
This is the average fuel
consumption during the
last few seconds of
driving.
I n f o r m a t i o n d i s p l a y
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
b u t t o n o n t h e d a s h b o a r d , t o t h e l e f t o f
t h e i n s t r u m e n t p a n e l , s e v e r a l t i m e s i n
succession to display the different infor-
mation:
- a v e r a g e f u e l c o n s u m p t i o n ,
- a v e r a g e s p e e d ,
- current fuel consumption. W h e n t h e r e q u i r e d i n f o r m a t i o n i s d i s -
p l a y e d , p r e s s t h e
INFO button for more
than two seconds to reset all of the in-
formation to zero.
Automatic
If the ignition key remains in the OFF
p o s i t i o n f o r m o r e t h a n 4 h o u r s , t h e i n -
formation is reset to zero automatically.
Page 59 of 217
III
A C C E S S
71
Unfolding the key
First press button A to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft.
Locking the vehicle
Unlocking using the key
Turn the key to the right in the driver's
door lock to unlock the vehicle.
Press the closed padlock
to lock the vehicle.
If one of the doors or the tailgate is
still open, the central locking will not
take place.
U n l o c k i n g i s c o n fi r m e d b y t h e i n t e r i o r
lighting which comes on for approxi-
mately 15 seconds and the direction
i n d i c a t o r s w h i c h fl a s h
twice .
If you press the open padlock twice in
succession within 30 seconds after
unlocking the vehicle, the exterior mir-
rors unfold.
Normal locking using the key
Turn the key to the left in the driver's
door lock to lock the vehicle.
L o c k i n g i s c o n fi r m e d b y t h e d i r e c t i o n i n -
dicators which come on
once .
If you press the closed padlock twice
in succession within 30 seconds af-
ter locking the vehicle, the door mirrors
fold.
An extended press on the closed pad-
lock within 30 seconds after locking the
vehicle closes the windows automati-
cally.
Normal locking using the remote
control
Page 60 of 217
III
A C C E S S
72
The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
b e c o n fi g u r e d v i a t h e c o l o u r s c r e e n
"Equipment" menu.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
CITROËN dealer as soon as possible.
Page 61 of 217
III
A C C E S S
73
Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically.
Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its hous-
ing observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been left
in the ignition.
Page 62 of 217
III
!
A C C E S S
74

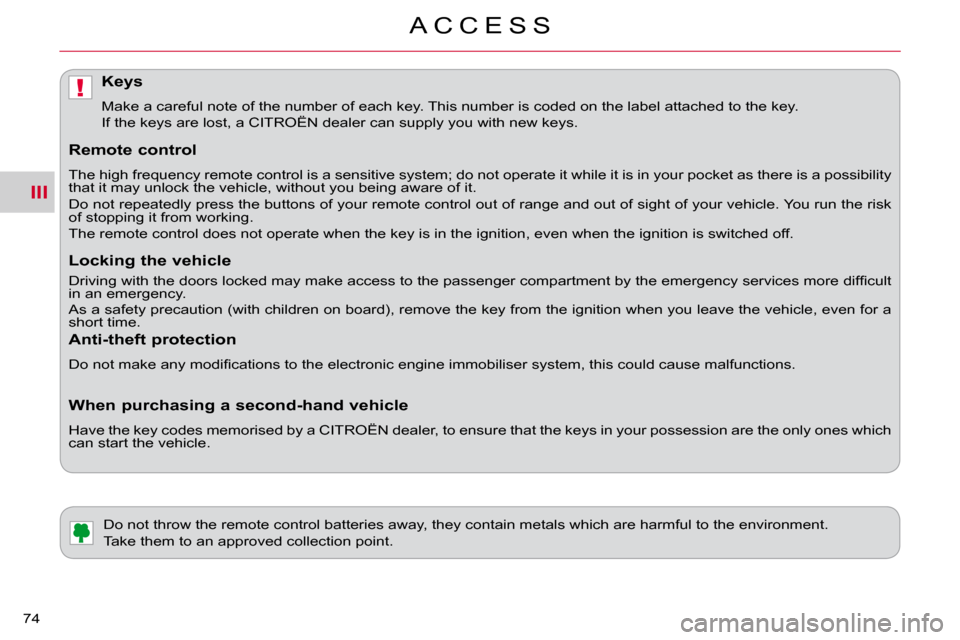

Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you with ne w keys.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk
of stopping it from working.
The remote control does not operate when the key is in the i gnition, even when the ignition is switched off.
Locking the vehicle
D r i v i n g w i t h t h e d o o r s l o c k e d m a y m a k e a c c e s s t o t h e p a s s e n g e r c o m p a r t m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t
in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even for a
short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m , t h i s c o u l d c a u s e m a l f u n c t i o n s .
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys in your possession are the only ones which
can start the vehicle.
Page 63 of 217
III
A C C E S S
72
The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
b e c o n fi g u r e d v i a t h e c o l o u r s c r e e n
"Equipment" menu.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
CITROËN dealer as soon as possible.
Page 64 of 217
III
!
A C C E S S
74
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you with ne w keys.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk
of stopping it from working.
The remote control does not operate when the key is in the i gnition, even when the ignition is switched off.
Locking the vehicle
D r i v i n g w i t h t h e d o o r s l o c k e d m a y m a k e a c c e s s t o t h e p a s s e n g e r c o m p a r t m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t
in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even for a
short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m , t h i s c o u l d c a u s e m a l f u n c t i o n s .
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys in your possession are the only ones which
can start the vehicle.
Page 65 of 217
III
A C C E S S
73
Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically.
Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its hous-
ing observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been left
in the ignition.
Page 67 of 217
III
!
A C C E S S
76
Deactivating the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:
with the door closed, lower the window
completely then raise it again, it will rise
in steps of a few centimetres each time
the switch is pressed, repeat the op-
eration until the window is fully closed,
continue to press the switch for at least
one second after reaching the window
closed position.
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
In the event of contact during opera-
tion of the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When the driver operates the pas-
senger electric window switches, they
must ensure that no one is preventing
correct closing of the windows.
The driver must ensure that passen-
gers use the electric windows cor-
rectly.
Be aware of children when operating
the windows.
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down, you
can open or close all of the windows
using the switches on the driver's
door.
The safety
anti
-
pinch
function is not
active during these operations.
