XI
190
AUDIO and TELEMATICS
AUDIO-VIDEO

What is RDS?
RDS station following
Tr a ffi c information function
Your radio automatically checks
and selects the best frequency
for the radio station to which it is
tuned (if the station broadcasts on sev-
eral transmitters or frequencies).
The frequency of a radio station covers
approximately 30 miles (50 km). The
change from one frequency to another
explains the loss of reception during a
journey.
If the station to which you are listening
does not have several frequencies in
the region in which you are currently lo-
cated, you can deactivate the automatic
frequency following.


Radio Data System (RDS) func-
tion on the FM waveband permits:


- tuning to the same station while
travelling through different regions
(if the transmitters of this station
cover the area through which you
are travelling),

- temporary tuning to traffi c informa-
tion announcements,

- display of the name of the station,
etc...
Most FM stations use RDS.
These stations transmit non-audible
data in addition to their programmes.
The data transmitted in this way allows
you access to various functions, mainly
displaying of the name of the station,
temporary tuning to traffi c information
announcements or automatic station
following.
RDS allows you to continue listening to the
same station by means of the frequency
following. However, in certain conditions,
this RDS frequency following cannot be
provided throughout the country. Radio
stations do not cover the whole country,
which explains the loss of reception of the
station during a journey. The Traffic Program (TP) func-
tion permits automatic and tem-
porary switching to an FM sta-
tion broadcasting traffi c information.
The radio station or the source that you
are listening to at this point is paused.
Once the traffi c information has ended,
the system switches back to the radio
station or the source that you were lis-
tening to initially.

Regional following mode
Some stations are organised in
a network.
In different regions, they broad-
cast different or shared programmes
depending on the time of day.
You can follow:


- a regional station only,

- the entire network, with the possibility
that you will be listening to a different
programme.

Programme types

Some stations offer the option
of listening to a themed type of
programme as a priority, select-
ed from the list available below:
NEWS, AFFAIRS, INFOS, SPORT,
EDUCATE, DRAMA, CULTURE,
SCIENCE, VARIED, POP M, ROCK M,
EASY M, LIGHT M, CLASSICS, OTHER
M, WEATHER, FINANCE, CHILDREN,
SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M,
OLDIES, FOLK M, DOCUMENT.

XI
191
AUDIO and TELEMATICS
Information displayed in Radio mode


A.
A pre-set number is displayed when
a pre-set channel has been selected.

B.
The name of the station is displayed
during the reception of RDS data. If
the name has not been transmitted,
the frequency is displayed.

C.
Stereo is displayed when a stereo
transmission is received.

D.
AF is displayed when the AF control
function is activated.

E.
PTY (programme type) is displayed
if the RDS data received is dis-
played.
TRAFINF is displayed, during an in-
terruption, for traffi c information.
ALARM is displayed, during an in-
terruption, for urgent information.

F.
Display of 6 pre-set stored stations.
G.
To receive the stored station.
Press and hold to store a station.

H.
To change the frequency step by
step.
Press and hold for scrolling of the
frequency.

I.
To search for currently broadcasting
stations which can be received in
the current location, until a station is
found.

J.
To display the programme types
pre-setting screen, e.g.: sport, rock,
classical, news, ... Press PTY again
to exit.

K.
Press this button to display the sec-
ondary menu.

L.
REG is displayed during the recep-
tion of regional frequencies data.

M.

RDS is displayed during the reception
of RDS data.

N.
TP is displayed when the traffi c in-
formation is in standby mode.

ABCDE
G
HIJK
LMN
F

XI
192
AUDIO and TELEMATICS

Radio, selecting an FM station and storing

Press the MODE button. Press Explanations Result
You can select [
Seek] or [Seek
] to start a continuous
search until the stations which can be received in the current
location are detected. Press FM. By default the screen shows the FM1 stations.
Press [
Tune] to decrease the frequency or [Tune
] to increase the
frequency. The frequency is changed in steps of 0.1 MHz.
Continue to press to tune to a station automatically.
Once the frequency has been selected, a long press on the station (e.g. 3)
will store it.
The name of the station is displayed if it is available.
You can start automatic storing on FM3 for 6 stations, which
can be received in the current location, by pressing [^] then
[Auto-Store]. You can also start a search by type of programme by pressing
[PTY].

XI
194
AUDIO and TELEMATICS
CD player
Your Audio-Telematic system allows
you to listen to audio CDs (CDDA, CD-
Text, CD-R/RW) or MP3 and WMA CDs.

Playing an audio CD Switching off the engine or removing
the CD during recording will result in the
tracks being faulty.
The operation of the navigation system
may slow down during recording.
The recording speed may be slower
than 4x due to the processing load on
the equipment or the condition of the
audio CD.
If jumps or other errors occur, return to
the beginning of the track and start the
recording again.
Even if there is no gap between the
tracks on the CD, a brief silence be-
tween tracks is stored on the hard disk.
What is the Gracenote CDDB?

Copyright
Your Audio equipment may allow you
to listen to music which is usually pro-
tected by copyright in accordance with
current national and international stan-
dards. Please consult these standards
and comply with them.

Recording onto the music server
When the audio CD is
inserted in the player,
playing of the tracks is
automatic and they can
be recorded onto the
hard disk.
Simultaneous access to the music rec-
ognition service "Gracenote CDDB" on
the hard disk permits display of the title
information.
The tracks of audio CDs (not
MP3/WMA) can be recorded
onto the hard disk at approximately
4x speed (e.g.: 60 minutes converted
to 15 minutes) and stored on the music
server.
The sounds recorded may be altered
by the noise present and the quality of
the sound may differ from the original.
The tracks recorded on the music server
cannot be reproduced on another me-
dium (CD-R/RW, HDD, etc...).
Previously recorded tracks cannot be
recorded again from the same CD. The title information for the
track currently being played
can be obtained from the
"Gracenote CDDB" database
stored on the hard disk.
The Gracenote company uses
this standard to identify the music and
the associated information such as:


- the title of the album,

- the name of the artist,

- the title of the tracks,

- the genre, ...
For further details, consult the site:
www.gracenote.com.
The Gracenote CDDB database incor-
porated in this equipment cannot guar-
antee the content of the data 100 %.
You can update this database using a
DVD sold separately.

XI
195
AUDIO and TELEMATICS

Information displayed in CD mode and recording a CD



A.
The name of the album is displayed
for the track currently being played.

B.
The name of the artist is displayed
for the album currently being played.

C.
The playing time of the track currently
being played is displayed.

D.
The playing mode currently selected
is displayed.

E.
Position of the cursor and total number
of tracks on the album.

F.
Displays the item currently selected.

G.
To scroll up or down through the
tracks.
Press and hold for fast backwards
or forwards playing of a track.
H.
Displays the number and the name of
the track. While driving, they are not
available and cannot be selected.

I.
To display the secondary menu.

J.
Move the cursor onto the track cur-
rently being played.

K.
The number and the name of the
track currently being played are dis-
played.

L.
During recording, this symbol is
displayed in red and it switches off
when all recording operations are
complete. The number indicates the
percentage of the total number of
tracks on the CD already recorded
onto the hard disc. 00 % when only
one track has been recorded.

M.
The tracks which have not been re-
corded are displayed in blue.
No symbol is displayed for tracks
which have been recorded.
The CD button is only active if the player
contains a CD.
Press Open to return the screen to the
vertical position.
ABC
DE
F
GHI
J
K
L
M

XI
201
AUDIO and TELEMATICS

Information displayed in Music Server mode



A.
The number and the name of the
track currently being played are dis-
played.

B.
The number and the name of the
playlist currently being played are
displayed.

C.
The name of the artist is displayed
for the playlist currently being played.

D.
The playing time of the track cur-
rently being played is displayed.

E.
The playing mode currently selected
is displayed.

F.
Group lists: position of the cursor
and total number of groups.
Playlists: position of the cursor and
total number of playlists.
Track lists: position of the cursor
and total number of tracks.
G.
To display the list of groups, the
playlist and the list of tracks.

H.
To scroll up or down through the
tracks.
Press and hold for fast backwards
or forwards playing of a track.

I.
To scroll up or down through the
playlists.

J.
Group lists: number and name of
the group.
Playlists: number and name of the
playlist.
Track lists: number and name of the
track.

K.
To display the secondary menu.

L.
Displays the item currently selected.

M.
Move the cursor onto the track cur-
rently being played.

ABCD
E
F
G
HIJK
L
M

XI
AUDIO and TELEMATICS
General notes on MP3/WMA CDs

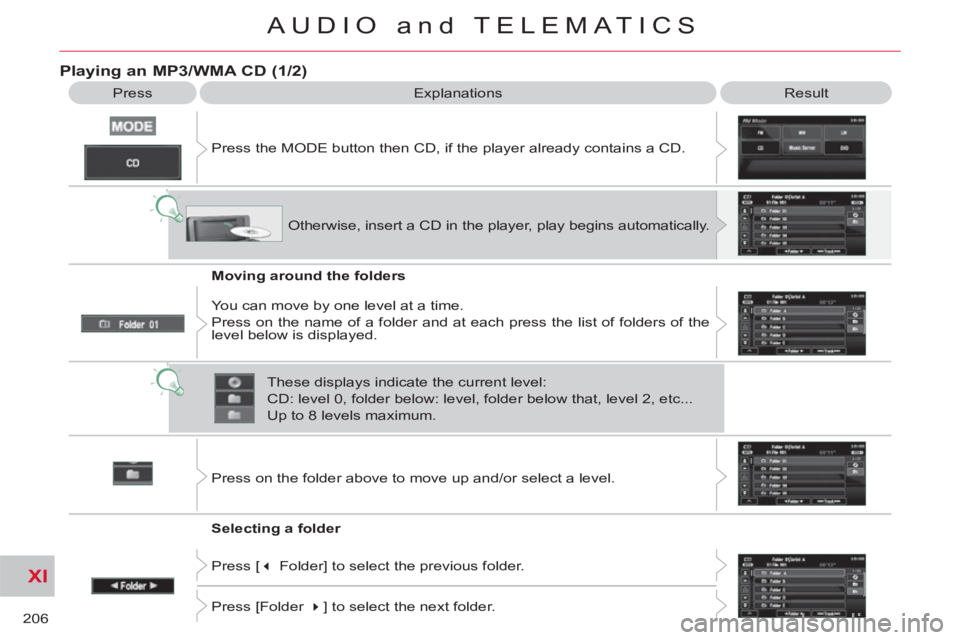

Playing an MP3/WMA CD
When the MP3/WMA CD is
inserted in the player, play-
ing of the tracks is automatic.
The tracks cannot be recorded
onto the music server.
You can play CDs with up to 8 levels,
255 folders and 400 fi les maximum.

Copyright
Your Audio equipment may allow you
to listen to music which is usually pro-
tected by copyright in accordance with
current national and international stan-
dards. Please consult these standards
and comply with them.

Acceptance of the fi les
Some blank CDs may not be played
by your equipment (quality, recording
speed...).
When you burn a CD-R or CD-RW,
select the ISO 9660 level 1.2 or Joliet
burning standard.
To obtain the best acoustic quality pos-
sible, select the lowest burning speed.
The MPEG1 and MPEG2 standards
are accepted.
Transmission speeds between 32 and
320 kbits/s and scans between 16 kHz
and 48 kHz are accepted.
To display the title information (the
name of the artist, the title of the
album, etc...), the information con-
tained in the ID3 Tags or the WMA Tags
must be included in the MP3/WMA fi les
burned onto the disc.
What is the MP3/WMA fi le format?
MP3 is the abbreviation of MPEG-1
Audio Layer 3 and MPG is the abbrevia-
tion of Motion Pictures Experts Group, a
digital video data compression standard
used on media such as video CDs.
The MP3 compression reduces the
number of bytes in a song by eliminating
the long sound waves in the range of fre-
quencies which are imperceptible to the
human ear, so producing high quality au-
dio fi les with a low volume of data.
This compression divides the size of
the content of a conventional audio CD
by approximately 10, which means that
the content of 10 audio CDs can be
recorded onto a single CD-R or CD-RW.
WMA is the abbreviation of Windows
Media Audio, another audio data com-
pression standard offered by Microsoft.
It can be used to create and save audio
fi les at a compression rate higher than
that of the MP3 format.
Windows Media and Microsoft Corpo-
ration are trademarks registered in the
United States and/or other countries.

XI
205
AUDIO and TELEMATICS

Information displayed in MP3/WMA CD mode



A.
The number and the name of the track
currently being played are displayed.

B.
The name of the album/folder is dis-
played for the track currently being
played.

C.
The name of the artist is displayed
for the track currently being played.

D.
The playing time of the current track
is displayed.

E.
The playing mode currently selected
is displayed.

F.
Position of the cursor and total num-
ber of folders or tracks on the current
level.

G.
To display the list of folders of a higher
level.

H.
Displays the item currently selected.
I.
To scroll up or down through the
tracks.
Press and hold for fast backwards
or forwards playing of a track.

J.
To scroll up or down through the
folders.

K.
Displays the folder number and the
folder name. Plus the lists and num-
bers of tracks and the name of the
fi le (without extension).

L.
To display the secondary menu.

M.
Move the cursor onto the track cur-
rently being played.

N.
Displays the type of medium, MP3
or WMA.

The CD button is only active if the player
contains a CD.
Press Open to return the screen to the
vertical position.
ABC
EF
G
IKL
M
N
D
H
J

XI
206
AUDIO and TELEMATICS

Playing an MP3/WMA CD (1/2)

Press Explanations Result
Press the MODE button then CD, if the player already contains a CD.

Moving around the folders

Selecting a folder Otherwise, insert a CD in the player, play begins automatically.
You can move by one level at a time.
Press on the name of a folder and at each press the list of folders of the
level below is displayed.
Press on the folder above to move up and/or select a level.
Press [
Folder] to select the previous folder.
Press [Folder
] to select the next folder.
These displays indicate the current level:
CD: level 0, folder below: level, folder below that, level 2, etc...
Up to 8 levels maximum.

XI
!
208
AUDIO and TELEMATICS
DVD MODE
The DVD button is only active if the
player contains a DVD.
Press Open to return the screen to the
vertical position. For safety reasons, the video
is not displayed while driving,
however the audio can be
played.
To display the picture and watch a
DVD, park the vehicle in a safe place.
K.
To display the DVD title menu.

L.
To scroll up or down through the
chapters.
Press and hold for fast backwards
or forwards play.

M.
To scroll up or down through the titles.

N.
To enter a title or chapter number.

O.
To change the angle.

P.
To change the language of the sub-
titles.

Q.
To change the language.

R.
To select a chapter or title or specify
a number.

A.
This icon is displayed when the opera-
tion requested cannot be carried out.

B.
The number of the chapter currently
being played is displayed.

C.
The number of the title currently
being played is displayed.

D.
Symbols display the current status
of the player.

E.
The playing time is displayed.

F.
To resume normal play when play is
paused or during slow-motion play.

G.
To stop play temporarily.

H.
To stop play. Press the screen to
access the menu.

I.
For slow-motion play.

J.
To play the previously selected zone
on the disc.

Information displayed in DVDmode ABCDE
FGHIJ
KLM
RQPON
