key Citroen C ZERO 2010.5 1.G User Guide

i
!
Driving
52










Starting - stopping the vehicle
- Position 1: LOCK
The steering is locked.
- Position 2: ACCThe ancillaries (radio, 12 V socket...)can be used.
- Position 3: ONIgnition on.
- Position 4: START"Ready" lamp on.
Motor ready to drive the vehicle.
Ignition switch
) Inser t the key in the ignition switch.
)
Turn the key to position 4 (START).


Starting
Stopping
)Immobilise the vehicle.
)Place the drive selector in position P.P)Turn the key to position 1 (LOCK).)Remove the key from the ignition switch.)Hold it in this position for a few seconds until the "READY" lamp comes on accompanied by an
audible signal.
) Release the key.
The key returns automaticallyto position 3 (ON).
Key in ignition
If the key has been left in the ignition, an
audible signal is heard on opening the driver's door.

Do not attach any heavy objects to the key as this could weigh down on it whenin the ignition switch and cause a fault.

If you use the ancillaries for a prolonged period (with the key in the ACCposition), you risk discharging theancillaries battery. Star ting your vehiclewill then no longer be possible.Be aware .

4
!
Driving
55
To tow your vehicle, the drive selector must be in position N
, refer to "PracticalInformation".



Parking the vehicle

To stop the motor, you must select position P.P
You must apply the parking brake to immobilise
the vehicle.
To remove the key from the ignition switch, thedrive selector must be in position P.P

i
i
i
Visibility
58
Daytime running lamps
Special daytime lighting so that the vehicle can
be seen more easily. The daytime running lamps come on automatically when star ting the motor, if no
other lighting is on.
They cannot be deactivated. With the main li
ghting control ring in the AUTO
position, the sidelamps and dipped beam
headlamps come on automaticall
y, without anyaction by the driver, when a low level of ambientlight is detected.
When the light returns to a sufficient level or the
wipers are switched off, the lighting is switched
off automatically.
The sensor is located at the base of the
windscreen.
Automatic illumination of headlamps
Automatic lighting off
When the lighting stalk is in the "dipped or mainbeam headlamps" position, if the ignition switch
is in the "LOCK" or "ACC" position or if thekey has been removed, the lighting switches
off automatically when the driver's door isopened .
The driver is is aler ted by an audible signal. The initial setting is position "0".









Headlamp
adjustment

To avoid causing a nuisance to other road
users, the height of the halogen headlampsshould be adjusted according to the load in the
vehicle. 0. Driver only or driver + 1 front passenger.
1 or 2.
4 people (including the driver). 3.4 people (including the driver) + maximumauthorised load.4.
Driver + maximum authorised load.

Even though these lamps are located inthe same lamp unit as the front foglamp, the operate with a specific bulb.
Their use is covered by road vehiclelighting regulations.
In foggy weather or in snow, thesunshine sensor may detect sufficient light. The lighting will not come on automatically. Do not cover the sunshine sensor, theassociated functions will no longer becontrolled.

!
Child safety
68
The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident. When installing a child seat using the seat belt, check that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. Remember to fasten the seat belts or the child seat harnesses keeping the slackinrelation to the child's body to a minimum, even for short journeys.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the backof the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed,ensure that it is stored or attached securelyto prevent it from being thrown around the vehicle in the event of sharp braking. Children under the age of 10 must not travel in the "for wards-facing" position on the frontpassenger seat, unless the rear seats arealready occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag *
when a"rearwards-facing" child seat is installed onthe front seat. Other wise, the child would risk being seriously injured or killed ifthe airbag were to inflate.

Advice on child seats
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without
touching the neck.Ensure that the lap part of the seat beltpasses correctly over the child's thighs.CITROËN recommends the use of a booster seat which has a back, fitted witha seat belt guide at shoulder level.
As a safety precaution, do not leave: - one or more children alone andunsuper vised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.


*
According to country and current local legislation.








Child lock

Mechanical system to prevent opening of
the rear doors using their interior controls.
The control is located on the edge of each rear door.


Child lock on
)Lower the control Ato position 1.


Child lock off
)Raise the control Ato position 2.

7
!
Safety
77

Deactivation
Only the front passenger's airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch A , )turn it to the "OFF"position, )remove the key.
This warning lamp comes on in the centreconsole when the ignition is on and until
the airbag is reactivated.
To ensure the safety of your child, thepassenger airbag must be deactivatedwhen you install a "rear facing" childseat on the front passenger seat. Other wise, the child would risk beingseriously injured or killed if the airbag were deployed.


Reactivation

When you remove the child seat, turn switch A
to the "ON"position to reactivate the airbag andso ensure the safety of your front passenger in
the event of an impact.
The associated warnin
g lamp goes off.


Operating fault

If this warning lamp comes on in the
instrument panel, contact a CITROËN
dealer or a qualified workshop to have
t
he system checked. The airbags may no longer be deployed in the event of
a serious impact.

!
!
Practical information
88

Charging the battery using
a battery charger
)Star t the other vehicle and wait a fewminutes.)Turn the ignition key on your vehicle, until
the "Ready" lamp comes on.
)Disconnect the cables in the reverse order.)Refit the battery protective cover and
tighten the fixing screw.
I
f the "Ready" lamp does not come on,proceed as follows: )Leave the cables connected. )Return the ignition switch on your vehicle
to the " LOCK" position. )Put the main battery on charge, followingthe procedure for normal charging (see "charging the main battery").)When the charging warning lamp in
the instrument panel comes on fixed,disconnect the cables.)Leave the battery on charge for at least one hour. )Turn the ignition key on your vehicle, until
the "Ready" lamp comes on.
If the problem persists, contact a
CITROËN dealer or a qualified workshop.

)
Remove the protective cover from
the battery.
If you want to use a battery charger, you must remove the battery from the front compartment.
Ensure that the electrolyte is not frozen.Check the electrolyte level and top upwith distilled water if necessary (refer to"checking levels" in this document).
)Slacken nut 1
and lift off the retaining bar.

04
6
7
8
9

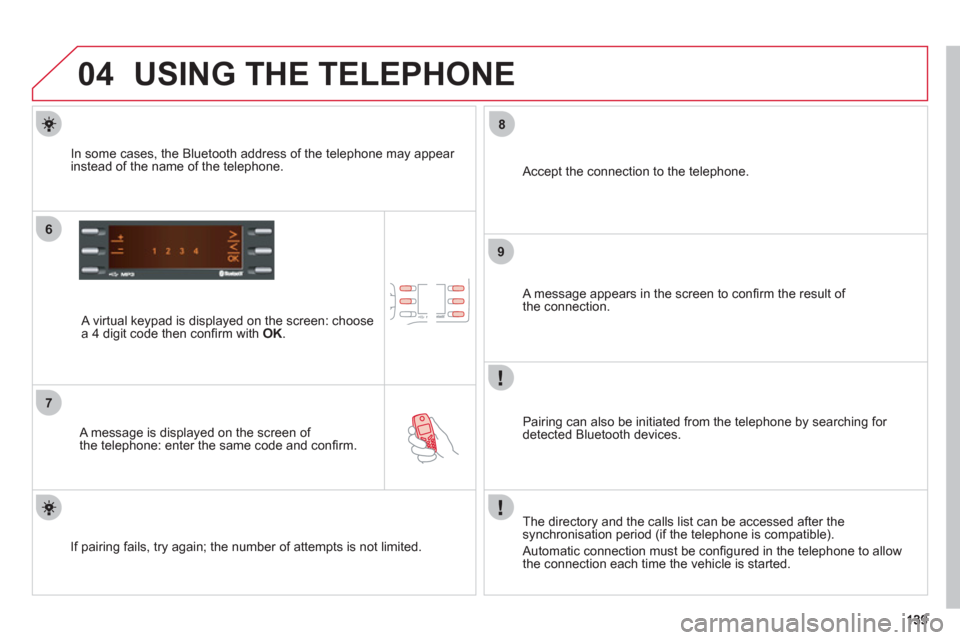

USING THE TELEPHONE
A virtual keypad is displayed on the screen: choose
a 4 digit code then confi rm with OK .


A message is displayed on the screen of
the telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of
the connection.
Pairin
g can also be initiated from the telephone by searching for detected Bluetooth devices.
Accept the connection to the telephone.

I
f pairing fails, try again; the number of attempts is not limited. The director
y and the calls list can be accessed after thesynchronisation period (if the telephone is compatible).

Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the Bluetooth address of the telephone ma
y appear
instead of the name of the telephone.

.
Visual search
151
Exterior
Remote control key 31- 32- opening/closing - central locking - anti-theft protection Starting - Stopping the vehicle 52
Lighting 56-58 Headlamp height adjustment 58 Changing bulbs 97-102- front lamps - foglamps- daytime running lamps - direction indicator repeaters
Wipers 59Changing a wiper blade 110
Door mirrors 42
Doors 35 - opening/closing Electric windows 34
Charging flaps 37 Charging the main battery 80-85- normal - fast

Accessories 111

ABS, EBFD, ASR, ESP 70 -72Tyre pressures 123Changing a wheel 94-96
Boot 36- opening/closing


Changing bulbs 102-104- rear lamps - 3rd brake lamp- number plate lamps - foglamp

To w i ng 11 0

.
Alphabetical index
157
Headlamp adjustment...................................58Head restraints........................................38-40Heating ..........................................................49Heating circuit fluid level.............................117
Indicator/warning lamps..........................20-25Indicators, direction......................................69Instrument panel ...........................................18Interior fittings ...............................................44Interior lamp ..................................................60ISOFIX child seats ..................................66-67ISOFIX mountings.........................................65
Levels and checks................................115-119Lighting bulbs (replacement).................97-104Lighting on reminder.....................................r57Lighting dimmer............................................r29Lighting stalk .................................................56Localised assistance call ............................126Localised emergency call...........................126Locking from the inside.................................35
Main battery ..................................................80Main beam ............................................97, 100Markings, identification...............................123Mat................................................................45Mountings for ISOFIX seats.........................65MP3 CD...............................................133,134
Labels, identification ...................................123Lamps, warning and indicator.................r20-25Lateral airbags ........................................78, 79Level, brake fluid .........................................117
Number plate lamps....................................104
L
I
M
N
Parking brake........................................53,119Passenger compartment filter....................r119Player, CD MP3................................... 133,134Protecting children......................61- 68, 75, 77Puncture........................................................90
P
Radio...........................................................129Range............................................................30Rear compartment......................................116Rear foglamp.................................57, 102, 104Rear lamps ..................................................102Rear screen(demisting)..................................................51Rear seats .....................................................40Rear view mirror............................................r43Rear wiper.....................................................r59Recirculation/exterior air intake ....................49Refitting a wheel...........................................96Refitting the mat............................................45Remote control.........................................31-33Removing a wheel........................................95Removing the mat.........................................45Repair kit, puncture.......................................90Replacing bulbs.....................................97-104Replacing fuses ...................................105-10 9Replacing the passenger compartment filter....................................r119Replacing wiper blades ............................... 110Reversing lamps .................................102, 103
R
Keeping children safe.................61- 68, 75, 77Key in ignition warning..................................52Key with remote control..........................31, 33
K
Opening the boot..........................................36
Opening the front compar tment..................114
Operation indicator lamps.......................20-25
O
