audio Citroen C ZERO 2012 1.G Owner's Manual

.
.
Contents
2
ISOFIX child seats 67
Child lock 70
Child safety
Direction indicators 71
Hazard warning lamps 71
Horn 71
Emergency or assistance call 72
Braking assistance systems 72
Tr ajectory control systems 74
Fr
ont seat belts 75
Airbags 78
Safety
Charging the main battery 82
Ancillaries battery 88
Te m p o r a ry puncture repair kit 92
Changing a wheel 96
Changing a bulb 99
Changing a fuse 107
Changing a wiper blade 112
To w i ng the vehicle 112
Precautions for washing 113
Accessories 113
Practical information
Bonnet 116
Front compartment 117
Rear compartment 118
Checking levels 119
Checks 121
Checks
Motor and main battery 122
Weights 123
Dimensions 124
Identifi cation markings 125
Technical data
Emergency or assistance 127
Audio system 129
Audio and telematics
Visual search
Alphabetical index

Familiarisation
6
Interior
Drive selector
Four-position drive selector: P, PR , Nand D .


Charging fl ap interior opening controls
Air conditioning
After setting the desired level of comfor t, the system controls this level according to the exterior climatic conditions.
Audio system
This system benefits from the latest
technology: MP3 compatible audio system,USB player, Bluetooth hands-free system, ...
5
5
37
49
129
Normal charging flap.
Fast char
ging flap (depending on equipment).

Familiarisation
8
Instruments and controls
1.
Parking brake.2.
Drive selector. 3.
12 V accessory socket.
4.
Passenger's airbag deactivation.
USB por t. 5. Glove box.
6.Cup holder.
7. Windscreen demisting vents.8.Lighting and direction indicator stalk.9.
Audio system.10.Hazard warning lamps switch. 11.
Centre vents. 12 .Heating / air conditioning controls.13.Emergency or assistance call.

Comfort
46

When connected to the USB por t, the por table
device charges automatically.
For more information on the use of this system, refer to the "Audio and Telematics" section.









USB Player
This USB port, is located on the centre console.
It permits the connection of por table devices,
such as a digital audio player of the iPod ®type
or a USB memory stick.
It reads the audio files which are transmittedto your audio equipment and played via the
vehicle's speakers.
You can mana
ge these files using the audiosystem controls.

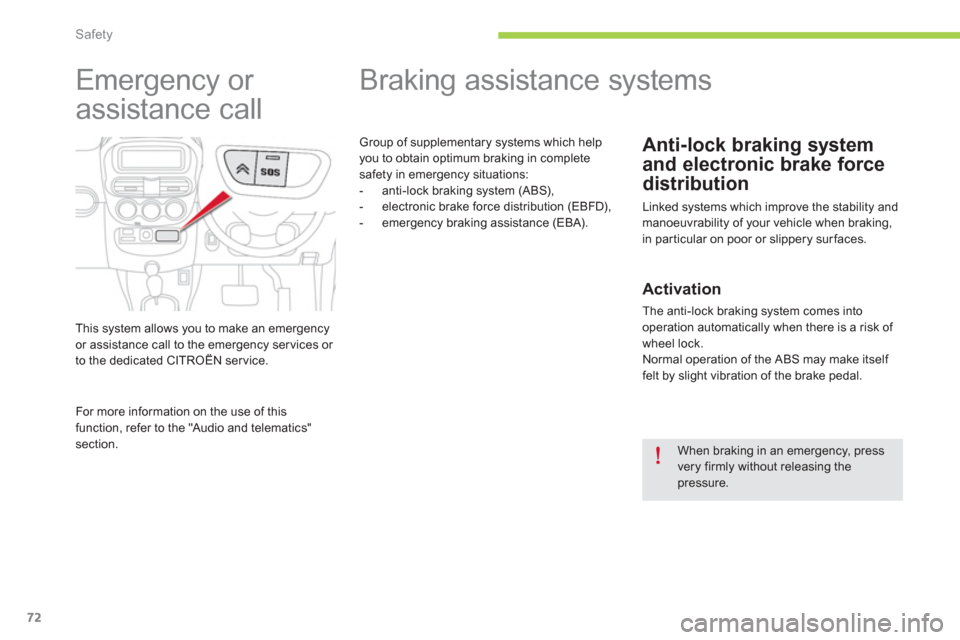

Safety
72

















Braking assistance systems
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability andmanoeuvrability of your vehicle when braking,
in par ticular on poor or slippery surfaces.
Group of supplementary systems which help
you to obtain optimum braking in completesafety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution (EBFD),

- emergency braking assistance (EBA).









Emergency or
assistance call
This system allows you to make an emergencyor assistance call to the emergency services or
to the dedicated CITROËN service.
When braking in an emergency, press very firmly without releasing thepressure.
Activation
The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself felt by slight vibration of the brake pedal.
F
or more information on the use of this function, refer to the "Audio and telematics"section.

Practical information
108
Dashboard fuses
The fusebox is placed in the lower dashboard (right-hand side).
Fuse N°RatingFunctions
17. 5 A
Left hand front and rear sidelamps.
215 A
Accessory socket.
3-
Not used.
47. 5 A Starter.
520
A Audio system.
6
- Not used.
77.5 A
Vehicle equipment, ri
ght hand front and rear sidelamps.
87. 5 A Electric door mirrors.
97.5 A
Supervisor controller.
107.5 A
Air conditioning.
1110 A
Rear foglamp.
1215 A Door locking.
13 10 A
Courtesy lamp.

Practical information
114
"Protection":
mats, boot carpet, vehicle cover, translucent bumper protectors, side rubbing strips...
"Multimedia":
audio systems, driving aids, universal solar charger, semi-integral navigation system (with
locations of charging stations), Wi-Fi hub,
iPhone ®compatible phone charger, hands-free®
kit, DVD players...
The fitting of electrical equipment or accessories which are not recommended by CITROËN may result
in a failure of your vehicle's electronicsystem and excessive electricalconsumption. Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle and spare bulbs andfuses available in the vehicle.

129






AUDIO SYSTEM / BLUETOOTH

01 First steps


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched o
ff and to prevent
discharging of the battery, the system switches off after
activation of the energy economy mode.

CONTENTS

02 Radio

03 Audio

04 Using the telephone

05 Audio settings

06 Configuration

07 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p. 130
131
134
140
146
147
148
149 After a battery disconnection, a code has to be enteredfor operation of the radio.

A maximum of fi ve attempts are possible. For the last
two attempts, a 15 minutes wait is imposed between each attempt.
R
efer to the end of this document to fi nd the label indicating this code:

01 FIRST STEPS


Selection of source:
- FM1, FM2, CD, USB, AUX,
Streaming.
-
Accept an incoming call.
Long press:
- access to the calls lo
g of the
telephone connected.
- or end a call i
f in progress.

Adjust audio settings:
sound ambience, treble,
bass, loudness, distribution,
left/right balance, front/rear balance, automatic volume. On / Off and volume
adjustment.
A
bandon the current
operation.
Go up one level (menu or folder).
Eject CD.

Select a
preset radio station.
Radio: long press: preset a
radio station.
Other than radio: see the corresponding sections.
Automatic search for a lower / higher radio
frequency.
Select previous / next CD, USB track.
Navigation in a list.
Pr
ess and hold: fast forwards or backwards.
Open the main menu.

Display the list of stations received, theCD/USB tracks or folders.
Lon
g press: update the list of stationsreceived.

1
30

02
131
RADIO
Press SRC/TEL several times insuccession and select the FM1 or FM2radio band.
Pr
ess a button to listen to the corresponding preset station.Select the desired radio station and confi rm by pressing "OK".







RADIO

Press LIST
to display the list of stations received in alphabetical order.
The exterior environment
(hills, buildings, tunnel, car park, below ground...) may prevent reception, even in RDS station tracking mode.This phenomenon is normal in the propagation of radio waves and is in no way indicative of a fault with the audio system.

A long press on LIST
builds or updates
the list of stations; audio reception is cut
momentarily.
Make a long press on one o
f the buttons
to preset the station being heard.
The name of the station is displayedaccompanied by an audible signal to confi rm the preset.

A press changes to the next or previous
letter (e.g. A, B, D, F, G, J, K, ...). MANAGE THE LIST
PRESETTING AND SELECTING A STATION
