Comfort
50
4. Air intake/Air recirculation





5. Air conditioning On/Off

Switchin
g on
)
Press the "A/C"button, the associated indicator lamp comes on. The air conditioning does not operate when
the air flow adjustment is set to off.

Switching off
)
Press the "A/C"button again, the
associated indicator lamp goes off.
Switching off may result in some discomfort (humidity, misting).

6. "MAX" button
The intake of exterior air prevents the formationof mist on the windscreen and side windows.
The recirculation of interior air isolates the passenger compar tment from exterior odours and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air qualit
y and the formation of mist.
) Press this button to recirculatethe interior air. The indicator
lamp comes on to confirm this.
) Press the button again to permit
the intake of exterior air. Theindicator lamp switches off to
confirm this.


The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It enables
you to:


- lower the temperature, in summer,

- increase the effectiveness of the demistin
gin winter, above 3 °C.
This button allows the passenger compartment
to be quickly heated or cooled. It only works
when the air flow control is not in the "OFF"position.
Press this button. The correspondin
g
indicator lamp comes on.

The place the temperature control in the
desired position:


- on "●" for maximum ventilation,

- between "●" and "H" for maximum heating,

- between "C" and "●" for maximum air conditioning.

Driving
54
P. Park.
This position is used for star tingthe vehicle.
To come out of the P
position, you must have your foot on the brake. R.Reverse.N.
Neutral.D.
Drive (For ward).












Drive selector
Selector positions

When you move the drive selector through the grille to select a position, the correspondingindicator is displayed in the instrument panel.


Displays in the instrument panel

With the motor running, Pappears in
the instrument panel screen.
)Press the brake pedal to come out of position P.P)Select for ward (D) or reverse ( R ) gear. R)Release the parking brake. )Ta k e your foot off the brake pedal, the
vehicle then moves off slowly to facilitatemanoeuvring. )Accelerate to go forwards or backwards. )"D"
or "R"
appears in the instrument panelscreen.


Moving off

Visibility
56





Lighting stalk
Main lighting
The various front and rear lamps of the vehicleare designed to adapt the lighting progressivelyin relation to the climatic conditions and so ensure the best visibility for the driver:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzling other drivers,
- main beam headlamps to see clearl
y when
the road is clear.

Additional lighting
Other lamps are provided to fulfil therequirements of particular driving conditions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better visibility,
- daytime running lamps to be seen during
the day.


Selection ring for main lightingmode

Turn the ring to position the symbol required
facing the mark.


Automatic illumination of headlamps.
Sidelamps only.

Di
pped or main beam headlamps.


Stalk for switching headlamp beam

Pull the stalk to switch the lighting between
dipped/main beam headlamps.

In the li
ghting off and sidelamps modes, the driver can switch on the main beam headlamps
temporaril
y ("headlamp flash") by maintaininga pull on the stalk.


Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lightingswitched on.

Li
ghting off.

!
Safety
72
Anti-slip regulation (ASR)
and electronic stability
programme (ESP)














Trajectory control systems



Deactivation

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft ground, ...), it may be advisable to deactivate
the ASR and ESP systems, so that the wheels can move freely and regain grip. ) Press this button button, located on the
dashboard to the right of the steeringwheel, until the corresponding symbol
appears in the instrument panel screen.
Activation
These systems are activated automatically each time the vehicle is started.
They come into operation in the event of a grip
or trajectory problem.
The displa
y of this symbol indicates
that the ASR and ESP systems are deactivated.

Reactivation

These systems are not reactivated automatically.
)Press this button again to reactivate themmanually.
The symbol going off in the instrument panel indicates
the reactivation of the ASR and ESP systems. The anti-slip regulation (also known as Traction Control) optimises traction to prevent skidding
of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability programme acts on the
brake of one or more wheels and on the engine
to keep the vehicle on the trajectory requiredby the driver, within the limits of the laws of physics.
This is indicated b
y flashing of this
warning lamp in the instrument panel.


The ASR/ESP systems offer exceptional safety in normal driving, butthis should not encourage the driver to take extra risks or drive at high speed.
The correct functioning of these systems depends on obser vation of the manufacturer’s recommendationsregarding the wheels (tyres and rims),the braking components, the electronic components and the assembly and repair procedures used by theCITROËN dealer network.
After an impact, have these systems checked by a CITROËN dealer or a qualified workshop.



Operating fault
The display of this message in the instrument panel indicates a malfunction of
these systems.
Contact a CITROËN dealer or a
qualified workshop
to have the ASR /ESP systems checked.

!
Safety
78
Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip andshoulder of the front occupant of the vehicle and the corresponding door trim panel.
System which protects the driver and frontpassenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airba
g is fitted in the seat backrest frame, door side.

Impact detection zones
A.
Front impact zone.
B. Side impact zone.


Curtain airbags
System which protects the driver and
passengers in the event of a serious side
impact in order to limit the risk of injury tothe head.
Each curtain airbag is fitted in the pillars
and the upper section of the passenger compartment.
In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be triggered.
In the event of a rear or front collision, the airbag is not triggered.


Deployment

Each curtain airbag is deployed at the same
time as the corresponding lateral airbag in the event of a serious side impact applied to all or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on
a horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.

I
f this warning lamp comes on in
the instrument panel, contact a
CITROËN dealer or a qualified workshop to have the systemchecked. The airbags may no longer be deployed in the event of a seriousimpact.



Operating fault

8
i
!
Practical information
105











Changing a fuse

The extraction tweezer is fitted to the back of
the fusebox cover in the dashboard (right hand side).
For access: )Unclip the cover and remove it completely by pulling it towards you.)Remove the tweezer.



Access to tools
Before changing a fuse, the cause of the failure
must be identified and rectified. ) Check that the ignition switch is in
the "LOCK " position.)
Identify the failed fuse by checking
the condition of its filament.
Changing a fuse
Good Failed
)
Use the special tweezer to extract the fuse from its location.)
Always replace the failed fuse with a fuse
of the same rating. ) Check that the number marked on the box,
the rating marked on the top of the fuse
and the tables below all agree.

CITROËN will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying the malfunctionsresulting from the installation of accessories not supplied and not recommended by CITROËN andnot installed in accordance with itsinstructions, in par ticular when the consumption of all of the additional equipment connected exceeds 10 milliamperes.

Yo u r v e h i c l e’s electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories in your vehicle, contact a CITROËN dealer or a qualified workshop.

8
Practical information
109

Access to the fuses
)Open the bonnet (refer to the "Checks" section),)Unclip the cover and remove it completely
by pulling towards you. )Change the fuse (refer to the corresponding paragraph).)When you have finished, close the cover carefully to ensure sealing of the fusebox.
Fuse N°RatingFunctions
1110 A On-board charger.
12 10 A
Dir
ection indicator.
1
310 A
Horn.
1410 A Daytime running lamps.
1515 A
Battery fan.
1610 A
Air conditioning compressor.
1720 A
Right hand dipped beam.
1820 A
Left hand dipped beam, headlamp adjusters.
1
910 A Right hand main beam.
20 10 A
Left hand main beam.

i !
!
Practical information
110

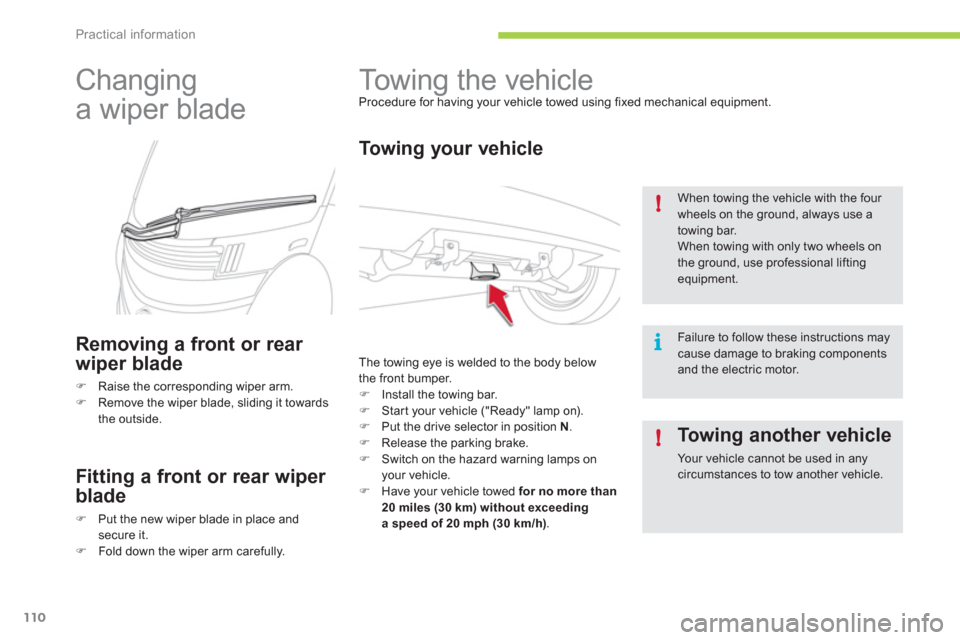

Towing the vehicle
Procedure for having your vehicle towed using fixed mechanical equipment.


To w i ng your vehicle

The towing eye is welded to the body below
the front bumper.) Install the towing bar. )
Start your vehicle ("Ready" lamp on).)
Put the drive selector in position N . )
Release the parking brake.)
Switch on the hazard warning lamps onyour vehicle.)
Have your vehicle towed for no more than 20 miles (30 km) without exceeding a speed of 20 mph (30 km/h)
.


When towing the vehicle with the four wheels on the ground, always use a towing bar.
When towing with only two wheels onthe ground, use professional lifting equipment.


Failure to follow these instructions may cause damage to braking components and the electric motor.









Changing
a wiper blade
Removing a front or rear
wiper blade
)Raise the corresponding wiper arm.)Remove the wiper blade, sliding it towards
the outside.
Fitting a front or rear wiper
blade
)Put the new wiper blade in place and
secure it. )Fold down the wiper arm carefully.



To w i ng another vehicle

Your vehicle cannot be used in any circumstances to tow another vehicle.

i
!i
Practical information
112
"Protection":
front and rear mudflaps, vehicle cover,
translucent bumper protectors, side rubbing strips...
"Multimedia":
audio systems, speed camera warning,
universal solar charger...

The fitting of electrical equipment or accessories which are not recommended by CITROËN may result
in a failure of your vehicle's electronicsystem and excessive electricalconsumption. Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle and spare bulbs andfuses available in the vehicle.

9
!
Checks
117


























Checking levels Check all of these levels regularly and top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.


Never do anything in the compar tmentswhen the "Ready" lamp is on or whenyour vehicle is being charged. Take care when carrying out checks in the front and rear compartments assome parts of the compartments canbe very hot (risk of burns): wait at leastone hour after stopping the motor or the end of the charging procedure beforecarrying out any work.

Brake fluid level
The brake fluid level should be
between the "MIN" and "MA X"
marks. If it is not, check the brakepad wear.
Changing the fl uid
Refer to the ser vicing booklet for details ofthe inter val for this operation.
Fluid specifi cation
The brake fluid must conform to the
manufacturer's recommendations and meetthe DOT4 standard.

Front compartment

Heatin
g system fluid level


Changing the fl uid

The fluid does not have to be changed.


Fluid specifi cation

The fluid must conform to the manufacturer's
recommendations. Th
e level of this fluid should be between the "L"MIN and "F" MA X marks.


Screenwash fluid level

Top up the level when necessary.


Fluid specifi cation

For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
