Citroen C ZERO RHD 2011 1.G Repair Manual

5
Visibility
59








Wiper controls
The vehicle's front and rear wipers are designed to improve the driver's vision, according to the climatic conditions.


Manual controls
Windscreen wipers

The wiper commands are issued directly by the
driver by means of the stalk Aand its ring B
. sin
gle wipe.

park.
intermittent
(the speed can be set
manually).

slow.

fast.
B
. Intermittent operation adjustment ring.)
Tu r n t h i s r i ng to increase or reduce
the wiping frequency in intermittent mode.


A.
Wiping speed selection stalk:
Windscreen wash
Pull the wiper stalk towards you. Thewindscreen wash, then the windscreen wipers,
operate for a pre-determined time.
Rear wiper
C. Rear wiper selection ring:
park.
intermittent wipe.
The wiper wipes twice then switches to
int
ermittent mode with an interval of a few seconds.
wi
pe with screenwash.
Keep the rin
g in this position to operate the screenwash with several wipes of the wiper.

Visibility
60





Courtesy lamp
Position 1 "ON"
The cour tesy lamp is permanently on.
Position 2 "●"
The cour tesy lamp comes on when openinga door or the boot; when the door or boot isclosed again, the lighting gradually dims for a few seconds before going off.
However, the cour tesy lamp is switched off
immediately when the doors and boot are closed and you lock the vehicle from the inside
or using the remote control.

Position 3 "OFF"

The cour tesy lamp is permanently off.

6
i
Child safety
61











General points relating to child seats

For maximum safety, please obser ve the following recommendations:


- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in a
pproved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,-statistically, the safest seats in your
vehicle for carrying children are the rear seats, -
a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
CITROËN recommendsthat children should travel in the rear seats of your vehicle: -"rearwards-facing"
up to the age of 2, -
"forwards-facing"
over the age of 2.
Although one of CITROËN's main criteria when designing your vehicle, the safety of your children
also depends on you.

*

The rules for carrying children are specific to each country. Refer to the current legislation
in your country.

Child safety
62
Child seat in the front
"Rearwards-facing"
When a "rear wards-facing" child seat is installed on the front passenger seat, itis essential that the passenger airbag is
deactivated. Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.

"Forwards-facing"

When a "for wards-facing" child seat is installed on the front passenger seat, adjust the
vehicle's seat to the intermediate longitudinal
position with the seat back upright and leave
the passenger airbag activated.

Intermediate longitudinal position

6
Child safety
63


Passenger airbag OFF

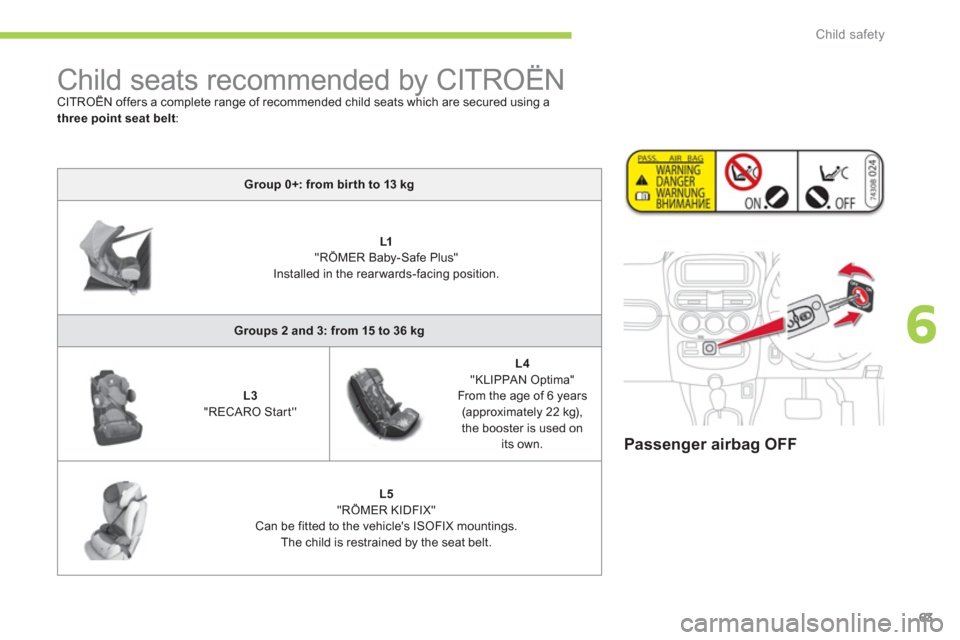

Child seats recommended by CITROËN
CITROËN offers a complete range of recommended child seats which are secured using ay
three point seat belt:
Group 0+: from bir th to 13 kg
L1"RÖMER Baby-Safe Plus"
Installed in the rear wards-facing position.
Groups 2 and 3: from 15 to 36 kg
L3"RECARO Start''
L4"KLIPPAN Optima"From the age of 6 years(approximately 22 kg),
the booster is used on its own.
L5"RÖMER KIDFIX" Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

Child safety
64














Installing child seats using the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
SeatUnder 13 kg(groups 0(
b )and 0+)
Up to approx 1 year

From 9 to 18 kg(group 1)1 to 3 years approx
From 15 to 25 kg(group 2)3 to 6 years approx
From 22 to 36 kg(group 3)
6 to 10 years approx

Front passenger seat ( c )L1
ISOFIX ROMERDuo Plus (secured with
the seat belt)
XX
Outer rear seatsUUUU
(a) Universal child seat: child seat that can be installed in all vehicles using a seat belt.(b)
Group 0: from bir th to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.(c)Consult the legislation in force in your country before installing your child on this seat.
U : Seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "forwards-facing". X:
Seat not suitable for the installation of a child seat of the indicated weight group.

6!
Child safety
65
Your vehicle has been approved in accordance
with the newISOFIX regulation .
The seats, represented below, are fitted with
re
gulation ISOFIX mountings:


















"ISOFIX" mountings
There are three rings for each seat:
- two rings A
located in the angle between
the vehicle seat's cushion and backrest,
indicated by a label. This IS
OFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with
two latches which are secured on the tworings A. Some seats also have an upper strapwhich is secured to the ring B
.
To attach this strap, remove the head restraint
from the vehicle's seat. Attach the hook to the
ring B
, then tighten the upper strap.

The incorrect installation of a child seatin a vehicle compromises the child's protection in the event of an accident.
For information re
garding the ISOFIX child seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats. - a rin
g B
for securing the upper strap called
the TOP TETHER, located in the boot.

i
Child safety
66












ISOFIX child seat recommended by CITROËN and approved for
your vehicle

ISOFIXRÖMER Duo Plus
(size category B1)
Group 1: from 9 to 18 kg


Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upper ring, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case, it must be attached to the vehicle seat using the three point seat belt.Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.

6
Child safety
67
















Installing ISOFIX child seats
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with
ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter between A
and G
, is
indicated on the child seat next to the ISOFIX logo.
IUF:seat suitable for the installation of an Isofix U niversal seat, "F
orward facing" and secured using the "Top Tether" upper strap.X:seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
Weight of the child
/indicative age
Less than 10 kg (group 0)Up to 6 months approx
Less than 10 kg(group 0)Less than 13 kg (group 0+)Up to 1 year approx
From 9 to 18 kg (group 1)From 1 to 3 years approx
Type of ISOFIX child seatInfant car seat*"rear facing""rear facing" "for ward facing"
ISOFIX size categoryFGCDECDABB1
Universal and semi-universal ISOFIX child
seats which can be installed on the outer rear seatsXXXXXIUF

*
Infant car seats and "car cots" cannot be installed on the front passenger seat.

!
Child safety
68
The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident. When installing a child seat using the seat belt, check that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. Remember to fasten the seat belts or the child seat harnesses keeping the slackinrelation to the child's body to a minimum, even for short journeys.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the backof the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed,ensure that it is stored or attached securelyto prevent it from being thrown around the vehicle in the event of sharp braking. Children under the age of 10 must not travel in the "for wards-facing" position on the frontpassenger seat, unless the rear seats arealready occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag *
when a"rearwards-facing" child seat is installed onthe front seat. Other wise, the child would risk being seriously injured or killed ifthe airbag were to inflate.

Advice on child seats
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without
touching the neck.Ensure that the lap part of the seat beltpasses correctly over the child's thighs.CITROËN recommends the use of a booster seat which has a back, fitted witha seat belt guide at shoulder level.
As a safety precaution, do not leave: - one or more children alone andunsuper vised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.


*
According to country and current local legislation.








Child lock

Mechanical system to prevent opening of
the rear doors using their interior controls.
The control is located on the edge of each rear door.


Child lock on
)Lower the control Ato position 1.


Child lock off
)Raise the control Ato position 2.
