fuses Citroen C ZERO RHD 2011 1.G Owner's Manual

Practical information
106
Dashboard fuses
The fusebox is placed in the lower dashboard (right-hand side).
Fuse N°RatingFunctions
17. 5 A Left hand front and rear sidelamps.
215 A
Accessory socket.
3-
Not used.
47. 5 A Starter motor.
520
A Audio system.
6
- Not used.
77.5 A
Vehicle equipment, ri
ght hand front and rear sidelamps.
87. 5 A Electric door mirrors.
97. 5 A Supervisor controller.
107.5 A
Air conditioning.
1110 A
Rear foglamp.
12 15 A
Door locking.
13 10 A
Courtesy lamp.

8
Practical information
107
Fuse N°RatingFunctions
1415 A Rear wiper.
157. 5 A
Instrument panel.
167. 5 A
Heating.
1720 A
Heated seat.
1810 A Option.
1
97. 5 A Door mirror heating.
2020 A Windscreen wiper.
2
17. 5 A Airbags.
2230 A
Heated rear screen.
23
30 A Heating.
24- Non used.
2510 A
Radio.
2
615 A
Passenger compar tment fuse.


Access to the fuses
See "Access to tools".

i
Practical information
108
Fuse N°RatingFunctions
1- Not used.
230 A Internal fuse.
340 A Electric motor.
440 A
Radiator fan.
5
40 A Electric windows.
6
30 A
Vacuum pump.
715 A
Main battery ECU.
815 A
Third brake lamp.
915 A
Front foglamps.
1015 A
Water pump.
Front compartment fuses
The fusebox is placed in the front compar tment
under the heating system reservoir. Only these
fuses can be replaced.

The replacement of fuses for other units (vacuum pump and battery accessories) requires the involvement of a CITROËNdealer or a qualified workshop.

8
Practical information
109

Access to the fuses
)Open the bonnet (refer to the "Checks" section),)Unclip the cover and remove it completely
by pulling towards you. )Change the fuse (refer to the corresponding paragraph).)When you have finished, close the cover carefully to ensure sealing of the fusebox.
Fuse N°RatingFunctions
1110 A On-board charger.
12 10 A
Dir
ection indicator.
1
310 A
Horn.
1410 A Daytime running lamps.
1515 A
Battery fan.
1610 A
Air conditioning compressor.
1720 A
Right hand dipped beam.
1820 A
Left hand dipped beam, headlamp adjusters.
1
910 A Right hand main beam.
20 10 A
Left hand main beam.

i
!i
Practical information
112
"Protection":
front and rear mudflaps, vehicle cover,
translucent bumper protectors, side rubbing strips...
"Multimedia":
audio systems, speed camera warning,
universal solar charger...

The fitting of electrical equipment or accessories which are not recommended by CITROËN may result
in a failure of your vehicle's electronicsystem and excessive electricalconsumption. Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle and spare bulbs andfuses available in the vehicle.

!
i
Checks
114











Bonnet Protects the components in the front compartment and provides access for checking levels, recharging the 12 V ancillaries battery, changing fuses, ...
)Push the exterior safety catch Bto the left and raise the bonnet.
)
Open the bonnet fully and on the right,unclip the stay Cfrom its holder.)
Fit the stay Cin one of the two notchesto hold the bonnet open.
)Open the front right door.)Pull the interior release lever A
, located at
the bottom of the door aper ture.
Opening
Closing
)Take the stay out of the support notch.)Clip the stay in its housing. )Lower the bonnet and release it at the end of its travel. )Pull on the bonnet to check that it is fully latched.


Do not press down on the middle of the bonnet if it does not fully close, as there is a risk of deforming it. Open the bonnet fully and close it again.
The location of the interior release lever prevents opening of the bonnet while the front right door is closed.

.
Visual search
153
Electric windows 34
Dashboard fuses 106-107
Heating, ventilation 47- 48 Air conditioning 49-50Demisting/defrosting 51
12 V accessory socket 45Manual parking brake 53
Rear view mirror 43
USB Player 46
Opening the bonnet 114

Instruments and controls
Opening the charging flaps 37

Audio system 127-150
Drive selector 54-55

.
Visual search
155

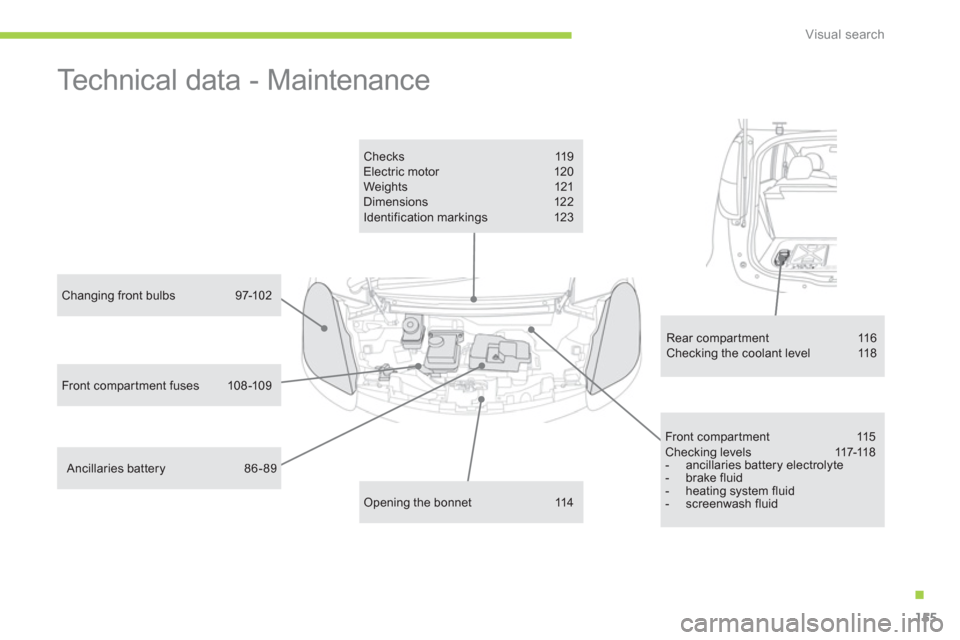

Technical data - Maintenance
Front compartment 115Checking l e v e l s 117-11 8- ancillaries battery electrolyte- brake fluid - heating system fluid - screenwash fluid
Changing front bulbs 97-102


Ancillaries battery 86-89


Opening the bonnet 114

Checks 119
Electric motor 120
Weights 121
Dimensions 12 2
Identification markings 123

Rear compartment 11 6 Checking the coolant level 118
Front compartment fuses 108 -109

Alphabetical index
156
ABS ...............................................................70ABS and EBFD systems ...............................70Accessories ................................................ 111Accessories socket, 12 V........................44, 45Access to bulbs.............................................97Adjusting headlamps....................................58Adjusting head restraints..............................39Airbags ..........................................................76Air conditioning.......................................48-50Air vents ........................................................ 47Ancillaries battery .................................86, 117Anti-lock braking system (ABS)....................70Assistance call......................................70, 126Audible warning............................................69Audio streaming (Bluetooth).......................137Automatic illumination
of headlamps ..............................................58Automatic switching
off of lighting ...............................................58
CD MP3................................................132-134Changing a bulb.....................................97-104Changing a fuse ...................................105-109Changing a wiper blade..............................110Charging flaps ...............................................37Charging the main battery ............................80Checking levels ....................................117,118Checks.................................................115, 119Children.......................................61- 68, 75, 77Child seats.............................................61,64Closing the boot............................................36Control stalk, wipers .....................................59Coolant level...............................................117Cup holder.....................................................r44Curtain airbags .......................................78, 79
Daytime running lamps .................................58Deactivating the passenger airbag ...............77Deactivating the rear windows......................34Defrosting......................................................51Demisting......................................................51Dimensions.................................................122Dipped beam.........................................97, 101Direction indicators.........69, 97, 101, 102, 103Display screen........................................28, 29Door mirrors..................................................42Doors .............................................................35Door trays ......................................................44Drive selector................................................r54
EBA (Emergency braking assistance)..........70,71Electric motor..............................................r120Electronic brake force distribution(EBFD)........................................................70Electronic engine immobiliser.................r32, 33Emergency braking system..........................71Emergency call.....................................70, 126Emergency warning lamps ...........................69Energy consumption/generation indicator....................................r27Environment ......................17, 48, 89, 118, 123ESP/ASR.......................................................72
A
BC
D
Bluetooth (hands-free)................................138Bonnet.........................................................114Bonnet stay................................................. 114Brake discs..................................................119Brake lamps ................................................ 102Brake pads..................................................119Brakes .........................................................119Braking assistance system...........................70Bulbs (replacement, type) ......................97-104
E
Flashing indicators..........69, 97, 100, 102, 103Foglamps......................................57, 101, 104Folding/unfolding the door mirrors................42Folding rear seat backrests..........................40Front airbags...........................................76, 79Front compar tment .....................................115Front foglamps .................................57, 97, 101Front lamps ...................................................97Front seats ....................................................38Fuses...........................................................105
F
Hands-free telephone .................................138
Hazard warning lamps..................................69
H

.
Alphabetical index
157
Headlamp adjustment...................................58Head restraints........................................38-40Heating ..........................................................49Heating circuit fluid level.............................117
Indicator/warning lamps..........................20-25Indicators, direction......................................69Instrument panel ...........................................18Interior fittings ...............................................44Interior lamp ..................................................60ISOFIX child seats ..................................66-67ISOFIX mountings.........................................65
Levels and checks................................115-119Lighting bulbs (replacement).................97-104Lighting on reminder.....................................r57Lighting dimmer............................................r29Lighting stalk .................................................56Localised assistance call ............................126Localised emergency call...........................126Locking from the inside.................................35
Main battery ..................................................80Main beam ............................................97, 100Markings, identification...............................123Mat................................................................45Mountings for ISOFIX seats.........................65MP3 CD...............................................133,134
Labels, identification ...................................123Lamps, warning and indicator.................r20-25Lateral airbags ........................................78, 79Level, brake fluid .........................................117
Number plate lamps....................................104
L
I
M
N
Parking brake........................................53,119Passenger compartment filter....................r119Player, CD MP3................................... 133,134Protecting children......................61- 68, 75, 77Puncture........................................................90
P
Radio...........................................................129Range............................................................30Rear compartment......................................116Rear foglamp.................................57, 102, 104Rear lamps ..................................................102Rear screen(demisting)..................................................51Rear seats .....................................................40Rear view mirror............................................r43Rear wiper.....................................................r59Recirculation/exterior air intake ....................49Refitting a wheel...........................................96Refitting the mat............................................45Remote control.........................................31-33Removing a wheel........................................95Removing the mat.........................................45Repair kit, puncture.......................................90Replacing bulbs.....................................97-104Replacing fuses ...................................105-10 9Replacing the passenger compartment filter....................................r119Replacing wiper blades ............................... 110Reversing lamps .................................102, 103
R
Keeping children safe.................61- 68, 75, 77Key in ignition warning..................................52Key with remote control..........................31, 33
K
Opening the boot..........................................36
Opening the front compar tment..................114
Operation indicator lamps.......................20-25
O
