Monitoring
20
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel, this confirms that the corresponding system has come into operation.

Warning/indicator lampStateCauseAction/Observations



Left-hand direction indicatorFlashing with audible signal. The lighting stalk is pushed down.


Right-handdirection indicatorFlashing with audible signal. The lighting stalk is pushed up.


Hazard warning lampsFlashing with audible signal. The hazard warning lamps switch,located on the dashboard, has been
operated. The left-hand and ri
ght-hand direction indicators and
their associated indicator lamps flash simultaneously.


Sidelampsand/or dipped beamheadlamps
On fixed. The sidelamps and/or dipped beamheadlamps are on.



Front foglampsOn fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.


Rear foglampOn fixed. The rear foglamp is switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamp.


Main beam headlampsOn fixed. The lighting stalk is pulled towardsyou. Pull the stalk to return to dipped beam headlamps.

2
!
Access
35





Doors


From outside
)After unlocking the vehicle using theremote control or the key, pull the door handle.
From inside
)
Pull the front or rear door control to open
the door.
If the doors are locked, opening the driver's door does not unlock the other doors.
- opening the driver's door unlocks the other doors,
- the front passenger or rear doors must
then be unlocked manually using the frontlocking control before they can be opened.
I
f a door or the boot is not closedcorrectly, this warning lamp comes
on in the instrument panel until the
door in question or the boot is closed.

Opening
Closin
g
Locking/unlocking from the
inside
) Press the button on the driver's door
towards the front to lock and towards
the rear to unlock the vehicle completely.
The buttons on the front and rear passenger doors only lock/unlockthe door in question.

4
!
Driving
55
To tow your vehicle, the drive selector must be in position N
, refer to "PracticalInformation".



Parking the vehicle

To stop the motor, you must select position P.P
You must apply the parking brake to immobilise
the vehicle.
To remove the key from the ignition switch, thedrive selector must be in position P.P

5
Visibility
59

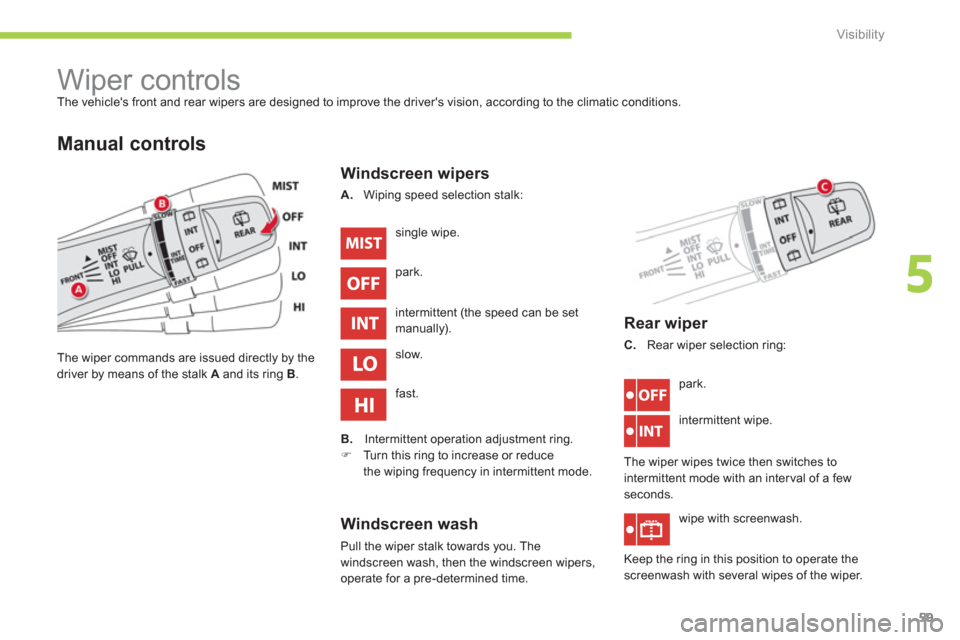

Wiper controls
The vehicle's front and rear wipers are designed to improve the driver's vision, according to the climatic conditions.


Manual controls
Windscreen wipers

The wiper commands are issued directly by the
driver by means of the stalk Aand its ring B
. sin
gle wipe.

park.
intermittent
(the speed can be set
manually).

slow.

fast.
B
. Intermittent operation adjustment ring.)
Tu r n t h i s r i ng to increase or reduce
the wiping frequency in intermittent mode.


A.
Wiping speed selection stalk:
Windscreen wash
Pull the wiper stalk towards you. Thewindscreen wash, then the windscreen wipers,
operate for a pre-determined time.
Rear wiper
C. Rear wiper selection ring:
park.
intermittent wipe.
The wiper wipes twice then switches to
int
ermittent mode with an interval of a few seconds.
wi
pe with screenwash.
Keep the rin
g in this position to operate the screenwash with several wipes of the wiper.

7
i
Safety
69











Direction indicators

Selection of the left or right direction indicators
to signal a change of direction of the vehicle. )Left: lower the lighting stalk beyond
the point of resistance. )Right: raise the lighting stalk beyond
the point of resistance.









Hazard warning lamps

A visual warning by means of the directionindicators to alert other road users to a vehiclebreakdown, towing or accident.)
Press this button, the direction indicators flash.
They can operate with the ignition off.





Horn
Audible warning system to aler t other road
users to an imminent danger. ) Press the central part of the steering wheel.

Use the horn moderately and only in the following circumstances:


- immediate danger,

- approaching a location lackingvisibility.

7
i
Safety
75




The driver must ensure that passengers usethe seat belts correctly and that they are allrestrained securely before setting off.
Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys.
Do not interchange the seat belt buckles asthey will not fulfil their role fully.
The seat belts are fitted with an inertia reel permitting automatic adjustment of the length of the strap to your size. The seat belt isstowed automatically when not in use.
Before and after use, ensure that the seatbelt is reeled in correctly.
The lower par t of the strap must bepositioned as low as possible on the pelvis.
The upper par t must be positioned inthe hollow of the shoulder.
The inertia reels are fitted with an automatic locking device which comes into operation inthe event of a collision, emergency braking or if the vehicle rolls over. You can releasethe device by pulling firmly on the strap and releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger isless than 12 years old or shor ter than one and a half metres. Never use the same seat belt to secure morethan one person. Never allow a child to travel on your lap.

In order to be effective, a seat belt must:


- be tightened as close to the body as possible,


- be pulled in front of you with a smooth movement, checking that it does nottwist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modified to avoid affecting its per formance.
In accordance with current safety regulations, for all repairs on your vehicle, go to a qualified workshop with the skills and equipment needed, which a CITROËN dealer is able to provide.
Have your seat belts checked regularly by a CITROËN dealer or a qualified workshop, particularly if the straps show signs of damage.
Clean the seat belt straps with soapywater or a textile cleaning product, sold by CITROËN dealers.
After folding or moving a seat or rear bench seat, ensure that the seat belt is positioned and reeled in correctly.
In the event of an impact
Depending on the nature and seriousness of the impact
, thepretensioning device may be deployedbefore and independently of the airbags.Deployment of the pretensioners isaccompanied by a slight discharge of harmless smoke and a noise, due to the activation of the pyrotechnic cartridge incorporated in the system.In all cases, the airbag warning lampcomes on.Following an impact, have the seat belts system checked, and if necessary replaced,by a CITROËN dealer or a qualified workshop.

!
Safety
78
Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip andshoulder of the front occupant of the vehicle and the corresponding door trim panel.
System which protects the driver and frontpassenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airba
g is fitted in the seat backrest frame, door side.

Impact detection zones
A.
Front impact zone.
B. Side impact zone.


Curtain airbags
System which protects the driver and
passengers in the event of a serious side
impact in order to limit the risk of injury tothe head.
Each curtain airbag is fitted in the pillars
and the upper section of the passenger compartment.
In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be triggered.
In the event of a rear or front collision, the airbag is not triggered.


Deployment

Each curtain airbag is deployed at the same
time as the corresponding lateral airbag in the event of a serious side impact applied to all or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on
a horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.

I
f this warning lamp comes on in
the instrument panel, contact a
CITROËN dealer or a qualified workshop to have the systemchecked. The airbags may no longer be deployed in the event of a seriousimpact.



Operating fault

8
i
!
i
i
Practical information
83

As a safety measure, the motor will
not star t when the charging cable isconnected to the vehicle's socket.
Also, any attempt to star t the motor interrupts the charging procedure. It willthen be necessary to disconnect and reconnect the charging cable plug tocontinue charging.

After charging, close the chargingsocket cover and flap. Take care to avoid the ingress of water or dust to the socket and its cover or the charging plug. Risk of fire or electrocution.
After charging, do not leave the cableconnected to the electric power point. There is a risk of shor t circuit or electrocution if it is contacted or immersed in water.
To optimise the ser vice life of the
main battery, charge it completelyevery 15 days.For a complete charge, follow the normal charging procedure (domestic power point) without interruption, until itstops automatically (charging warning lamp off in the instrument panel).
)The charging warning lamp in
the instrument panel goes off whencharging has finished. )Press the button to remove the chargingplug.)Refit the protective cover to the chargingcable. )Close the charging socket cover, then
the flap.)Disconnect the charging cable from
the power point.
)Stow the charging cable in the bag provided.
Vehicle out of use for a longperiod

When your vehicle is going to be outof use for a long period, charge the main battery completely every three months (following the normal charging procedure).
Before charging, check that the ancillaries battery is not disconnected or discharged. If this is the case, refer to the "ancillaries battery" section for reconnecting or charging the battery.

8
!
i
Practical information
93

2. Infl ation
)Check that the compressor switch A
is in
the "OFF" position. )Uncoil the compressor pipe B.
)
Connect this pipe to the valve of the
repaired wheel. )
Connect the compressor's electric plug to
the vehicle's 12 V socket (ignition switch in
position "ON" or "ACC"). ) Star t the compressor by turning the
switch A
to the "ON" position. )
Using the compressor, adjust the pressure in accordance with the vehicle's tyre
pressure label (located in the driver's door
aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;contact a CITROËN dealer or a qualified
workshop for assistance.
) Remove the compressor and stow the kit. )
Drive off straight away at reduced speed (50 mph [80 km/h] max) limiting thedistance travelled to approximately
120 miles (200 km).


As soon as possible, go to a CITROËN dealer or a qualified workshop. Tell the technician that you have used the kit. After checking, the technicianwill advise you whether the tyre can berepaired or must be replaced.


If after around 5 to 7 minutes the pressure is not attained, this indicates that the tyre is not repairable; contacta CITROËN dealer or a qualifiedworkshop for assistance.

8
Practical information
99
Slacken fixing screw D , while holding the
bumper away.)Slacken fixing screw E.
) Pull the lamp towards you, and disengage
the tab Fto remove it completely.
