bluetooth Citroen C ZERO RHD 2012 1.G Owner's Manual

Familiarisation
6
Interior
Drive selector
Four-position drive selector: P, PR , Nand D .


Charging fl ap interior opening controls
Air conditioning
After setting the desired level of comfor t, the system controls this level according to the exterior climatic conditions.
Audio system
This system benefits from the latest
technology: MP3 compatible audio system,USB player, Bluetooth hands-free system, ...
5
5
37
49
129
Normal charging flap.
Fast char
ging flap (depending on equipment).

129






AUDIO SYSTEM / BLUETOOTH

01 First steps


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched o
ff and to prevent
discharging of the battery, the system switches off after
activation of the energy economy mode.

CONTENTS

02 Radio

03 Audio

04 Using the telephone

05 Audio settings

06 Configuration

07 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p. 130
131
134
140
146
147
148
149 After a battery disconnection, a code has to be enteredfor operation of the radio.

A maximum of fi ve attempts are possible. For the last
two attempts, a 15 minutes wait is imposed between each attempt.
R
efer to the end of this document to fi nd the label indicating this code:

03
139
AUDIO






STREAMING - PLAYING AUDIO FILES VIA BLUETOOTH
DEPENDING ON THE COMPATIBILITY OF THE PHONE
Connect the telephone: see the "USING THE
TELEPH
ONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate Bluetooth Æprofi les (profi les A2DP / AV RCP).

Activate the streaming source by pressing SRC/TEL
. Control of playbackis via the audio system. The contextualinformation can be displayed in
the screen.
In certain cases, pla
ying of the audio fi les must be initiated from
the telephone.

The audio qualit
y depends on the quality of the transmission from
the telephone.

04
140
USING THE TELEPHONE









PAIRING A TELEPHONE / FIRST CONNECTION


The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.

Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function andensure that it is set as visible to all (refer to the
telephone instructions).
Press MENU
then select "Bluetooth".

A window is displayed with " Searching device".
Select the telephone to be paired from
the list and confi rm with "OK". Onlyone telephone can be paired at a time.
For sa
fety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary and the ignition on.

It is not possible to pair more that 5 telephones. Press MENUand select "Bluetooth"
. Select "BT management"
. If 5 telephones are
already paired, select the telephone to be deleted by pressing "OK"and select "Delete"
(refer to "Managing connections").
Visit www.citroen.co.uk
for more information (compatibility, more help, ...).

Select "Search".

04
141
USING THE TELEPHONE
A virtual keypad is displayed on the screen: choose
a 4 digit code then confi rm with OK .


A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the connection.
Pairin
g can also be initiated from the telephone by searching for detected Bluetooth devices.
Accept the connection to the telephone.

I
f pairing fails, try again; the number of attempts is not limited. The director
y and the calls list can be accessed after thesynchronisation period (if the telephone is compatible).

Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the Bluetooth address of the telephone ma
y appear
instead of the name of the telephone.

04
142
USING THE TELEPHONE
Press MENU then select "Bluetooth" .


Select "BT management"and confi rm. The list of
paired telephones is displayed.
Indicates connection of the audio profi le.


MANAGING CONNECTIONS

Select a telephone and confi rm "OK".

Indicates connection o
f the hands-free profi le.
Then select or deselect:
- "Tel."
: hands-free connection
-
"Audio"
: play audio fi les
"OK"to confi rm the choice.
Select "Delete"to delete the
pairing.

04
145
USING THE TELEPHONE

HANG UP

In the contextual menu:

-
select "Combined mode"to transfer the call to the telephone.

-
select "Combined mode"
to transfer the call to the vehicle.
In the contextual menu:
-
select " Micro OFF
" to switch off themicrophone.
-
select " Micro OFF
" to switch the
microphone on again.
In certain cases, the combined mode has to activated
from the
telephone.
The Bluetooth connection will be restored automaticall
y if the ignition
has been switched off, then on again (depending on the compatibility
of the telephone).

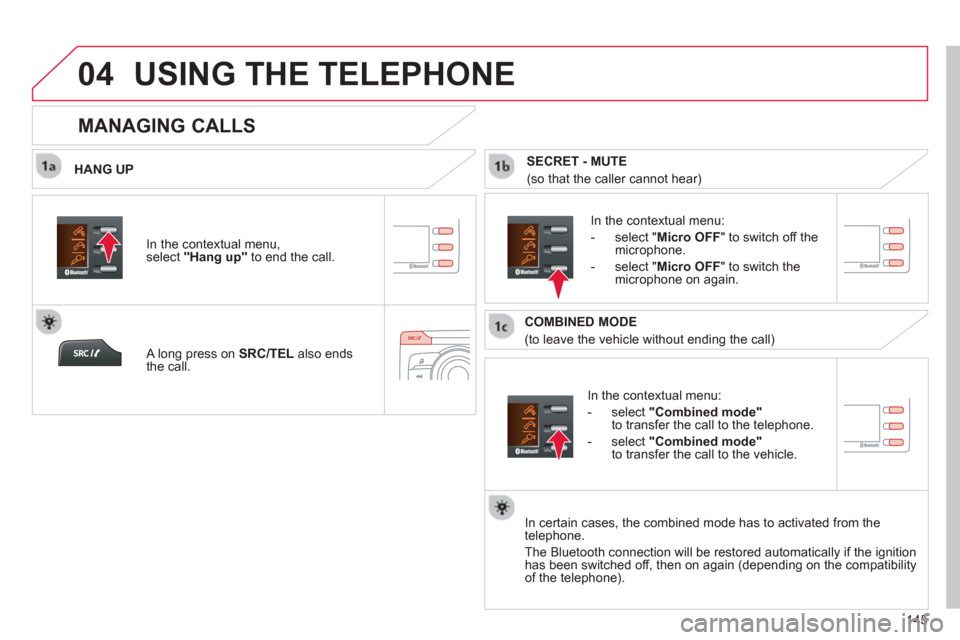

MANAGING CALLS


A long press on SRC/TELalso ends
the call. In the contextual menu,
select "Hang up"to end the call.
SECRET - MUTE

(so that the caller cannot hear)

COMBINED MODE

(to leave the vehicle without ending the call)

07
148
SCREEN MENU MAP
1
2
2
2
2
1
2
2
2
1
2
2
2
2
3
3
1
2
2
4
4
4
1
2
3
2
3
3
3
3
3
3
3
2
2
3
3
3
MENU
Radi
o
TA
RD
S
TXT
Write freq.
Media
Normal
Random
Random all
Telephone
Call
Repeat
TA
Phone status
Directory
Calls list
Bluetooth
BT mana
gement
Search
Missed calls
Dialed calls
An
swered calls
Confi g.
Displaying
Scrolling text
Language
D
eutsch
En
glish
Español
Français
It
aliano

Nederlands

Português
Version
System Portu
guês-Brasil
Р
усский
T
ürkçe
2Time

151
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The CD is ejected
automatically or is not played by the player. The CD is inserted upside down, is unpla
yable, does not contain any audio data or contains an audio format which the player cannot play.
The
CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the pla
yer the
right way up.

-
Check the condition of the CD: the CD cannot
be played if it is too damaged.

-
Check the content in the case of a recordedCD: consult the advice in the "Audio" section.

- The audio equipment's CD pla
yer does not
play DVDs.

-
Due to their quality level, certain writeableCDs will not be played by the audio system.
The CD pla
yer sound ispoor.The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio settings
(bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.
Th
e Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The messa
ge "USB device error" is displayedon the screen.The U
SB memory stick is not recognised.
The memory stick may be corrupt. Re
format the memory stick to FAT 16 or FAT 32.

A telephone connects
automatically, disconnecting another
telephone. A
utomatic connection overrides manual connection. Modify the telephone settings to remove automatic connection.

Alphabetical index
158
ABS ...............................................................72ABS and EBFD systems ...............................72Accessories ................................................ 113Accessory socket, 12V...........................44, 45Access to bulbs...................................100, 104Adjusting headlamps....................................59Adjusting head restraints..............................39Airbags ..........................................................78Airbags, cur tain .......................................80,81Airbags, front...........................................78,81Airbags, lateral ........................................80,81Air conditioning .................................48,50,51Air vents........................................................47Anti-lock braking system (ABS)....................72Assistance call......................................72, 128Audible warning............................................71Audio streaming (Bluetooth).......................139Audio system...............................................129Automatic illumination of headlamps ............59Automatic switching off of lighting ................59
CD MP3................................................134-136Changing a bulb ....................................99,104Changing a fuse ..........................................107Changing a wheel.........................................96Changing a wiper blade..............................112Charge main battery.....................................82Charging time..............................................122Charging flaps ...............................................37Checking levels...................................119, 120Checks .................................................117, 121Children ........................................62-70, 77, 79Child lock.......................................................70Child seats ..............................................62-70Child seats, conventional..............................65Closing the boot............................................36Control unit....................................................84Coolant level ...............................................119Cup holder.....................................................r44
Daytime running lamps.........................59, 103Deactivating the passenger airbag ...............79Deactivation of the passenger and rear window control switches ..............34Defrosting......................................................52Demisting ......................................................52Dimensions.................................................124Dipped beam.........................................99, 103Direction indicators.........71, 99, 102, 104, 105Display screen........................................28, 29Doors .............................................................35Door trays ......................................................44Drive selector................................................r55
EBA (Emergency braking assistance) ....72,73Electric motor..............................................r122Electronic brake force distribution (EBFD) ...72Electronic engine immobiliser.................r32, 33Emergency braking system..........................73Emergency call.....................................72, 128Emergency warning lamps...........................71Energy consumption / generation indicator.......r27Environment ......................17, 48, 91, 120, 125ESP/ASR.......................................................74
A
BC
D
Battery, ancillaries................................88, 119Battery, main.........................................82, 122Bluetooth (hands-free)................................140Bonnet, front................................................116Bonnet stay.................................................116Brake discs ..................................................121Brake lamps ................................................105Brake pads ..................................................121Brakes ......................................................... 121Braking assistance system...........................72Bulbs (changing, type)..........................99, 104
E
Fast charge ...................................................86Fitting a wheel ...............................................98Fitting the mat ............................................... 45Flashing indicators....71, 99, 102, 103, 104,105Foglamps......................................58, 103, 105Folding/unfolding the door mirrors................42Front compar tment.....................................117Front foglamps................................58, 99,103Front seats ....................................................38Fuses...........................................................107
F
Hands-free kit..............................................140Hazard warning lamps..................................71Headlamp adjustment...................................59Head restraints........................................38-40Heating..........................................................50Heating system fluid level ...........................119
H
