Contents
Instrument panel 18
Indicator and warning lamps 19
Main battery state of charge indicator 26
Energy consumption / generation indicator 27
Distance recorder 28
Trip distance recorder 28
Lighting dimmer 29
Ser vice indicator 29
Range indicator 30
Monitoring Familiarisation
Remote control key 31
Electric windows 34
Doors 35
Boot 36
Charging fl aps 37
Access
Front seats 38
Rear seats 40
Mirrors 42
Interior fi ttings 44
V
entilation 47
Heating 49
Air conditioning 49
Rear screen demist - defrost 52
Comfort
Starting - stopping the vehicle 53
Manual parking brake 54
Drive selector
55
Driving
Lighting controls 57
Automatic illumination of headlamps 59
Headlamp adjustment 59
Wiper controls 60
Courtesy lamp 61
Visibility

2
Access
31
System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to start the vehicle, as well as providing protection against theft.

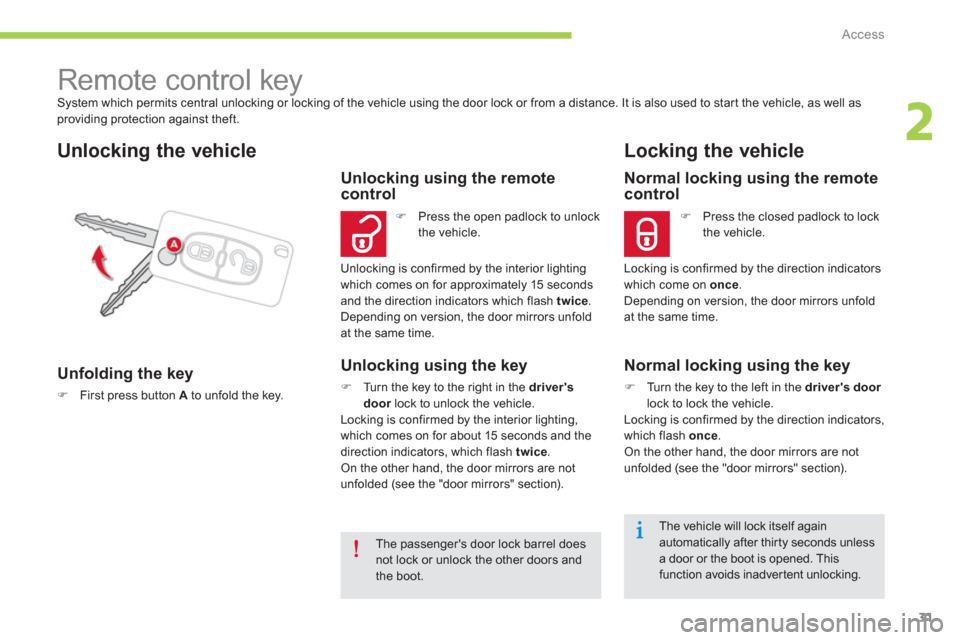

Remote control key

Unlocking the vehicle


Unfolding the key
)First press button A
to unfold the key.

Unlocking using the remote control
)
Press the open padlock to unlock
th
e vehicle.

Locking the vehicle
Unlocking is confirmed by the interior lightingwhich comes on for approximately 15 seconds and the direction indicators which flash twice.Depending on version, the door mirrors unfoldat the same time.
Unlocking using the key
)
Turn the key to the right in the driver's doorlock to unlock the vehicle. rLocking is confirmed by the interior lighting,which comes on for about 15 seconds and the
direction indicators, which flash twice . On the other hand, the door mirrors are not unfolded (see the "door mirrors" section).


Normal locking using the remotecontrol
)
Press the closed padlock to lock
th
e vehicle.
Lockin
g is confirmed by the direction indicators
which come on once .
Depending on version, the door mirrors unfold at the same time.

Normal locking using the key
)
Turn the key to the left in the driver's door
lock to lock the vehicle.
Locking is confirmed by the direction indicators,
which flash once .
On the other hand, the door mirrors are not
unfolded (see the "door mirrors" section).

The vehicle will lock itself again automatically after thir ty seconds unless a door or the boot is opened. Thisfunction avoids inadver tent unlocking.
The passenger's door lock barrel does not lock or unlock the other doors and the boot.

Access
32
Folding the key
Anti-theft protection
)First press button A
to fold the key.




Electronic engine immobiliser

The key contains an electronic chip which has a
special code. When the ignition is switched on,
this code must be recognised to permit star ting.
This electronic engine immobiliser locks theengine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not have the key.
In the event of a malfunction and if your vehicle
does not start, contact a CITROËN dealer as
soon as
possible.

Remote control problem

In the event of a remote control malfunction,
you can neither unlock nor lock your vehicle.)First of all, use the key in the driver's door
lock to unlock or lock your vehicle.
)Then, contact a CITROËN dealer to check
the operation of the remote control and
replace the battery if necessary.

5
Visibility
61





Courtesy lamp


Position 1 "ON"

The cour tesy lamp is permanently on.


Position 2 "●"

The cour tesy lamp comes on when opening
a door or the boot; when the door or boot is
closed again, the lighting gradually dims for a
few seconds before going off.
However, the cour tesy lamp is switched off
immediately when the doors and boot are closed and you lock the vehicle from the inside
or using the remote control.
Position 3 "OFF"
The cour tesy lamp is permanently off.
Before leaving the vehicle, ensure thatthe cour tesy lamp is not on.
If left on, it discharges the ancillariesbattery, even if the main battery is charged or on charge. Starting your vehicle will then no longer be possible.

.
Visual search
153
Exterior
Remote control key 31- 32- opening / closing - central locking - anti-theft protection Starting - Stopping the vehicle 53
Lighting 57-59 Headlamp height adjustment 59 Changing bulbs 99 -104- front lamps - foglamps- daytime running lamps - direction indicator repeaters
Wipers 60Changing a wiper blade 112
Door mirrors 42
Doors 35 - opening / closingElectric windows 34
Charging flaps 37 Charging the main battery 82-87- normal - fast

Accessories 113

ABS, EBFD, EBA, ASR, ESP 72-74 Tyre pressures 125Changing a wheel 96 -98
Boot 36- opening / closing


Changing bulbs 10 4 -10 6- rear lamps - 3rd brake lamp- number plate lamps - foglamp

Recovery 112
