109
Changing sidelamp bulbs
F Turn the bulb holder to the left and pull it out.
F

P
ull the bulb out and and change it.
To reassemble, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs
F Turn the bulb holder to the left and pull it out.
F

R
emove the bulb by pressing on the tongue.
F

C
hange the bulb.
For reassembly, carry out these operations in
reverse order.
Changing direction indicator
bulbs
F Turn the bulb holder to the left and pull it out.
F

P
ull the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r.
Amber coloured bulbs must be replaced
with bulbs of identical specifications
and colour.
8
Practical information

110
Changing dipped beam headlamp
bulbs
F Turn the bulb holder to the left and pull it out.
F

R
emove the bulb by pressing on the tongue.
F

C
hange the bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing front foglamp bulbs /
daytime running lamp bulbs
F Put the front wheels onto full lock, to facilitate access.
F

R
emove the clips securing the protective
covers on the bulb holders.
F

M
ove the cover aside. F
T urn the bulb holder (A for the front fog
lamp, B for the daytime running lamp) to
the left and pull it out.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Practical information

111
1. Brake lamps / Sidelamps
(21 W / 15 W or LEDs).
2.
D

irection indicators (W Y21W - 21 W).
3.
R

eversing lamps (W21W - 21 W).
Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
c o l o u r.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Changing integrated direction
indicator side repeater bulbs
(WY5W - 5
W)
F Push the repeater towards the rear and disengage it.
F

T
urn the bulb holder to the left and pull it
out.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Access to bulbs
F Remove the two screws.
F Disengage the lamp unit by pulling it towards you.
8
Practical information

112

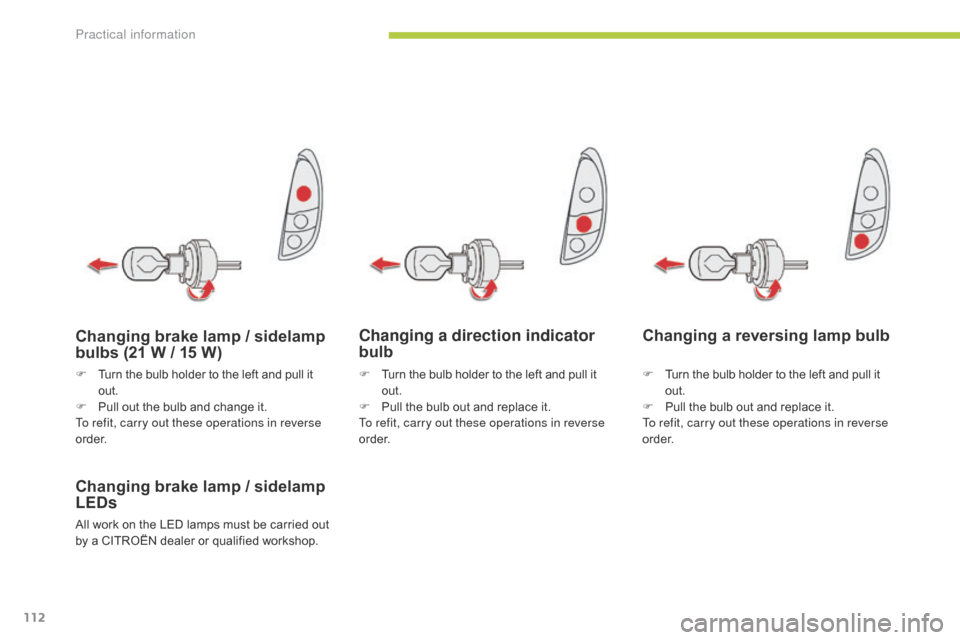

Changing a direction indicator
bulb
Changing brake lamp

/ sidelamp
LEDs
All work on the LED lamps must be carried out
by a CITROËN dealer or qualified workshop.
Changing a reversing lamp bulb
Changing brake lamp

/ sidelamp
bulbs (21 W

/ 15 W)
F Turn the bulb holder to the left and pull it
out.
F

P
ull out the bulb and change it.
To refit, carry out these operations in reverse
o r d e r. F
T urn the bulb holder to the left and pull it
out.
F

P
ull the bulb out and replace it.
To refit, carry out these operations in reverse
o r d e r. F
T urn the bulb holder to the left and pull it
out.
F

P
ull the bulb out and replace it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

113

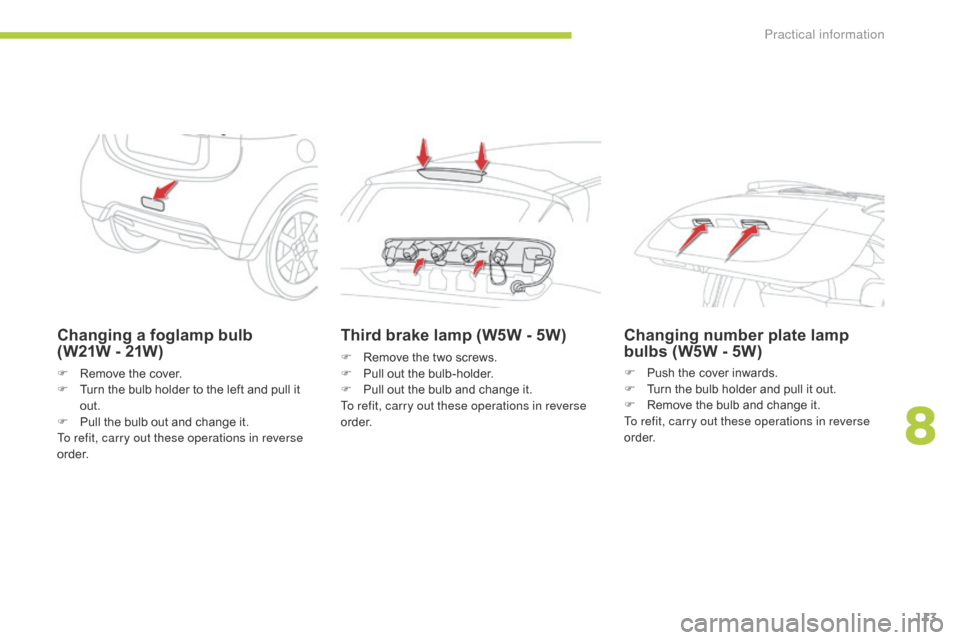

Changing a foglamp bulb
(W21W - 21W)
F Remove the cover.
F
T urn the bulb holder to the left and pull it
out.
F

P
ull the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r.
Third brake lamp (W5W - 5W)
F Remove the two screws.
F P ull out the bulb-holder.
F

P
ull out the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing number plate lamp
bulbs (W5W - 5W)
F Push the cover inwards.
F T urn the bulb holder and pull it out.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
8
Practical information

114
Changing a fuse
The extraction tweezer is fitted to the back of
the fusebox cover in the dashboard (right hand
side).
For access:
F
U
nclip the cover and remove it completely
by pulling it towards you.
F

R
emove the tweezer.
Access to tools
Before changing a fuse, the cause of the failure
must be identified and rectified.
F
C
heck that the ignition switch is in
the
"LOCK " position.
F

I
dentify the failed fuse by checking the
condition of its filament.
Changing a fuse
Good Failed
F

U

se the special tweezer to extract the fuse
from its location.
F

A

lways replace the failed fuse with a fuse
of the same rating.
F

C

heck that the number marked on the box,
the rating marked on the top of the fuse
and the tables below all agree. CITR
oËn

will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
consumption of all of the additional
equipment connected exceeds
10
mil

liamperes.
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a CITROËN dealer or a
qualified workshop.
Practical information

115
Dashboard fuses
The fusebox is placed in the lower dashboard
(right-hand side).Fuse N°
Rating Functions
1 7. 5 ALeft hand front and rear sidelamps.
2 15 AAccessory socket.
3 -Not used.
4 7. 5 AS t a r t e r.
5 20 AAudio system.
6 -Not used.
7 7. 5 AVehicle equipment, right hand front and rear sidelamps.
8 7. 5 AElectric door mirrors.
9 7. 5 ASupervisor controller.
10 7. 5 AAir conditioning.
11 10 ARear foglamp.
12 15 ADoor locking.
13 10 ACourtesy lamp.
8
Practical information

116
Fuse N°Rating Functions
14 15 ARear wiper.
15 7. 5 AInstrument panel.
16 7. 5 AHeating.
17 20 AHeated seat.
18 10 AOption.
19 7. 5 ADoor mirror heating.
20 20 AWindscreen wiper.
21 7. 5 AAirbags.
22 30 AHeated rear screen.
23 30 AHeating.
24 -Not used.
25 10 ARadio.
26 15 APassenger compartment fuse.
Access to the fuses
See "Access to tools".
Practical information

117
Fuse N°Rating Functions
1 -Not used.
2 30 AInternal fuse.
3 40 AElectric motor.
4 40 ARadiator fan.
5 40 AElectric windows.
6 30 AVacuum pump.
7 15 AMain battery ECU.
8 15 AThird brake lamp.
9 15 AFront foglamps.
10 15 AWater pump.
Front compartment fuses
The fusebox is placed in the front compartment
under the heating system reservoir. Only these
fuses can be replaced.
The replacement of fuses for other units
(vacuum pump and battery accessories)
requires the involvement of a CITROËN
dealer or a qualified workshop.
8
Practical information

118
Access to the fuses
F Open the bonnet (refer to the "Checks" section),
F

U
nclip the cover and remove it completely
by pulling towards you.
F

C
hange the fuse (refer to the
corresponding paragraph).
F

W
hen you have finished, close the cover
carefully to ensure sealing of the fusebox. Fuse N°
Rating Functions
11 10 AOn-board charger.
12 10 ADirection indicator.
13 10 AHorn.
14 10 ADaytime running lamps.
15 15 ABattery fan.
16 10 AAir conditioning compressor.
17 20 ARight hand dipped beam.
18 20 ALeft hand dipped beam, headlamp adjusters.
19 10 ARight hand main beam.
20 10 ALeft hand main beam.
