Page 4 of 271
.
.
Exterior lighting control stalk 93
Automatic illumination of headlamps 9 6
Headlamp adjustment
9
8
Courtesy lamp
9
8
Boot lamp
9
8
Wiper control stalk
9
9
Visibility
Instrument panels 1 0
Display screens 1 2
Indicator and warning lamps
1
4
Indicators
25
Trip computer
2
6
Setting the time
2
8
MonitoringOver view
Keys 3
0
"Keyless Entry and Starting" system
3
3
Doors
37
Boo
t
3
8
Front electric windows
4
0
Rear quarter windows
4
0
Electric fabric roof
4
1
Access
Front seats 45
Rear seats 4 7
Mirrors
4
9
Steering wheel adjustment
5
0
Ventilation
5
1
Heating
5
3
Manual air conditioning
5
4
Automatic air conditioning
5
6
Front demist - defrost
5
9
Rear screen demist - defrost
6
0
Comfort
Interior fittings 61
Rear parcel shelf 6 5
Boot fittings
6
6
Fittings
Driving recommendations 68
Starting - switching off the engine with the key
6
9
Starting - switching off the engine with the Keyless Entry and Starting system
7
0
Manual parking brake
7
4
5 -speed manual gearbox
7
4
ETG electronic gearbox
7
5
Gear shift indicator
7
9
Hill start assist
8
0
Stop & Start
8
1
Speed limiter
8
4
Reversing camera
9
0
Lane departure warning system
9
1
Driving
Eco-driving
Contents
Page 6 of 271
4
C1_en_Chap00b_vue-ensemble_ed01-2015
Exterior
102
81 91
33
Electronic key: Keyless
Entry and Starting
This system allows the locking, unlocking and
starting the vehicle by keeping the key on your
person and in the recognition zone.
Stop & Start
This system puts the engine temporarily
into standby during stops in the traffic (red
lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move
off. The Stop & Start system reduces fuel
consumption, exhaust emissions and the noise
level when stationary.
Under-inflation detection
This system automatically checks the tyre
pressures when driving and alerts you in the
event of an under-inflated tyre.
Active City Brake
The aim of this system is to avoid a frontal
collision or reduce the speed of impact if the
driver fails to react or reacts too late.
Lane departure warning
system
This system gives a warning if you inadvertently
cross a longitudinal road marking. 108
Over view
Page 21 of 271
19
C1_en_Chap01_controle-de-marche_ed01-2015
Warning / indicator lamp State Cause Action / Observations
Keyless Entr y
and Starting
system flashing quickly.
The steering column has not been
unlocked. Change to "
OFF" mode, then " ON" mode and turn the
wheel slightly to unlock the steering column.
flashing, accompanied
by an audible signal. The battery in the electronic key is
discharged. Replace the battery.
Refer to the corresponding section.
You are leaving the vehicle without
activating " OFF" mode. With the electronic key on your person, press the
START/STOP button to change to "
OFF" mode.
The electronic key has not been
detected. Check that you have the electronic key with you.
The Keyless Entry and Starting
system has a fault. Have the system checked by a CITROËN dealer or a
qualified workshop.
Lane departure
warning system flashing (orange),
accompanied by an
audible signal. A lane marking is being crossed, on
the right.
Turn the wheel in the other direction to return to the
correct trajectory.
For more information, refer to the corresponding
section.
A lane marking is being crossed, on
the left.
fixed. The lane departure warning system
has a fault. Have the system checked by a CITROËN dealer or a
qualified workshop.
Active City
Brake flashing, accompanied
by an audible signal. The Active City Brake system is in
action. The system optimises braking to avoid a collision.
For more information, refer to the corresponding
section.
flashing. The Active City Brake system has a
fault. Have the system checked by a CITROËN dealer or a
qualified workshop.
1
Monitoring
Page 23 of 271
21
C1_en_Chap01_controle-de-marche_ed01-2015
Parking brakefixed, accompanied by
an audible signal. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
Warning
/ indicator lamp
State Cause Action
/ Observations
Passenger's
front airbag fixed in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in the
glove box, has been placed in
the
"ON" position. The passenger's front airbag is activated.
In this case, do not install a rear ward facing child seat.
Stop & Star t
(VTi 68 S&S
engine) fixed.
When the vehicle stops (red lights,
traffic jams...) the Stop & Start system
has put the engine into STOP mode. The indicator lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
Keyless Entr y
and Starting
system fixed.
The conditions for starting are met. For more information, refer to the "Starting - switching
off the engine with the Keyless Entry and Starting
system" section.
flashing slowly. The vehicle is in "ACC" mode.
The accessories (audio system, 12V
socket...) can be used.
1
Monitoring
Page 35 of 271
33
C1_en_Chap02_ouvertures_ed01-2015
Keyless Entry and Starting system
System that allows the opening, closing and starting of the vehicle while keeping the electronic key on your person.
Electronic key
This electronic key can also be used as a
remote control.
Refer to the "Remote control" section.
It includes an integral emergency key.
Unlocking the vehicle
Unlocking by the doors
F With the electronic key on your person and in one of the recognition zones, press
one of the buttons on the door handles to
unlock the vehicle.
F
T
hen pull on the door handle to open the
d o o r.
Unlocking by the boot
F With the electronic key on your person and in the recognition zone located at the
rear, press the button on the boot handle to
unlock the vehicle and release the tailgate.
F
T
hen raise the tailgate to open it.
The direction indicators flash twice to
confirm the unlocking of the vehicle.
As a safety measure, the detection
zones in which the the electronic key
is operational have a radius of about
70
cm around each opening button.
2
Access
Page 36 of 271
34
C1_en_Chap02_ouvertures_ed01-2015
Locking the vehicle
Locking
F With the electronic key in the recognition zone, press one of the buttons on the front
door handles or press the button on the
boot sill.
The direction indicators flash once. If one of the doors or the boot is still
open or if the electronic key for the
Keyless Entry and Starting system has
been left inside the vehicle, you are
warned by an audible signal and the
central locking does not take place.
If the electronic key is left inside the
vehicle after switching off the engine,
there is a continuous audible signal on
opening the driver's door.
Never expose the electronic key to
extreme temperatures (below -20°C or
above +60°C); this could cause faults.
For reasons of safety and theft
protection, do not leave your electronic
key in the vehicle, even when you are
close to it.
It is recommended that you keep it on
your person.
If the vehicle is unlocked and no door
or the boot is opened, the vehicle will
lock again automatically after about
thirty
seconds.
Access
Page 37 of 271
35
C1_en_Chap02_ouvertures_ed01-2015
Emergency procedure
Unlocking
F Insert the integral key into the driver's door lock barrel and turn it towards the front of
the vehicle to unlock the vehicle.
Locking
F Insert the integral key into the driver's door lock barrel and turn it towards the rear of
the vehicle to lock the vehicle.
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate
and in the event of a fault with the Keyless
Entry and Starting system:
-
c
ell battery discharged, vehicle battery
discharged or disconnected, ...
-
v
ehicle located in an area with strong
electromagnetic signals.
F
P
ress and hold the latch 1 to extract the
integral key 2 .
Saving the electronic key
battery
To preserve the battery, it is possible to prevent
the electronic key working (no reception of
radio waves).
When this function is activated, the "Keyless
Entry and Starting" system is inoperative.
To reactivate the electronic key, press one of
the buttons (open or closed padlock).F
P
ress on the open padlock twice,
while pressing on and holding
the closed padlock.
Check that the indicator lamp in the electronic
key flashes 4 times.
2
Access
Page 41 of 271
39
C1_en_Chap02_ouvertures_ed01-2015
F With the electronic key on your person, press the boot opening control to unlock
and release the tailgate.
T
he vehicle is unlocked as well.
F
R
aise the tailgate by the exterior handle to
open it.

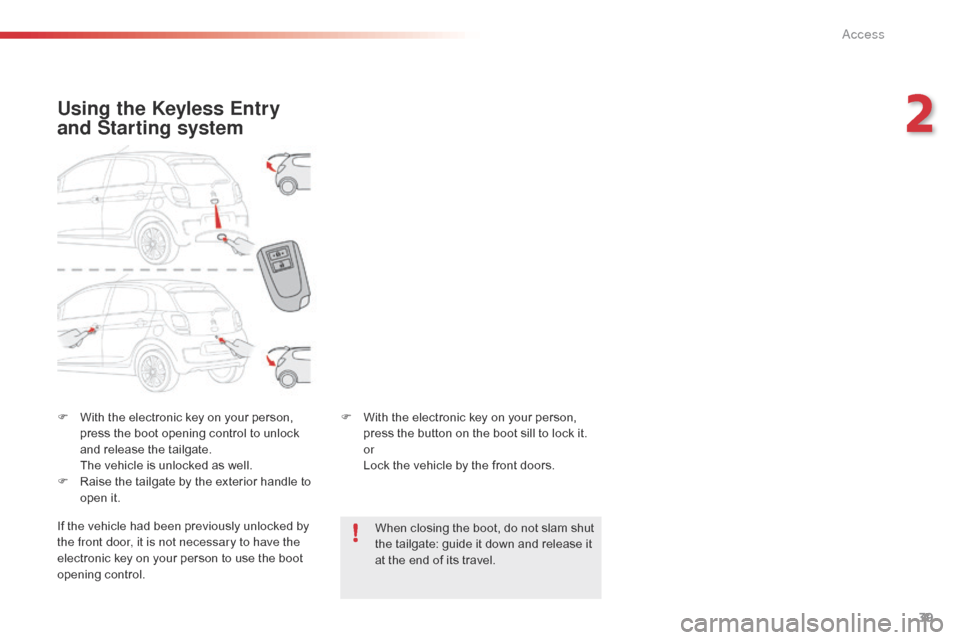

Using the Keyless Entry
and Starting system
If the vehicle had been previously unlocked by
the front door, it is not necessary to have the
electronic key on your person to use the boot
opening control. F
W
ith the electronic key on your person,
press the button on the boot sill to lock it.
or
L
ock the vehicle by the front doors.
When closing the boot, do not slam shut
the tailgate: guide it down and release it
at the end of its travel.
2
Access
Page 72 of 271
70
If you use the accessories for a
prolonged period, the vehicle will
automatically switch to "OFF" mode
after about 20 minutes.
Be aware in order to avoid discharging
the battery.
Starting - switching off the engine with the
Keyless Entry and Starting system
Changing the mode of
the vehicle
With the electronic key inside the
vehicle; each press on the " S TA R T/
STOP " button, with no action on
the pedals , changes the vehicle's
mode:
F
F
irst press (" ACC" mode).
T
he accessories (radio, 12V socket...) can
be used.
F
S
econd press (" ON" mode).
I
gnition on.
F
T
hird press (" OFF" mode).
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
Key in ignition
If the key has been left in the ignition,
an audible signal is heard on opening
the driver's door.
F
I
mmobilise the vehicle.
Switching off
F With a manual gearbox: put the gear lever
into neutral.
F
W
ith an ETG gearbox: place the selector at
position N .
F
T
urn the key towards you to position 2
(ACC) .
F
P
ress in and turn the key to position 1
(LOCK) .
F
R
emove the key from the ignition switch.
F
T
urn the steering until the steering column
locks.
Driving
Page 73 of 271
71
Starting using
the electronic key
With the first press on the " S TA R T/
STOP " button, this indicator lamp
flashes slowly in the instrument panel. Depending on the ambient temperature,
each attempt at starting can take up to
around 30 seconds. During this period,
do not press the "
START/STOP" button
again, or release the clutch pedal or
brake pedal (depending on the type of
gearbox).
After this period, if the engine has not
started, press the " START/STOP"
button again for another attempt at
starting. If one of the starting conditions is
not met, the "Keyless Entry and
Starting" system indicator lamp flashes
in the instrument panel. In some
circumstances, it is necessary to
turn the steering wheel slightly while
pressing the "
START/STOP " button to
assist unlocking of the steering.
For vehicles fitted with a manual gearbox:
F
W
ith the electronic key inside the vehicle,
put the gear lever into neutral and fully
depress the clutch pedal. The presence of the electronic key in
the vehicle is essential for switching
on the ignition and starting only. Once
the engine has started,
make sure that
the electronic key remains with the
vehicle until the end of the journey:
other wise you would not be able to lock
the
vehicle.
F
P
ress and release the " S TA R T/
STOP " button.
This indicator lamp comes on in the
instrument panel. For vehicles fitted with an ETG gearbox
:
F
W
ith the electronic key inside the vehicle,
put the gear selector at N and press the
brake pedal.
This indicator lamp comes on in the
instrument panel.
F
P
ress and release the "
S TA R T/
STOP " button.
5
Driving
