heating Citroen C1 DAG 2010.5 1.G Owner's Manual

12

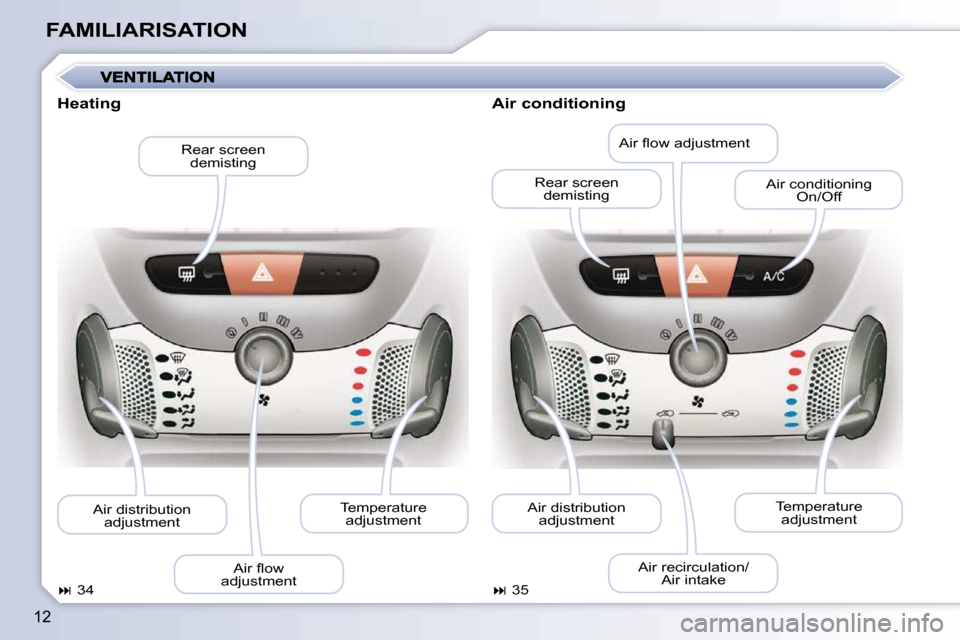

FAMILIARISATION Temperature adjustment
Air fl ow
adjustment
Air distribution
adjustment Rear screen
demisting

 34 Air conditioning
Temperature adjustment
Air recirculation/ Air intake
Air distribution
adjustment Air conditioning
On/Off

 35 Air fl ow adjustment
Rear screen demisting
Heating

13

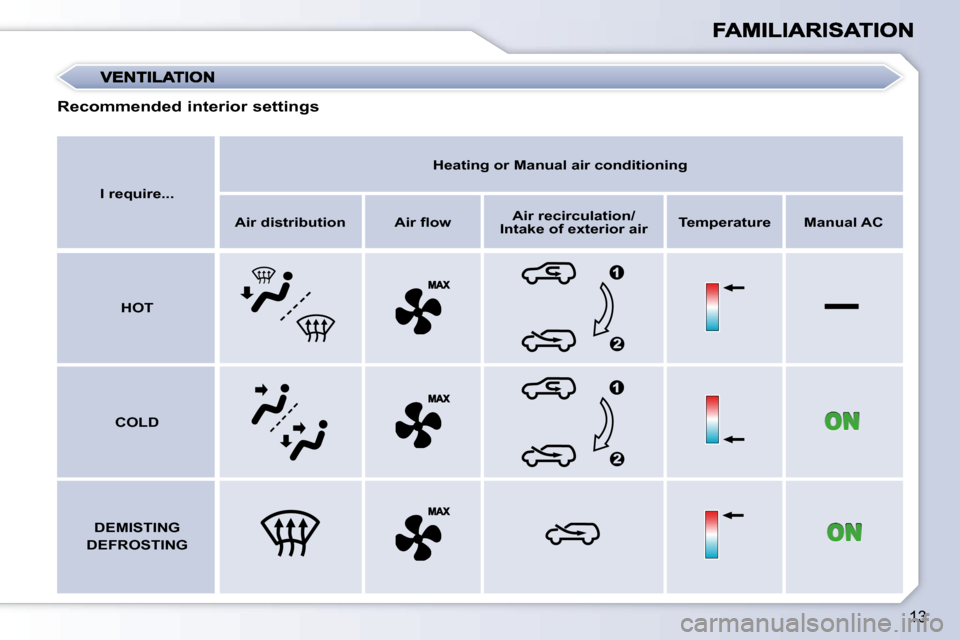

I require...
Heating or Manual air conditioning

Air distribution Air fl ow
Air recirculation/
Intake of exterior air
Temperature Manual AC

HOT

COLD

DEMISTING

DEFROSTING
Recommended interior settings

3
34

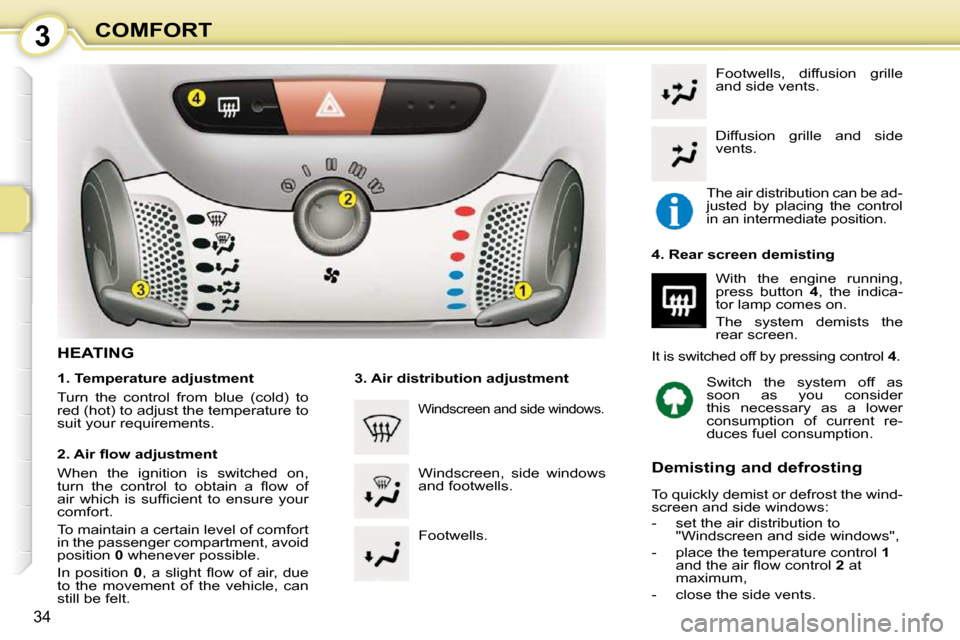

COMFORT
HEATING
1. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
2. Air fl ow adjustment
When the ignition is switched on,
turn the control to obtain a fl ow of
air which is suffi cient to ensure your
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 whenever possible.
In position 0 , a slight fl ow of air, due
to the movement of the vehicle, can
still be felt. The air distribution can be ad-
justed by placing the control
in an intermediate position.
Footwells. 4. Rear screen demisting
With the engine running,
press button 4 , the indica-
tor lamp comes on.
The system demists the
rear screen.
It is switched off by pressing control 4 .
Windscreen, side windows
and footwells. Footwells, diffusion grille
and side vents.
Diffusion grille and side
vents.
3. Air distribution adjustment
Windscreen and side windows.
Switch the system off as
soon as you consider
this necessary as a lower
consumption of current re-
duces fuel consumption.
Demisting and defrosting
To quickly demist or defrost the wind-
screen and side windows:
- set the air distribution to "Windscreen and side windows",
- place the temperature control 1
and the air fl ow control 2 at
maximum,
- close the side vents.

7
66

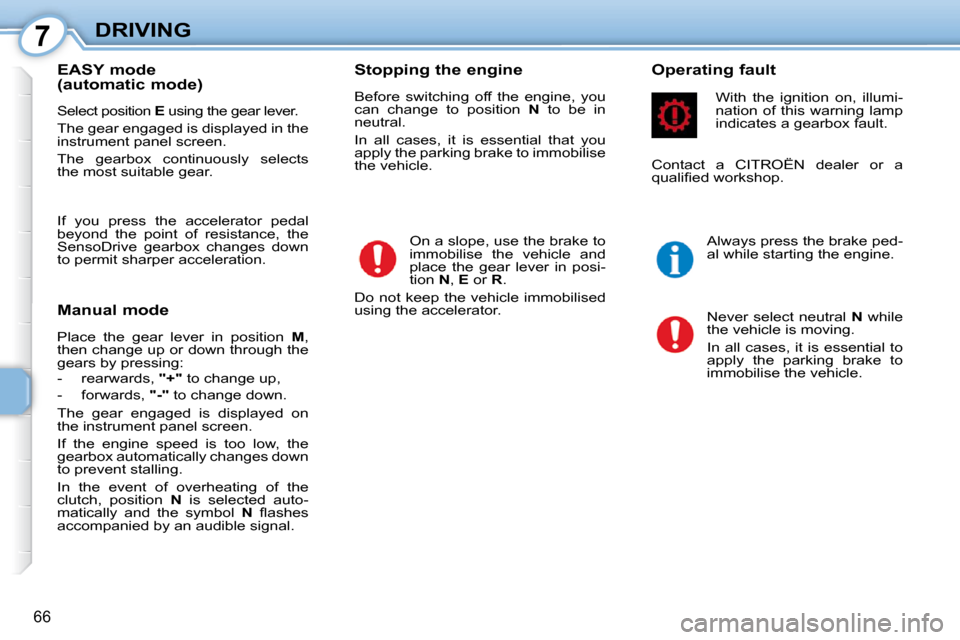

DRIVING
EASY mode
(automatic mode)
Select position E using the gear lever.
The gear engaged is displayed in the
instrument panel screen.
The gearbox continuously selects
the most suitable gear.
Manual mode
Place the gear lever in position M ,
then change up or down through the
gears by pressing:
- rearwards, "+" to change up,
- forwards, "-" to change down.
The gear engaged is displayed on
the instrument panel screen.
If the engine speed is too low, the
gearbox automatically changes down
to prevent stalling.
In the event of overheating of the
clutch, position N is selected auto-
matically and the symbol N fl ashes
accompanied by an audible signal. Operating fault
Stopping the engine
Before switching off the engine, you
can change to position N to be in
neutral.
In all cases, it is essential that you
apply the parking brake to immobilise
the vehicle. With the ignition on, illumi-
nation of this warning lamp
indicates a gearbox fault.
On a slope, use the brake to
immobilise the vehicle and
place the gear lever in posi-
tion N , E or R .
Do not keep the vehicle immobilised
using the accelerator. Always press the brake ped-
al while starting the engine.
Never select neutral
N while
the vehicle is moving.
In all cases, it is essential to
apply the parking brake to
immobilise the vehicle.
Contact a CITROËN dealer or a
qualifi ed workshop.
If you press the accelerator pedal
beyond the point of resistance, the
SensoDrive gearbox changes down
to permit sharper acceleration.

9
79
PRACTICAL INFORMATION
* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer or a qualifi ed workshop.

Fuse

N° Rating
(A)
Functions

1 10 Brake lamps - ABS - "SensoDrive" gearbox

2 25 Central locking/unlocking

3 20 Rear screen demisting

4 7.5 Rear lamps - Number plate lamps - Instrument panel - Screen

5 7.5 Diagnostic socket

6 7.5 Rear foglamp - Instrument panel - "SensoDrive" gearbox

7 - Not used

8 7.5 ABS - Power steering - Air conditioning - Fan assembly

9 10 Rear lamps - Central locking/unlocking - Electric windows - Rear scree
n demisting -
Speedometer - Air conditioning - Heating - Rev counter

10 20 Front and rear wipers

11 15 Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)

12 7.5 Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter

13 15 Airbag - Engine control unit - Electronic engine immobiliser - "Sen
soDrive" gearbox -
Instrument panel

14 7.5 Air conditioning

15 * 40 Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipe rs

16 * 30 Electric windows

17 * 40 Heating - Air conditioning
