Page 41 of 178
II
5 8

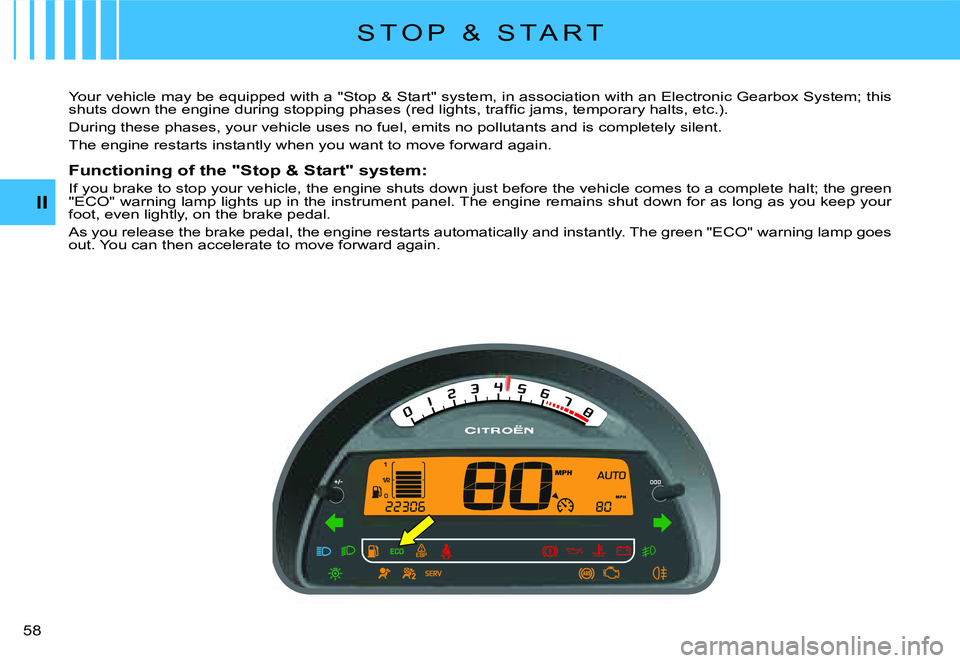

Your vehicle may be equipped with a "Stop & Start" system, in association with an Electronic Gearbox System; this s h u t s d o w n t h e e n g i n e d u r i n g s t o p p i n g p h a s e s ( r e d l i g h t s , t r a f fi c j a m s , t e m p o r a r y h a l t s , e t c . ) .
During these phases, your vehicle uses no fuel, emits no pollut ants and is completely silent.
The engine restarts instantly when you want to move forward ag ain.
Functioning of the "Stop & Start" system:
If you brake to stop your vehicle, the engine shuts down just before the vehicle comes to a complete halt; the green "ECO" warning lamp lights up in the instrument panel. The en gine remains shut down for as long as you keep your foot, even lightly, on the brake pedal.
As you release the brake pedal, the engine restarts automaticall y and instantly. The green "ECO" warning lamp goes out. You can then accelerate to move forward again.
S T O P & S T A R T
Page 42 of 178
II
5 9
S T O P & S T A R T

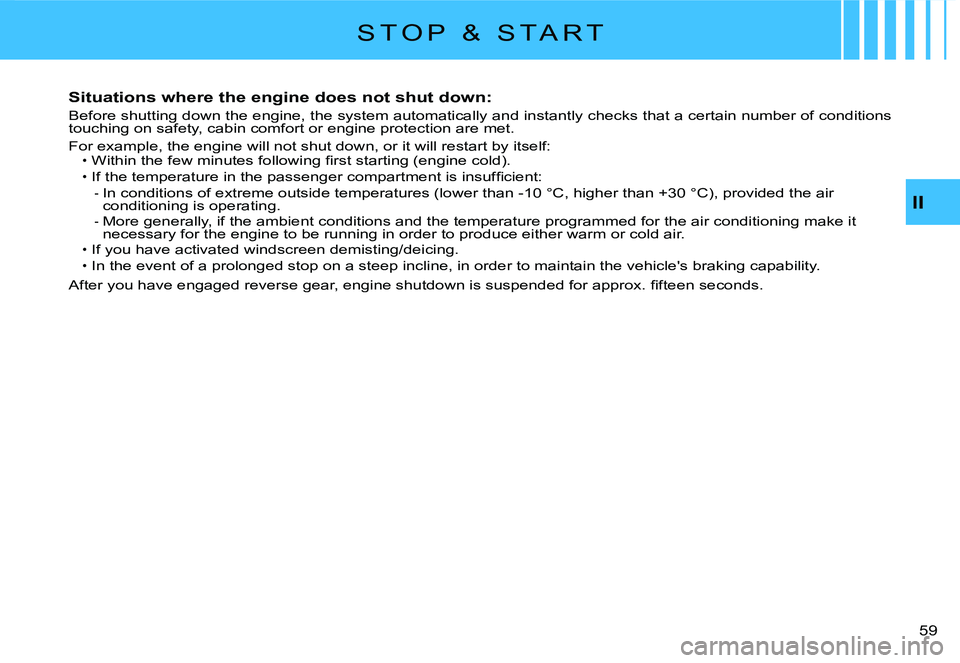

Situations where the engine does not shut down:
Before shutting down the engine, the system automatically and instantly checks that a certain number of conditions touching on safety, cabin comfort or engine protection are met .
For example, the engine will not shut down, or it will restart by itself: W i t h i n t h e f e w m i n u t e s f o l l o w i n g fi r s t s t a r t i n g ( e n g i n e c o l d ) .
I f t h e t e m p e r a t u r e i n t h e p a s s e n g e r c o m p a r t m e n t i s i n s u f fi c i e n t : I n c o n d i t i o n s o f e x t r e m e o u t s i d e t e m p e r a t u r e s ( l o w e r t h a n - 1 0 ° C , h i g h e r t h a n + 3 0 ° C ) , p r o v i d e d t h e a i r conditioning is operating.More generally, if the ambient conditions and the temperature programmed for the air conditioning make it necessary for the engine to be running in order to produce eit her warm or cold air.If you have activated windscreen demisting/deicing.In the event of a prolonged stop on a steep incline, in order to maintain the vehicle's braking capability.
A f t e r y o u h a v e e n g a g e d r e v e r s e g e a r , e n g i n e s h u t d o w n i s s u s p e n d e d f o r a p p r o x . fi f t e e n s e c o n d s .
Page 43 of 178
A
II
6 0

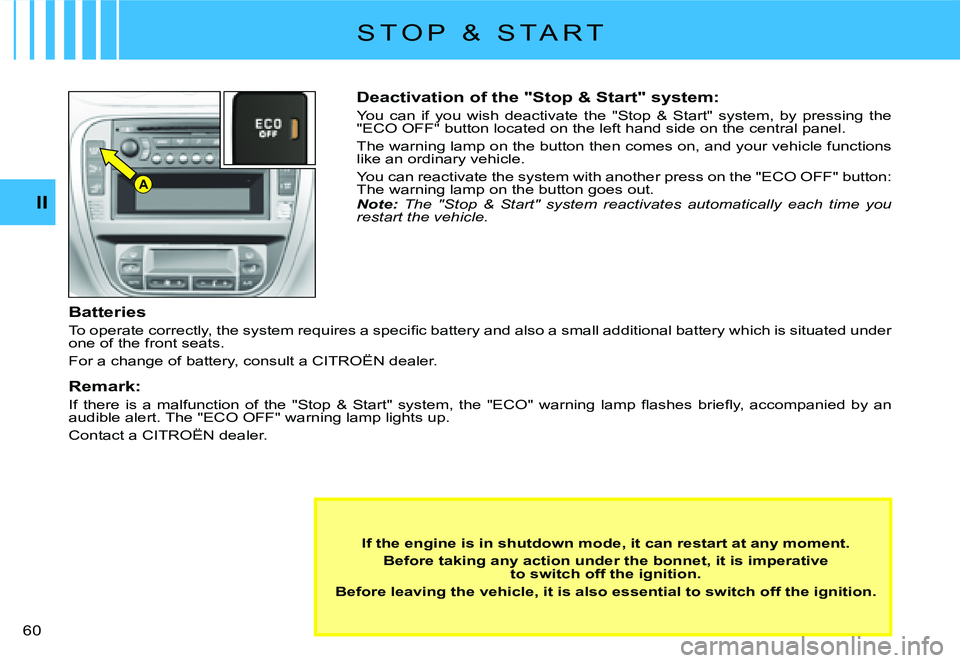

Deactivation of the "Stop & Start" system:
You can if you wish deactivate the "Stop & Start" system, by pressing the "ECO OFF" button located on the left hand side on the central panel.
The warning lamp on the button then comes on, and your vehi cle functions like an ordinary vehicle.
You can reactivate the system with another press on the "ECO OFF" button: The warning lamp on the button goes out.Note: The "Stop & Start" system reactivates automatically each time you restart the vehicle.
Batteries
T o o p e r a t e c o r r e c t l y , t h e s y s t e m r e q u i r e s a s p e c i fi c b a t t e r y a n d a l s o a s m a l l a d d i t i o n a l b a t t e r y w h i c h i s s i t u a t e d u n d e r one of the front seats.
For a change of battery, consult a CITROËN dealer.
Remark:
I f t h e r e i s a m a l f u n c t i o n o f t h e " S t o p & S t a r t " s y s t e m , t h e " E C O " w a r n i n g l a m p fl a s h e s b r i e fl y , a c c o m p a n i e d b y a n audible alert. The "ECO OFF" warning lamp lights up.
Contact a CITROËN dealer.
If the engine is in shutdown mode, it can restart at any moment.
Before taking any action under the bonnet, it is imperativ e to switch off the ignition.
Before leaving the vehicle, it is also essential to switch off the ignition.
S T O P & S T A R T
Page 44 of 178
II
6 1

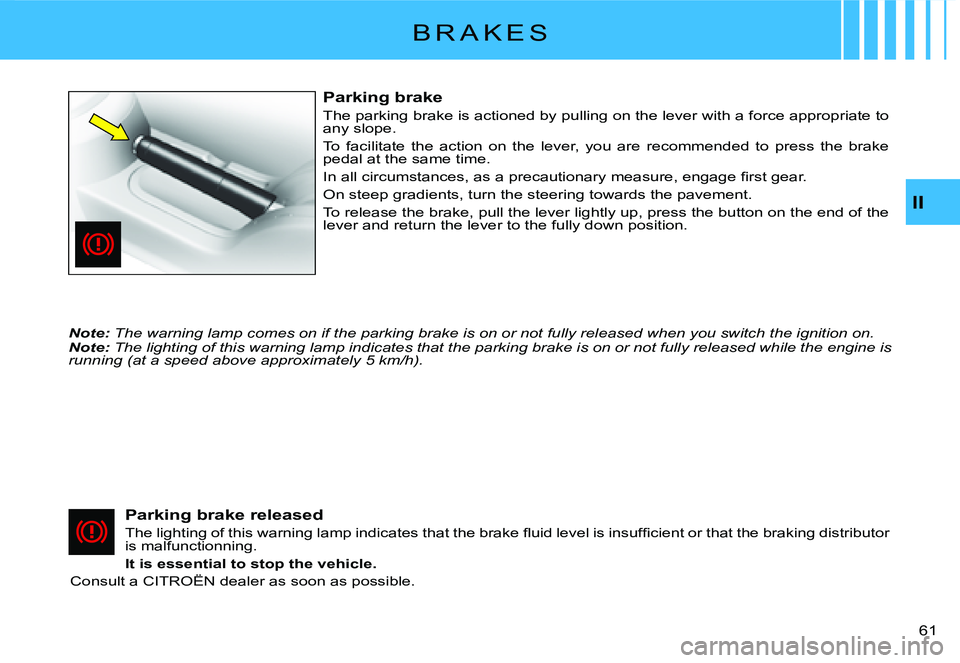

B R A K E S
Parking brake
The parking brake is actioned by pulling on the lever with a force appropriate to any slope.
To facilitate the action on the lever, you are recommended t o press the brake pedal at the same time.
I n a l l c i r c u m s t a n c e s , a s a p r e c a u t i o n a r y m e a s u r e , e n g a g e fi r s t g e a r .
On steep gradients, turn the steering towards the pavement.
To release the brake, pull the lever lightly up, press the button on the end of the lever and return the lever to the fully down position.
Parking brake released
T h e l i g h t i n g o f t h i s w a r n i n g l a m p i n d i c a t e s t h a t t h e b r a k e fl u i d l e v e l i s i n s u f fi c i e n t o r t h a t t h e b r a k i n g d i s t r i b u t o r is malfunctionning.
It is essential to stop the vehicle.
Consult a CITROËN dealer as soon as possible.
Note: The warning lamp comes on if the parking brake is on or not fu lly released when you switch the ignition on.Note: The lighting of this warning lamp indicates that the parking brake is on or not fully released while the engine is running (at a speed above approximately 5 km/h).
Page 45 of 178
II
6 2

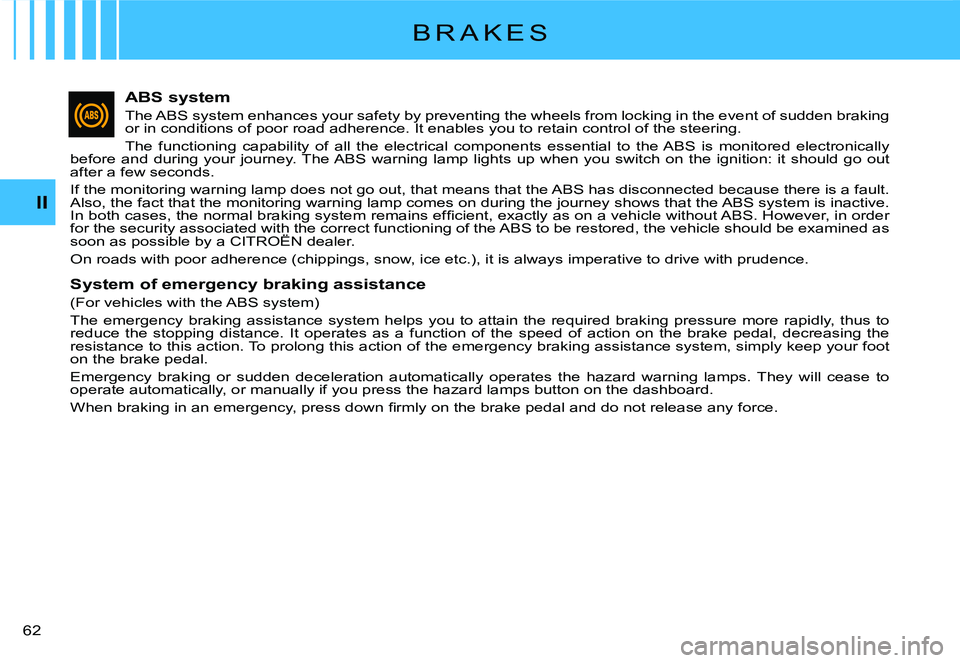

ABS system
The ABS system enhances your safety by preventing the wheels from locking in the event of sudden braking or in conditions of poor road adherence. It enables you to retain control of the steering.
The functioning capability of all the electrical components essential to the ABS is monitored electronically before and during your journey. The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If the monitoring warning lamp does not go out, that means that the ABS has disconnected because there is a fault. Also, the fact that the monitoring warning lamp comes on durin g the journey shows that the ABS system is inactive. I n b o t h c a s e s , t h e n o r m a l b r a k i n g s y s t e m r e m a i n s e f fi c i e n t , e x a c t l y a s o n a v e h i c l e w i t h o u t A B S . H o w e v e r , i n o r d e r for the security associated with the correct functioning of the ABS to be restored, the vehicle should be examined as soon as possible by a CITROËN dealer.for the security associated with the correct associated with the
On roads with poor adherence (chippings, snow, ice etc.), it is always imperative to drive with prudence.
System of emergency braking assistance
(For vehicles with the ABS system)
The emergency braking assistance system helps you to attain the requ ired braking pressure more rapidly, thus to reduce the stopping distance. It operates as a function of the speed of action on the brake pedal, decreasing the resistance to this action. To prolong this action of the emerg ency braking assistance system, simply keep your foot on the brake pedal.
Emergency braking or sudden deceleration automatically operates th e hazard warning lamps. They will cease to operate automatically, or manually if you press the hazard lamps button on the dashboard.
W h e n b r a k i n g i n a n e m e r g e n c y , p r e s s d o w n fi r m l y o n t h e b r a k e p e d a l a n d d o n o t r e l e a s e a n y f o r c e .
B R A K E S
Page 46 of 178
AII
6 3

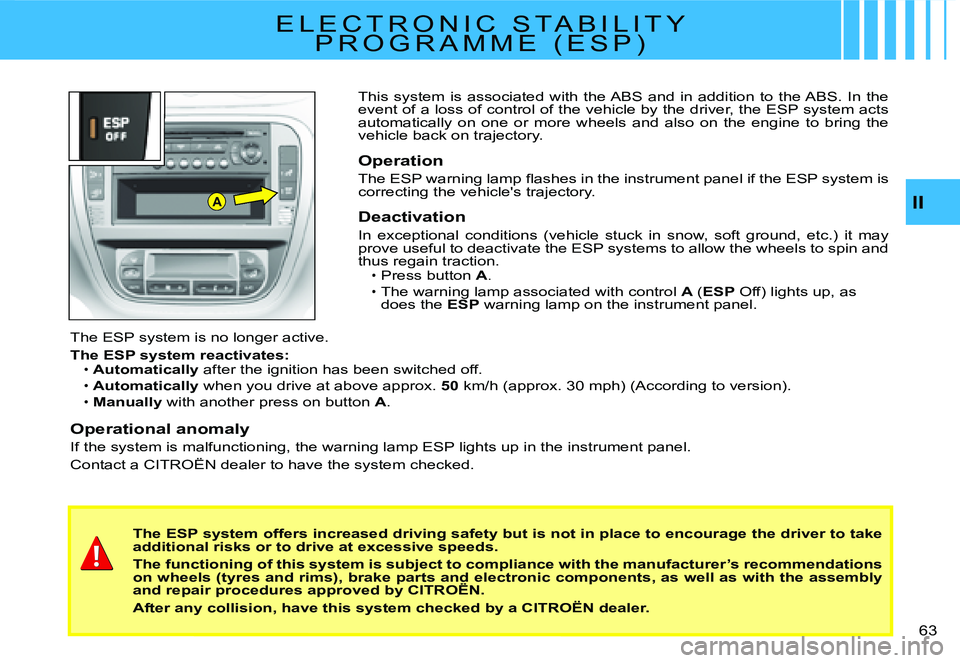

This system is associated with the ABS and in addition to the ABS. In the event of a loss of control of the vehicle by the driver, the ESP system acts automatically on one or more wheels and also on the engine to bring the vehicle back on trajectory.
Operation
T h e E S P w a r n i n g l a m p fl a s h e s i n t h e i n s t r u m e n t p a n e l i f t h e E S P s y s t e m i s correcting the vehicle's trajectory.
Deactivation
In exceptional conditions (vehicle stuck in snow, soft ground, e tc.) it may prove useful to deactivate the ESP systems to allow the wheels to spin and thus regain traction.Press button A.
The warning lamp associated with control A (ESP Off) lights up, as does the ESP warning lamp on the instrument panel.
The ESP system is no longer active.
The ESP system reactivates:Automatically after the ignition has been switched off.Automatically when you drive at above approx. 50 k m / h ( a p p r o x . 3 0 m p h ) ( A c c o r d i n g t o v e r s i o n ) .
Manually with another press on button A.
Operational anomaly
If the system is malfunctioning, the warning lamp ESP lights up in the instrument panel.
Contact a CITROËN dealer to have the system checked.
Page 47 of 178
6 4

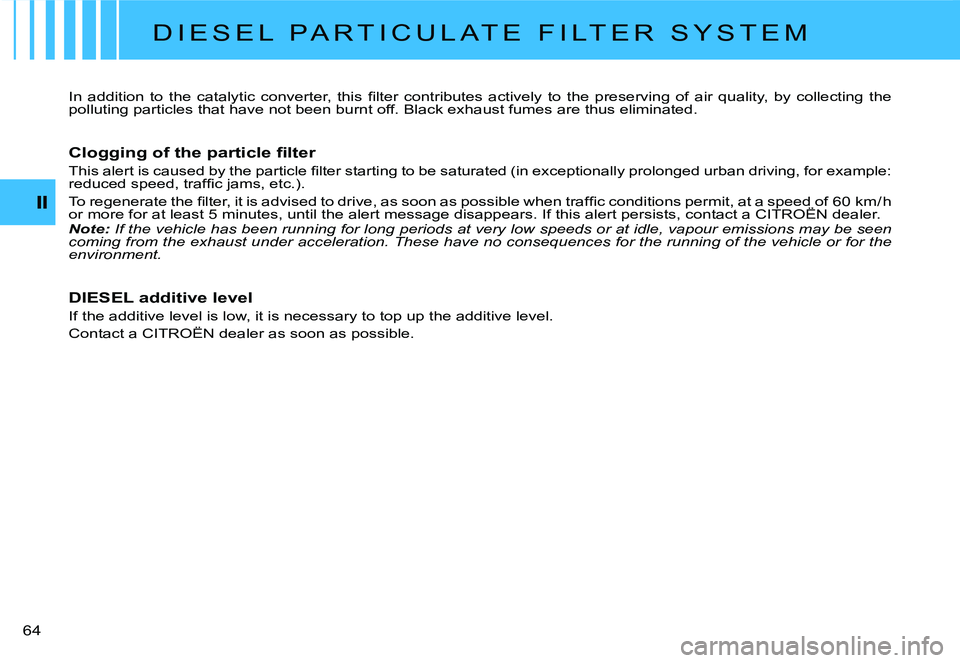

D I E S E L P A R T I C U L A T E F I L T E R S Y S T E M
I n a d d i t i o n t o t h e c a t a l y t i c c o n v e r t e r , t h i s fi l t e r c o n t r i b u t e s a c t i v e l y t o t h e p r e s e r v i n g o f a i r q u a l i t y , b y c o l l e c t i n g t h e polluting particles that have not been burnt off. Black exhaust fumes are thus eliminated.
C l o g g i n g o f t h e p a r t i c l e fi l t e r
T h i s a l e r t i s c a u s e d b y t h e p a r t i c l e fi l t e r s t a r t i n g t o b e s a t u r a t e d ( i n e x c e p t i o n a l l y p r o l o n g e d u r b a n d r i v i n g , f o r e x a m p l e : r e d u c e d s p e e d , t r a f fi c j a m s , e t c . ) .
T o r e g e n e r a t e t h e fi l t e r , i t i s a d v i s e d t o d r i v e , a s s o o n a s p o s s i b l e w h e n t r a f fi c c o n d i t i o n s p e r m i t , a t a s p e e d o f 6 0 k m / h o r m o r e f o r a t l e a s t 5 m i n u t e s , u n t i l t h e a l e r t m e s s a g e d i s a p p e a r s . I f t h i s a l e r t p e r s i s t s , c o n t a c t a C I T R O Ë N d e a l e r . T o r e g e n e r a t e t h e fi l t e r , i t i s a d v i s e d t o d r i v e , a s s o o n a s p o s s i b l e w h e n t r a f fi c c o n d i t i o n s p e r m i t , a t a s p e e d o f 6 0 k m / h T o r e g e n e r a t e t h e fi l t e r , i t i s a d v i s e d t o d r i v e , a s s o o n a s p o s s i b l e w h e n t r a f fi c c o n d i t i o n s p e r m i t , a t a s p e e d o f 6 0 k m / h
Note: If the vehicle has been running for long periods at very low speeds or at idle, vapour emissions may be seen coming from the exhaust under acceleration. These have no consequ ences for the running of the vehicle or for the environment.
DIESEL additive level
If the additive level is low, it is necessary to top up the additive level.
Contact a CITROËN dealer as soon as possible.
Page 48 of 178
E
II
6 5

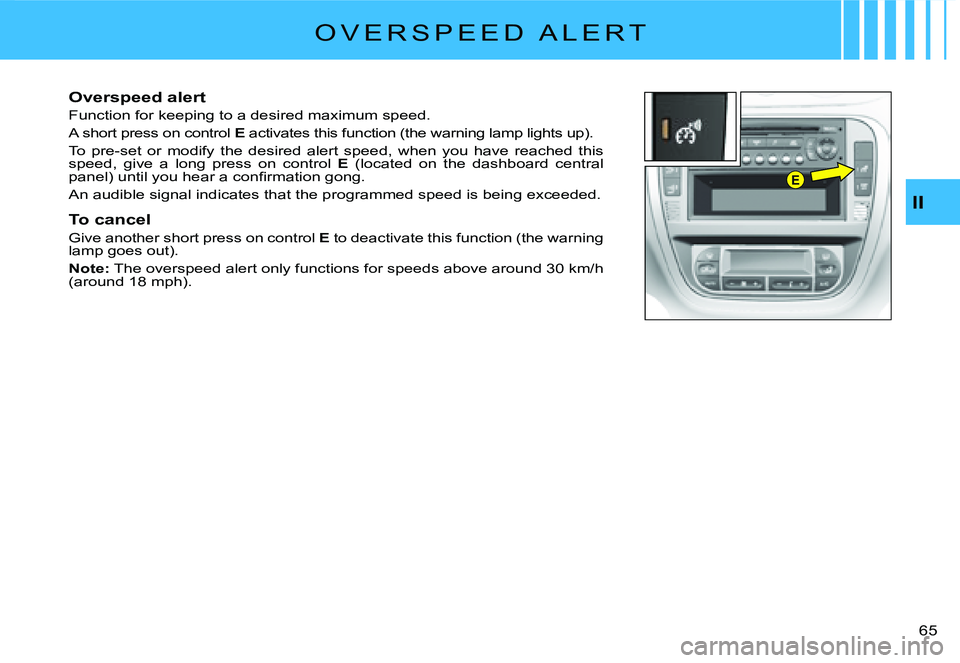

O V E R S P E E D A L E R T
Overspeed alert
Function for keeping to a desired maximum speed.
A short press on control E activates this function (the warning lamp lights up).
To pre-set or modify the desired alert speed, when you have reach ed this speed, give a long press on control E (located on the dashboard central p a n e l ) u n t i l y o u h e a r a c o n fi r m a t i o n g o n g .
An audible signal indicates that the programmed speed is being exceeded.
To cancel
Give another short press on control E to deactivate this function (the warning lamp goes out).
Note: T h e o v e r s p e e d a l e r t o n l y f u n c t i o n s f o r s p e e d s a b o v e a r o u n d 3 0 k m / h ( a r o u n d 1 8 m p h ) .
Page 49 of 178
A
B
1
4
3
2
II
6 6

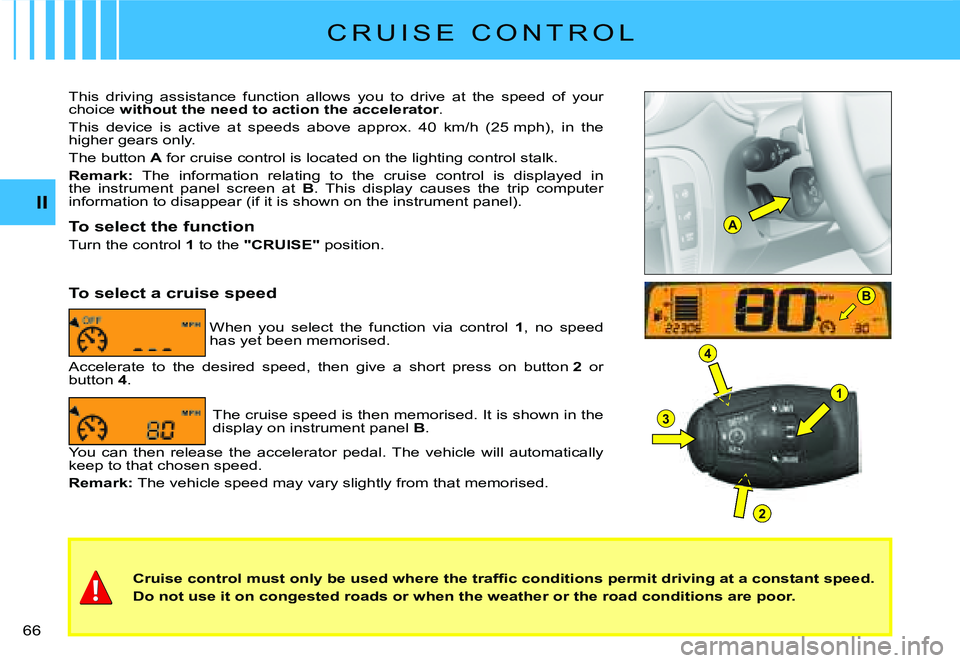

C R U I S E C O N T R O L
C r u i s e c o n t r o l m u s t o n l y b e u s e d w h e r e t h e t r a f fi c c o n d i t i o n s p e r m i t d r i v i n g a t a c o n s t a n t s p e e d .
Do not use it on congested roads or when the weather or the road conditions are poor.
This driving assistance function allows you to drive at the spee d of your choice without the need to action the accelerator.
T h i s d e v i c e i s a c t i v e a t s p e e d s a b o v e a p p r o x . 4 0 k m / h ( 2 5 m p h ) , i n t h e higher gears only.
The button A for cruise control is located on the lighting control stalk.
Remark: The information relating to the cruise control is displayed in the instrument panel screen at B. This display causes the trip computer information to disappear (if it is shown on the instrument panel).
To select the function
Turn the control 1 to the "CRUISE" position.
When you select the function via control 1, no speed has yet been memorised.
To select a cruise speed
Accelerate to the desired speed, then give a short press on butt on 2 or button 4.
The cruise speed is then memorised. It is shown in the display on instrument panel B.
You can then release the accelerator pedal. The vehicle will automatically keep to that chosen speed.
Remark: The vehicle speed may vary slightly from that memorised.
Page 50 of 178
II
6 7
C R U I S E C O N T R O L

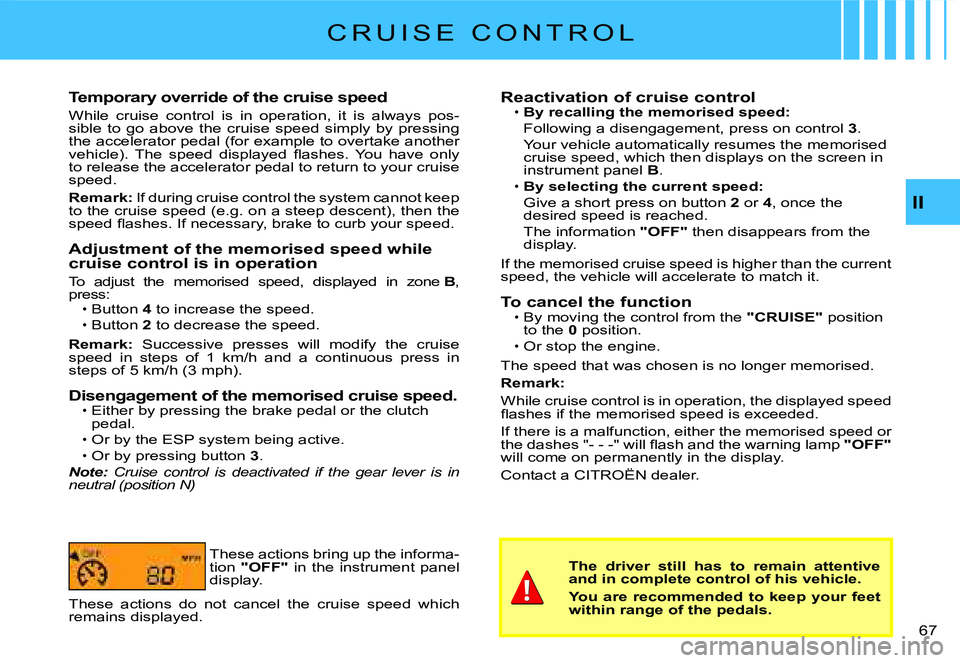

Temporary override of the cruise speed
While cruise control is in operation, it is always pos-sible to go above the cruise speed simply by pressing the accelerator pedal (for example to overtake another v e h i c l e ) . T h e s p e e d d i s p l a y e d fl a s h e s . Y o u h a v e o n l y to release the accelerator pedal to return to your cruise speed.
Remark: If during cruise control the system cannot keep to the cruise speed (e.g. on a steep descent), then the s p e e d fl a s h e s . I f n e c e s s a r y , b r a k e t o c u r b y o u r s p e e d .
Adjustment of the memorised speed while cruise control is in operation
To adjust the memorised speed, displayed in zone B, press:Button 4 to increase the speed.
Button 2 to decrease the speed.
Remark: Successive presses will modify the cruise speed in steps of 1 km/h and a continuous press in s t e p s o f 5 k m / h ( 3 m p h ) .
Disengagement of the memorised cruise speed.Either by pressing the brake pedal or the clutch pedal.
Or by the ESP system being active.Or by pressing button 3.Note: Cruise control is deactivated if the gear lever is in neutral (position N)
