II
4 2
T R I P C O M P U T E R
For selection and display of the various types of information, give short presses on the end of the windcsreen wiper stalk.
Instrument panel (For a ver-sion with digital clock)
T h e t r i p c o m p u t e r p r o v i d e s 4 t y p e s of information on the instrument panel, following the display of trip mileage:Range.
Instantaneous consumption.Average consumption.
Average speed.
Remark: If the cruise control / speed limiter is in operation, the display of trip computer information disappears after a few seconds.
Page 42 of 191
II
4 3

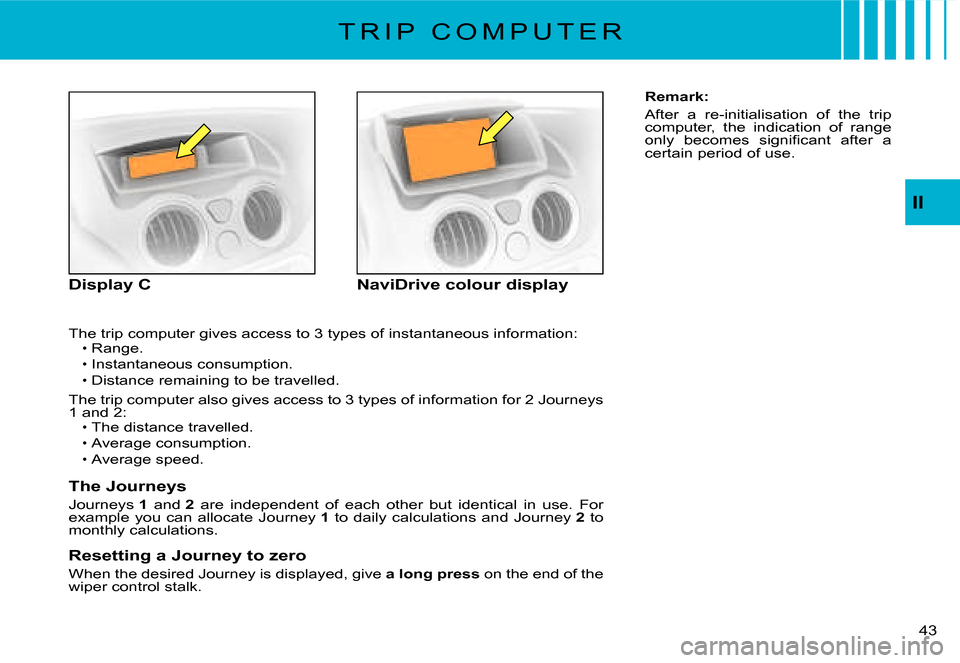

T h e t r i p c o m p u t e r g i v e s a c c e s s t o 3 t y p e s o f i n s t a n t a n e o u s i n f o r m a t i o n :Range.
Instantaneous consumption.Distance remaining to be travelled.
T h e t r i p c o m p u t e r a l s o g i v e s a c c e s s t o 3 t y p e s o f i n f o r m a t i o n f o r 2 J o u r n e y s 1 a n d 2 :The distance travelled.
Average consumption.
Average speed.
The Journeys
J o u r n e y s 1 and 2 are independent of each other but identical in use. For e x a m p l e y o u c a n a l l o c a t e J o u r n e y 1 t o d a i l y c a l c u l a t i o n s a n d J o u r n e y 2 to monthly calculations.
Resetting a Journey to zero
W h e n t h e d e s i r e d J o u r n e y i s d i s p l a y e d , g i v e a long press on the end of the wiper control stalk.
Page 43 of 191
II
4 4
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
When the distance remaining to be travelled is l e s s t h a n a p p r o x . 2 5 k m ( 1 5 m i l e s ) , o n l y t h r e e dashes will be displayed.
Average consumption
This is the relationship between the fuel con-sumed and the distance travelled since the last reset to zero of the trip computer.
Instantaneous consumption
This is the result from the consumption r e c o r d e d w i t h i n t h e l a s t 2 s e c o n d s . T h i s f u n c -tion is only available when travelling at over 3 0 k m / h ( a p p r o x . 2 0 m p h ) .
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance trav-elled by the time taken (with ignition switched on).
Distance travelled
This is the distance that has been travelled s i n c e t h e l a s t r e s e t t o z e r o o f t h e J o u r n e y selected.
Distance to be travelled
To enter it, see “Multifunction display”.
Instrument panelDisplay version ADisplay version C
T R I P C O M P U T E R
Page 44 of 191
II
4 5
T R I P C O M P U T E R
NaviDrive colour display
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
W h e n t h e d i s t a n c e r e m a i n i n g t o b e t r a v e l l e d i s l e s s t h a n a p p r o x . 2 5 k m ( 1 5 m i l e s ) , only three dashes will be displayed.
Instantaneous consumption
T h i s i s t h e r e s u l t f r o m t h e c o n s u m p t i o n r e c o r d e d w i t h i n t h e l a s t 2 s e c o n d s . T h i s f u n c - t i o n i s o n l y a v a i l a b l e w h e n t r a v e l l i n g a t o v e r 3 0 k m / h ( a p p r o x . 2 0 m p h ) .
Distance to be travelled
It indicates the distance remaining to be travelled to the destination.
To enter this, see NaviDrive instructions.
Distance travelled
T h i s i s t h e d i s t a n c e t h a t h a s b e e n t r a v e l l e d s i n c e t h e l a s t r e s e t t o z e r o o f t h e J o u r n e y selected.
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the trip computer.
Average speed
This is obtained, from the last reset to zero of the trip compu ter, by dividing the dis-tance travelled by the time taken (with ignition switched on).
Page 45 of 191
II
4 6
S I G N A L L I N G
Direction indicators
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. Stops automatically with the return of the steering wheel.
Visible alert / headlamp fl a s h
Pull the control towards you.
T h e h e a d l a m p fl a s h c a n b e m a d e even with the ignition switched off.
Horn
Press at the centre of the steering wheel.
Hazard warning lamps
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
Sound signal for headlamps left on
This operates when the driver's door is opened, ignition off, to indicate that the vehicle lamps are still on.
It stops when you close the door, switch off the lamps or switch on the ignition.
This signal does not operate if the automatic lighting of headlamps or the guide-me-home lighting are active.
Emergency operation of haz-ard warning lamps
A sudden deceleration of the vehi-cle causes the hazard lamps to come on automatically.
They will cease to operate auto-matically, or manually if you press the hazard lamps button on the dashboard.
The direction indicators cannot operate if the hazard warning lamps are on.
Page 46 of 191
A
II
4 7
S I G N A L L I N G
Lighting control stalk
All vehicle lamps off
Sidelamps on
The instrument panel lights up.
Dipped beams/main beams onRotate the ring A forwards.
Rotate the ring A forwards.
Sidelamps and dipped beams come on automatically in poor ambient light, or if the wipers are in continuous operation. They go out as soon as the ambient light again b e c o m e s u f fi c i e n t o r w h e n t h e w i p -ers cease to operate.
Guide-me-home lighting
This function switches on your headlamps, to light your way when you wish to walk from a carpark, for example.
This function is activated:Manually by pulling the lighting stalk towards you, ignition off.
Automatically, provided:The automatic lighting of headlamps is activated.To activate the guide-me-home lighting function, select in the “Main menu”, then in “Personalisation/Configura-tion”, the sub-menu for light-ing and signalling, then acti-vate the function.See “Multifunction display”.Note:It is possible to modify the dura-tion of the guide-me-home lighting (approx. 60, 30 or 15 seconds) in the menu “Personalisation/Con- fi g u r a t i o n ” .
On screen A , t h e l e n g t h i s fi x e d .
Note: On vehicles equipped with daytime running lamps, automatic headlamp lighting and guide-me-home lighting are not available.
Page 47 of 191
BC
II
4 8
S I G N A L L I N G
Rear foglamps on
Front foglamps and rear foglamps on
The warning lamp lights up.
The foglamps operate only with either headlamp dipped beam or headlamp main beam switched on.
Switching off
First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.Note: the foglamps should be used only in fog or in other conditions of poor visibility.
Front and rear foglamps (ring C)
Switch on your dipped/main beams.
In foggy conditions, if the ambient light is not such that th e headlamps come on automatically, it is up to the driver to switch on dipped beams, and/or foglamps, manually
Rear FOGLAMPS (Ring B)
Switch on your dipped/main beams.
Rotate the ring B forwards.
Front foglamps on
Rotate the ring C forwards.
Rotate the ring C forwards.
Page 48 of 191
II
4 9
For safety, the wiper system is deactivated when the igni-tion is switched off.
Position I: The wipe speed adjusts automatically to the speed of the vehicle.
Positions 1 and 2: When the vehicle is stationary, the speed of the wipers will reduce automatically.
For safety, the wiper system is deactivated when the igniti on is switched off.
When you switch the ignition on again, to reactivate the function:Return to position0.
Or go to the desired position.
A c t i v a t i o n o f t h e f u n c t i o n i s c o n fi r m e d b y o n e s w e e p o f t h e w i p e r s .
Vehicle with rain sensor
Activation of automatic wipe:
One touch downwards: “AUTO”. The wipe speed will adjust accord ing to the intensity of the rain.Note: If automatic wipe is active, a touch downwards triggers a single wipe, without deactivating automatic wipe.
Deactivation of automatic wipe:Go to position I, then return to position 0.
Or stop the engine.
WARNING
Do not cover the rain detector which is located behind the interior rear detectorview mirror and visible from outside the windscreen.
For washing the vehicle, switch off the ignition or deactivate the automatic wipe.
Page 49 of 191
B
A
II
5 0
W I P E R S
Check that the windscreen and rear wipers can operate freely when f o r e x a m p l e a b i c y c l e - c a r r i e r i s fi t t e d , o r i n f r e e z i n g c o n d i t i o n s .
Remove any accumulation of snow at the base of the windsc reen.
Changing the wiper blades
If you have to replace them, the wiper blades have to be parked in the maintenance position. For this, switch off the ignition and then within one minute move the wiper control stalk. The wipers stand up in a vertical position.
After replacement, switch on the ignition and move the wiper control stalk so that the wipers resume their normal position.
A. Windscreen wash
To operate the windscreen wash, pull the wiper stalk towards you.
The screen wash is accompanied by a timed wipe of the windscreen, the headlamp wash also activates if the dipped beams are on.
B. Rear screen wipe
First notch
Off.
Second notch
Intermittent rear wipe.
Third notch
Timed rear wash/wipe.
Automatic wipe
When the windscreen wipers are operational and reverse gear is engaged.
Activation/deactivation of this func-tion is possible in the menu “Per- s o n a l i s a t i o n / C o n fi g u r a t i o n ” i n t h e “Main menu”.
Deactivation may be necessary when a bicycle-carrier is installed on the tailgate.
Page 50 of 191
II
5 1
D A S H B O A R D A D J U S T M E N T S
Seat belt height adjustment
The correct positioning of the seat belt is across the middle of the shoulder. See USER PRECAU-TIONS.
Adjust the height of the seat belt anchorage by holding down the button and the lever.
Headlamps adjustment
You are advised to adjust the aim of the headlamps in accordance with vehicle load.
In the dashboard on the right hand side of the steering column.
0: Unladen weight.
1: Lightly laden.
2: Half laden.
3: Fully laden.
As a metter of safety, these manœuvres should not be performed while the vehicle is moving.
Steering column adjustment
The steering can be adjusted for both height and reach.
With the vehicle stationary , fi r s t adjust your seat to the most suit-able position, then adjust the posi-tion of the steering wheel. See “Driving position”.
Unlock the steering wheel by pull-ing the control upwards.
Adjust the position of the steering wheel then lock by pushing the control fully downwards.
Make sure that you have a good view of the instrument panel dis-plays.
