IN BRIEF
15
I
M O N I T O R I N G

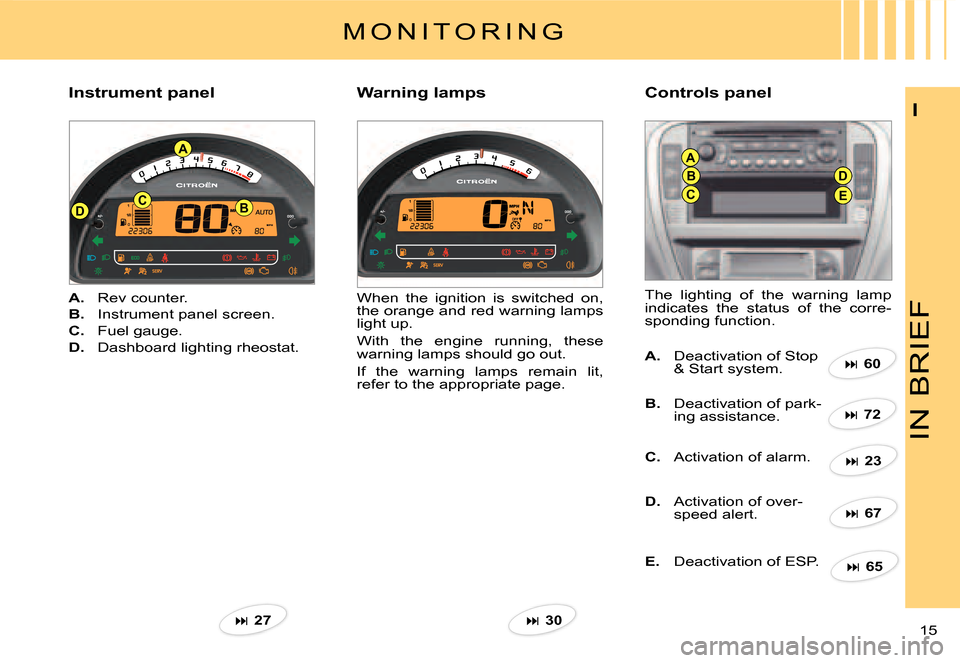

Instrument panelControls panel
A. Rev counter.
B. Instrument panel screen.
C. Fuel gauge.
D. Dashboard lighting rheostat.
When the ignition is switched on, the orange and red warning lamps light up.
With the engine running, these warning lamps should go out.
If the warning lamps remain lit, refer to the appropriate page.
Warning lamps
The lighting of the warning lamp indicates the status of the corre-sponding function.
A. Deactivation of Stop & Start system.
B. Deactivation of park-ing assistance.
C. Activation of alarm.
27 30
60
72
67D. Activation of over-speed alert.
E. Deactivation of ESP.
23
65
Page 13 of 191
A
B
IN BRIEF
16
I
Driver’s seat belt fastening detectionDeactivation of front passenger’s airbag
The warning lamp lights up if the driver’s seat belt has not been fastened when the ignition is switched on and between 0 and 20 km/h.
Over 20 km/h, the warning lamp fl a s h e s a c c o m p a n i e d b y a s o u n d signal for approximately 2 minutes. After this it remains lit up.
1. With the ignition off, insert the key in switch A.
2. Turn the key to the «OFF»position, the passenger’s airbag is deactivated.
3. The front passenger’s airbag deactivation warning lamp, on the instrument panel, lights up when the ignition is switched on.
I s o fi x f a s t e n i n g s y s t e m
Two rings B, located between the backrest and the seat cushion, a l l o w a c h i l d s e a t t o b e fi t t e d .
30 88 89
P A S S E N G E R S A F E T Y
Page 26 of 191
BCD
AF
E
IJHG
II
2 8
I N S T R U M E N T P A N E L
D I E S E L V E R S I O N
A. Control:Lighting rheostatNight driving (Black panel)B. Fuel gaugeC. Rev counterDuring the running-in period, see “Running-in”.
D. Red zone of rev counter telling you of the need to change to a higher gear.Sport version: The warning lamp lights up in orange, then in red.
--
E. Electronic Gearbox System displayF. Control:Trip mileage recorder resetG. Display:Cruise contol / speed limiterTrip mileage recorderTrip computer
-
---
H. Display of warning lamps I. Speed indicator J. Display:Maintenance indicatorEngine oil level indicatorTotal mileage recorder
---
Page 29 of 191
II
3 0
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
Engine oil pressure
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the oil pressure is low.
It is essential to stop the vehicle.
Contact a CITROËN dealer.
Coolant temperature warning lamp
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the coolant temperature is rising abnormally.
It is essential to stop the vehicle.
Check the coolant level.
See “Levels”.
If the level is satisfactory, consult a CITROËN dealer.If the level is satisfactorythe level
Battery charge
This warning lamp should go out when the engine is running.
If it remains permanently on, con-tact a CITROËN dealer.If it remains permanently remains permanently
Warning lamp for park- i n g b r a k e , b r a k e fl u i d level and braking dis-tribution malfunction
With the engine running, the light-ing of this warning lamp indicates that the parking brake is on or not properly released, that the brake fl u i d l e v e l i s l o w o r t h a t t h e b r a k i n g system is malfunctioning.
If the warning lamp remains on even after you have released the parking brake, stop immediately and contact a CITROËN dealer.parking brake, stop immediately stop immediately
Driver's seat belt not fastened
This lamp comes on if the LH seat belt is not fastened when the ignition is switched on and while the vehicle is moving at u p t o a p p r o x . 2 0 k m / h ( 1 2 m p h ) . Above this speed, the warning l a m p fl a s h e s , a c c o m p a n i e d b y a s o u n d s i g n a l f o r a r o u n d 1 2 0 s e c -onds. Then it remains on.
SERVICE
This warning lamp remains on for a seri-ous fault. Consult a CITROËN dealer as soon as pos-sible.
This warning lamp remains on only for a short time for faults that are minor. Contact a CITROËN dealer if necessary.
To learn the origin of the corre-sponding alert, refer to the log of alerts (See chapter “ Displays Aand C ” to chapter “ Multifunction displays ” or your NaviDrive hand-book).
Fuel low
It comes on for a few sec-onds each time you switch on the ignition.
If the fuel low warning lamp comes on, there remain approx. 4 to 6 litres of fuel in the tank.
Depollution system
It remains on until you start the engine.
I f t h i s w a r n i n g l a m p fl a s h e s or lights up while you are driving, this indicates a problem with the depollution system.
Consult a CITROËN dealer as soon as possible.
Page 30 of 191
II
3 1
ESP
Operating
It comes on for a few sec-onds each time you switch on the ignition.
While the ESP system is active, t h e w a r n i n g l a m p fl a s h e s .
For a malfunction
When the vehicle is moving, the lighting of this warning lamp indi-cates a system malfunction.
Contact a CITROËN dealer.
Function deactivated
The warning lamp remains con-tinuously on.
Front passenger's air-bag deactivation
See “Airbags”.
I t i s t e s t e d b r i e fl y o n s t a r t -ing.
Airbag fault
See “Airbags”.
I t i s t e s t e d b r i e fl y o n s t a r t -ing.
W A R N I N G L A M P S
ABS system
The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If it does not go out, there could be a system malfunction.
See “Brakes”.
Diesel engine preheat-ing
See method for starting the engine.
See “Driving”.
Left hand direction indicator
See “Signalling”.
Right hand direction indicator
See “Signalling”.
Foot on brake (Elec-tronic Gearbox System)
T h e fl a s h i n g o f t h i s w a r n -ing lamp in the instrument panel indicates the need to apply the brake pedal in order to start the engine or engage reverse gear.
Stop & Start
The lighting of this warn-ing lamp indicates that the engine is in shutdown mode.
Sidelamps
See “Signalling”.
Front foglamps
See “Signalling”.
Dipped beams
See “Signalling”.
Foglamps (rear)
See “Signalling”.
Main beams
See “Signalling”.
If the hazard lamps are activated, this means that the direction indica- t o r s fl a s h o n b o t h s i d e s a t t h e s a m e t i m e .
Page 45 of 191
II
4 6
S I G N A L L I N G

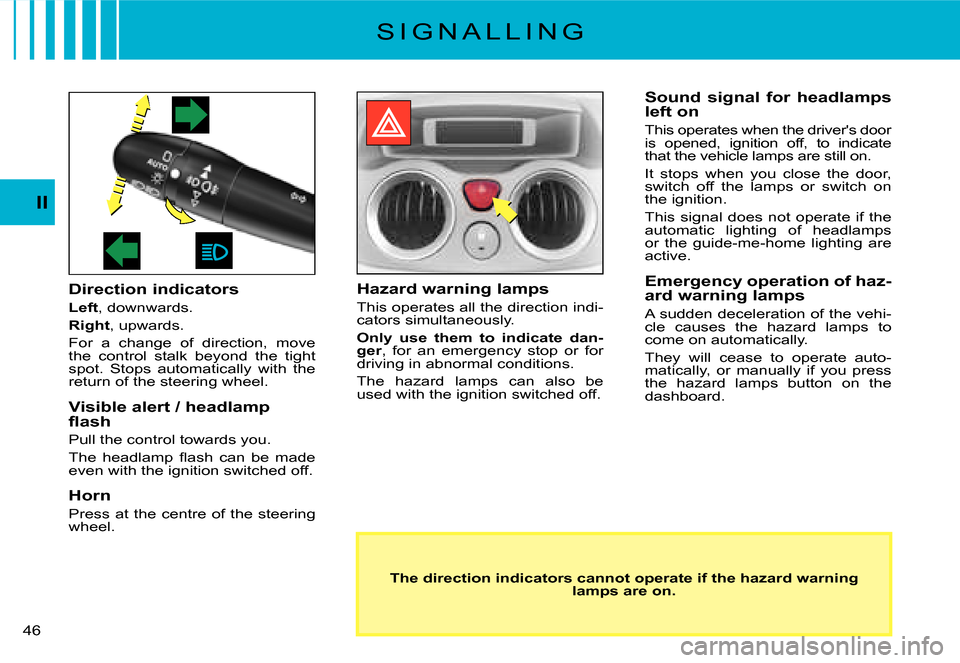

Direction indicators
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. Stops automatically with the return of the steering wheel.
Visible alert / headlamp fl a s h
Pull the control towards you.
T h e h e a d l a m p fl a s h c a n b e m a d e even with the ignition switched off.
Horn
Press at the centre of the steering wheel.
Hazard warning lamps
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
Sound signal for headlamps left on
This operates when the driver's door is opened, ignition off, to indicate that the vehicle lamps are still on.
It stops when you close the door, switch off the lamps or switch on the ignition.
This signal does not operate if the automatic lighting of headlamps or the guide-me-home lighting are active.
Emergency operation of haz-ard warning lamps
A sudden deceleration of the vehi-cle causes the hazard lamps to come on automatically.
They will cease to operate auto-matically, or manually if you press the hazard lamps button on the dashboard.
The direction indicators cannot operate if the hazard warning lamps are on.
Page 47 of 191
BC
II
4 8
S I G N A L L I N G
Rear foglamps on
Front foglamps and rear foglamps on
The warning lamp lights up.
The foglamps operate only with either headlamp dipped beam or headlamp main beam switched on.
Switching off
First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.Note: the foglamps should be used only in fog or in other conditions of poor visibility.

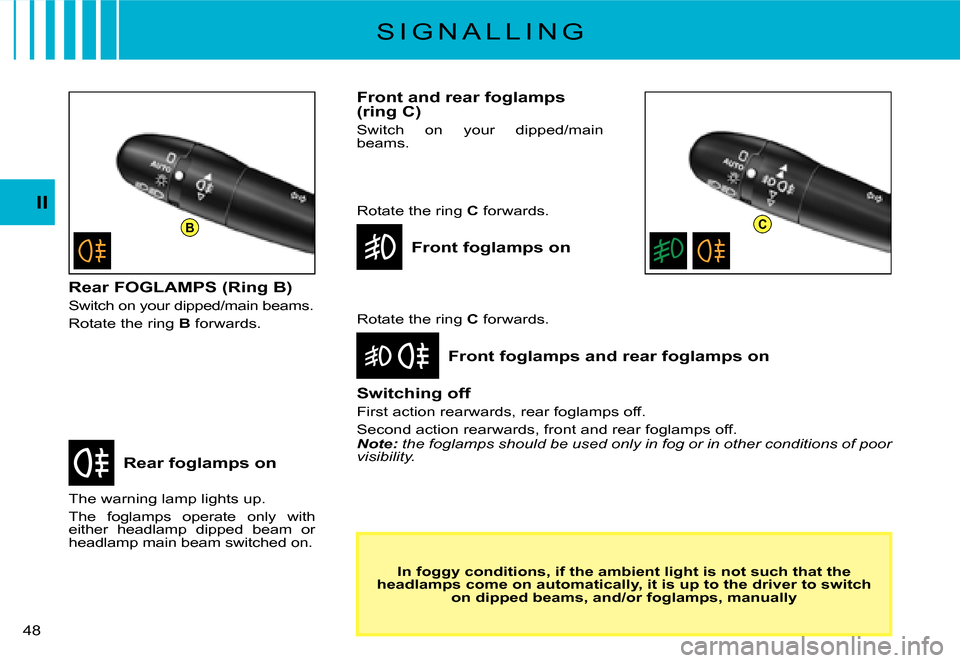

Front and rear foglamps (ring C)
Switch on your dipped/main beams.
In foggy conditions, if the ambient light is not such that th e headlamps come on automatically, it is up to the driver to switch on dipped beams, and/or foglamps, manually
Rear FOGLAMPS (Ring B)
Switch on your dipped/main beams.
Rotate the ring B forwards.
Front foglamps on
Rotate the ring C forwards.
Rotate the ring C forwards.
Page 59 of 191
II
6 0
Your vehicle may be equipped with a “Stop & Start” system, in association with an Electronic Gearbox System; this s h u t s d o w n t h e e n g i n e d u r i n g s t o p p i n g p h a s e s ( r e d l i g h t s , t r a f fi c j a m s , t e m p o r a r y h a l t s , e t c . ) .
During these phases, your vehicle uses no fuel, emits no pollut ants and is completely silent.
The engine restarts instantly when you want to move forward ag ain.
Functioning of the “Stop & Start” system:
If you brake to stop your vehicle, the engine shuts down just before the vehicle comes to a complete halt; the green “ECO” warning lamp lights up in the instrument panel. The en gine remains shut down for as long as you keep your foot, even lightly, on the brake pedal.
As you release the brake pedal, the engine restarts automaticall y and instantly. The green “ECO” warning lamp goes out. You can then accelerate to move forward again.
S T O P & S T A R T
Page 61 of 191
A
II
6 2
Deactivation of the “Stop & Start” system:
You can if you wish deactivate the “Stop & Start” system, by pressing the “ECO OFF” button located on the left hand side on the central panel.
The warning lamp on the button then comes on, and your vehi cle functions like an ordinary vehicle.
You can reactivate the system with another press on the “ECO OFF” button: The warning lamp on the button goes out.Note: T h e “ S t o p & S t a r t ” s y s t e m r e a c t i v a t e s a u t o m a t i c a l l y e a c h t i m e y o u restart the vehicle.
Batteries
T o o p e r a t e c o r r e c t l y , t h e s y s t e m r e q u i r e s a s p e c i fi c b a t t e r y a n d a l s o a s m a l l a d d i t i o n a l b a t t e r y w h i c h i s s i t u a t e d u n d e r one of the front seats.
For a change of battery, consult a CITROËN dealer.
Remark:
I f t h e r e i s a m a l f u n c t i o n o f t h e “ S t o p & S t a r t ” s y s t e m , t h e “ E C O ” w a r n i n g l a m p fl a s h e s b r i e fl y , a c c o m p a n i e d b y a n audible alert. The “ECO OFF” warning lamp lights up.
Contact a CITROËN dealer.
If the engine is in shutdown mode, it can restart at any moment.
Before taking any action under the bonnet, it is imperativ e to switch off the ignition.
Before leaving the vehicle, it is also essential to switch off the ignition.
S T O P & S T A R T
Page 62 of 191
II
6 3
B R A K E S
Parking brake
The parking brake is actioned by pulling on the lever with a force appropriate to any slope.
To facilitate the action on the lever, you are recommended t o press the brake pedal at the same time.
I n a l l c i r c u m s t a n c e s , a s a p r e c a u t i o n a r y m e a s u r e , e n g a g e fi r s t g e a r .
On steep gradients, turn the steering towards the pavement.
To release the brake, pull the lever lightly up, press the button on the end of the lever and return the lever to the fully down position.
Parking brake released
T h e l i g h t i n g o f t h i s w a r n i n g l a m p i n d i c a t e s t h a t t h e b r a k e fl u i d l e v e l i s i n s u f fi c i e n t o r t h a t t h e b r a k i n g d i s t r i b u -tor is malfunctionning.
It is essential to stop the vehicle.
Consult a CITROËN dealer as soon as possible.
Note: The warning lamp comes on if the parking brake is on or not fu lly released when you switch the ignition on.Note: The lighting of this warning lamp indicates that the parking brake is on or not fully released while the engine is running (at a speed above approximately 5 km/h).
