Page 13 of 178
II
3 0
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
Engine oil pressure
It comes on for a few seconds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the oil pressure is low.
It is essential to stop the vehicle.
Contact a CITROËN dealer.
Coolant temperature warning lamp
It comes on for a few seconds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the coolant temperature is rising abnormally.
It is essential to stop the vehicle.
Check the coolant level.
See "Levels".
If the level is satisfactory, consult a CITROËN dealer.If the level is satisfactorythe level
Battery charge
This warning lamp should go out when the engine is running.
If it remains permanently on, contact a CITROËN dealer.If it remains permanently remains permanently
Warning lamp for parking brake, b r a k e fl u i d l e v e l a n d braking distribution malfunction
With the engine running, the light-ing of this warning lamp indicates that the parking brake is on or not properly released, that the brake fl u i d l e v e l i s l o w o r t h a t t h e b r a k i n g system is malfunctioning.
If the warning lamp remains on even after you have released the parking brake, stop immediately and contact a CITROËN dealer.parking brake, stop immediately stop immediately
Driver's seat belt not fastened
This lamp comes on if the LH seat belt is not fastened when the ignition is switched on and while the vehicle is moving at u p t o a p p r o x . 2 0 k m / h ( 1 2 m p h ) . Above this speed, the warning lamp fl a s h e s , a c c o m p a n i e d b y a s o u n d s i g n a l f o r a r o u n d 1 2 0 s e c o n d s . Then it remains on.
SERVICE
This warning lamp remains on for a serious fault. Consult a CITROËN dealer as soon as possible.
This warning lamp remains on only for a short time for faults that are minor. Contact a CITROËN dealer if necessary.
T o fi n d o u t t h e n a t u r e o f t h e c o r r e -sponding warning, consult the Log of Alerts (See section "Displays Aand C" in "Multifunction display").
Fuel low
It comes on for a few sec-onds each time you switch on the ignition.
If the fuel low warning lamp comes on, there remain approx. 4 to 6 litres of fuel in the tank.
Depollution system
It remains on until you start the engine.
I f t h i s w a r n i n g l a m p fl a s h e s or lights up while you are driving, this indicates a problem with the depollution system.
Consult a CITROËN dealer as soon as possible.
Page 58 of 178
III
74
V E N T I L A T I O N - A I R C O N D I T I O N I N G
Air inlet
Check that the exterior grille for the air inlet, at the bottom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air vents
The air vents to the face (except the central air vent) have g r i l l e s f o r o r i e n t i n g t h e fl o w o f a i r ( u p - d o w n , r i g h t - l e f t ) .
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
Air outlets are also located on the central console close to the gear lever, to enhance comfort for the rear passengers.
P o l l e n fi l t e r – O d o u r fi l t e r
Y o u r i n s t a l l a t i o n h a s a fi l t e r f o r k e e p i n g o u t d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See "Maintenance Guide".
Air conditioning
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and misting.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
To be effective, the air conditioning should only be used with the windows closed.
If you are towing a heavy trailer and outside tempera-tures are high, the air conditioning may be temporarily paused if the engine cooling requires this.
Water arising from condensation in the air conditioning system is evacuated through a hole provided for this purpose; a pool of water may thus form underneath the vehicle when stationary.
You are advised to have the air conditioning system checked on a regular basis. See "Maintenance Guide".
The air conditioning operates by using power from the engine. This results in a slight increase in fuel consumption.
Demisting - deicing of the windscreen and front side windowsPlace the controls for temperature and a i r fl o w o n m a x i m u m .
Close the central air vents.
Operate the air conditioning.Note: You should not be in air recirculation.
Page 84 of 178
IV
99

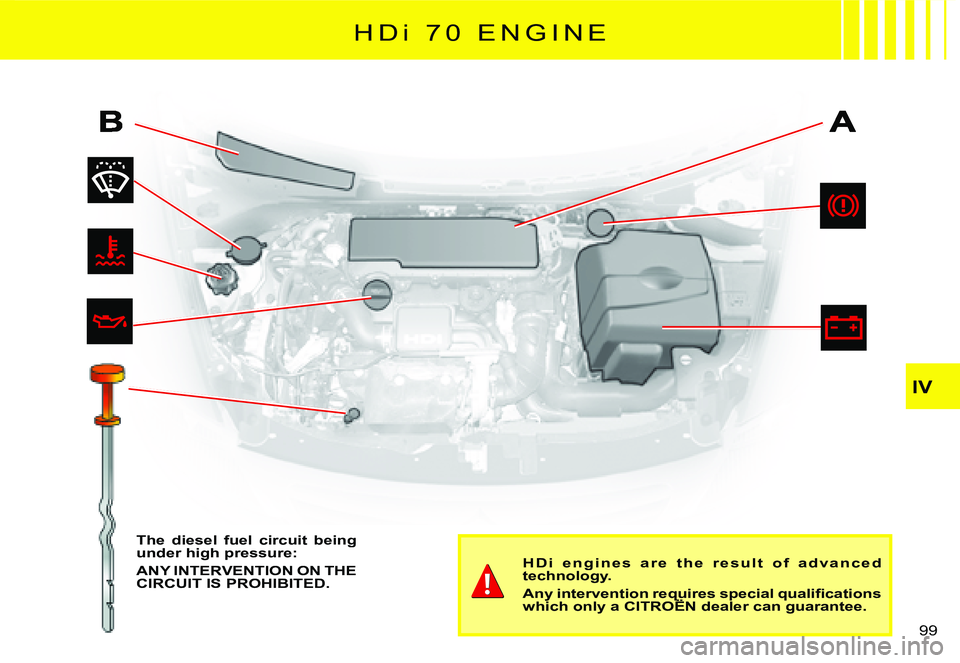

H Di 7 0 E N G I N E
The diesel fuel circuit being under high pressure:
ANY INTERVENTION ON THE CIRCUIT IS PROHIBITED.
H D i e n g i n e s a r e t h e r e s u l t o f a d v a n c e d technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s which only a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s
