heating CITROEN C2 2009 Owners Manual

II
31
W A R N I N G L A M P S
ESP
Operating
It comes on for a few seconds each time you switch on the ignition.
While the ESP system is active, the warning lamp fl ashes.
For a malfunction
When the vehicle is moving, the lighting of this warning lamp indicates a system malfunction.
Contact a CITROËN dealer.
Function deactivated
The warning lamp remains con-tinuously on.
Front passenger's airbag deactivation
See "Airbags".
It is tested briefl y on starting.
Airbag fault
See "Airbags".
It is tested briefl y on starting.
ABS system
The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If it does not go out, there could be a system malfunction.
See "Brakes".
Diesel engine preheating
See method for starting the engine.
See "Driving".
Left hand direction indicator
See "Signalling".
Right hand direction indicator
See "Signalling".
Foot on brake (Electronic Gearbox System)
The fl ashing of this warn-ing lamp in the instrument panel indicates the need to apply the brake pedal in order to start the engine or engage reverse gear.
Stop & Start
The lighting of this warn-ing lamp indicates that the engine is in shutdown mode.
Sidelamps
See "Signalling".
Front foglamps
See "Signalling".
Dipped beams
See "Signalling".
Foglamps (rear)
See "Signalling".
Main beams
See "Signalling".
If the hazard lamps are activated, this means that the direction indicators fl ash on both sides at the same time.

1
5
4
3
2
III
82

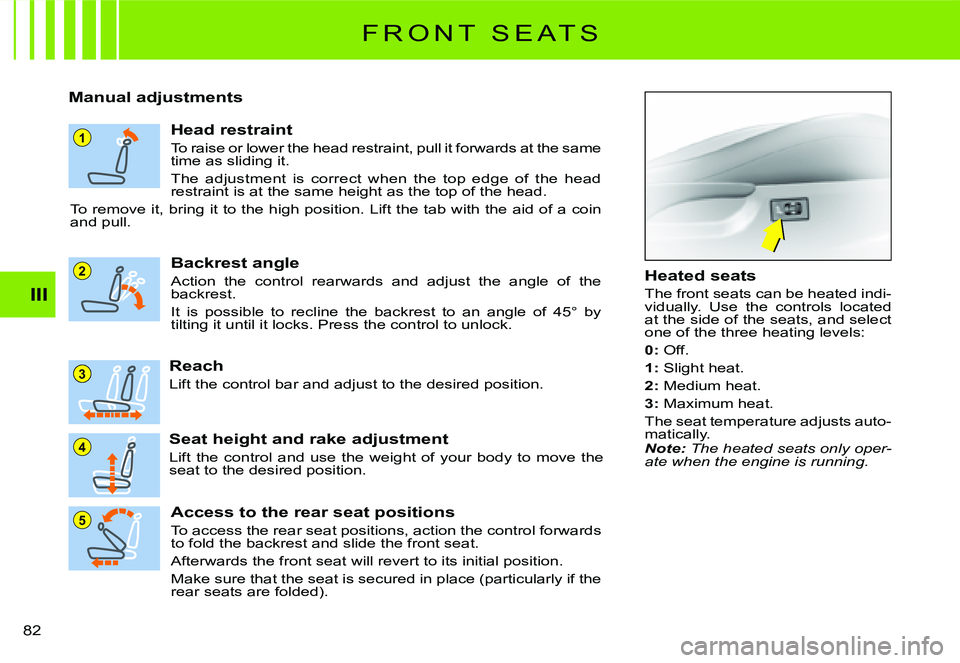

F R O N T S E A T S
Manual adjustments
Head restraint
To raise or lower the head restraint, pull it forwards at the same time as sliding it.
The adjustment is correct when the top edge of the head restraint is at the same height as the top of the head.
To remove it, bring it to the high position. Lift the tab with the aid of a coin and pull.
Backrest angle
Action the control rearwards and adjust the angle of the backrest.
It is possible to recline the backrest to an angle of 45° by tilting it until it locks. Press the control to unlock.
Seat height and rake adjustment
Lift the control and use the weight of your body to move th e seat to the desired position.
Reach
Lift the control bar and adjust to the desired position.
Access to the rear seat positions
To access the rear seat positions, action the control forwards to fold the backrest and slide the front seat.
Afterwards the front seat will revert to its initial position.
Make sure that the seat is secured in place (particularly if the rear seats are folded).
Heated seats
The front seats can be heated indi-vidually. Use the controls located at the side of the seats, and select one of the three heating levels:
0: Off.
1: Slight heat.
2: Medium heat.
3: Maximum heat.
The seat temperature adjusts auto-matically.Note: The heated seats only oper-ate when the engine is running.
