ESP Citroen C2 DAG 2007.5 1.G User Guide

A
CB
108
IV
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.A. Dischargedbattery (Under the bonnet).B. Assisting battery.C. Earth point on broken down vehicle.
Check that the assisting battery has suffi cient voltage (12 V).
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact wit h each other.
Connect the cables according to the order indicated in the dia-ordergram. Check that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly .
Never approach with a fl ame or create sparks in the vicinity of the battery (explosive gas).
The battery contains dilute sulphuric acid which is highly corrosive.
When handling batteries, always protect your face a nd especially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
Advice
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
1 2 V B A T T E R Y

112
T A B L E O F F U S E S
F U S E S U N D E R T H E B O N N E T
Ref.RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS, ESP)
1030 AEngine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater
IV

123
V
Because the aerosol is pressurised, do not expose it to temperatures higher than 50°C.
After provisionally repairing a tyre using the repair aerosol, you are advised not to drive at over 80km/h.
If your vehicle has no spare wheel, a repair aerosol is to be found in the boot.
Using the repair aerosol
See also the user instructions on the aerosol.Remove, if possible, the object which has caused the punc-ture.
Orient the wheel so that the valve is at ten o’clock or two o’clock.Shake the aerosol vigorously (in cold weather warm it in your hands for a few minutes).
With one hand hold the valve connector clear of the rim hole, with the other hand press the end of the aerosol nozzle fi rmly onto the connector, keeping it in the line of the valve.Firmly maintain the pressure for one minute.
Rapidly remove the aerosol and immediately drive for around six miles.
Reinfl ate the tyre and check its condition after some ten hours.
After using the repair aerosol, you should have the condition of the tyre, as well as its infl ation pressure, inspected.







P U N C T U R E
Advice - Recommendations
A punctured tyre should always be removed from the rim and thoroughly examined for dam-age before attempting any repair. When a repair is possible, it should be carried out as soon as possible to prevent further damage to the tyre.
Tyre repair should be carried out by a tyre specialist who will assume responsibility for the repair.Note:The towing eye is stowed either in the repair aerosol box or in the tool kit.
If there are two repair aerosols, this means that you need to use both of them for the temporary repair of the tyre.



9
SELECTING CD SOURCEAfter inserting a CD, with the printed side facing upwards, the player will start playing the CD automatically.To c h a n g e m a n u a l l y t o C D s o u r c e (CD already inserted), press button D until you obtain the source you require.You can also do this by means of control 5at the steering wheel.
EJECTING A CDPress button B to eject the CD, the audio system will automatically switch to radio source.I f t h e C D i s n o t r e m o v e d w i t h i n 10 t o 15 seconds of being ejected, it will auto -matically be taken back into the CD player, although it will not be played.
S ELECTING A TRACKPress button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip several tracks at a time.This can also be done via the control G. As the list of tracks is displayed on the screen, select the desired track using buttons J or M, then validate using button L.You can also do this via the controls 2 and 3at the steering wheel.
C D S O U R C E
F AST FORWARD AND RAPID REVERSE WITH ACCELERATED SOUNDTo move swiftly through the CD, press and keep pressed button K or KN, respectively for fast for ward or rapid reverse with acceler-ated sound.Play resumes as normal when the button is released.
M ENUThis menu allows activation/deactivation of two options :Playback of the fi rst 7 seconds (approx.) of each track of the CD.Random playback of the CD tracks.This can be accessed in two ways :Either by pressing button O and proceed-ing as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.Or, provided you are in CD source, by pressing onbutton L. You can then access the Audio menu (for screen C only).
Note :If one of these options is active, it remains active for CD changer source.

10C D C H A N G E R S O U R C E
SELECTING CD CHANGER SOURCEP r e s s o n b u t t o n D u n t i l y o u r e a c h C D changer.After the magazine engages, playback of the fi rst track of the fi rst CD will begin.You can also do this by means of control 5at the steering wheel.
S ELECTING A CDTo select a CD, either press one of the pre-selection buttons 1 to 5 on the keypad P, or scroll using buttons J or M.The CD will start to play automatically.You can also do this by means of control 1at the steering wheel.After each change of source, on return to CD changer source, playback will resume at the same point where it had been inter-rupted.
S ELECTING A TRACKPress button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip sev-eral tracks at a time.You can also do this by means of the controls 2 and 3 at the steering wheel.
F AST FORWARD AND RAPID REVERSE WITH ACCELERATED SOUNDPress and keep pressed one of the but-tons K or N respectively for fast for ward or rapid reverse with accelerated sound. Play resumes as normal when the button is released.
M ENUThis menu is for activation/deactivation of three options :Playback of the fi rst 7 seconds (approx.) of each track of the CD.Repetition of the current CD.Random playback of tracks, CD by CD.This can be accessed in two ways :Either by pressing button O and proceed-ing as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.Or if you are in CD changer source by pressing button L. You then have access to the AUDIO menu (for screen C only).
Note :If one of these options is active, it remains active for CD source.

3B U T T O N C O N T R O L S
Buttons H, I, M and N allow you, in “Select - Move on Map”, to move respectively up or down, right or left on the map.
N
Radio source :Shor t press : Automatic search of lower frequencies.CD and CD changer source :Shor t press : Search of previous track.Long press : Rapid reverse with accelerated sound.MP3 source :Shor t press : Search of previous track.Long press : Rapid scrolling of previous tracks.Other sources : Moving in the menus.

NAV 1. c
NAV 1. dNAV 1
NAV
NAV 2
NAV 4
NAV 5
NAV 1. a
NAV 1.b
NAV 1. a
NAV 2. b
NAV 2. c
NAV 2. a
NAV 2. d
NAV 3. c
NAV 3. dNAV 3
NAV 3. a
NAV 3. b
NAV 3. e
NAV 4. a
NAV 4. b
NAV 4. c
NAV 4. d
7
Choice of a centre of interest .................................................................................................20
Director y .................................................. ................................................... ............................20
CONTEXTUAL MENU FOR NAVIGATION – TR AFFIC INFORMATION .................................................. ................................................... ............18
Enter an address ..................................................................................................... ...............19
NaviDrive ser vices ..................................................................................................... ............19
Choice of one of the last twenty destinations ........................................................................20
Sor t /delete stages .................................................. ................................................... .............21
Var ying the route ..................................................................................................... ...............21
Adding a stage ..................................................................................................... ...................21
Destination chosen (to change it) ..........................................................................................21
Activate/Deactivate pronunciation of the street nam e ..........................................................21
Viewing information on the navigation CD -ROM .................................................. ................21
CHOOSE A DESTINATIONP AGE 19
STAGES AND ROUTESP AGE 21
TMC T R AFFIC INFORMATIONP AGE 21
MODIFY THE GUIDANCE OPTIONSP AGE 21
Defi ning the route calculation criteria .................................................. ..................................21
Adjusting the voice synthesiser................................................... ...........................................21
Deleting the last destinations .................................................................................................21
Filtering by incident.....................................23
Geographical fi lter ......................................Geographical fi lterGeographical fi lter23
Activate/Deactivate fi lter on route ..............23
Choice of TMC station ................................23
Consulting of messages ..................................................................................................... ....23
Filtering TMC information
Adjusting the voice synthesiser..............................................................................................21
Activate/Deactivate showing of messages ............................................................................21
STOP /RESUME GUIDANCE .................................................. ................................................... ..........................................................17
M E N U S T R U C T U R E F O R N A V I G A T I O N –
T R A F F I C I N F O R M A T I O N

REP 1. c
REP 1. dREP 1
REP 2
REP 1. a
REP 1. b
REP 2. b
REP 2. c
REP 2. a
REP 3
REP 3. a
REP 3. b
REP 3. a.I
REP 3. a.II
REP 3. a.III
REP 3. b.I
REP 3. b.II
REP 3. b.III
REP 3. b.IV
REP
9
Delete a fi le ..................................................................................................... ........................34
Delete all fi les ..................................................................................................... ....................34
Consult or modify a fi le ..................................................................................................... ......34
Add a fi le ..................................................................................................... ............................34
Name director y ..................................................................................................... ..................34
Choose the star t director y ..................................................................................................... .34
Select director y ..................................................................................................... ..................34
MANAGING DIRECTORY FILESP AGE 34
CONFIGUR ATIONPAGE 34
TR ANSFER OF FILESP AGE 35
Exchange by infraredSend all fi les ................................................35
Receive by infrared .....................................35
Send a fi le .................................................. .35
Exchange with the SIM card
Receive a fi le from the SIM ........................35
Send all fi les to SIM ...................................35
Receive all fi les from the SIM .....................35
Send a fi le to SIM........................................35
M E N U S T R U C T U R E F O R D I R E C T O R Y

TEL 2
TEL 3
TEL 1
TEL 2.b
TEL 2.c
TEL 2.a
TEL 2.d
TEL 3.a
TEL 3.d
TEL 3.b
TEL 3.c
TEL 4TEL 4. b
TEL 4. c
TEL 4. a
TEL 4. d
TEL
10
CONTEXTUAL MENU FOR TELEPHONE AND TELEMATIC SERVICES................................................... ............................................................38
CITROËN Assistance ..................................................................................................... ........39
NaviDrive ser vices ..................................................................................................... ............39
CITROËN on Line ..................................................................................................... ..............39
Messages received ..................................................................................................... ...........39
SERVICESPAGE 40
TELEPHONE FUNCTIONSP AGE 40
Ringtone options for voice calls .........................40
Voice callback no. for SMS messages ..............40
Confi gure calls .................................................. ..40
Delete the list of calls and SMS messages .......40
Network ..................................................................................................... ..............................40
Call options
Duration of calls ..................................................................................................... .................40
Managing the PIN code ..................................................................................................... .....40
CALL .................................................. ................................................... .....................................................................................38
Sending of SMS messages ....................................................................................................40
Composing an SMS message ................................................................................................40
Reading of SMS messages .................................................. ..................................................40
Delete the list of SMS messages .................................................. .........................................40
TEXT MESSAGING (SMS)PAGE 40TEXT MESST EXT MES
M E N U S T R U C T U R E F O R T E L E P H O N E
A N D T E L E M A T I C S E R V I C E S

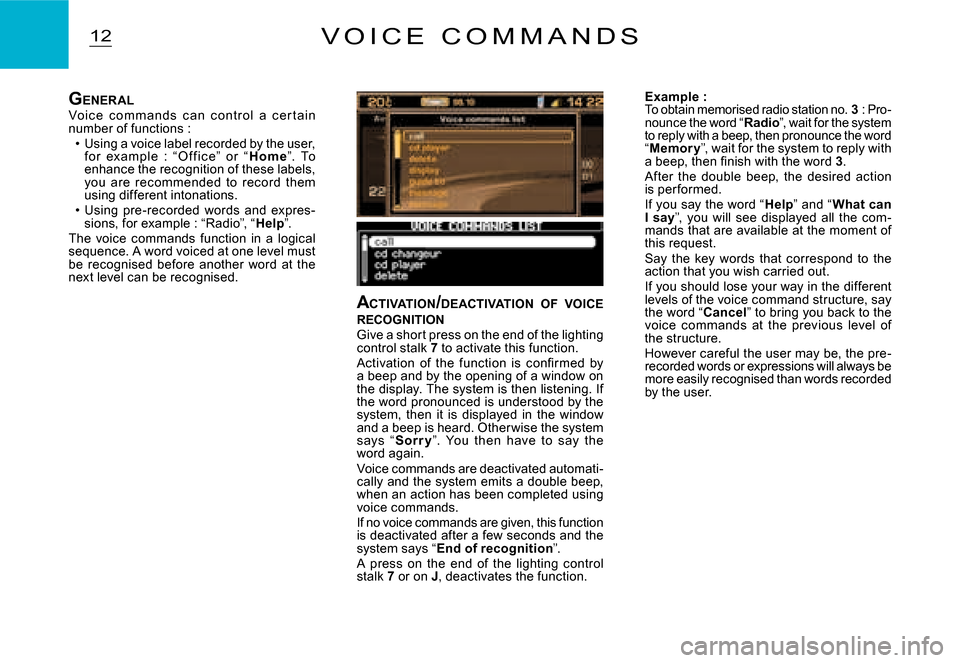

12V O I C E C O M M A N D S
ACTIVATION /DEACTIVATION OF VOICE RECOGNITIONGive a short press on the end of the lighting control stalk 7 to activate this function.Activation of the function is confi rmed by a beep and by the opening of a window on the display. The system is then listening. If the word pronounced is understood by the system, then it is displayed in the window and a beep is heard. Other wise the system says “Sor r y”. You then have to say the word again.Voice commands are deactivated automati-cally and the system emits a double beep, when an action has been completed using voice commands.If no voice commands are given, this function is deactivated after a few seconds and the system says “End of recognition”.A press on the end of the lighting control stalk 7 or on J, deactivates the function.
Example :To obtain memorised radio station no. 3 : Pro-nounce the word “Radio”, wait for the system to reply with a beep, then pronounce the word “Memor y”, wait for the system to reply with a beep, then fi nish with the word 3.After the double beep, the desired action is per formed.If you say the word “Help” and “What can I say”, you will see displayed all the com-mands that are available at the moment of this request.Say the key words that correspond to the action that you wish carried out.If you should lose your way in the different levels of the voice command structure, say the word “Cancel” to bring you back to the voice commands at the previous level of the structure.However careful the user may be, the pre-recorded words or expressions will always be more easily recognised than words recorded by the user.
GENERALVo ic e c o m m ands c an c o nt r o l a c er t ain number of functions :Using a voice label recorded by the user, for example : “ O f f ic e” or “H o m e”. To enhance the recognition of these labels, you are recommended to record them using different intonations.Using pre-recorded words and expres-sions, for example : “Radio”, “Help”.The voice commands function in a logical sequence. A word voiced at one level must be recognised before another word at the next level can be recognised.
