change wheel Citroen C2 DAG 2007.5 1.G Owner's Manual

46
II
S I G N A L L I N G
Direction indicators
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. Stops automatically with the return of the steering wheel.
Visible alert / headlamp fl ash
Pull the control towards you.
The headlamp fl ash can be made even with the ignition switched off.
Horn
Press at the centre of the steering wheel.
Hazard warning lamps
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
Sound signal for headlamps left on
This operates when the driver's door is opened, ignition off, to indi-cate that the vehicle lamps are still on.
It stops when you close the door, switch off the lamps or switch on the ignition.
This signal does not operate if the automatic lighting of headlamps or the guide-me-home lighting are active.
Emergency operation of haz-ard warning lamps
A sudden deceleration of the vehi-cle causes the hazard lamps to come on automatically.
They will cease to operate auto-matically, or manually if you press the hazard lamps button on the dashboard.
The direction indicators cannot operate if the hazard warning lamps are on.

-+
59
II
E L E C T R O N I C G E A R B O X S Y S T E M
M A N U A L M O D E
Gear controls under the steer-ing wheel
Place the gear lever in position M, and then the controls under the steering wheel will give you access to the fi ve gears in forward drive.
To change gear:Pull the control “+” towards you to engage a higher gear.Pull the control “-” towards you to change down.
These controls do not permit you to select neutral or reverse gear, nor do they enable you to quit reverse gear.


Commands using the gear lever
Place the gear lever in position M, then:Push the lever to change to a higher gear.Pull the lever to change down.
Remarks:When the vehicle reduces speed, for example approach-ing a stop sign or traffi c lights, the gearbox changes down automatically to 1st gear.
In manual mode, it is not neces-sary to release the accelerator during changes of gear.




A command to change gear is accepted only if the engine speed permits this.As the engine reaches maxi-mum revs and conditions per-mit, the system will automati-cally engage a higher gear.
Re-initialisation
The Electronic Gearbox System requires a re-initialisation after one of the following events:Change of battery or discon-nection of battery.Starting the engine with an assisting battery.
A system malfunction.
To re-initialise the system:Switch on the ignition. A dash and “AUTO” will display in the instrument panel.
Apply the brake pedal.
Wait until you see N, or a gear engaged, in the instrument panel (about 30 seconds).Release the brake.
Starting is again possible.










A
121
V
C H A N G I N G A W H E E L
The jack is specifi c to your vehicle, do not use it for any other purposes.
With a spare wheel, drive cautiously.
Access to the spare wheel
Open the lower tailgate.
Remove the blank A with the aid of the ignition key, to insert the exten-sion for the wheelbrace.
Slacken the spare wheel carrier screw.
Lift the carrier to release the retain-ing hook, then disengage it.
To reposition the spare wheel
Having repositioned the jack and its handle in its protection box in the wheel, slide the wheel into the carrier.
Lift the carrier to secure it in the safety hook.
Retighten the screw from inside the boot compartment.
Stow the wheelbrace and exten-sion.
Reposition the blank A.
Tyre pressures
This is indicated on the label on the front door pillar. See “Vehicle iden-tifi cation” and “User Precautions”.
ADVICE
The wheel bolts are specifi c to the type of wheel.
If the type of wheel is changed, check with your CITROËN dealer If the type of wheel is changed, wheel is changed,
that the wheel bolts are compatible with the new wheels.

9
SELECTING CD SOURCEAfter inserting a CD, with the printed side facing upwards, the player will start playing the CD automatically.To c h a n g e m a n u a l l y t o C D s o u r c e (CD already inserted), press button D until you obtain the source you require.You can also do this by means of control 5at the steering wheel.
EJECTING A CDPress button B to eject the CD, the audio system will automatically switch to radio source.I f t h e C D i s n o t r e m o v e d w i t h i n 10 t o 15 seconds of being ejected, it will auto -matically be taken back into the CD player, although it will not be played.
S ELECTING A TRACKPress button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip several tracks at a time.This can also be done via the control G. As the list of tracks is displayed on the screen, select the desired track using buttons J or M, then validate using button L.You can also do this via the controls 2 and 3at the steering wheel.
C D S O U R C E
F AST FORWARD AND RAPID REVERSE WITH ACCELERATED SOUNDTo move swiftly through the CD, press and keep pressed button K or KN, respectively for fast for ward or rapid reverse with acceler-ated sound.Play resumes as normal when the button is released.
M ENUThis menu allows activation/deactivation of two options :Playback of the fi rst 7 seconds (approx.) of each track of the CD.Random playback of the CD tracks.This can be accessed in two ways :Either by pressing button O and proceed-ing as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.Or, provided you are in CD source, by pressing onbutton L. You can then access the Audio menu (for screen C only).
Note :If one of these options is active, it remains active for CD changer source.

10C D C H A N G E R S O U R C E
SELECTING CD CHANGER SOURCEP r e s s o n b u t t o n D u n t i l y o u r e a c h C D changer.After the magazine engages, playback of the fi rst track of the fi rst CD will begin.You can also do this by means of control 5at the steering wheel.
S ELECTING A CDTo select a CD, either press one of the pre-selection buttons 1 to 5 on the keypad P, or scroll using buttons J or M.The CD will start to play automatically.You can also do this by means of control 1at the steering wheel.After each change of source, on return to CD changer source, playback will resume at the same point where it had been inter-rupted.
S ELECTING A TRACKPress button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip sev-eral tracks at a time.You can also do this by means of the controls 2 and 3 at the steering wheel.
F AST FORWARD AND RAPID REVERSE WITH ACCELERATED SOUNDPress and keep pressed one of the but-tons K or N respectively for fast for ward or rapid reverse with accelerated sound. Play resumes as normal when the button is released.
M ENUThis menu is for activation/deactivation of three options :Playback of the fi rst 7 seconds (approx.) of each track of the CD.Repetition of the current CD.Random playback of tracks, CD by CD.This can be accessed in two ways :Either by pressing button O and proceed-ing as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.Or if you are in CD changer source by pressing button L. You then have access to the AUDIO menu (for screen C only).
Note :If one of these options is active, it remains active for CD source.

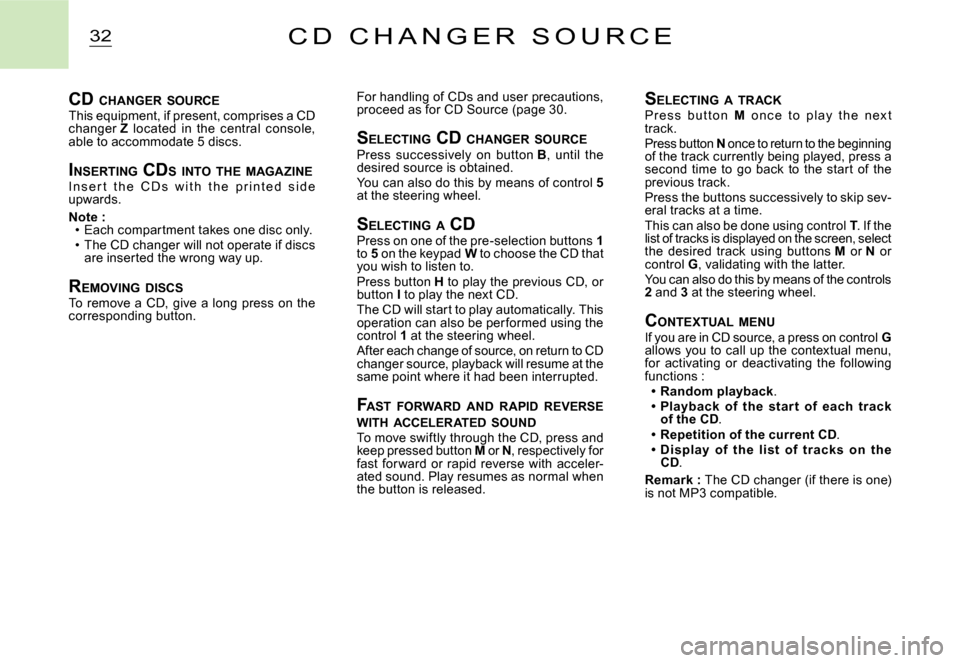

32C D C H A N G E R S O U R C E
SELECTING A TRACKP r e s s b u t t o n M o n c e t o p l a y t h e n ex t track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip sev-eral tracks at a time.This can also be done using control T. If the list of tracks is displayed on the screen, select the desired track using buttons M or N or control G, validating with the latter.You can also do this by means of the controls 2 and 3 at the steering wheel.
C ONTEXTUAL MENUIf you are in CD source, a press on control Gallows you to call up the contextual menu, for activating or deactivating the following functions :Random playback.Playback of the star t of each track of the CD.Repetition of the current CD.Display of t he list of t racks on t he CD.
Remark : The CD changer (if there is one) is not MP3 compatible.
