ECO mode Citroen C2 DAG 2008 1.G Owner's Manual

31
II
ESP
Operating
It comes on for a few sec-onds each time you switch on the ignition.
While the ESP system is active, the warning lamp fl ashes.
For a malfunction
When the vehicle is moving, the lighting of this warning lamp indi-cates a system malfunction.
Contact a CITROËN dealer.
Function deactivated
The warning lamp remains con-tinuously on.
Front passenger's airbag deactivation
See "Airbags".
It is tested briefl y on starting.
Airbag fault
See "Airbags".
It is tested briefl y on start-ing.
W A R N I N G L A M P S
ABS system
The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If it does not go out, there could be a system malfunction.
See "Brakes".
Diesel engine preheating
See method for starting the engine.
See "Driving".
Left hand direction indicator
See "Signalling".
Right hand direction indicator
See "Signalling".
Foot on brake (Electronic Gearbox System)
The fl ashing of this warn-ing lamp in the instrument panel indicates the need to apply the brake pedal in order to start the engine or engage reverse gear.
Stop & Start
The lighting of this warn-ing lamp indicates that the engine is in shutdown mode.
Sidelamps
See "Signalling".
Front foglamps
See "Signalling".
Dipped beams
See "Signalling".
Foglamps (rear)
See "Signalling".
Main beams
See "Signalling".
If the hazard lamps are activated, this means that the direction indica-tors fl ash on both sides at the same time.

A
60
II
Deactivation of the "Stop & Start" system:
You can if you wish deactivate the "Stop & Start" system, by pressing the "ECO OFF" button located on the left hand side on the central panel.
The warning lamp on the button then comes on, and your vehi cle functions like an ordinary vehicle.
You can reactivate the system with another press on the "ECO OFF" button: The warning lamp on the button goes out.Note: The "Stop & Start" system reactivates automatically each time you restart the vehicle.
Batteries
To operate correctly, the system requires a specifi c battery and also a small additional battery which is situated under one of the front seats.
For a change of battery, consult a CITROËN dealer.
Remark:
If there is a malfunction of the "Stop & Start" system, the "ECO" wa rning lamp fl ashes briefl y, accompanied by an audible alert. The "ECO OFF" warning lamp lights up.
Contact a CITROËN dealer.
If the engine is in shutdown mode, it can restart at any moment.
Before taking any action under the bonnet, it is imperativ e to switch off the ignition.
Before leaving the vehicle, it is also essential to switch off the ignition.
S T O P & S T A R T

122
89
III
I N T E R I O R L I G H T I N G
1. Interior lamps
Move the control 1 to the 3 following positions.
Automatic lighting of the interior lampsOn entering the vehicle:
They come on as soon as the vehicle is unlocked or a door is opened.They go out 30 seconds after the doors are closed or when ignition is switched on.
On vacating the vehicle:They come on as soon as the ignition key is removed (timed for 30 seconds), or when a door is opened.
They go out 30 seconds after all the doors have been closed or immediately after the vehicle has been locked.
2. Spotlamps
A press on one of the buttons 2 switches the corresponding spotlamp on or off.
These do not work if the ignition is off or in economy mode.

122
V

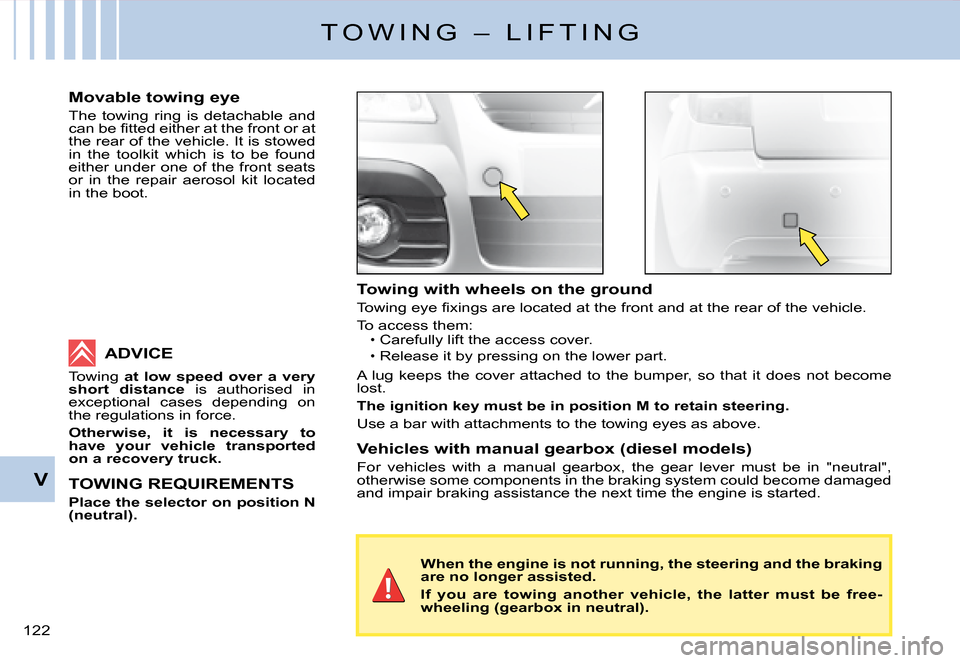

T O W I N G – L I F T I N G
Towing with wheels on the ground
Towing eye fi xings are located at the front and at the rear of the vehicle.
To access them:Carefully lift the access cover.
Release it by pressing on the lower part.
A lug keeps the cover attached to the bumper, so that it do es not become lost.
The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.
Vehicles with manual gearbox (diesel models)
For vehicles with a manual gearbox, the gear lever must be in "n eutral", otherwise some components in the braking system could become damaged and impair braking assistance the next time the engine is started.

25R A D I O S O U R C E
NOTES ON RADIO RECEPTIONYour Navidrive system will be subject to phenomena not encountered by your equip-ment you have at home. The reception of AM and FM signals may suffer from interference, which is caused by the nature and propaga-tion of the signals and does not refl ect on the quality of your radio installation.In AM, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.In FM mode, the reception may be affected by the distance from the station transmitter, the refl ecting of signals off obstacles (mountains, hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
S E L EC T I O N O F FR EQ U E N C I E S A N D MEMORY BANKSB y r e p e a t e d p r e s s e s o n b u t t o n R, t h e NaviDrive changes successively between the memor y banks FM1, FM2 and FMast, corresponding to FM frequencies, and to the memor y bank MW/LW, corresponding to AM frequencies.
M ANUAL SEARCHA short press on one of the buttons H or I, will respectively increase or decrease the displayed frequency.By keeping button H or I pressed, you will be able to scroll through the waveband. Scrolling stops as soon as a station is found. NaviDrive remains tuned to the frequency displayed.
M ANUAL PRE -SETTINGSelect the waveband and memor y bank required using button R.Select a station using either automatic or manual search.Keep pressing for more than two seconds on one of the pre-selection buttons 1 to 6on the keypad W.A window opens on the screen, the station is memorised as it is displayed on the memory number you have given it.
C O N T E X T U A L M E N U F O R RA D I O SOURCEA press on G while listening to the radio permits you to :Enter the desired frequency.Ac tivate/deac tivate the RDS search function in FM.Activate/deactivate the regional search mode in FM.Ac t i va t e /d e a c t i va t e t h e d i s p l ay o f Radio Text, broadcast by the radio station if available (“RT” displays at the bottom of the screen).

29R D S S Y S T E M
SELECTING A PROGRAMME TYPECer t ain st ations allow you to choose to listen to a par ticular t ype of programme selected from the available list, for example as below :
NewsSciences
Current affairsVarious
Ser vicesPop music
Spor tRock music
EducationFolk music
FictionLight music
CultureOther music
WeatherLeisure
EconomyJazz
ChildrenCountr y
Social affairsNational
ReligionOld favourites
DiscussionTraditional
TravelDocumentar y
Press for more than two seconds on the Sbutton.Rotate control G to select the desired pro-gramme type.
S EARCHING FOR A STATION BROAD -CASTING THIS PROGRAMME TYPEOnce you have selected the programme type, validate to start a search.NaviDrive will settle on the fi rst transmitter broadcasting this type of programme. If none can be found, the system will return to the station it was originally tuned to and then quit the PT Y function.
P RE -SETTING A STATION BROADCAST -ING THIS PROGRAMME TYPESearch to select a station.While it is broadcasting, keep one of the pre-selection buttons 1 to 6 on the keypad Wpressed for more than two seconds.To recall the pre-set programme type, press the corresponding button.
Q UITTING PTY MODETo quit this function, press on button S for more than two seconds, then NaviDrive will revert to normal mode.

CAR
44M A P
MAP MAIN MENUPress on P then use control G to select the Map icon and validate to have access to the following choices :Move the map, to change to the mode “Select - Move on map”.Orient the map, to orient the map either to North or to the direction in which the vehicle is moving.Centre around the vehicle, to recentre the map on the vehicle if it no longer appears on the map.Details of the map, for selecting the points of interest to be displayed using symbols on the map (see next page).M e m o r i s e t h e c u r r e n t p o s i t i o n, to display the panel for entering a label for recording the vehicle's current position in a fi le in the current directory.
