Page 1 of 178
B
A
19
II
R E M O T E C O N T R O L
Note: The simultaneous use of other high frequency equipment (mobile telephones, domestic alarms, etc.) may momentarily hinder the operation of the remote control.
If there is a permanent fault, the remote control has to be reinitial-ised. See "Changing remote control batteries".
Central unlocking
A short press on control B unlocks your vehicle.
T h i s o p e r a t i o n i s c o n fi r m e d b y t h e r a p i d fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s and the lighting of the interior lamp (if the function is activated). It can also deploy the exterior rear view mirrors.
Central locking – Deadlocking
A short press on button A locks your vehicle.
T h i s i s c o n fi r m e d b y t h e l i g h t i n g f o r a r o u n d 2 s e c o n d s o f t h e d i r e c t i o n i n d i c a -tors and by the interior lamp going out. It may cause the exte rior rear view mirrors to fold back.
If any of the doors, or the boot, is open or not properly closed, the central locking does not operate.
For vehicles equipped with deadlocking, two successive presses on con-trol A will operate deadlocking. It is then impossible to open the doors, either from the inside or from the outside.
It is dangerous to operate the deadlocking when a p erson is in the vehicle as unlocking is impossible from the inside (without the remote control).
Page 30 of 178
4 7
II
Position I: The wipe speed adjusts automatically to the speed of the vehicle.
Positions 1 and 2: When the vehicle is stationary, the speed of the wipers will reduce automatically.
For safety, the wiper system is deactivated when the igniti on is switched off.
When you switch the ignition on again, to reactivate the function:Return to position0.
Or go to the desired position.
A c t i v a t i o n o f t h e f u n c t i o n i s c o n fi r m e d b y o n e s w e e p o f t h e w i p e r s .
Vehicle with rain sensor
Activation of automatic wipe:
One touch downwards: "AUTO". The wipe speed will adjust according to the intensity of the rain.Note: If automatic wipe is active, a touch downwards triggers a singl e wipe, without deactivating automatic wipe.
Deactivation of automatic wipe:Go to position I, then return to position 0.
Or stop the engine.
WARNING
Do not cover the rain detector which is located behind the interior rear detectorview mirror and visible from outside the windscreen.
For washing the vehicle, switch off the ignition or deactivate the automatic wipe.
Page 33 of 178
1
3
2
50
II

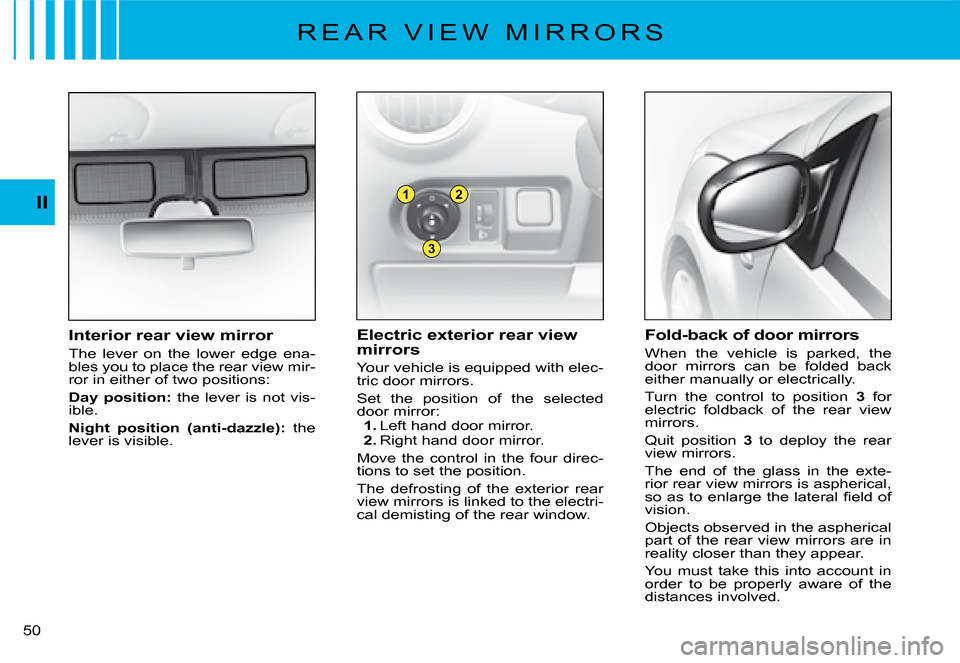

R E A R V I E W M I R R O R S
Electric exterior rear view mirrors
Your vehicle is equipped with elec-tric door mirrors.
Set the position of the selected door mirror:1. Left hand door mirror.2. Right hand door mirror.
Move the control in the four direc-tions to set the position.
The defrosting of the exterior rear view mirrors is linked to the electri-cal demisting of the rear window.
Fold-back of door mirrors
When the vehicle is parked, the door mirrors can be folded back either manually or electrically.
Turn the control to position 3 for electric foldback of the rear view mirrors.
Quit position 3 to deploy the rear view mirrors.
The end of the glass in the exte-rior rear view mirrors is aspherical, s o a s t o e n l a r g e t h e l a t e r a l fi e l d o f vision.
Objects observed in the aspherical part of the rear view mirrors are in reality closer than they appear.
You must take this into account in order to be properly aware of the distances involved.
Interior rear view mirror
The lever on the lower edge ena-bles you to place the rear view mir-ror in either of two positions:
Day position: the lever is not vis-ible.
Night position (anti-dazzle): the lever is visible.
Page 76 of 178
9 2
III
I N T E R I O R C O M F O R T
Sun visor
To prevent dazzle from ahead, fold the visor downwards. They can be d i s e n g a g e d f r o m t h e i r c e n t r a l fi x -ing and pivoted over to the side windows if required.
The passenger’s and driver’s sun visors each have a mirror that can be covered.
Sun visor with illuminated mirror
Illuminates automatically on opening t h e m i r r o r c o v e r fl a p ( i g n i t i o n o n ) .
Storage areas
S t r a p s fi x e d t o t h e b o t t o m o f t h e boot enable you to secure objects stowed there.
Grab handles/Coat hanger hookLower tailgate storage
Lift up the two levers located on the lower tailgate to open the cover and access the storage area.
Storage capacity: 5 litres.
The lower tailgate can support spread loads of up to 100 kg.
