3 0
II
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
Engine oil pressure
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the oil pressure is low.
It is essential to stop the vehicle.
Contact a CITROËN dealer.
Coolant temperature warning lamp
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the coolant temperature is rising abnormally.
It is essential to stop the vehicle.
Check the coolant level.
See "Levels".
If the level is satisfactory, consult a CITROËN dealer.If the level is satisfactorythe level
Battery charge
This warning lamp should go out when the engine is running.
If it remains permanently on, con-tact a CITROËN dealer.If it remains permanently remains permanently
Warning lamp for parking brake, b r a k e fl u i d l e v e l a n d braking distribution malfunction
With the engine running, the light-ing of this warning lamp indicates that the parking brake is on or not properly released, that the brake fl u i d l e v e l i s l o w o r t h a t t h e b r a k i n g system is malfunctioning.
If the warning lamp remains on even after you have released the parking brake, stop immediately and contact a CITROËN dealer.parking brake, stop immediately stop immediately
Driver's seat belt not fastened
This lamp comes on if the LH seat belt is not fastened when the ignition is switched on and while the vehicle is moving at u p t o a p p r o x . 2 0 k m / h ( 1 2 m p h ) . Above this speed, the warning l a m p fl a s h e s , a c c o m p a n i e d b y a s o u n d s i g n a l f o r a r o u n d 1 2 0 s e c -onds. Then it remains on.
SERVICE
This warning lamp remains on for a seri-ous fault. Consult a CITROËN dealer as soon as pos-sible.
This warning lamp remains on only for a short time for faults that are minor. Contact a CITROËN dealer if necessary.
T o fi n d o u t t h e n a t u r e o f t h e c o r r e -sponding warning, consult the Log of Alerts (See section "Displays Aand C" in "Multifunction display").
Fuel low
It comes on for a few sec-onds each time you switch on the ignition.
If the fuel low warning lamp comes on, there remain approx. 4 to 6 litres of fuel in the tank.
Depollution system
It remains on until you start the engine.
I f t h i s w a r n i n g l a m p fl a s h e s or lights up while you are driving, this indicates a problem with the depollution system.
Consult a CITROËN dealer as soon as possible.
Page 14 of 178
3 1
II
ESP
Operating
It comes on for a few sec-onds each time you switch on the ignition.
While the ESP system is active, t h e w a r n i n g l a m p fl a s h e s .
For a malfunction
When the vehicle is moving, the lighting of this warning lamp indi-cates a system malfunction.
Contact a CITROËN dealer.
Function deactivated
The warning lamp remains con-tinuously on.
Front passenger's airbag deactivation
See "Airbags".
I t i s t e s t e d b r i e fl y o n s t a r t i n g .
Airbag fault
See "Airbags".
I t i s t e s t e d b r i e fl y o n s t a r t -ing.
W A R N I N G L A M P S
ABS system
The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If it does not go out, there could be a system malfunction.
See "Brakes".
Diesel engine preheating
See method for starting the engine.
See "Driving".
Left hand direction indicator
See "Signalling".
Right hand direction indicator
See "Signalling".
Foot on brake (Electronic Gearbox System)
T h e fl a s h i n g o f t h i s w a r n -ing lamp in the instrument panel indicates the need to apply the brake pedal in order to start the engine or engage reverse gear.
Stop & Start
The lighting of this warn-ing lamp indicates that the engine is in shutdown mode.
Sidelamps
See "Signalling".
Front foglamps
See "Signalling".
Dipped beams
See "Signalling".
Foglamps (rear)
See "Signalling".
Main beams
See "Signalling".
If the hazard lamps are activated, this means that the direction indica- t o r s fl a s h o n b o t h s i d e s a t t h e s a m e t i m e .
Page 38 of 178
55
II
E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L

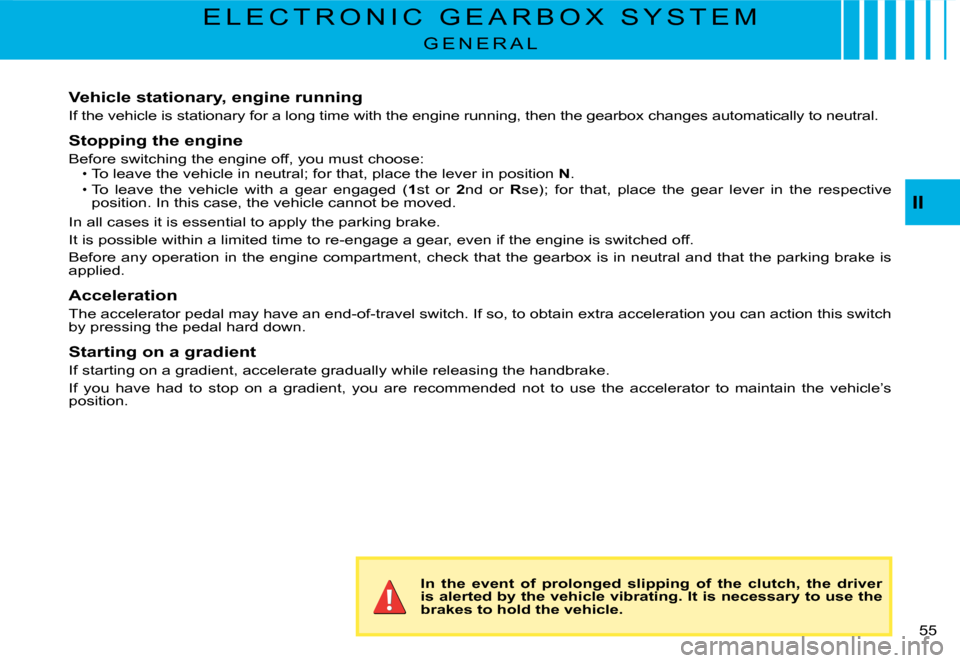

Vehicle stationary, engine running
If the vehicle is stationary for a long time with the engine running, then the gearbox changes automat ically to neutral.
Stopping the engine
Before switching the engine off, you must choose:To leave the vehicle in neutral; for that, place the lever in position N.To leave the vehicle with a gear engaged (1st or 2nd or Rse); for that, place the gear lever in the respective position. In this case, the vehicle cannot be moved.
In all cases it is essential to apply the parking brake.
It is possible within a limited time to re-engage a gear, even if the engine is switched off.
Before any operation in the engine compartment, check that the gearbox is in neutral and that the parking brake is applied.
Acceleration
The accelerator pedal may have an end-of-travel switch. If so, to obtain extra acceleration you can action this switch by pressing the pedal hard down.
Starting on a gradient
If starting on a gradient, accelerate gradually while releasing the handbrake.
If you have had to stop on a gradient, you are recommended no t to use the accelerator to maintain the vehicle’s position.
Page 41 of 178
5 8
II

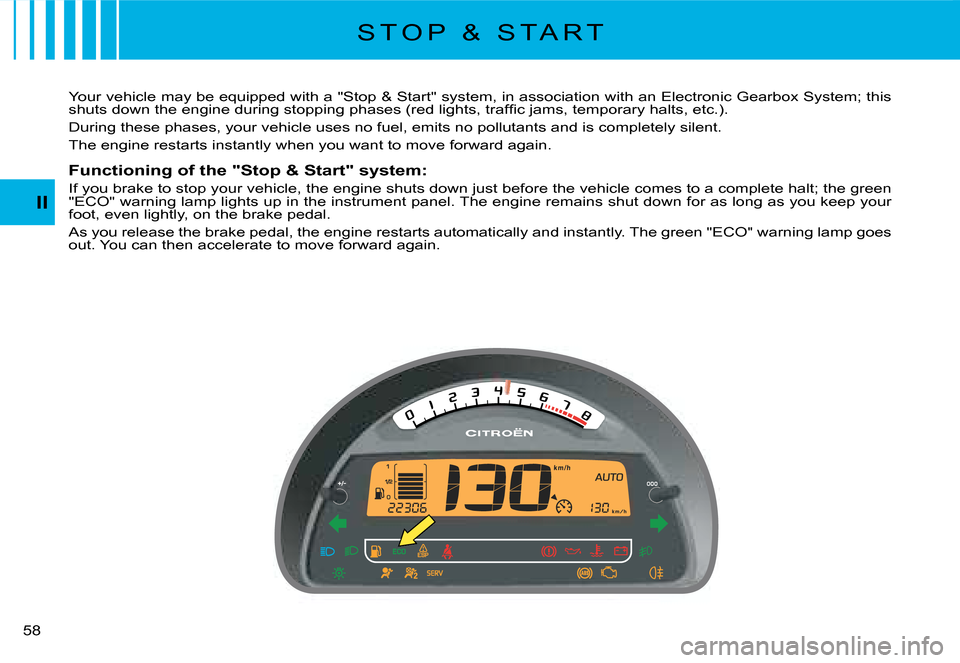

Your vehicle may be equipped with a "Stop & Start" system, in association with an Electronic Gearbox System; this s h u t s d o w n t h e e n g i n e d u r i n g s t o p p i n g p h a s e s ( r e d l i g h t s , t r a f fi c j a m s , t e m p o r a r y h a l t s , e t c . ) .
During these phases, your vehicle uses no fuel, emits no pollut ants and is completely silent.
The engine restarts instantly when you want to move forward ag ain.
Functioning of the "Stop & Start" system:
If you brake to stop your vehicle, the engine shuts down just before the vehicle comes to a complete halt; the green "ECO" warning lamp lights up in the instrument panel. The en gine remains shut down for as long as you keep your foot, even lightly, on the brake pedal.
As you release the brake pedal, the engine restarts automaticall y and instantly. The green "ECO" warning lamp goes out. You can then accelerate to move forward again.
S T O P & S T A R T
Page 42 of 178
59
II
S T O P & S T A R T

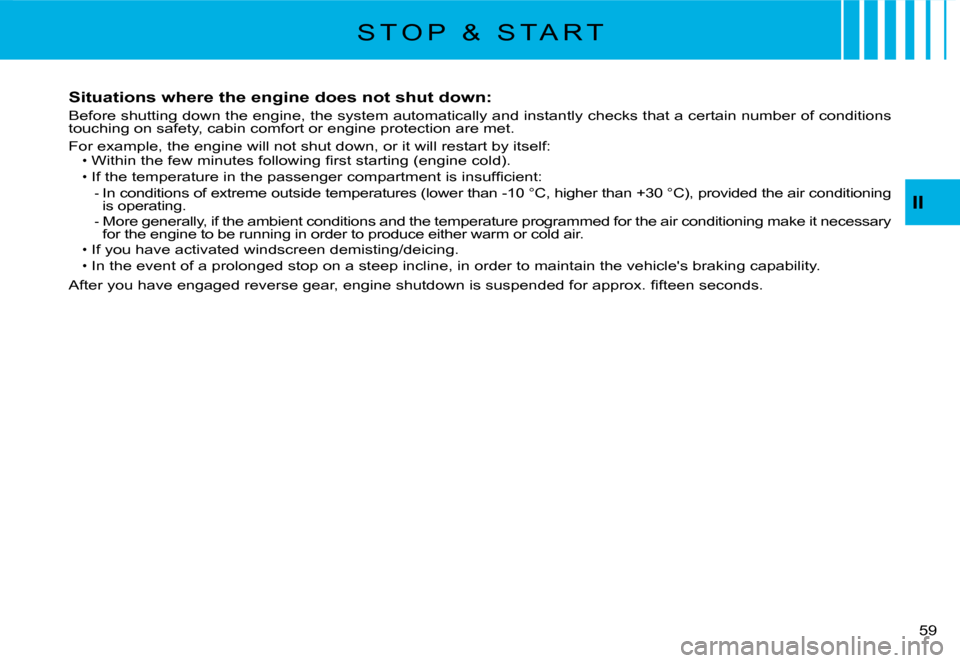

Situations where the engine does not shut down:
Before shutting down the engine, the system automatically and instantly checks that a certain number of conditions touching on safety, cabin comfort or engine protection are met .
For example, the engine will not shut down, or it will restart by itself: W i t h i n t h e f e w m i n u t e s f o l l o w i n g fi r s t s t a r t i n g ( e n g i n e c o l d ) .
I f t h e t e m p e r a t u r e i n t h e p a s s e n g e r c o m p a r t m e n t i s i n s u f fi c i e n t : I n c o n d i t i o n s o f e x t r e m e o u t s i d e t e m p e r a t u r e s ( l o w e r t h a n - 1 0 ° C , h i g h e r t h a n + 3 0 ° C ) , p r o v i d e d t h e a i r c o n d i t i o n i n g is operating.More generally, if the ambient conditions and the temperature programmed for the air conditioning make it necessary for the engine to be running in order to produce either warm or cold air.If you have activated windscreen demisting/deicing.In the event of a prolonged stop on a steep incline, in order to maintain the vehicle's braking capability.
A f t e r y o u h a v e e n g a g e d r e v e r s e g e a r , e n g i n e s h u t d o w n i s s u s p e n d e d f o r a p p r o x . fi f t e e n s e c o n d s .
Page 43 of 178
A
6 0
II
Deactivation of the "Stop & Start" system:
You can if you wish deactivate the "Stop & Start" system, by pressing the "ECO OFF" button located on the left hand side on the central panel.
The warning lamp on the button then comes on, and your vehi cle functions like an ordinary vehicle.
You can reactivate the system with another press on the "ECO OFF" button: The warning lamp on the button goes out.Note: The "Stop & Start" system reactivates automatically each time you restart the vehicle.
Batteries
T o o p e r a t e c o r r e c t l y , t h e s y s t e m r e q u i r e s a s p e c i fi c b a t t e r y a n d a l s o a s m a l l a d d i t i o n a l b a t t e r y w h i c h i s s i t u a t e d u n d e r one of the front seats.
For a change of battery, consult a CITROËN dealer.
Remark:
I f t h e r e i s a m a l f u n c t i o n o f t h e " S t o p & S t a r t " s y s t e m , t h e " E C O " w a r n i n g l a m p fl a s h e s b r i e fl y , a c c o m p a n i e d b y a n audible alert. The "ECO OFF" warning lamp lights up.
Contact a CITROËN dealer.
If the engine is in shutdown mode, it can restart at any moment.
Before taking any action under the bonnet, it is imperativ e to switch off the ignition.
Before leaving the vehicle, it is also essential to switch off the ignition.
S T O P & S T A R T
Page 79 of 178
A
B
95
IV

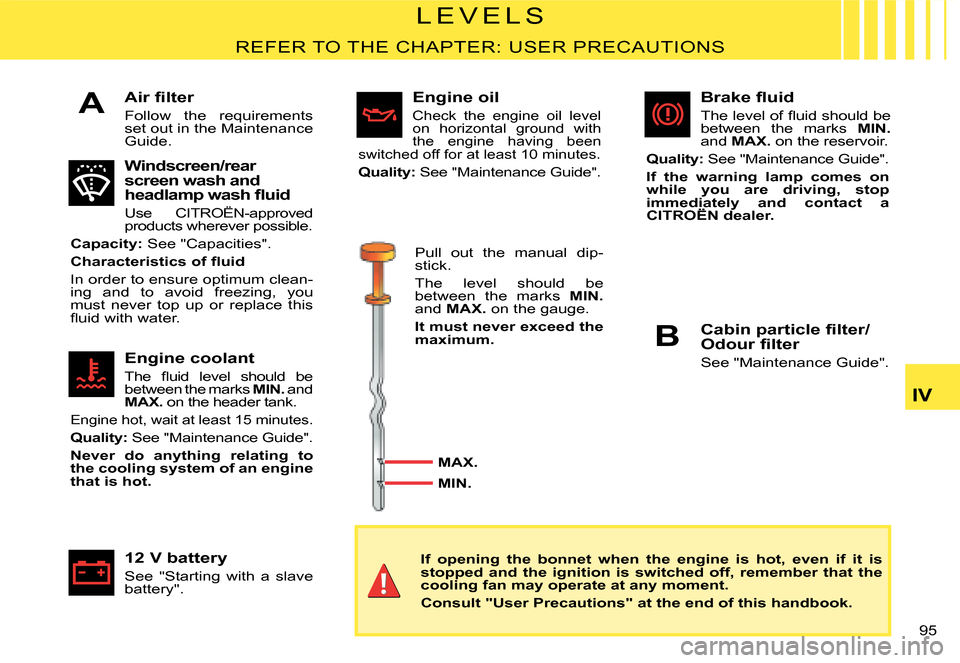

L E V E L S
REFER TO THE CHAPTER: USER PRECAUTIONS
A i r fi l t e r
Follow the requirements set out in the Maintenance Guide.
Windscreen/rear screen wash and h e a d l a m p w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See "Capacities".
C h a r a c t e r i s t i c s o f fl u i d
In order to ensure optimum clean-ing and to avoid freezing, you must never top up or replace this fl u i d w i t h w a t e r .
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN. and MAX. on the header tank.
Engine hot, wait at least 15 minutes.
Quality: See "Maintenance Guide".
Never do anything relating to the cooling system of an engine that is hot.
12 V battery
See "Starting with a slave battery".
Engine oil
Check the engine oil level on horizontal ground with the engine having been switched off for at least 10 minutes.
Quality: See "Maintenance Guide".
Pull out the manual dip-stick.
The level should be between the marks MIN.and MAX. on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reservoir.
Quality: See "Maintenance Guide".
If the warning lamp comes on while you are driving, stop immediately and contact a CITROËN dealer.immediately and immediately
C a b i n p a r t i c l e fi l t e r / O d o u r fi l t e r
See "Maintenance Guide".
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Consult "User Precautions" at the end of this handbook.
Page 90 of 178
A
B
1 0 6
IV
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.A. Dischargedbattery (Under the bonnet).B. Assisting battery.
C h e c k t h a t t h e a s s i s t i n g b a t t e r y h a s s u f fi c i e n t v o l t a g e ( 1 2 V ) .
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact wit h each other.
Connect the cables according to the order indicated in the dia-ordergram. Check that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly .
N e v e r a p p r o a c h w i t h a fl a m e o r c r e a t e s p a r k s i n t h e v i c i n i t y of the battery (explosive gas).
The battery contains dilute sulphuric acid which is highly corrosive.
When handling batteries, always protect your face a nd especially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
Advice
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
1 2 V B A T T E R Y
Page 108 of 178
1 2 3
VI

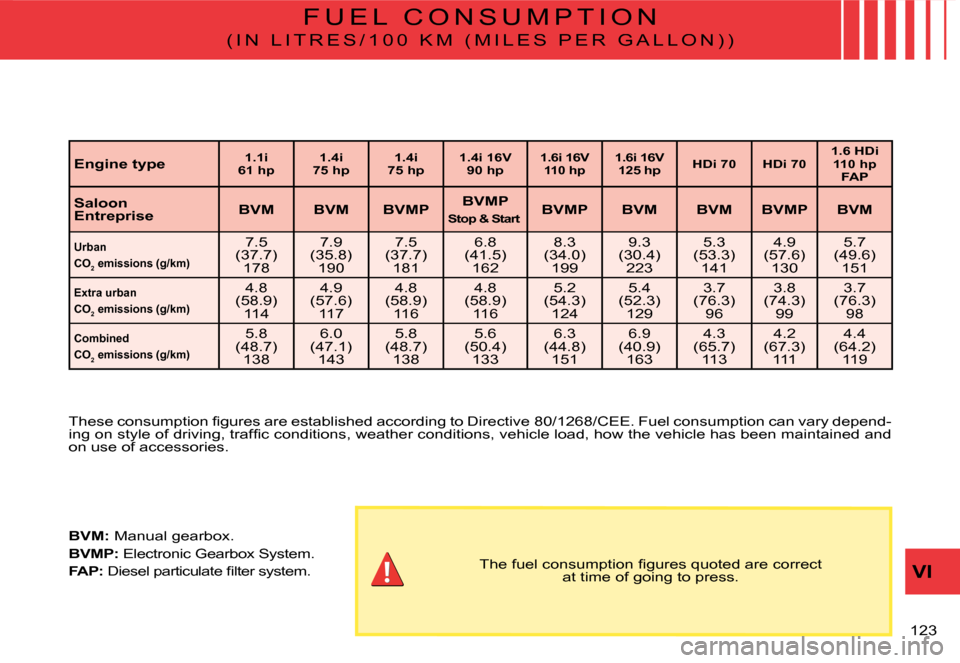

F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
T h e s e c o n s u m p t i o n fi g u r e s a r e e s t a b l i s h e d a c c o r d i n g t o D i r e c t i v e 8 0 / 1 2 6 8 / C E E . F u e l c o n s u m p t i o n c a n v a r y d e p e n d - i n g o n s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , v e h i c l e l o a d , h o w t h e v e h i c l e h a s b e e n m a i n t a i n e d a n d on use of accessories.
Engine type1.1i61 hp1.4i75 hp1.4i75 hp1.4i 16V90 hp1.6i 16V110 hp1.6i 16V125 hpHDi 70HDi 701.6 HDi 110 hp FAP
SaloonEntrepriseBVMBVMBVMPBVMP
Stop & StartBVMPBVMBVMBVMPBVM
UrbanCO2 emissions (g/km)
7 . 5 ( 3 7 . 7 ) 1 7 8
7 . 9 ( 3 5 . 8 )190
7 . 5 ( 3 7 . 7 ) 1 8 1
6 . 8 ( 4 1 . 5 ) 1 6 2
8 . 3 ( 3 4 . 0 )199
9 . 3 ( 3 0 . 4 ) 2 2 3
5 . 3 ( 5 3 . 3 ) 1 4 1
4 . 9 ( 5 7 . 6 ) 1 3 0
5 . 7 ( 4 9 . 6 )151
Extra urbanCO2 emissions (g/km)
4 . 8 ( 5 8 . 9 ) 1 1 4
4 . 9 ( 5 7 . 6 ) 1 1 7
4 . 8 ( 5 8 . 9 ) 1 1 6
4 . 8 ( 5 8 . 9 ) 1 1 6
5 . 2 ( 5 4 . 3 ) 1 2 4
5 . 4 ( 5 2 . 3 ) 1 2 9
3 . 7 ( 7 6 . 3 ) 9 6
3 . 8 ( 7 4 . 3 )99
3 . 7 ( 7 6 . 3 ) 9 8
CombinedCO2 emissions (g/km)
5 . 8 ( 4 8 . 7 ) 1 3 8
6 . 0 ( 4 7 . 1 ) 1 4 3
5 . 8 ( 4 8 . 7 ) 1 3 8
5 . 6 ( 5 0 . 4 ) 1 3 3
6 . 3 ( 4 4 . 8 )151
6 . 9 ( 4 0 . 9 ) 1 6 3
4 . 3 ( 6 5 . 7 ) 1 1 3
4 . 2 ( 6 7 . 3 )111
4 . 4 ( 6 4 . 2 )119
T h e f u e l c o n s u m p t i o n fi g u r e s q u o t e d a r e c o r r e c t at time of going to press.
BVM: Manual gearbox.
BVMP: Electronic Gearbox System.
FAP: D i e s e l p a r t i c u l a t e fi l t e r s y s t e m .
Page 127 of 178
13B L U E T O O T H

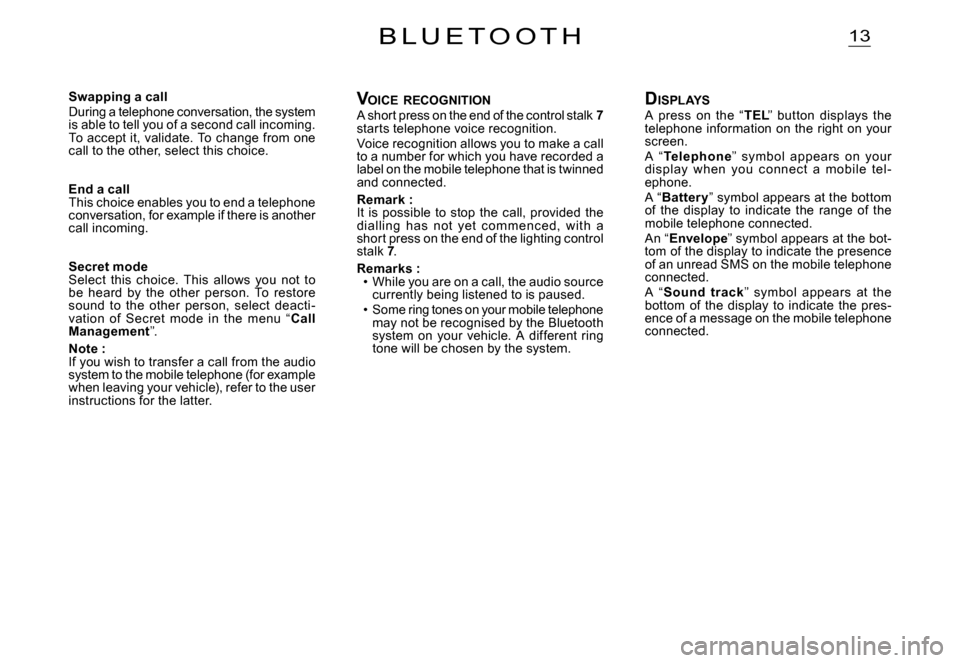

VOICE RECOGNITIONA short press on the end of the control stalk 7starts telephone voice recognition.Voice recognition allows you to make a call to a number for which you have recorded a label on the mobile telephone that is twinned and connected.
Remark :It is possible to stop the call, provided the dialling has not yet c ommenc ed, with a short press on the end of the lighting control stalk 7.
Remarks :While you are on a call, the audio source currently being listened to is paused.Some ring tones on your mobile telephone may not be recognised by the Bluetooth system on your vehicle. A different ring tone will be chosen by the system.
