Changing the remote control battery
First, retract the key-carrier if necessary.
Unclip the housing by lifting at the rear (see diagram).
Battery: C R 0 5 2 3 o f 3 V .
Re-initialisation of the remote control
After a change of battery, it may be necessary to re-initialise the remote control. To do that, switch on the ignition and immediately action button Aon your remote control to trigger the action desired. This may ta ke some ten seconds.Note: Make a careful note of the numbers for the keys and for the remot e control on the ASSISTANCE card. Keep this in a safe place.
Do not throw away the old batteries. They should be returned to a CITROËNdealer or deposited at a recognised collection point (a camera shop, for example).
Except when reinitialising, the remote control cannot function while the key is in the ignition, even when switched off.
Warning: by inadvertently actioning the remote control, wh en for example it is in your pocket, you can unlock the vehicle without your realising it.
However, if none of the doors is opened within thirty seconds following an unlocking, the doors will automatically relock.
Warning: there is a risk of damage if the replacement batte ry is not the correct one.
Only use batteries that are identical or equivalent to those approved by CITROËN.Only use batteries that ies tha
Locating of the vehicle
To locate the vehicle on a carpark, press button A, the interior lamps come on and the direction indica- t o r s fl a s h f o r a f e w s e c o n d s . T h e vehicle remains locked.
Folding and ejecting the key
Button C is for folding and eject-ing the key from its housing in the remote control.
If you do not press on button C, you could damage the key mecha-nism.
Page 21 of 201
2 4
Operating the alarm
First make sure all the doors are closed.
The alarm is armed by pressing button A on the remote control.
W i t h t h e a l a r m a r m e d , t h e p r o t e c t i o n s a r e a c t i v e a f t e r 5 s e c o n d s ( p e r i m e t e r ) a n d 4 5 s e c o n d s ( v o l u m e t r i c ) .
When the alarm is armed (on standby), any intrusion w i l l t r i g g e r t h e s i r e n f o r 3 0 s e c o n d s , a c c o m p a n i e d b y the direction indicators lighting up.
The alarm then goes back on standby, but the trigger-ing remains memorised and is signalled by the rapid fl a s h i n g o f t h e w a r n i n g l a m p o n c o n t r o l 1 after you have deactivated the alarm with a press on the unlocking button B . T h e fl a s h i n g s t o p s w h e n y o u s w i t c h o n t h e ignition.
The siren is also triggered if there is a cutting of the electrical supply. To stop it, restore the electrical supply then press on the unlocking button B.Note:If you want to lock your vehicle without arming the alarm, just lock with the key only.If you lock your vehicle and a door, or the boot, is still open, the central locking does not operate but the alarm will arm itself after approx. 45 seconds.Note: The siren is automatically deactivated (for exam-ple for disconnecting the battery) as soon as the vehicle is unlocked using the remote control.
Page 29 of 201
II
3 0
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
Engine oil pressure
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the oil pressure is low.
It is essential to stop the vehicle.
Contact a CITROËN dealer.
Coolant temperature warning lamp
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the coolant temperature is rising abnormally.
It is essential to stop the vehi-cle.
Check the coolant level.
See “Levels”.
If the level is satisfactory, consult a CITROËN dealer.If the level is satisfactorythe level
Battery charge
This warning lamp should go out when the engine is running.
If it remains permanently on, con-tact a CITROËN dealer.If it remains permanently remains permanently
Warning lamp for park- i n g b r a k e , b r a k e fl u i d level and braking dis-tribution malfunction
With the engine running, the light-ing of this warning lamp indicates that the parking brake is on or not properly released, that the brake fl u i d l e v e l i s l o w o r t h a t t h e b r a k i n g system is malfunctioning.
If the warning lamp remains on even after you have released the parking brake, stop immediately and contact a CITROËN dealer.parking brake, stop immediately stop immediately
Driver's seat belt not fastened
This lamp comes on if the LH seat belt is not fastened when the ignition is switched on and while the vehicle is moving at u p t o a p p r o x . 2 0 k m / h ( 1 2 m p h ) . Above this speed, the warning l a m p fl a s h e s , a c c o m p a n i e d b y a s o u n d s i g n a l f o r a r o u n d 1 2 0 s e c -onds. Then it remains on.
SERVICE
This warning lamp remains on for a seri-ous fault. Consult a CITROËN dealer as soon as pos-sible.
This warning lamp remains on only for a short time for faults that are minor. Contact a CITROËN dealer if necessary.
To learn the origin of the corre-sponding alert, refer to the log of alerts (See chapter “Displays Aand C” to chapter “Multifunction displays” or your NaviDrive hand-book).
Fuel low
It comes on for a few sec-onds each time you switch on the ignition.
If the fuel low warning lamp comes on, there remain approx. 4 to 6 litres of fuel in the tank.
Depollution system
It remains on until you start the engine.
I f t h i s w a r n i n g l a m p fl a s h e s or lights up while you are driving, this indicates a problem with the depollution system.
Consult a CITROËN dealer as soon as possible.
Page 56 of 201
II
5 4
Electric operation

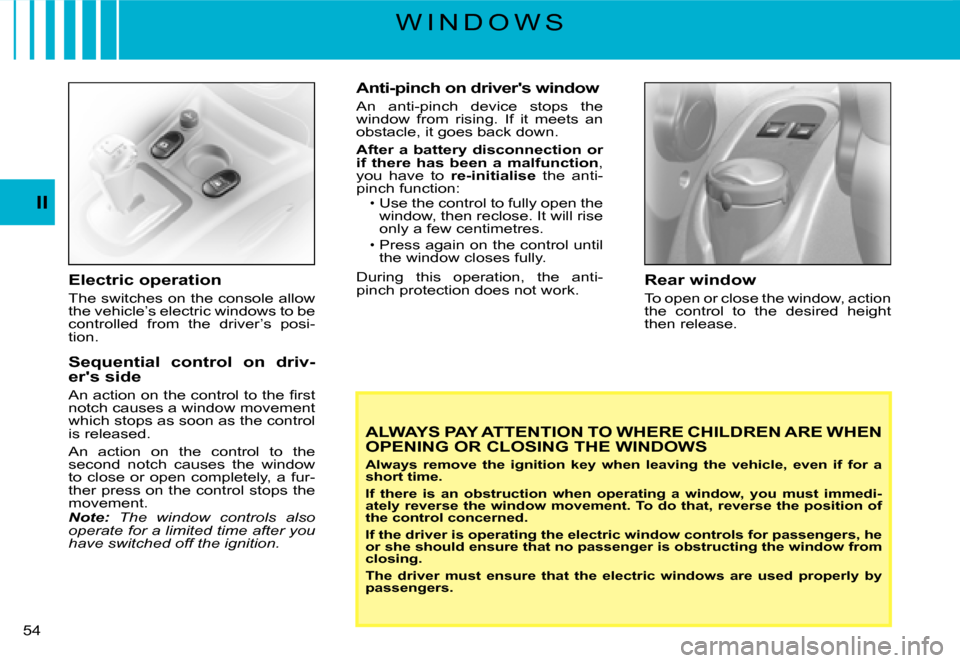

The switches on the console allow the vehicle’s electric windows to be controlled from the driver’s posi-tion.
Sequential control on driv-er's side
A n a c t i o n o n t h e c o n t r o l t o t h e fi r s t notch causes a window movement which stops as soon as the control is released.
An action on the control to the second notch causes the window to close or open completely, a fur-ther press on the control stops the movement.Note: The window controls also operate for a limited time after you have switched off the ignition.
ALWAYS PAY ATTENTION TO WHERE CHILDREN ARE WHEN OPENING OR CLOSING THE WINDOWS
Always remove the ignition key when leaving the vehicle, even if for a short time.
If there is an obstruction when operating a window, you must immedi-ately reverse the window movement. To do that, reverse th e position of the control concerned.
If the driver is operating the electric window controls for passengers, he or she should ensure that no passenger is obstructing th e window from closing.
The driver must ensure that the electric windows are use d properly by passengers.
Anti-pinch on driver's window
An anti-pinch device stops the window from rising. If it meets an obstacle, it goes back down.
After a battery disconnection or if there has been a malfunction, you have to re-initialise the anti-pinch function:Use the control to fully open the window, then reclose. It will rise only a few centimetres.
Press again on the control until the window closes fully.
During this operation, the anti-pinch protection does not work.
Page 69 of 201
A
II
6 7
Deactivation of the “Stop & Start” system:
You can if you wish deactivate the “Stop & Start” system, by pressing the “ECO OFF” button located on the left hand side on the central panel.
The warning lamp on the button then comes on, and your vehi cle functions like an ordinary vehicle.
You can reactivate the system with another press on the “ECO OFF” button: The warning lamp on the button goes out.Note: T h e “ S t o p & S t a r t ” s y s t e m r e a c t i v a t e s a u t o m a t i c a l l y e a c h t i m e y o u restart the vehicle.
Batteries
T o o p e r a t e c o r r e c t l y , t h e s y s t e m r e q u i r e s a s p e c i fi c b a t t e r y a n d a l s o a s m a l l a d d i t i o n a l b a t t e r y w h i c h i s s i t u a t e d u n d e r one of the front seats.
For a change of battery, consult a CITROËN dealer.
Remark:
I f t h e r e i s a m a l f u n c t i o n o f t h e “ S t o p & S t a r t ” s y s t e m , t h e “ E C O ” w a r n i n g l a m p fl a s h e s b r i e fl y , a c c o m p a n i e d b y a n audible alert. The “ECO OFF” warning lamp lights up.
Contact a CITROËN dealer.
If the engine is in shutdown mode, it can restart at any moment.
Before taking any action under the bonnet, it is imperativ e to switch off the ignition.
Before leaving the vehicle, it is also essential to switch off the ignition.
S T O P & S T A R T
Page 107 of 201
A
B
1 0 4
L E V E L S
REFER TO THE CHAPTER: USER PRECAUTIONS
A i r fi l t e r
Follow the requirements set out in the Maintenance Guide.
Windscreen/rear screen wash and headlamp w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See “Capacities”.
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN. and MAX. on the header tank.
E n g i n e h o t , w a i t a t l e a s t 1 5 m i n u t e s .
Quality: See “Maintenance Guide”.
Never do anything relating to the cooling system of an engine that is hot.
12V battery
See “Starting with a slave battery”.
Engine oil
Check the engine oil level on horizontal ground with the engine having been s w i t c h e d o f f f o r a t l e a s t 1 0 m i n -utes.
Quality: See “Maintenance Guide”.
Pull out the manual dipstick.
The level should be between the marks MIN.and MAX. on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reservoir.
Quality: See “Maintenance Guide”.
If the warning lamp comes on while you are driving, stop imme-diately and contact a CITROËN while you are driving, stop imme-stop imme-
dealer.
C a b i n p a r t i c l e fi l t e r / O d o u r fi l t e r
See “Maintenance Guide”.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Consult “User Precautions” at the end of this handbook.
Page 118 of 201
IV
1 1 5

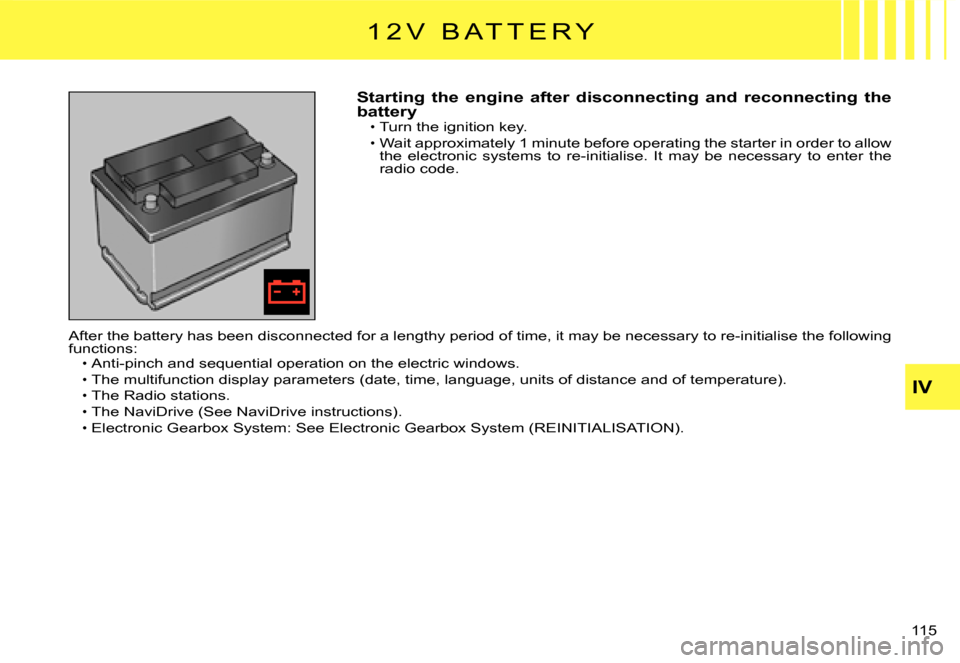

Starting the engine after disconnecting and reconnecting the batteryTurn the ignition key.
Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise. It may be necessary to enter the radio code.
Page 119 of 201
4
A
CB
IV
1 1 6
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.A. Dischargedbattery (Under the bonnet).B. Assisting battery.C. Earth point on broken down vehicle.
C h e c k t h a t t h e a s s i s t i n g b a t t e r y h a s s u f fi c i e n t v o l t a g e ( 1 2 V ) .
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact wit h each other.
Connect the cables according to the order indicated in the dia-ordergram. Check that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly .
N e v e r a p p r o a c h w i t h a fl a m e o r c r e a t e s p a r k s i n t h e v i c i n i t y of the battery (explosive gas).
The battery contains dilute sulphuric acid which is highly corrosive.
When handling batteries, always protect your face a nd especially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
Advice
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
1 2 V B A T T E R Y
Page 122 of 201
IV
119
F U S E S
Fusebox
To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.
After a repair, take care to reclose the cover.
Any action on the MAXI fuses (that give extra protection) (in grey in the diagrams), located in the fuseboxes, should be left to a CITROËN dealer.grey in the diagrams), lthe dia
Fuses under the bonnet
Page 189 of 201
ODB 2ODBODB 1
33T R I P C O M P U T E R

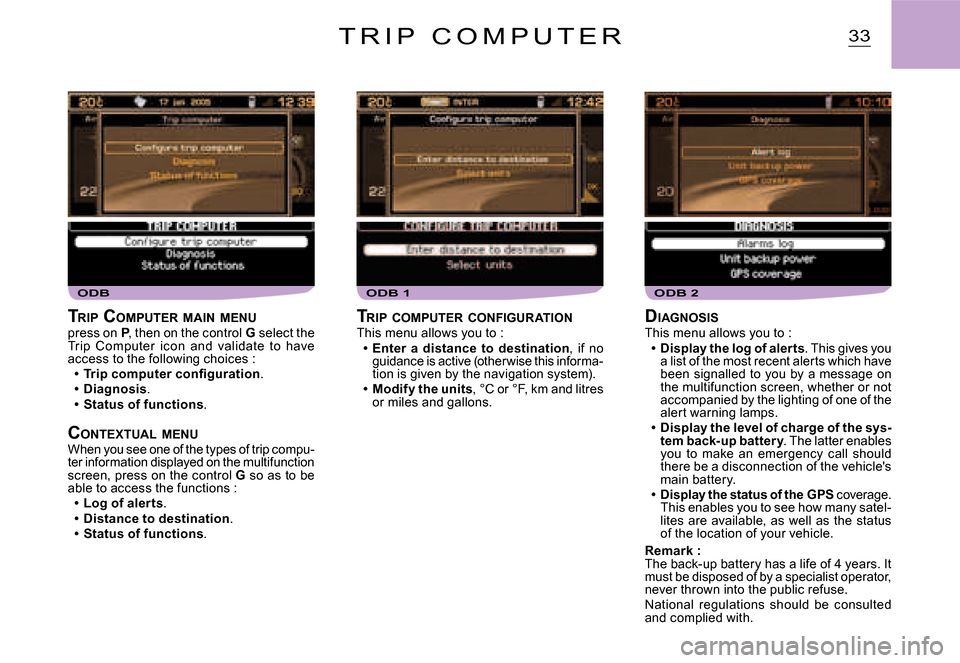

DIAGNOSISThis menu allows you to :Display the log of alerts. This gives you a list of the most recent alerts which have been signalled to you by a message on the multifunction screen, whether or not accompanied by the lighting of one of the alert warning lamps.Display the level of charge of the sys-tem back-up battery. The latter enables you to make an emergency call should there be a disconnection of the vehicle's main battery.Display the status of the GPS coverage. This enables you to see how many satel-lites are available, as well as the status of the location of your vehicle.
