ABS Citroen C3 2008 1.G Owner's Manual

31
II
W A R N I N G L A M P S
ESP/ASR
Operating
It comes on for a few seconds each time you switch on the ignition.
If either of the ESP or ASRsystems is active, the warning lamp fl ashes.
For a malfunction
When the vehicle is moving, the lighting of this warning lamp indicates a system malfunction.
Contact a CITROËN dealer.
Function deactivated
The warning lamp remains conti-nuously on.
Front passenger's airbag deactivation
See "Airbags".
It is tested briefl y on starting.
Airbag fault
See "Airbags".
It is tested briefl y on starting.
ABS system
The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If it does not go out, there could be a system malfunction.
See "Brakes".
Diesel engine preheating
See method for starting the engine.
See "Driving".
Left hand direction indicator
See "Signalling".
Right hand direction indicator
See "Signalling".
Foot on brake (Electronic Gearbox System)
The fl ashing of this war-ning lamp in the instrument panel indicates the need to apply the brake pedal in order to start the engine or engage reverse gear.
Stop & Start
The lighting of this warning lamp indicates that the engine is in shutdown mode.
Sidelamps
See "Signalling".
Front foglamps
See "Signalling".
Dipped beams
See "Signalling".
Foglamps (rear)
See "Signalling".
Main beams
See "Signalling".
If the hazard lamps are activated, this means that the direction indicators fl ash on both sides at the same time.

60
II

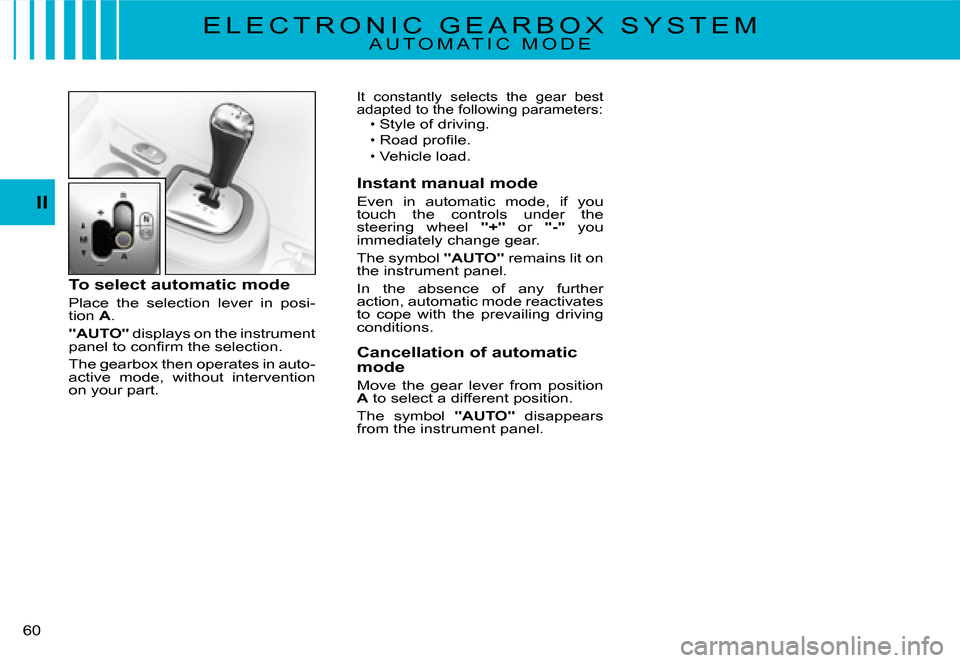

E L E C T R O N I C G E A R B O X S Y S T E MA U T O M A T I C M O D E
To select automatic mode
Place the selection lever in posi-tion A.
"AUTO" displays on the instrument panel to confi rm the selection.
The gearbox then operates in auto-active mode, without intervention on your part.
It constantly selects the gear best adapted to the following parameters:Style of driving.
Road profi le.Vehicle load.
Instant manual mode
Even in automatic mode, if you touch the controls under the steering wheel "+" or "-" you immediately change gear.
The symbol "AUTO" remains lit on the instrument panel.
In the absence of any further action, automatic mode reactivates to cope with the prevailing driving conditions.
Cancellation of automatic mode
Move the gear lever from position A to select a different position.
The symbol "AUTO" disappears from the instrument panel.

66
II
ABS system
The ABS system enhances your safety by preventing the wheels from locking in the event of sudden braking or in conditions of poor road adherence. It enables you to retain control of the steering.
The functioning capability of all the electrical components essential to the ABS is monitored electronically before and during your journey. The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If the monitoring warning lamp does not go out, that means that the ABS has disconnected because there is a fault. Also, the fact that the monitoring warning lamp comes on durin g the journey shows that the ABS system is inactive. In both cases, the normal braking system remains effi cient, exactly a s on a vehicle without ABS. However, in order for the security associated with the correct functioning of the ABS to be restored, the vehicle should be examined as soon as possible by a CITROËN dealer.for the security associated with the correct associated with the
On roads with poor adherence (chippings, snow, ice etc.), it is always imperative to drive with prudence.
System of emergency braking assistance
(For vehicles with the ABS system)
The emergency braking assistance system helps you to attain the requ ired braking pressure more rapidly, thus to reduce the stopping distance. It operates as a function of the speed of action on the brake pedal, decreasing the resistance to this action. To prolong this action of the emerg ency braking assistance system, simply keep your foot on the brake pedal.
Emergency braking or sudden deceleration automatically operates th e hazard warning lamps. They will cease to operate automatically, or manually if you press the hazard lamps button on the dashboard.
When braking in an emergency, press down fi rmly on the brake ped al and do not release any force.
B R A K E S

A
67
II
This system is associated with the ABS and in addition to the ABS. In the event of a loss of control of the vehicle by the driver, the ESP system acts automatically on one or more wheels and also on the engine to bring the vehicle back on trajectory.
Operation
The ESP warning lamp fl ashes in the instrument panel if the ESP system is correcting the vehicle's trajectory.
Deactivation
In exceptional conditions (vehicle stuck in snow, soft ground, etc.) it may prove useful to deactivate the ESP systems to allow the wheels to spi n and thus regain traction.Press button A.The warning lamp associated with control A (ESP Off) lights up, as does the ESP warning lamp on the instrument panel.
The ESP system is no longer active.
The ESP system reactivates:Automatically after the ignition has been switched off.
Automatically when you drive at above approx. 50 km/h (approx. 30 mph).
Manually with another press on button A.

IV
117
T A B L E O F F U S E SF U S E S U N D E R T H E B O N N E T
Ref.RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS, ESP)
1030 AEngine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater

8
123
7658
123
7
5
64
18
During navigation, provided the navigation CD - ROM is present, the display indicates the manoeuvres to be made :
1 In navigation : manoeuvre to be made or, momentarily, direction to follow. Except during guidance : Display of a compass.2 Next manoeuvre to be made.3 Next road to be taken and name of town.4 Symbol concerning Traffi c Information or services in proximity (colour display).5 Road currently being taken and name of town.6 Estimated time of arrival at destination (based on fl owing traffi c).7 Distance to fi nal destination.8 Distance to the next manoeuvre.Remark :Depending on the situation of the vehicle and the r eception of the GPS information, this infor-mation may temporarily be absent from the screen.
Tip :When Navigation is being displayed, a long press on the “Menu” button activates a demonstra-tion of the Navigation function of your NaviDrive.Next select a destination by using the Navigation Me nu. After entering this, start Navigation and see a simulation of the movements of your vehicle . The point of departure will be either the place where the vehicle is now, or the last known location. It is possible to enter a different point of departure via the demonstration menu. This demonstration can let you see a route that you wish to take in the future.
N A V I G A T I O N – T R A F F I C I N F O R M A T I O NN A V I G A T I O N – T R A F F I C I N F O R M A T I O N
CONTEXTUAL MENU FOR NAVIGATION – TRAFFIC INFORMATIONA press on W during navigation brings up a display on the right of the screen, permit-ting you to :Modify the display of the map. Display full screen or on the right hand side (colour screen only).Alter the route. During guidance this function lets you modif y your or iginal route. Enter the distance of the desired diversion then select the “OK” function and validate.Memorise the position of the vehicle. The vehic le position will be saved in the current director y, under a label for name of town and street (if available on the Navigation CDROM). Other wise the label corresponds to GPS coordinates for the location.Modify the guidance criteria for your itinerar y.Stop/resume guidance.

REP 1REP 2
34D I R E C T O R Y
The director y can contain up to 396 fi les s p r e a d o v e r 4 i n d e p e n d e n t s u b - d i r e c -tor ies (“User 1”, “User 2”, “User 3” and “User 4”).On delivery of the system, the current direc-tory is by default the directory “User 4”.One fi le can contain :An address.Five telephone nos..Five e-mails.A note.A v o i c e l a b e l f o r u s e i n v o i c e c o m -mands.The address is entered by inputting the town and the street.
Note :If you enter the address in the absence of the navigation CD-ROM, you will not be able to use this address for navigation.

TEL 2
39
NaviDrive Ser vices, for access to the list of telematic services from CITROËN , for access to the to the
(e.g. Customer Service, choice of a des-tination, fuel consumption monitoring, spor t, current affairs, fi nance, weather, horoscope, travel, games, etc.) depending on availability.Messages received, messages relating to the benefi ts of your specifi c Ser vice Contract.
EMERGENCY CALLIn the absenc e of a subsc r iption to the CITROËN Emergency ser vice, the In the absenc e of a subsc r iption the abV but-ton is conf igured for making calls to the number 112, this being a standard number reserved by the European GSM network for emergency calls.For this call, a valid SIM card must be present, permitting the sending and receiv-ing of telephone calls and SMS messages. You also need to be in an area that has GSM coverage.
T WIN SIM CARDFor better peace of mind, offers of twin SIM c ards (available in some c ountr ies from certain service operators) give you two SIM cards for a standard price, a single number and single messaging. Calls arrive as prior-ity on your principal line. In the absence of a reply, calls are transferred automatically to the equipment that is using the second SIM card.
