Interior lighting
Interior lamp (1/W5W)
Unclip the cover of the interior lamp 1
with a thin screwdriver, close to the but-
ton, to access the faulty bulb.
Side reading lamps (2/W5W)
Unclip the cover of the reading lamp 2
with a small screwdriver at the switch
end for access to the faulty bulb. Boot lamp (W5W)
Unclip the unit by pushing it from the
rear.
Sill lamps (W5W)
Unclip the lamp for access to the bulb.
Page 142 of 209
11
PRACTICAL INFORMATION

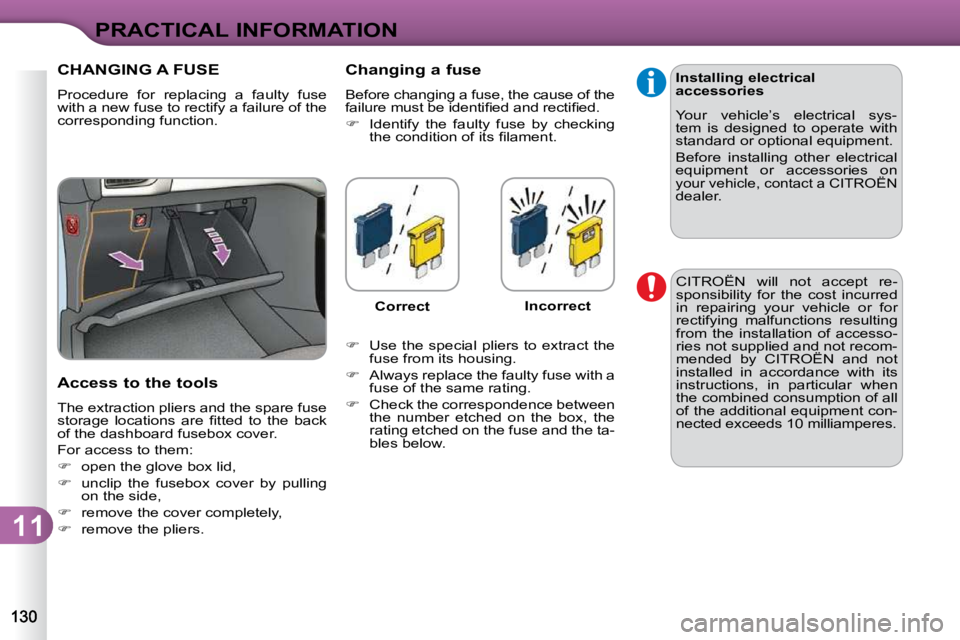

CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction pliers and the spare fuse
s t o r a g e l o c a t i o n s a r e fi t t e d t o t h e b a c k
of the dashboard fusebox cover.
F o r a c c e s s t o t h e m :
open the glove box lid,
unclip the fusebox cover by pulling
on the side,
remove the cover completely,
remove the pliers. Changing a fuse
Before changing a fuse, the cause of the
f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
Correct
Incorrect
Use the special pliers to extract the
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the ta-
bles below. Installing electrical
accessories
Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN dealer.
CITROËN will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by CITROËN and not
installed in accordance with its
instructions, in particular when
the combined consumption of all
of the additional equipment con-
nected exceeds 10 milliamperes.
Page 143 of 209
11
PRACTICAL INFORMATION

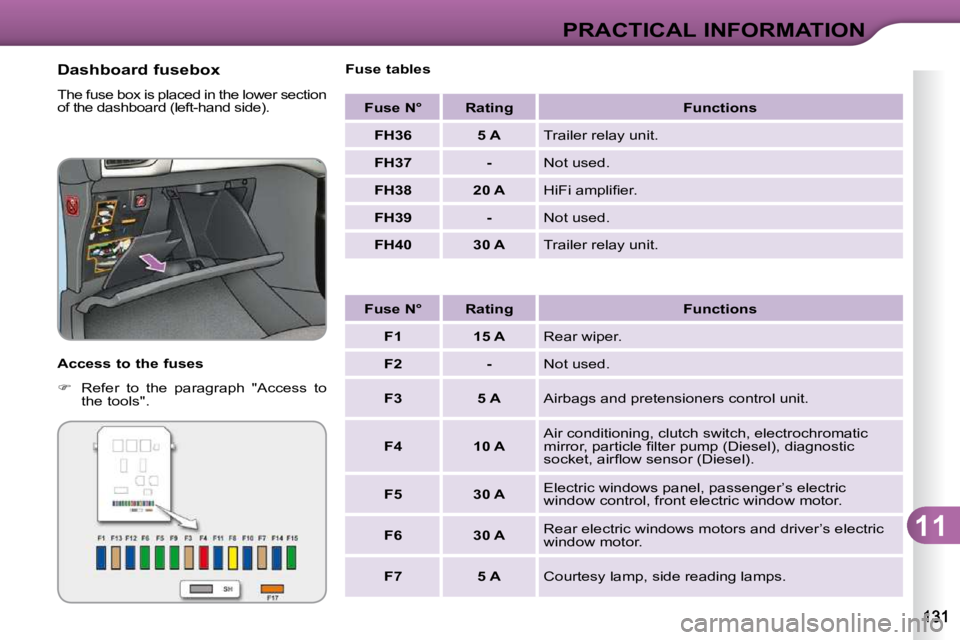

Dashboard fusebox
The fuse box is placed in the lower section
o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
Refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 - Not used.
FH38 20 A H i F i a m p l i fi e r .
FH39 - Not used.
FH40 30 A Trailer relay unit.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Air conditioning, clutch switch, electrochromatic
m i r r o r , p a r t i c l e fi l t e r p u m p ( D i e s e l ) , d i a g n o s t i c
s o c k e t , a i r fl o w s e n s o r ( D i e s e l ) .
F5 30 A Electric windows panel, passenger’s electric
window control, front electric window motor.
F6 30 A Rear electric windows motors and driver’s electric
window motor.
F7 5 A Courtesy lamp, side reading lamps.
Page 144 of 209
11
PRACTICAL INFORMATION

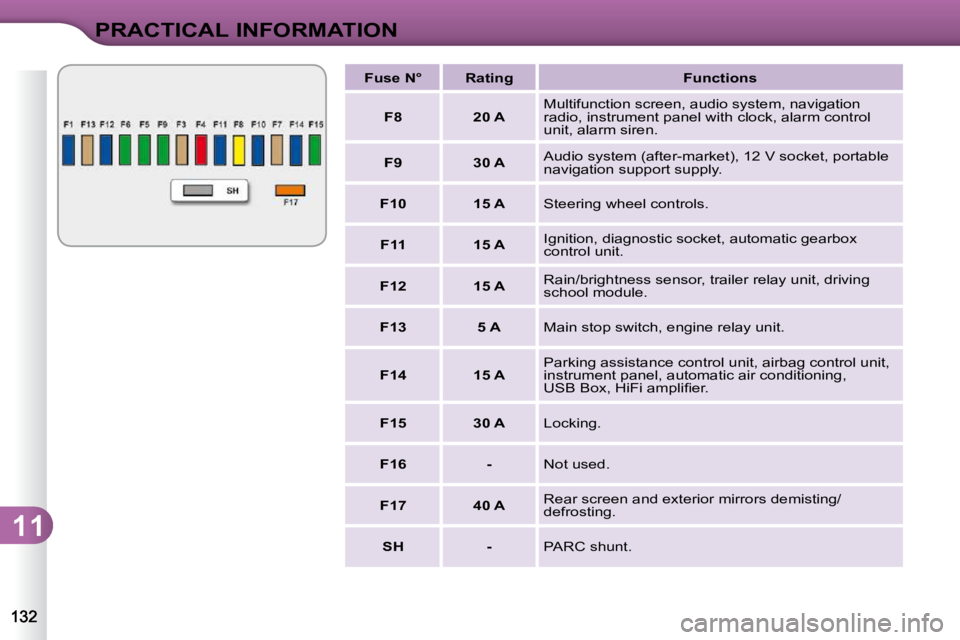

Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation
radio, instrument panel with clock, alarm control
unit, alarm siren.
F9 30 A A u d i o s y s t e m ( a f t e r - m a r k e t ) , 1 2 V s o c k e t , p o r t a b l e
navigation support supply.
F10 15 A Steering wheel controls.
F11 15 A Ignition, diagnostic socket, automatic gearbox
control unit.
F12 15 A Rain/brightness sensor, trailer relay unit, driving
school module.
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking assistance control unit, airbag control unit,
instrument panel, automatic air conditioning,
U S B B o x , H i F i a m p l i fi e r .
F15 30 A Locking.
F16 - Not used.
F17 40 A Rear screen and exterior mirrors demisting/
defrosting.
SH - PARC shunt.
Page 145 of 209
11
PRACTICAL INFORMATION
Engine compartment fusebox
The fusebox is placed in the engine
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
i n j e c t i o n p u m p ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps.
F5 15 A D i e s e l h e a t e r ( D i e s e l ) , p a r t i c l e fi l t e r a d d i t i v e p u m p
( D i e s e l ) , a i r fl o w s e n s o r ( D i e s e l ) ,
EGR electrovalve ( D i e s e l ) , f u e l p u m p ( 1 . 1 i a n d 1 . 4 i ) , b l o w - b y h e a t e r
a n d e l e c t r o v a l v e s ( V T i ) .
F6 10 A ABS/ESP control unit, secondary stop switch.
F7 10 A Electric power steering, automatic gearbox.
F8 25 A Starter control.
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A F u e l h e a t e r ( D i e s e l ) , b l o w - b y h e a t e r ( 1 . 1 i , 1 . 4 i a n d
D i e s e l ) , f u e l p u m p ( V T i ) , i n j e c t o r s a n d i g n i t i o n c o i l s
( p e t r o l ) , e l e c t r o n i c t h e r m o s t a t a n d c a n i s t e r p u r g e
e l e c t r o v a l v e ( 1 . 1 i a n d 1 . 4 i ) .
F11 40 A Heater blower.
Page 146 of 209
11
PRACTICAL INFORMATION

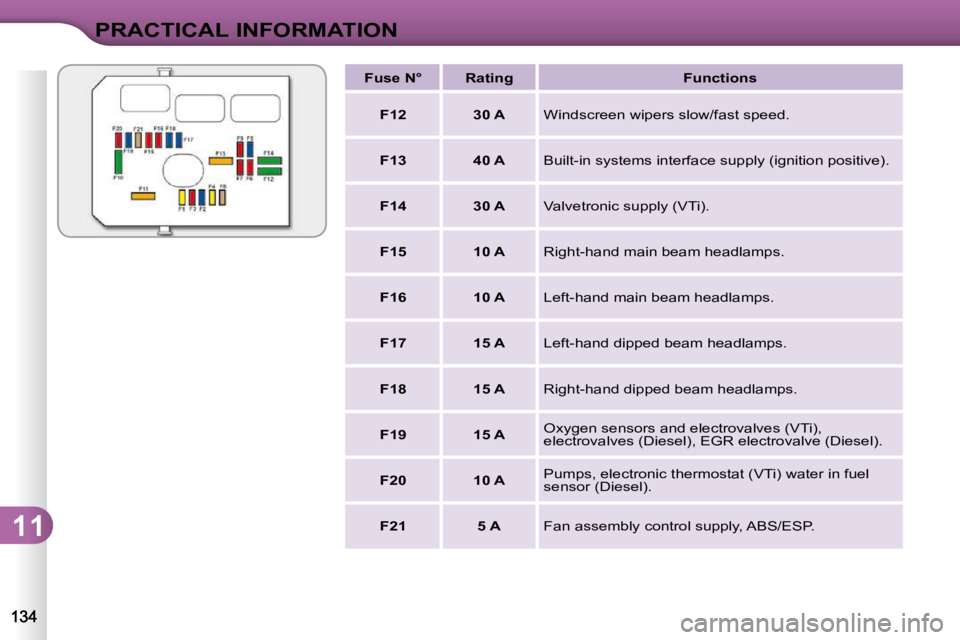

Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A V a l v e t r o n i c s u p p l y ( V T i ) .
F15 10 A Right-hand main beam headlamps.
F16 10 A Left-hand main beam headlamps.
F17 15 A Left-hand dipped beam headlamps.
F18 15 A Right-hand dipped beam headlamps.
F19 15 A O x y g e n s e n s o r s a n d e l e c t r o v a l v e s ( V T i ) ,
e l e c t r o v a l v e s ( D i e s e l ) , E G R e l e c t r o v a l v e ( D i e s e l ) .
F20 10 A P u m p s , e l e c t r o n i c t h e r m o s t a t ( V T i ) w a t e r i n f u e l
s e n s o r ( D i e s e l ) .
F21 5 A Fan assembly control supply, ABS/ESP.
Page 147 of 209
11
PRACTICAL INFORMATION

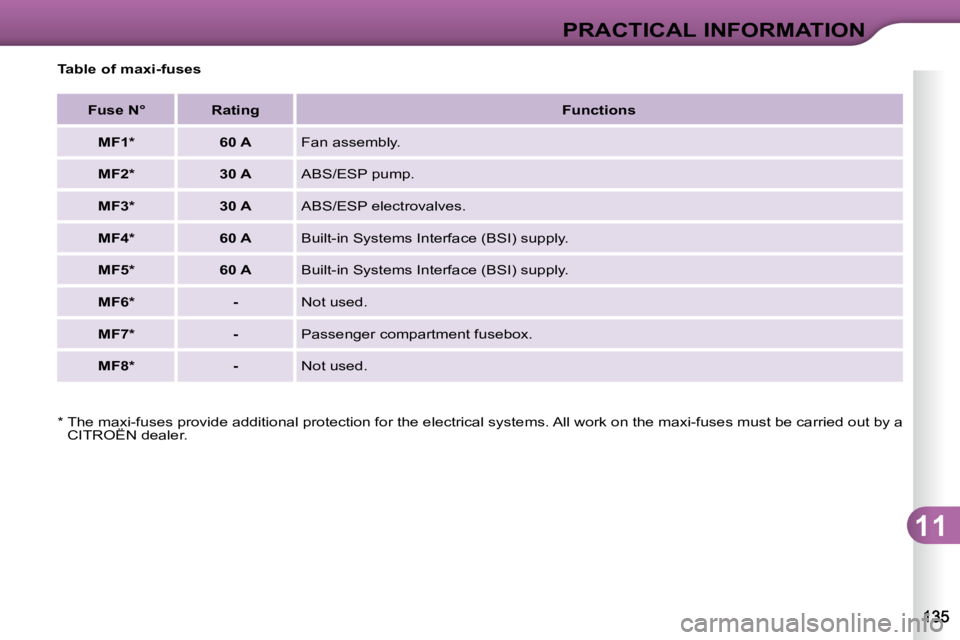

Table of maxi-fuses
Fuse N° Rating
Functions
MF1 * 60 A Fan assembly.
MF2 * 30 A ABS/ESP pump.
MF3 * 30 A ABS/ESP electrovalves.
MF4 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF5 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF6 * - Not used.
MF7 * - Passenger compartment fusebox.
MF8 * - Not used.
* The maxi-fuses provide additional protection for the e lectrical systems. All work on the maxi-fuses must be carried out by a
CITROËN dealer.
Page 148 of 209
11
PRACTICAL INFORMATION

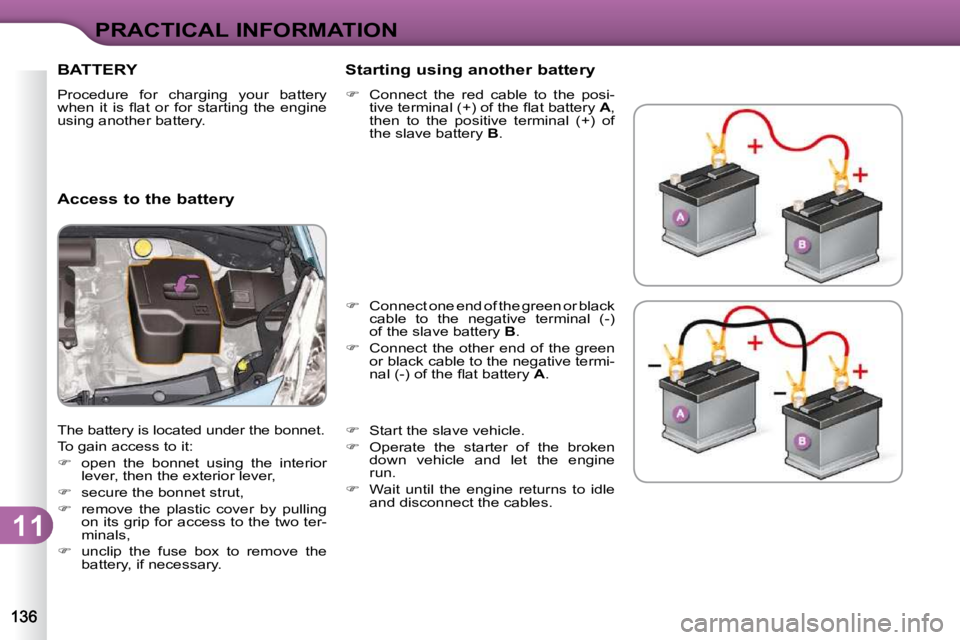

BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
The battery is located under the bonnet.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
lever, then the exterior lever,
secure the bonnet strut,
remove the plastic cover by pulling
on its grip for access to the two ter-
minals,
unclip the fuse box to remove the
battery, if necessary.
Access to the battery
Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
the slave battery B .
Connect one end of the green or black
c a b l e t o t h e n e g a t i v e t e r m i n a l ( - )
of the slave battery B .
Connect the other end of the green
or black cable to the negative termi-
n a l ( - ) o f t h e fl a t b a t t e r y A .
Start the slave vehicle.
Operate the starter of the broken
down vehicle and let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 149 of 209
11
PRACTICAL INFORMATION
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However,
if minor problems persist fol-
lowing this operation, contact a
CITROËN dealer.
Referring to the correspond-
ing section, you should yourself
r e i n i t i a l i s e :
- the remote control key,
- the GPS satellite navigation system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 150 of 209
11
PRACTICAL INFORMATION

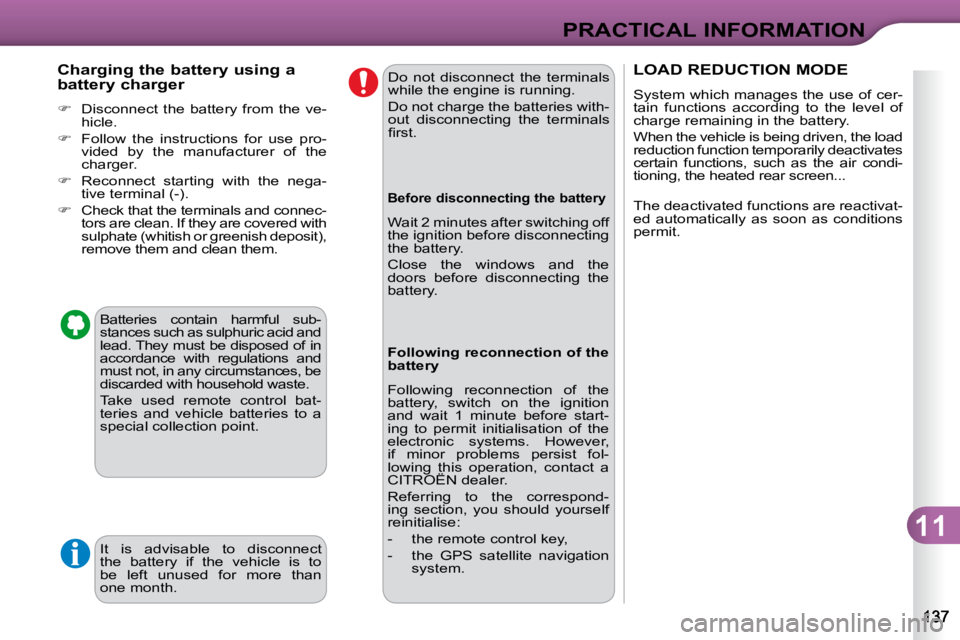

Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However,
if minor problems persist fol-
lowing this operation, contact a
CITROËN dealer.
Referring to the correspond-
ing section, you should yourself
r e i n i t i a l i s e :
- the remote control key,
- the GPS satellite navigation system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
