VISIBILITY
C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps.
rear foglamp
Turn the ring C forwards once to
switch on the front foglamps and
twice for the rear foglamp.
Turn the ring C rearwards once to
switch off the rear foglamp and twice
for the front foglamps.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Model with rear foglamp only
To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e f o -
glamp and the dipped headlamps will
remain on.
To switch off all of the lighting, turn
the ring C rearwards.
Model with front foglamps and a rear foglamp front and rear foglamps In good or rainy weather, by both
day and night, the front foglamps
and the rear foglamp are prohibit-
ed. In these situations, the power
of their beams may dazzle other
drivers.
Do not forget to switch off the
front foglamps and the rear fog-
lamp when they are no longer
necessary.
Lighting on buzzer
When the ignition is switched
off, all of the lamps switch off
automatically, unless "guide-me-
home lighting" is activated.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting,
with the ignition off.
Page 72 of 209
5
VISIBILITY
* According to country.

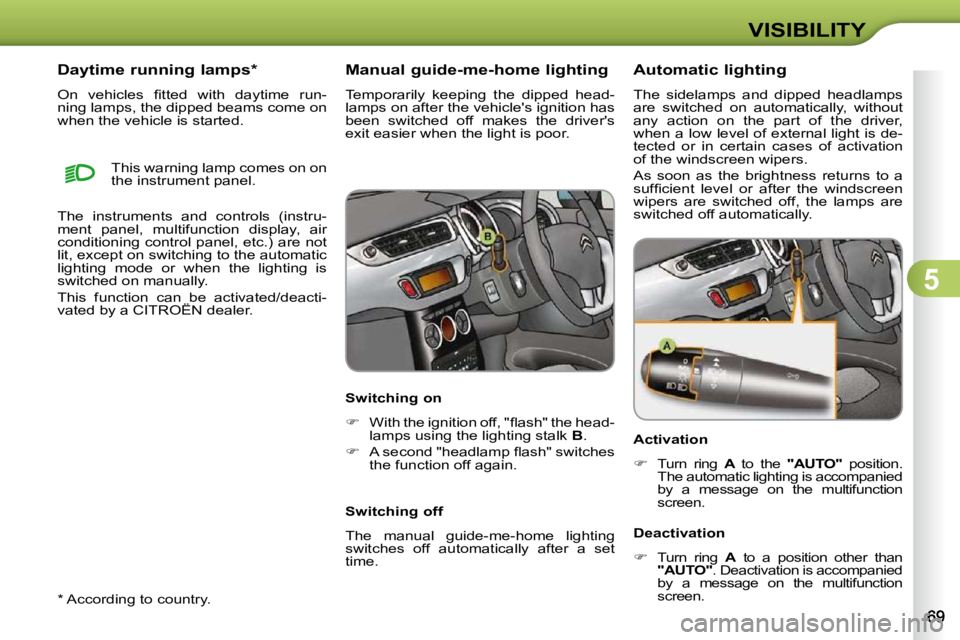

Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped head-
lamps on after the vehicle's ignition has
been switched off makes the driver's
exit easier when the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lighting stalk B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic lighting
The sidelamps and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompanied
by a message on the multifunction
screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompanied
by a message on the multifunction
screen.
This warning lamp comes on on
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer.
Page 73 of 209
5
VISIBILITY
* According to country.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped head-
lamps on after the vehicle's ignition has
been switched off makes the driver's
exit easier when the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lighting stalk B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic lighting
The sidelamps and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompanied
by a message on the multifunction
screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompanied
by a message on the multifunction
screen.
This warning lamp comes on on
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer.
Page 74 of 209
5
VISIBILITY
* According to country.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped head-
lamps on after the vehicle's ignition has
been switched off makes the driver's
exit easier when the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lighting stalk B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic lighting
The sidelamps and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompanied
by a message on the multifunction
screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompanied
by a message on the multifunction
screen.
This warning lamp comes on on
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer.
Page 75 of 209
5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.
0 . 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides "guide-me-home" lighting with
the following additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic lighting
is in operation.
Operating fault In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t
light. Therefore, the lighting will
not come on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the brightness sensor,
the lighting come on, this
warning lamp is displayed
on the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a CITROËN dealer.
Page 76 of 209
5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.
0 . 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides "guide-me-home" lighting with
the following additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic lighting
is in operation.
Operating fault In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t
light. Therefore, the lighting will
not come on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the brightness sensor,
the lighting come on, this
warning lamp is displayed
on the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a CITROËN dealer.
Page 77 of 209
5
VISIBILITY

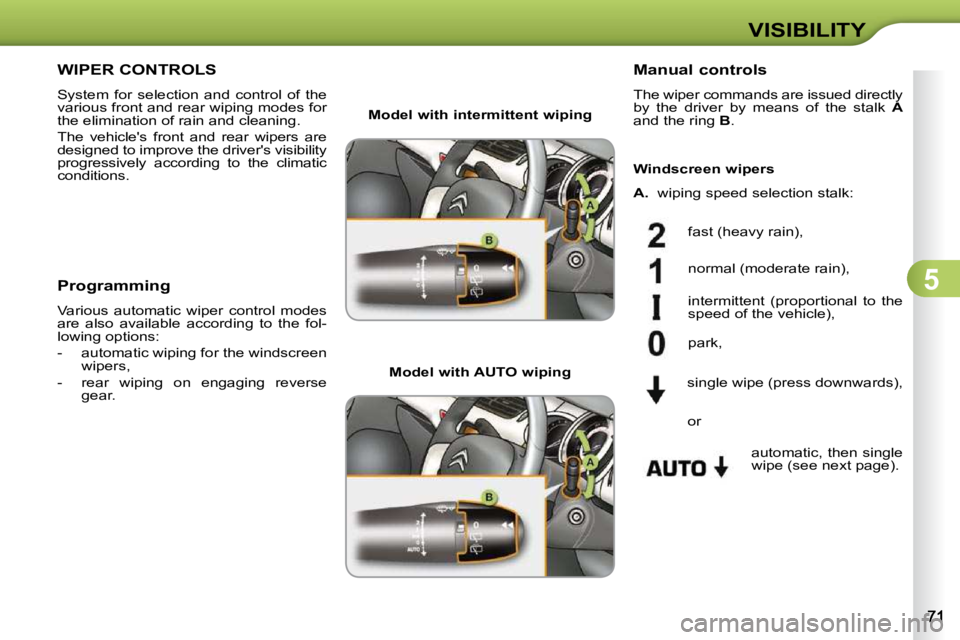

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic wiping for the windscreen wipers,
- rear wiping on engaging reverse gear. Model with intermittent wiping
Model with AUTO wiping Manual controls
The wiper commands are issued directly
by the driver by means of the stalk
A
and the ring B .
Windscreen wipers
A. wiping speed selection stalk:
s i n g l e w i p e ( p r e s s d o w n w a r d s ) ,
or f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to the
s p e e d o f t h e v e h i c l e ) ,
park,
automatic, then single
w i p e ( s e e n e x t p a g e ) .
Page 78 of 209
5
VISIBILITY

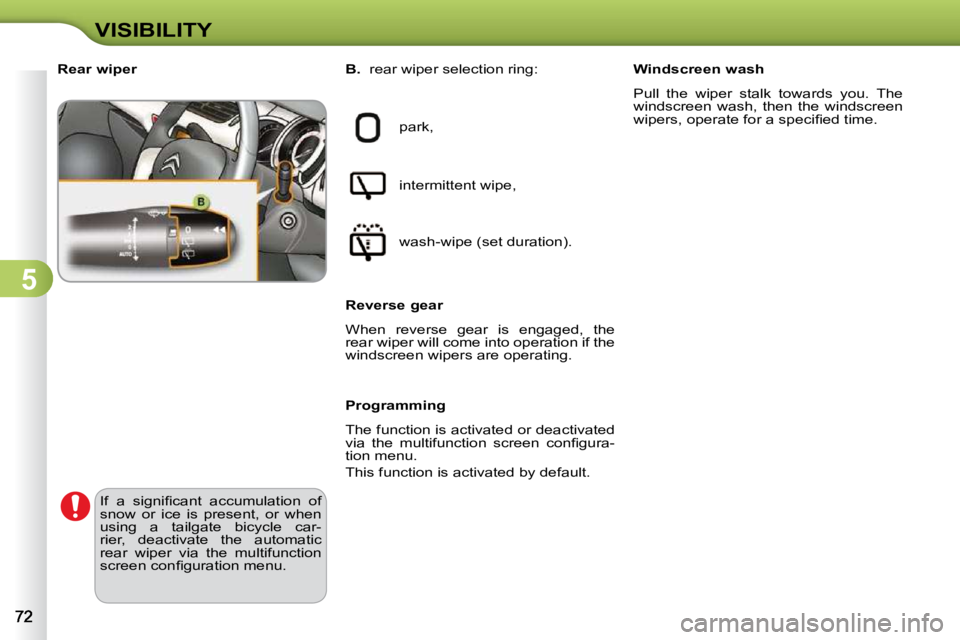

Rear wiper
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
The function is activated or deactivated
v i a t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated by default. Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e .
B. rear wiper selection ring:
I f a s i g n i fi c a n t a c c u m u l a t i o n o f
snow or ice is present, or when
using a tailgate bicycle car-
rier, deactivate the automatic
rear wiper via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
Page 79 of 209
5
VISIBILITY
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in inter-
mittent mode.
Have it checked by a CITROËN dealer. Special position of the
windscreen wipers
For optimum and lasting wiping
o f t h e " fl a t - b l a d e " w i p e r b l a d e s ,
it is advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain cardboard on the windscreen.
Do not cover the rain sensor,
linked with the brightness sensor
and located in the centre of the
windscreen behind the interior
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
In the minute following switching off of the
ignition, any action on the stalk positions
the wipers vertically.
This action enables you to position the
wiper blades for winter parking, cleaning
or replacement without damaging the
bonnet.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
This is controlled manually by the driver by
pushing stalk
A to the "AUTO" position.
This is controlled manually by the driver
by moving stalk A upwards and returning
it to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
switching off and a message on
the multifunction screen.
It is accompanied by the lighting
of this indicator lamp in the in-
strument panel and a message
on the multifunction screen.
Page 80 of 209
5
VISIBILITY
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in inter-
mittent mode.
Have it checked by a CITROËN dealer. Special position of the
windscreen wipers
For optimum and lasting wiping
o f t h e " fl a t - b l a d e " w i p e r b l a d e s ,
it is advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain cardboard on the windscreen.
Do not cover the rain sensor,
linked with the brightness sensor
and located in the centre of the
windscreen behind the interior
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
In the minute following switching off of the
ignition, any action on the stalk positions
the wipers vertically.
This action enables you to position the
wiper blades for winter parking, cleaning
or replacement without damaging the
bonnet.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
This is controlled manually by the driver by
pushing stalk
A to the "AUTO" position.
This is controlled manually by the driver
by moving stalk A upwards and returning
it to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
switching off and a message on
the multifunction screen.
It is accompanied by the lighting
of this indicator lamp in the in-
strument panel and a message
on the multifunction screen.
