Page 115 of 205
1 0
CHECKS
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Topping up
This additive must be topped up by a
CITROËN dealer without delay.
Used products Avoid prolonged contact of used
o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to a CITROËN
dealer (France) or an authorised
waste disposal site. CHECKS
Unless otherwise indicated, check
these components in accordance with
the Maintenance and Warranty Guide
and according to your engine.
Otherwise, have them checked by a
CITROËN dealer.
B a t t e r y The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in summer
and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Maintenance and
Warranty Guide for details of
the replacement intervals for
these components.
Depending on the environ-
ment (e.g. dusty atmosphere) and the
use of the vehicle (e.g. city driving),
replace them twice as often if neces-
s a r y (refer to the "Engines" section).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for
this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a CITROËN dealer.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, in excep-
tional circumstances, notice the
emission of water vapour at the
exhaust on acceleration. This
does not affect the behaviour of
the vehicle or the environment.
Page 116 of 205
1 0
CHECKS
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Topping up
This additive must be topped up by a
CITROËN dealer without delay.
Used products Avoid prolonged contact of used
o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to a CITROËN
dealer (France) or an authorised
waste disposal site. CHECKS
Unless otherwise indicated, check
these components in accordance with
the Maintenance and Warranty Guide
and according to your engine.
Otherwise, have them checked by a
CITROËN dealer.
B a t t e r y The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in summer
and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Maintenance and
Warranty Guide for details of
the replacement intervals for
these components.
Depending on the environ-
ment (e.g. dusty atmosphere) and the
use of the vehicle (e.g. city driving),
replace them twice as often if neces-
s a r y (refer to the "Engines" section).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for
this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a CITROËN dealer.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, in excep-
tional circumstances, notice the
emission of water vapour at the
exhaust on acceleration. This
does not affect the behaviour of
the vehicle or the environment.
Page 117 of 205
1 0
CHECKS
Manual gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Maintenance and
Warranty Guide for the details
of the level checking interval
for this component.
Automatic gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Maintenance and
Warranty Guide for details of
the level checking interval for
this component. Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Brake disc wear
For information relating to
checking the brake disc wear,
contact a CITROËN dealer.
Parking brake If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
This system must be checked
by a CITROËN dealer. Only use products recommend-
ed by CITROËN or products of
e q u i v a l e n t q u a l i t y a n d s p e c i fi c a -
tions.
In order to optimise the operation
of units as important as the brak-
ing system, CITROËN selects
a n d o f f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is strictly
prohibited .
Page 136 of 205
11
PRACTICAL INFORMATION
Engine compartment fusebox
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
c o m p a r t m e n t n e a r t h e b a t t e r y ( l e f t - h a n d
s i d e ) .
Access to the fuses
U n c l i p t h e c o v e r .
C h a n g e t h e f u s e ( s e e c o r r e s p o n -
d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
c o v e r c a r e f u l l y t o e n s u r e t h e s e a l i n g
o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A E n g i n e c o n t r o l u n i t s u p p l y , c o o l i n g f a n u n i t c o n t r o l
r e l a y , m u l t i f u n c t i o n e n g i n e c o n t r o l m a i n r e l a y ,
i n j e c t i o n p u m p ( D i e s e l ) .
F2 15 A H o r n .
F3 10 A F r o n t / r e a r w a s h - w i p e .
F4 20 A D a y t i m e r u n n i n g l a m p s .
F5 15 A D i e s e l h e a t e r ( D i e s e l ) , p a r t i c l e fi l t e r a d d i t i v e p u m p
( D i e s e l ) , a i r fl o w s e n s o r ( D i e s e l ) , f u e l p u m p ( 1 . 1 i
a n d 1 . 4 i ) , b l o w - b y h e a t e r a n d e l e c t r o v a l v e s ( V T i ) .
F6 10 A A B S / E S P c o n t r o l u n i t , s e c o n d a r y s t o p s w i t c h .
F7 10 A E l e c t r i c p o w e r s t e e r i n g , a u t o m a t i c g e a r b o x .
F8 25 A S t a r t e r c o n t r o l .
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A F u e l h e a t e r ( D i e s e l ) , b l o w - b y h e a t e r ( 1 . 1 i , 1 . 4 i a n d
D i e s e l ) , f u e l p u m p ( V T i ) , i n j e c t o r s a n d i g n i t i o n c o i l s
( p e t r o l ) , e l e c t r o n i c t h e r m o s t a t a n d c a n i s t e r p u r g e
e l e c t r o v a l v e ( 1 . 1 i a n d 1 . 4 i ) .
F11 40 A H e a t e r b l o w e r .

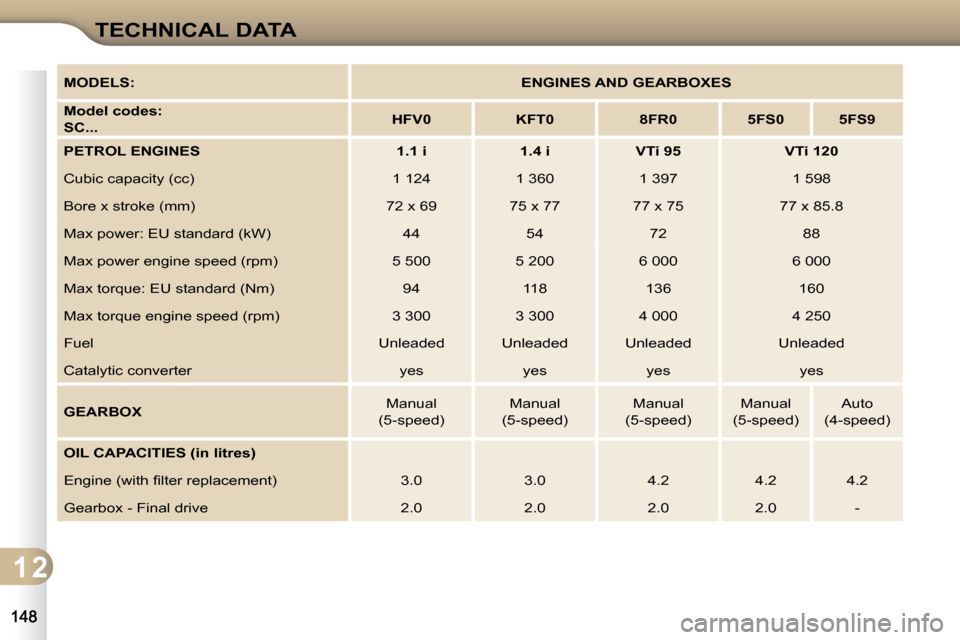

Page 148 of 205
1 2
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
SC...
HFV0 KFT0 8FR0 5FS0 5FS9
PETROL ENGINES 1.1 i 1.4 i VTi 95 VTi 120
Cubic capacity (cc) 1 124 1 360 1 397 1 598
Bore x stroke (mm) 72 x 69 75 x 77 77 x 75 77 x 85.8
Max power: EU standard (kW) 44 54 72 88
Max power engine speed (rpm) 5 500 5 200 6 000 6 000
Max torque: EU standard (Nm) 94 118 136 160
Max torque engine speed (rpm) 3 300 3 300 4 000 4 250
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter yes yes yes yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Auto
(4-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.0 3.0 4.2 4.2 4.2
Gearbox - Final drive 2.0 2.0 2.0 2.0 -
Page 149 of 205
1 2
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
SC...
8HZC - 9HXC - 9HP0 9HR8
DIESEL ENGINES HDi 70 HDi 70 PEF HDi 90
HDi 90
PEF 99g
HDi 90
PEF
HDi 110 PEF
Cubic capacity (cc) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 - x - 75 x 88.3 75 x 88.3
Max power: EU standard (kW) 50 - 66 68 68 8 2
Max power engine speed (rpm) 4 000 - 4 000 3 600
Max torque: EU standard (Nm) 160 - 215 230 230 270
Max torque engine speed (rpm) 2 000 - 1 750 1 75 0
Fuel Diesel Diesel Diesel
Catalytic converter yes yes yes
P a r t i c l e e m i s s i o n s fi l t e r ( P E F ) no yes no yes yes yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 3.75 3.75 - 3.75 3.75
Gearbox - Final drive 2.0 2.0 1.9 - 1.9 2.2
Page 150 of 205
1 2
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.1 i 1.4 i
Gearbox
Manual Manual
Model codes:
SC...
HFV0 KFT0
- Unladen weight 1 010 1 030
- Kerb weight 1 085 1 105
- Gross vehicle weight (GVW) 1 527 1 529
- Gross train weight (GTW)
on a 12 % gradient 1 975 2 329
- Braked trailer (within GTW limit)
on a 12 % gradient 450 800
- Braked trailer * (with load transfer within the GTW limit) 775 1 105
- Unbraked trailer 450 550
- Recommended nose weight 31 44
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
Page 151 of 205
1 2
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is re duced by an
equal amount. Warning: towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 95 VTi 120
Gearboxes
Manual Manual Auto
Model codes:
SC...
8FR0 5FS0 5FS9
- Unladen weight 1 075 1 075 1 135
- Kerb weight 1 150 1 150 1 210
- Gross vehicle weight (GVW) 1 576 1 579 1 612
- Gross train weight (GTW)
on a 12 % gradient 2 476 2 479 2 512
- Braked trailer (within the GTW limit)
on a 12 % gradient 900 900 900
- Braked trailer * (with load transfer within the GTW limit) 1 150 1 150 1 150
- Unbraked trailer 570 570 570
- Recommended nose weight 46 46 46
Page 152 of 205
1 2
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines HDi 70
HDi 70
PEF
HDi 90
HDi 90
PEF 99g
HDi 90
PEF
HDi 110
PEF
Gearbox
Manual Manual Manual
Model codes:
SC...
8HZC - 9HXC - 9HP0 9HR8
- Unladen weight 1 065 - 1 080 1 080 1 080 1 090
- Kerb weight 1 140 - 1 155 1 155 1 155 1 165
- Gross vehicle weight (GVW) 1 564 - 1 607 1 583 1 608 1 632
- Gross train weight (GTW)
on a 12 % gradient 2 464 - 2 507 2 083 2 508 2 532
- Braked trailer (within GTW limit)
on 12 % gradient 900 - 900 500 900 900
- Braked trailer * (with load transfer with the GTW limit) 1 150 - 1 150 500 1 150 1 150
- Unbraked trailer 570 - 570 500 570 570
- Recommended nose weight 46 - 46 46 4 6 46
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
Page 204 of 205
1 2
TECHNICAL DATA
ENGINES AND
GEARBOXES
MODELS:
Model code: SC...
8HR0 9HP4
DIESEL
ENGINES HDi 70 PEF HDi 90 PEF 99g
Cubic capacity (cc) 1 398 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3
Max power: EU standard (kW) 50 68
Max power engine speed (rpm) 4 000 4 000
Max torque: EU standard (Nm) 160 230
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter yes yes
P a r t i c l e e m i s s i o n s fi l t e r ( P E F ) yes yes
GEARBOX
ES Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 3.75
