Citroen C3 2012 2.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2012, Model line: C3, Model: Citroen C3 2012 2.GPages: 252, PDF Size: 8.11 MB
Page 151 of 252
11
149
PRACTICAL INFORMATION

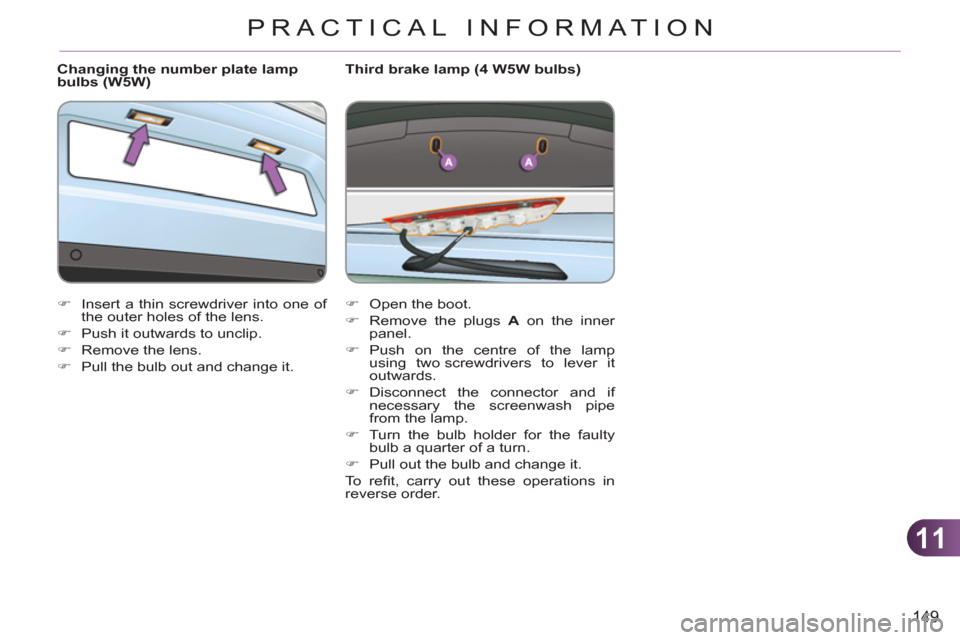

Changing the number plate lamp
bulbs (W5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb out and change it.
)
Open the boot.
)
Remove the plugs A
on the inner
panel.
)
Push on the centre of the lamp
using two screwdrivers to lever it
outwards.
)
Disconnect the connector and if
necessary the screenwash pipe
from the lamp.
)
Turn the bulb holder for the faulty
bulb a quarter of a turn.
)
Pull out the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Third brake lamp (4 W5W bulbs)
Page 152 of 252
11
150
PRACTICAL INFORMATION

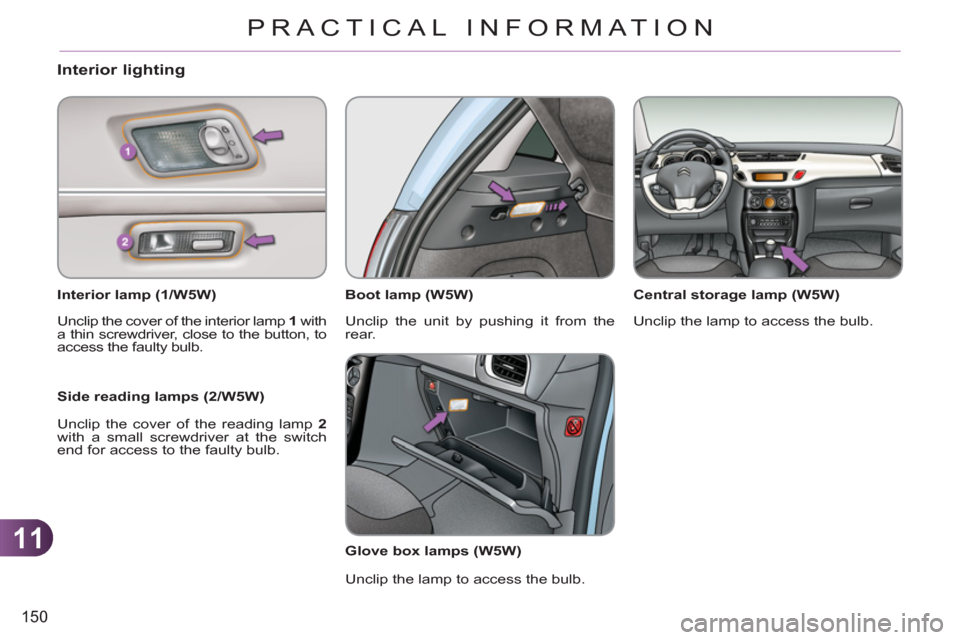

Interior lighting
Interior lamp (1/W5W)
Unclip the cover of the interior lamp 1
with
a thin screwdriver, close to the button, to
access the faulty bulb.
Side reading lamps (2/W5W)
Unclip the cover of the reading lamp 2
with a small screwdriver at the switch
end for access to the faulty bulb.
Boot lamp (W5W)
Unclip the unit by pushing it from the
rear.
Glove box lamps (W5W)
Unclip the lamp to access the bulb.
Central storage lamp (W5W)
Unclip the lamp to access the bulb.
Page 153 of 252
11
151
PRACTICAL INFORMATION
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction tweezer and the spare
fuses are located on the back of the
dashboard fusebox cover.
For access to them:
)
unclip the cover by pulling on the
side,
)
remove the cover completely,
)
remove the pliers.
Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by checking
the condition of its fi lament.
Good
Failed
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the faulty fuse with a
fuse of the same rating.
)
Check the correspondence between
the number marked on the box, the
rating marked on the fuse and the
tables below.
Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN
dealer or a qualifi ed workshop.
CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addi-
tional equipment connected ex-
ceeds 10 milliamperes.
Page 154 of 252
11
152
PRACTICAL INFORMATION
Dashboard fusebox
The fusebox is located in the lower
dashboard (left-hand side).
Access to the fuses
)
Refer to the paragraph "Access to
the tools".
Fuse tables
Fuse N°
Rating
Functions
FH36
5 A
Trailer relay unit.
FH37
-
Not used.
FH38
20 A
Hi-Fi amplifi er.
FH39
20 A
Heated seats.
FH40
40 A
Trailer relay unit.
Fuse N°
Rating
Functions
F1
15 A
Rear wiper.
F2
-
Not used.
F3
5 A
Airbags and pretensioners control unit.
F4
10 A
Air conditioning, clutch switch, electrochromatic
mirror, particle fi lter pump (Diesel), diagnostic
socket, airfl ow sensor (Diesel).
F5
30 A
Electric windows panel, passenger's electric
window control, front electric window motor.
F6
30 A
Rear electric windows motors and driver's electric
window motor.
F7
5 A
Courtesy lamp, glove box lighting, side reading
lamps.
Page 155 of 252
11
153
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F8
20 A
Multifunction screen, audio system, navigation and
audio system, instrument panel with clock, alarm
control unit, alarm siren, audio system (after-market),
12 V socket, portable navigation carrier power supply.
F9
30 A
Multifunction screen, audio system, navigation and
audio system, instrument panel with clock, alarm
control unit, alarm siren, audio system (after-market),
12 V socket, portable navigation carrier power supply,
locking.
F10
15 A
Steering mounted controls.
F11
15 A
Ignition, diagnostic socket, automatic gearbox
control unit.
F12
15 A
Rain/sunshine sensor, trailer relay unit, driving
school module.
F13
5 A
Main stop switch, engine relay unit.
F14
15 A
Parking sensors control unit, airbag control unit,
instrument panel, digital air conditioning, USB Box,
HiFi amplifi er.
F15
30 A
Locking.
F16
-
Not used.
F17
40 A
Rear screen and door mirrors demisting/defrosting.
SH
-
PARC shunt.
Page 156 of 252
11
154
PRACTICAL INFORMATION

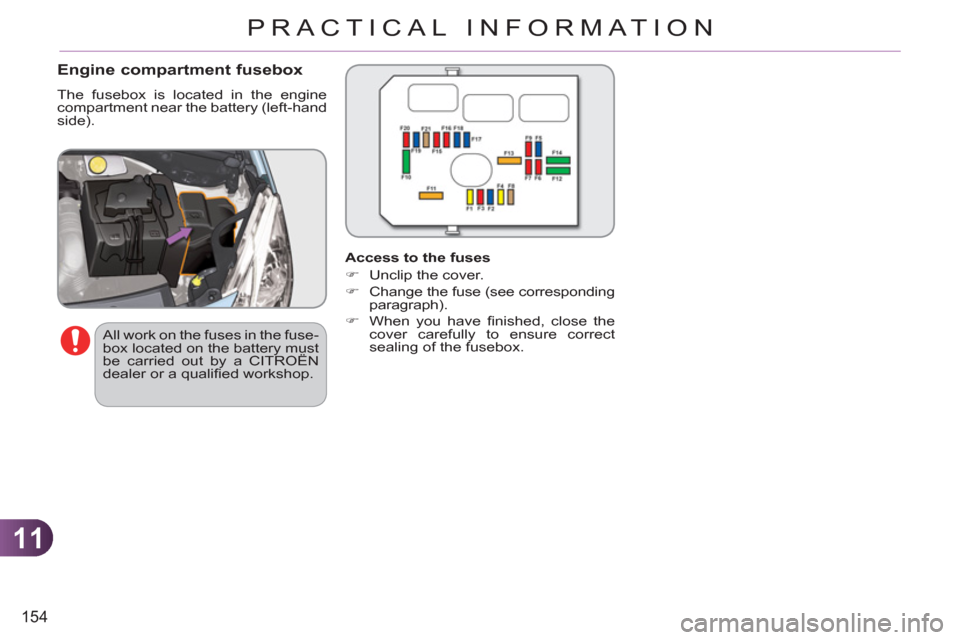

Engine compartment fusebox
The fusebox is located in the engine
compartment near the battery (left-hand
side).
All work on the fuses in the fuse-
box located on the battery must
be carried out by a CITROËN
dealer or a qualifi ed workshop.
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding
paragraph).
)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.
Page 157 of 252
11
PRACTICAL INFORMATION
Fuse table
Fuse N°
Rating
Functions
F1
20 A
Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
injection pump (Diesel).
F2
15 A
Horn.
F3
10 A
Front/rear wash-wipe.
F4
20 A
Daytime running lamps.
F5
15 A
Diesel heater (Diesel), particle fi lter additive pump
(Diesel), air fl ow sensor (Diesel), fuel pump (1.1i
and 1.4i), blow-by heater and electrovalves (VTi).
F6
10 A
ABS/ESP control unit, secondary brake lamp
switch.
F7
10 A
Electric power steering, automatic gearbox.
F8
25 A
Starter motor control.
F9
10 A
Switching and protection unit (Diesel).
F10
30 A
Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and
Diesel), fuel pump (VTi), injectors and ignition coils
(petrol), electronic thermostat and canister purge
electrovalve (1.1i and 1.4i).
F11
40 A
Heater blower.
Page 158 of 252
11
156
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F12
30 A
Windscreen wipers slow/fast speed.
F13
40 A
Built-in systems interface supply (ignition positive).
F14
30 A
Valvetronic supply (VTi).
F15
10 A
Right-hand main beam headlamps.
F16
10 A
Left-hand main beam headlamps.
F17
15 A
Left-hand dipped beam headlamps.
F18
15 A
Right-hand dipped beam headlamps.
F19
15 A
Oxygen sensors and electrovalves (VTi),
electrovalves (Diesel), EGR electrovalve (Diesel).
F20
10 A
Pumps, electronic thermostat (VTi), water in fuel
sensor (Diesel).
F21
5 A
Fan assembly control supply, ABS/ESP.
Page 159 of 252
11
PRACTICAL INFORMATION

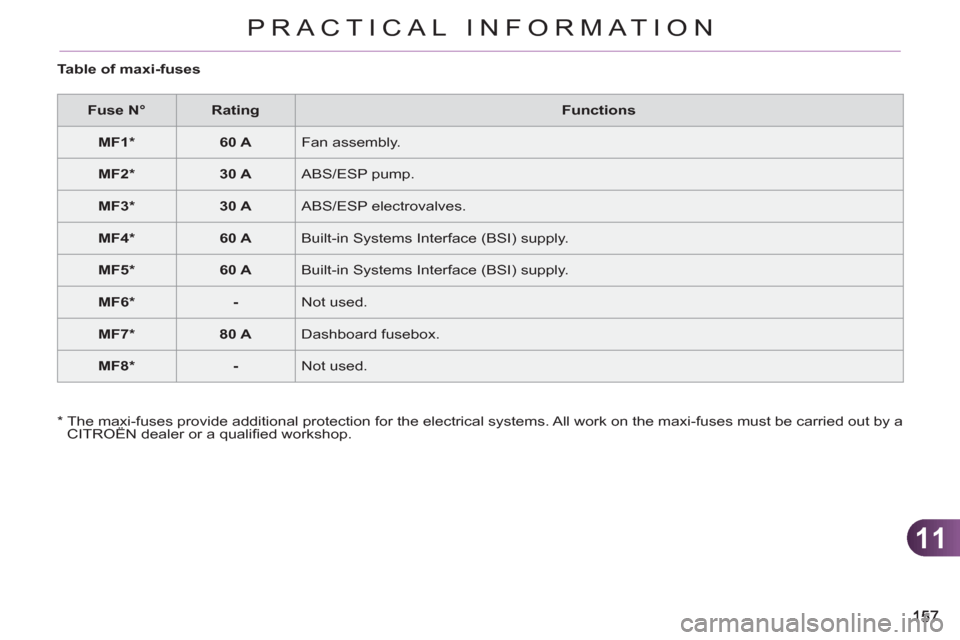

Table of maxi-fuses
Fuse N°
Rating
Functions
MF1 *
60 A
Fan assembly.
MF2 *
30 A
ABS/ESP pump.
MF3 *
30 A
ABS/ESP electrovalves.
MF4 *
60 A
Built-in Systems Interface (BSI) supply.
MF5 *
60 A
Built-in Systems Interface (BSI) supply.
MF6 *
-
Not used.
MF7 *
80 A
Dashboard fusebox.
MF8 *
-
Not used.
*
The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a
CITROËN dealer or a qualifi ed workshop.
Page 160 of 252
11
158
PRACTICAL INFORMATION
Starting using another battery
)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.
)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
.
)
Connect the other end of the green
or black cable to the remote nega-
tive terminal (-) of your vehicle .
)
Start the slave vehicle.
)
Operate the starter of the broken
down vehicle and let the engine
run.
)
Wait until the engine returns to idle
and disconnect the cables.
BATTERY
Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.
The battery is located under the bonnet.
To gain access to it:
)
open the bonnet using the interior
release lever, then the exterior safe-
ty catch,
)
secure the bonnet stay,
)
lift the plastic cover on the (+) terminal.
The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
12 V lead-acid battery with spe-
cial technology and specifi cation;
the involvement of a CITROËN
dealer or a qualifi ed workshop is
essential when replacing or dis-
connecting the battery.
Failure to observe this recom-
mendation may cause prema-
ture wear of the battery.
After refi tting the battery by a
CITROËN dealer or a qualifi ed
workshop, the Stop & Start sys-
tem will only be active after a
continuous period of immobilisa-
tion of the vehicle, a period which
depends on the climatic condi-
tions and the state of charge of
the battery (up to about 8 hours).
