stop start Citroen C3 2012 2.G Owner's Guide

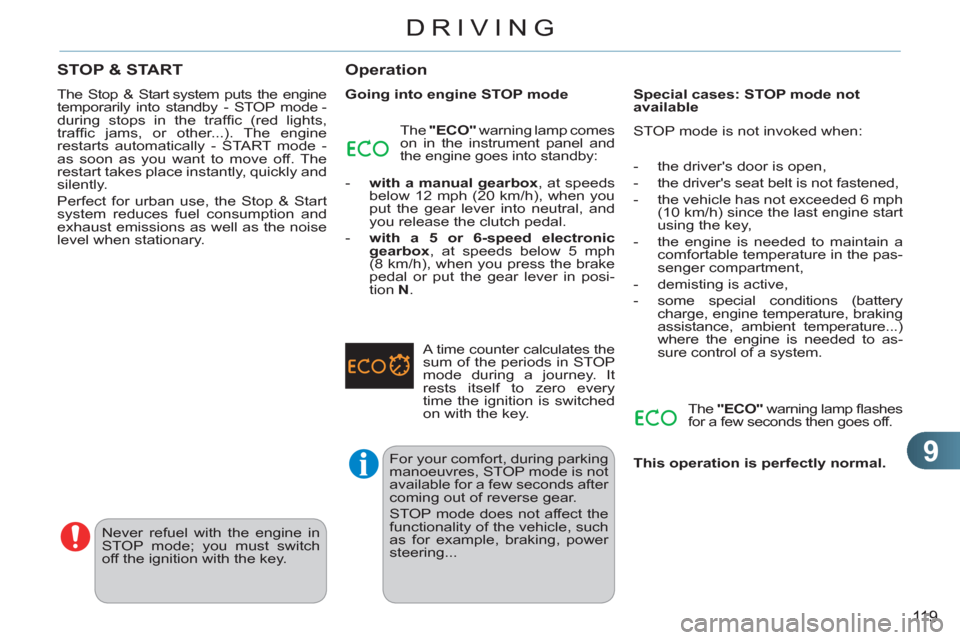

9
119
DRIVING
The Stop & Start system puts the engine
temporarily into standby - STOP mode -
during stops in the traffi c (red lights,
traffi c jams, or other...). The engine
restarts automatically - START mode -
as soon as you want to move off. The
restart takes place instantly, quickly and
silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.
Operation


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal.

- with a 5 or 6-speed electronic
gearbox
, at speeds below 5 mph
(8 km/h), when you press the brake
pedal or put the gear lever in posi-
tion
N
.
Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:

For your comfort, during parking
manoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such
as for example, braking, power
steering...
Never refuel with the engine in
STOP mode; you must switch
off the ignition with the key.

A time counter calculates the sum of the periods in STOP
mode during a journey. It
rests itself to zero every
time the ignition is switched
on with the key.
Special cases: STOP mode not
available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,

- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature, braking
assistance, ambient temperature...)
where the engine is needed to as-
sure control of a system.
The "ECO"
warning lamp fl ashes
for a few seconds then goes off.

This operation is perfectly normal.


STOP & START

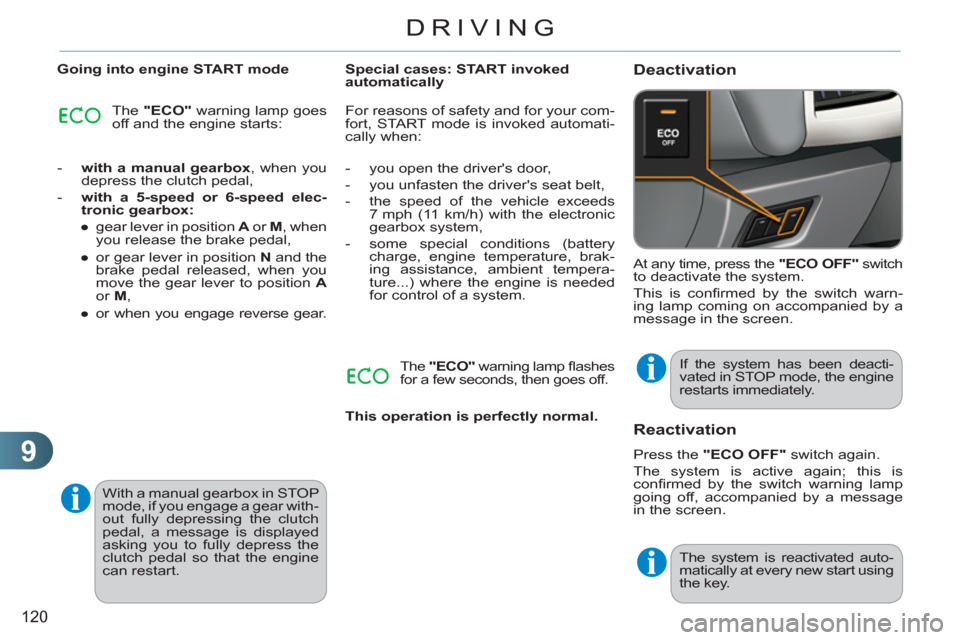

9
120
DRIVING

Going into engine START mode
The "ECO"
warning lamp goes
off and the engine starts:


- with a manual gearbox
, when you
depress the clutch pedal,

- with a 5-speed or 6-speed elec-
tronic gearbox
:


●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and the
brake pedal released, when you
move the gear lever to position A

or M
,

●
or when you engage reverse gear.


Special cases: START invoked
automatically
For reasons of safety and for your com-
fort, START mode is invoked automati-
cally when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds
7 mph (11 km/h) with the electronic
gearbox system,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
for control of a system.
Deactivation

At any time, press the "ECO OFF"
switch
to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message in the screen.

If the system has been deacti-
vated in STOP mode, the engine
restarts immediately.


Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is
confi rmed by the switch warning lamp
going off, accompanied by a message
in the screen.

The system is reactivated auto-
matically at every new start using
the key.
The "ECO"
warning lamp fl ashes
for a few seconds, then goes off.

This operation is perfectly normal.




With a manual gearbox in STOP
mode, if you engage a gear with-
out fully depressing the clutch
pedal, a message is displayed
asking you to fully depress the
clutch pedal so that the engine
can restart.

9
121
DRIVING

Operating fault Maintenance

In the event of a fault with the system,
the "ECO OFF"
switch warning lamp
fl ashes then comes on continuously.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
In the event of a fault in STOP mode,
the vehicle may stall. It is then neces-
sary to switch off the ignition and start
the engine again using the key.
Before doing anything under the
bonnet, deactivate the Stop &
Start system to avoid any risk of
injury resulting from automatic
operation of START mode.

The Stop & Start system makes
use of advanced technology. All
work on this type of battery must
be done by a CITROËN dealer
or a qualifi ed workshop.
This system requires a battery with a
special specifi cation and technology
(reference numbers available from a
CITROËN dealer or a qualifi ed work-
shop).
Fitting a battery not listed by CITROËN
introduces the risk of malfunction of the
system.

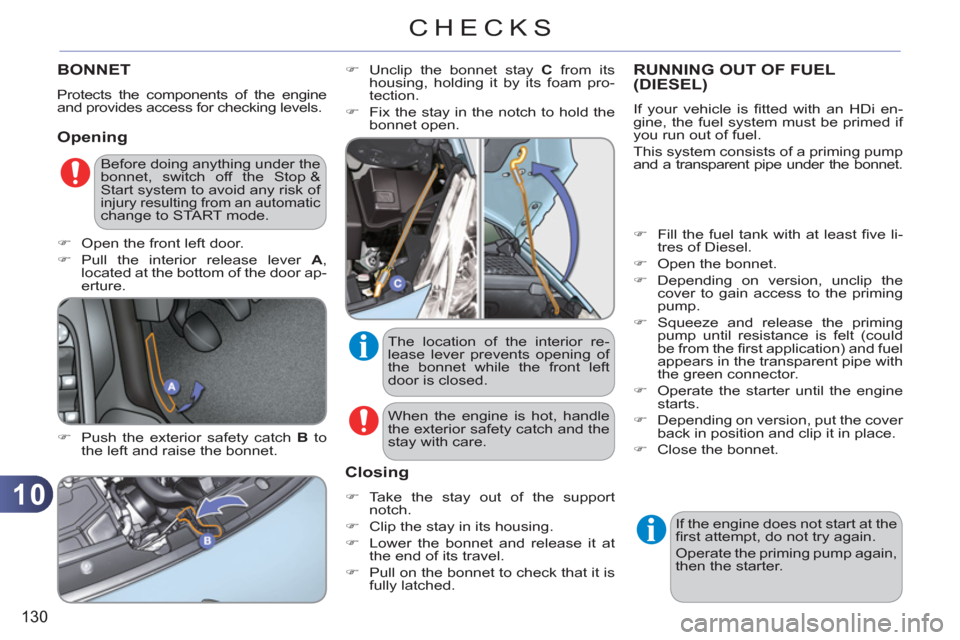

10
130
CHECKS
BONNET
Protects the components of the engine
and provides access for checking levels.

Opening


)
Push the exterior safety catch B
to
the left and raise the bonnet.
)
Unclip the bonnet stay C
from its
housing, holding it by its foam pro-
tection.

)
Fix the stay in the notch to hold the
bonnet open.
The location of the interior re-
lease lever prevents opening of
the bonnet while the front left
door is closed.
Closing


)
Take the stay out of the support
notch.

)
Clip the stay in its housing.

)
Lower the bonnet and release it at
the end of its travel.

)
Pull on the bonnet to check that it is
fully latched.

RUNNING OUT OF FUEL (DIESEL)

If your vehicle is fi tted with an HDi en-
gine, the fuel system must be primed if
you run out of fuel.
This system consists of a priming pump
and a transparent pipe under the bonnet.



)
Fill the fuel tank with at least fi ve li-
tres of Diesel.

)
Open the bonnet.

)
Depending on version, unclip the
cover to gain access to the priming
pump.

)
Squeeze and release the priming
pump until resistance is felt (could
be from the fi rst application) and fuel
appears in the transparent pipe with
the green connector.

)
Operate the starter until the engine
starts.

)
Depending on version, put the cover
back in position and clip it in place.

)
Close the bonnet.
If the engine does not start at the
fi rst attempt, do not try again.
Operate the priming pump again,
then the starter. When the engine is hot, handle
the exterior safety catch and the
stay with care.





Before doing anything under the
bonnet, switch off the Stop &
Start system to avoid any risk of
injury resulting from an automatic
change to START mode.


)
Open the front left door.

)
Pull the interior release lever A
,
located at the bottom of the door ap-
erture.

10

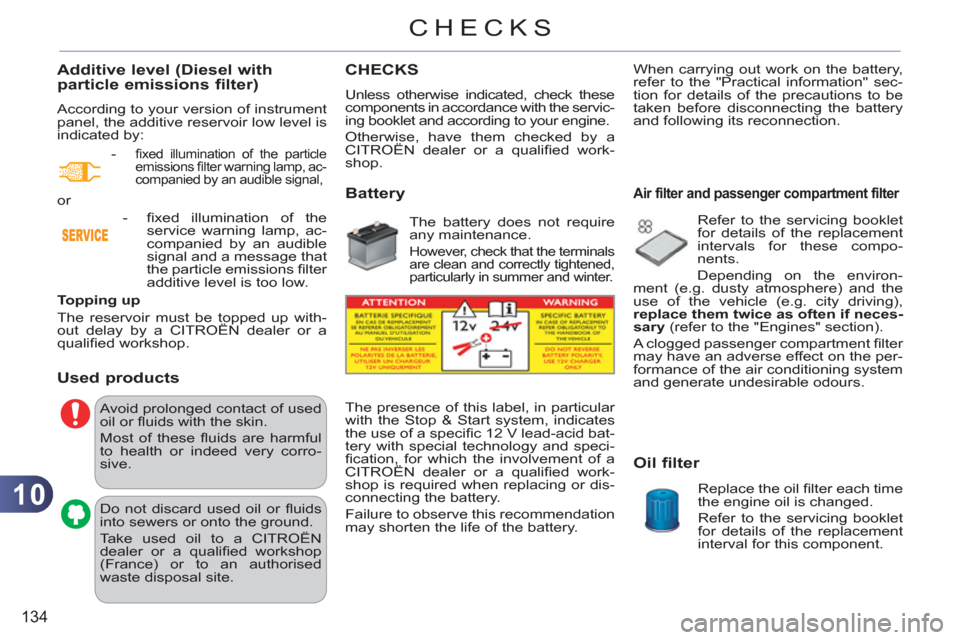

134
CHECKS
Additive level (Diesel with particle emissions filter)
According to your version of instrument
panel, the additive reservoir low level is
indicated by:

Topping up
The reservoir must be topped up with-
out delay by a CITROËN dealer or a
qualifi ed workshop.

Used products

Avoid prolonged contact of used
oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corro-
sive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN
dealer or a qualifi ed workshop
(France) or to an authorised
waste disposal site.
CHECKS

Unless otherwise indicated, check these
components in accordance with the servic-
ing booklet and according to your engine.
Otherwise, have them checked by a
CITROËN dealer or a qualifi ed work-
shop.
Battery
The battery does not require
any maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
Air filter and passenger compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (e.g. dusty atmosphere) and the
use of the vehicle (e.g. city driving),
replace them twice as often if neces-
sary
(refer to the "Engines" section).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.


Oil filter

Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.





The presence of this label, in particular
with the Stop & Start system, indicates
the use of a specifi c 12 V lead-acid bat-
tery with special technology and speci-
fi cation, for which the involvement of a
CITROËN dealer or a qualifi ed work-
shop is required when replacing or dis-
connecting the battery.
Failure to observe this recommendation
may shorten the life of the battery. When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.


-
fi xed illumination of the particle
emissions fi lter warning lamp, ac-
companied by an audible signal,

or

- fi xed illumination of the
service warning lamp, ac-
companied by an audible
signal and a message that
the particle emissions fi lter
additive level is too low.

11
158
PRACTICAL INFORMATION

Starting using another battery



)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
.

)
Connect the other end of the green
or black cable to the remote nega-
tive terminal (-) of your vehicle .

)
Start the slave vehicle.

)
Operate the starter of the broken
down vehicle and let the engine
run.

)
Wait until the engine returns to idle
and disconnect the cables.

BATTERY

Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.
The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safe-
ty catch,

)
secure the bonnet stay,

)

lift the plastic cover on the (+) terminal.









The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
12 V lead-acid battery with spe-
cial technology and specifi cation;
the involvement of a CITROËN
dealer or a qualifi ed workshop is
essential when replacing or dis-
connecting the battery.
Failure to observe this recom-
mendation may cause prema-
ture wear of the battery.

After refi tting the battery by a
CITROËN dealer or a qualifi ed
workshop, the Stop & Start sys-
tem will only be active after a
continuous period of immobilisa-
tion of the vehicle, a period which
depends on the climatic condi-
tions and the state of charge of
the battery (up to about 8 hours).

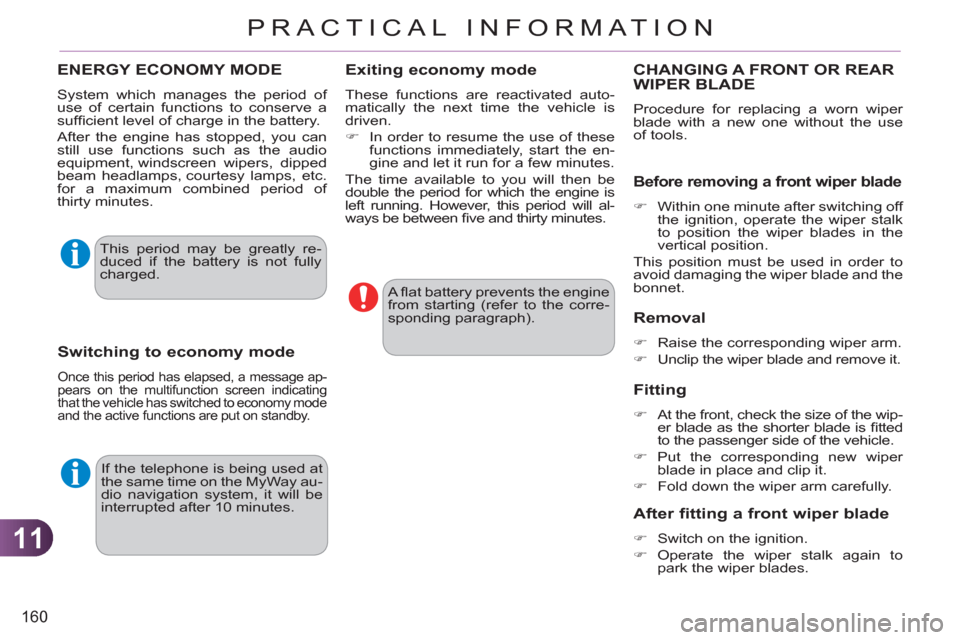

11
160
PRACTICAL INFORMATION
If the telephone is being used at
the same time on the MyWay au-
dio navigation system, it will be
interrupted after 10 minutes. A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
ENERGY ECONOMY MODE

System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.


Switching to economy mode

Once this period has elapsed, a message ap-
pears on the multifunction screen indicating
that the vehicle has switched to economy mode
and the active functions are put on standby.
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.


)
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be
double the period for which the engine is
left running. However, this period will al-
ways be between fi ve and thirty minutes.
This period may be greatly re-
duced if the battery is not fully
charged.
CHANGING A FRONT OR REARWIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.

Before removing a front wiper blade



)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to
avoid damaging the wiper blade and the
bonnet.


Removal



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.


Fitting



)
At the front, check the size of the wip-
er blade as the shorter blade is fi tted
to the passenger side of the vehicle.

)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.

12
172
TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:
SC...


8HZC



8HR4



8HP4/PS



9HK0



DIESEL ENGINES


HDi 70



HDi 70 PEF



e-HDi 70 PEF



HDi 75


Cubic capacity (cc)
1 398
1 398
1 398
1 560
Bore x stroke (mm)
73.7 x 82
73.7 x 82
73.7 x 82
75 x 88.3
Max. power: EU standard (kW)
50
50
50
55
Max. power engine speed (rpm)
4 000
4 000
4 000
4 000
Max. torque: EU standard (Nm)
160
160
160
185
Max. torque engine speed (rpm)
2 000
1 750
1 750
1 500
Fuel
Diesel
Diesel
Diesel
Diesel

Catalytic converter
Yes
Yes
Yes
Yes
Particle emissions fi lter (PEF)
No
Yes
Yes
No

GEARBOX

Manual
(5-speed)
Manual
(5-speed)
Electronic
(5-speed)
Manual
(5-speed)

OIL CAPACITIES (in litres)










Engine (with fi lter replacement)
3.75
3.75
3.75
3.75

.../S: e-HDi model fi tted with Stop & Start.

12
173
TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:


SC...


9HJ0



9HPK/S



9HP8/PS



9HR8/S



DIESEL ENGINES


HDi 90



e-HDi 90 PEF



e-HDi 110 PEF


Cubic capacity (cc)
1 560
1 560
1 560
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
Max. power: EU standard (kW)
68
68
82
Max. power engine speed (rpm)
4 000
4 000
3 600
Max. torque: EU standard (Nm)
230
230
270
Max. torque speed (rpm)
1 750
1 750
1 750
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Yes
Yes
Yes
Particle emissions fi lter (PEF)
No
Yes
Yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)


Electronic gearbox system
(6-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)




Engine (with fi lter replacement)
3.75
3.75
3.75

.../S
: e-HDi model fi tted with Stop & Start.

206
Abort guidance/Resume guidance
Destination input Geo
position
Ma
p
Stopovers
Add stopover
Navi
gate HOME

Choose from address book Rearran
ge route
Choose from last destinations Replace stopover
Delete stopover
Recalculate
Fast route
Short route
Optimized route

POI search
POI nearby


Route options
Route t
ype
Short route F
ast route

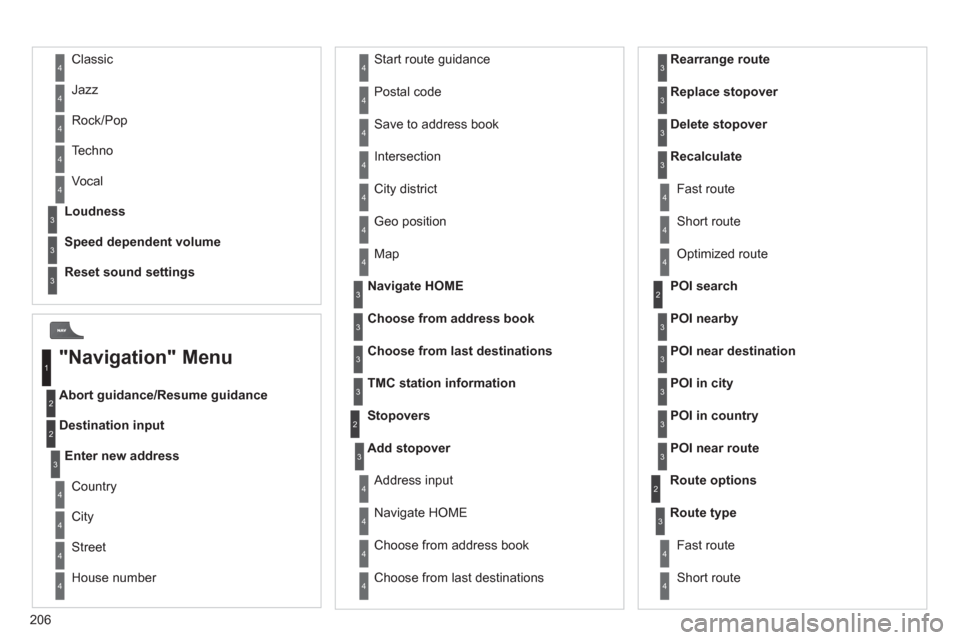

"Navigation" Menu
City
Street
Enter new address
Country
Navigate HOME Cit
y district
H
ouse number Start route
guidance
P
ostal code
Save to address book
Int
ersection
Address in
put
POI near destination
POI in city
POI in country
POI near route
Choose from address book
3
3
Choose from last destinations
TMC station information Lou
dness
S
peed dependent volume
Reset sound settings
3
3
3
1
2
4
4
4
4
4
4
4
4
4
4
4
3
2
3
3
2
3
4
4
4
4
3
3
3
3
4
4
4
2
4
2
3
3
3
3
3
3
4
Classic
Jazz
Rock/Pop
Techno
Vocal
4
4
4
4
4
