Page 9 of 252
FAMILIARI
S
AT I
ON
Interior mood lighting
This subdued passenger compartment
lighting improves visibility inside the vehi-
cle in low lighting conditions. It comprises
several lamps, located in the automatic
day/night mirror support and in the lower
dashboard storage compartment.
85
Gear shift indicator
Associated with the manual gearbox,
this system suggests when to change
up to obtain optimum fuel consumption.
111
Scented air freshener
The scented air freshener diffuses the
selected fragrance throughout the pas-
senger compartment from its location in
the ventilation system.
58
Digital air conditioning
After setting the desired level of comfort,
the system then automatically controls
this level according to the ambient condi-
tions.
55
Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible Audio sys-
tem, USB port, Bluetooth hands-free
system, MyWay with 16/9 colour screen,
auxiliary inputs, Hi-Fi audio system.
MyWay
181
Audio system
213
INTERIOR
Page 27 of 252
1
25
MONITORING
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is
switched on.
When the engine is started, these same warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp
concerned.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.
The warning lamps may come
on continuously (fi xed) or fl ash.
Certain warning lamps may
come on in two different modes.
Only by relating the type of illumi-
nation to the operating status of
the vehicle can it be ascertained
whether the situation is normal
or whether a fault has occurred.
Associated warnings
The illumination of certain warning lamps may be accompanied by an audible
signal and a message in the multifunction screen.
Warning lamp
is on
Cause
Action/Observations
Left-hand
direction
indicato
r
fl ashing with
buzzer. The lighting stalk is pushed
down.
Right-hand
direction
indicator
fl ashing with
buzzer. The lighting stalk is pushed
up.
Sidelamps
fi xed. The lighting stalk is in the
"Sidelamps" position.
Hazard
warning lamps
fl ashing with
audible signal.
The hazard warning lamps
switch, located on the
dashboard, has been operated. The left-hand and right-hand direction indicators
and their associated indicator lamps fl ash
simultaneously.
Page 31 of 252
1
29
MONITORING
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.
Passenger's
airbag
system
fi xed. The control, located in the
glove box, is set to the OFF
position.
The passenger's front
airbag is deactivated.
In this case you can install
a "rear facing" child seat. Set the control to the ON
position to activate
the passenger's front airbag.
In this case, do not fi t a child seat in
the rear-facing position.
ESP/ASR
fi xed. The button, located at
the bottom left of the
dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-slip regulation. Press the button to activate the ESP/ASR. Its
indicator lamp goes off.
The ESP/ASR system is activated automatically
when the vehicle is started.
If deactivated, the system is reactivated
automatically from around 30 mph (50 km/h).
Warning lamp
is on
Cause
Action/Observations
Page 41 of 252
1
39
MONITORING
The instrument panel remains illumi-
nated with only the vehicle speed and
cruise control or speed limiter informa-
tion, if in use.
If there is an alert or a change in a func-
tion or to a setting, the black panel mode
is interrupted.
Activation
)
With the lighting on, press the left
hand button of the instrument panel
several times to progressively re-
duce the dashboard lighting level.
)
Press the button again to reduce the
lighting to the minimum level and
switch off the interior mood lighting.
)
Press the button again to activate
the black panel.
Black panel
System allowing certain displays to be
switched off for night driving.
Activation
When the lighting is on:
)
press the button to change the
brightness of the instruments and
controls,
)
when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
Page 53 of 252
3
51
COMFORT
RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:
)
To obtain an even air distribution, take care not to obstruct the exterior
air intake grilles located at the base of the windscreen, the nozzles,
the vents and the air outlets, as well as the air extractor located in the
boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is
used for regulation of the digital air conditioning system.
)
Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.
)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
)
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly as recommended in the servicing
booklet.
)
If the system does not produce cold air, switch it off and contact a
CITROËN dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and
so improves the towing ability.
If after an extended stop in sun-
shine, the interior temperature
is very high, fi rst ventilate the
passenger compartment for a
few moments.
Put the air fl ow control at a set-
ting high enough to quickly
change the air in the passenger
compartment.
The air conditioning system
does not contain chlorine and
does not present any danger to
the ozone layer.
The condensation created by
the air conditioning results in a
discharge of water under the ve-
hicle which is perfectly normal.
Page 60 of 252
3
58
COMFORT
SCENTED AIR FRESHENER
System permitting the diffusion of a fra-
grance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.
Adjustment dial
This dial is located on the dashboard.
It allows you to adjust the intensity of
diffusion of the fragrance.
)
Turn the dial to the right to permit
diffusion of the fragrance.
)
Turn the dial to the left to stop diffu-
sion of the fragrance.
Fragrance cartridge
This cartridge can be removed easily.
The fi rst time it is used, replace the plug
with a real cartridge.
You can change it at any time and store
it in the sealed case which keeps it
closed once it has been opened.
You can obtain different fragrance car-
tridges from a CITROËN dealer or a
qualifi ed workshop.
Removing the cartridge
)
Press the dial and turn it a quarter of
a turn anti-clockwise.
)
Remove the cartridge.
)
Refi t its sealing case.
Fitting the cartridge
)
Remove the cartridge from the seal-
ing case.
)
Install the cartridge (fl ower at top
left).
)
Press the dial and turn it a quarter of
a turn clockwise.
Leave the central vents open.
The intensity of diffusion of the
fragrance may depend on the
ventilation or air conditioning
settings. Do not discard the original car-
tridge as this serves as a plug
when no fragrance cartridge is
in use.
In order to preserve the service
life of the cartridge, turn the dial
fully to the left when you no lon-
ger wish to diffuse the fragrance
in the passenger compartment.
As a safety precaution, do not
carry out any action on the car-
tridge while driving.
Do not dismantle the cartridges.
Do not attempt to refi ll the fra-
grance diffuser or the cartridges.
Avoid all contact with the skin
and eyes.
Keep out of reach of children
and animals.
Page 87 of 252
5
85
VISIBILITY

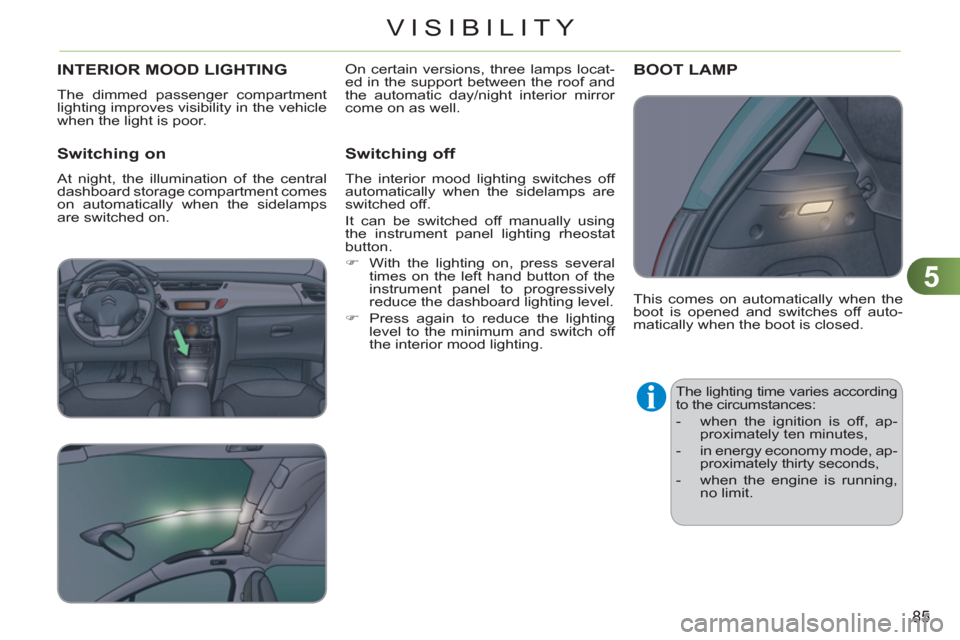

INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the illumination of the central
dashboard storage compartment comes
on automatically when the sidelamps
are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually using
the instrument panel lighting rheostat
button.
)
With the lighting on, press several
times on the left hand button of the
instrument panel to progressively
reduce the dashboard lighting level.
)
Press again to reduce the lighting
level to the minimum and switch off
the interior mood lighting.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
The lighting time varies according
to the circumstances:
- when the ignition is off, ap-
proximately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- when the engine is running,
no limit. On certain versions, three lamps locat-
ed in the support between the roof and
the automatic day/night interior mirror
come on as well.
Page 108 of 252
8
106
SAFETY
AIRBAGS
The airbags do not operate when
the ignition is switched off.
This equipment will only deploy
once. If a second impact occurs
(during the same or a subse-
quent accident), the airbag will
not be deployed again.
Impact detection zones
A.
Front impact zone.
B.
Side impact zone.
Deployment of the airbag(s) is
accompanied by a slight emis-
sion of harmless smoke and a
noise, due to the activation of
the pyrotechnic cartridge incor-
porated in the system.
This smoke is not harmful, but
sensitive individuals may experi-
ence slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time.
Front airbags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and chest.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.
Deployment
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all or
part of the front impact zone A
, in the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the
head-thorax of the front occupant of the
vehicle and the dashboard to cushion
their forward movement.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the
airbags are deployed instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
impact, the airbags defl ate rapidly
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the
seat belt alone is suffi cient to pro-
vide optimum protection in these
situations.
Page 111 of 252
8
SAFETY
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualifi ed workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when
an airbag is deployed cannot be ruled
out. The bag infl ates almost instantly
(within a few milliseconds) then de-
fl ates within the same time discharging
the hot gas via openings provided for
this purpose.
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cause burns or
the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Lateral airbags
Use only approved covers on the seats, compatible with the deployment the
lateral airbags. For information on the range of seat covers suitable for your
vehicle, you can contact a CITROËN dealer (see "Practical information - §
Accessories").
Do not fi x or attach anything to the seat backs (clothing...). This could cause
injury to the chest or arms if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain airbags
Do not fi x or attach anything to the roof. This could cause injury to the head if
the curtain airbag is deployed.
If fi tted on your vehicle, do not remove the grab handles installed on the roof,
they play a part in securing the curtain airbags.
Page 153 of 252
11
151
PRACTICAL INFORMATION
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction tweezer and the spare
fuses are located on the back of the
dashboard fusebox cover.
For access to them:
)
unclip the cover by pulling on the
side,
)
remove the cover completely,
)
remove the pliers.
Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by checking
the condition of its fi lament.
Good
Failed
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the faulty fuse with a
fuse of the same rating.
)
Check the correspondence between
the number marked on the box, the
rating marked on the fuse and the
tables below.
Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN
dealer or a qualifi ed workshop.
CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addi-
tional equipment connected ex-
ceeds 10 milliamperes.
