fuel type Citroen C3 2012 2.G Owner's Manual

21

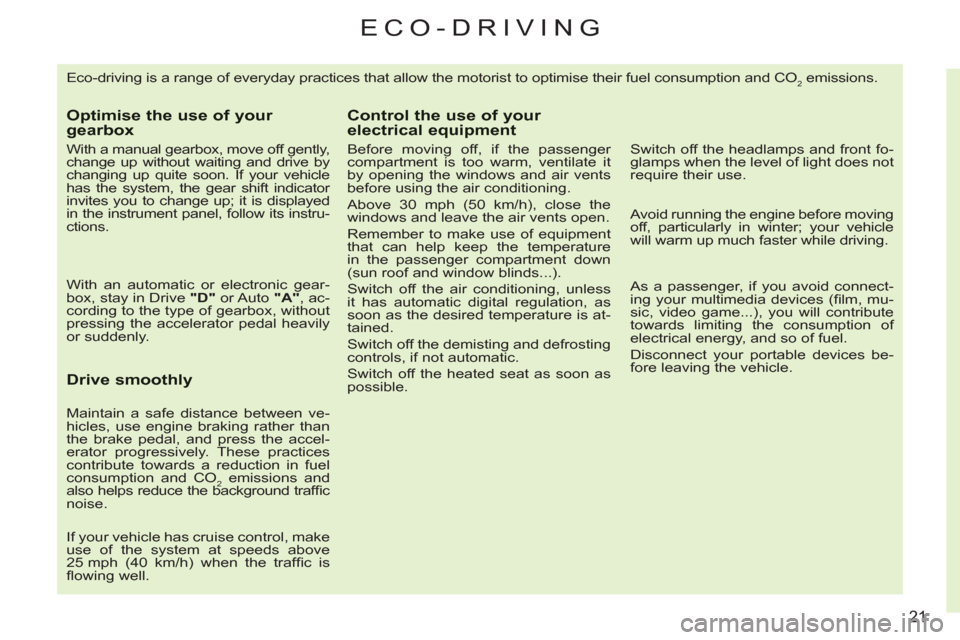

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear shift indicator
invites you to change up; it is displayed
in the instrument panel, follow its instru-
ctions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.

Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traffi c
noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.

Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle
will warm up much faster while driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

4
ACCESS
The key cannot be removed from
the lock until the cap is refi tted.
Opening the fi ller cap may cre-
ate a noise caused by an inrush
of air. This vacuum is entirely
normal, resulting from the seal-
ing of the fuel system.
FUEL TANK

Fuel tank capacity: approximately
50 litres (petrol) or 46 litres (Diesel);
(Depending on version: approxi-
mately 30 litres (petrol or Diesel)

)

.



Low fuel level

When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
ment panel. When it fi rst comes
on there remains approximately 5 litres

of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.


Filling

A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least 5 litres,
in order to be registered by the fuel gauge. To fi ll the tank safely:


)
the engine must be switched off,


)
open the fuel fi ller fl ap,

)
insert the key in the cap, then turn it
to the left,

)
remove the cap and hook it onto
the clip located on the inside of the
fl ap,

)
fi ll the tank, but do not continue
after the 3rd cut-off of the pump
;
this could cause malfunctions.
When you have fi lled the tank:


)
put the cap back in place,

)
turn the key to the right, then remove
it from the cap,

)
close the fl ap.






With Stop & Start, never refuel
with the system in STOP mode;
you must switch off the ignition
with the key.

4
75
ACCESS
Quality of the fuel used for petrol engines

The petrol engines are perfectly compat-
ible with E10 or E24 type petrol biofuels
(containing 10 % or 24 % ethanol), con-
forming to European standards EN 228
and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).

Quality of the fuel used for Diesel engines


The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Contact a
CITROËN dealer or a qualifi ed work-
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).

4
76
ACCESS
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
MISFUEL PREVENTION(DIESEL)
*Operation
When a petrol fi ller nozzle is introduced into
the fuel fi ller neck of your Diesel vehicle, it
comes into contact with the fl ap. The sys-
tem remains closed and prevents fi lling.


Do not persist but introduce a Diesel
type fi ller nozzle.


It remains possible to use a fuel
can to fi ll the tank.
In order to ensure a good fl ow
of fuel, do not place the nozzle
of the fuel can in direct contact
with the fl ap of the misfuel pre-
vention device and pour slowly.

This tool will become available during
the year.
*
According to country of sale.

Travelling abroad
As Diesel fuel pump nozzles
may be different in other coun-
tries, the presence of the misfuel
prevention device may make re-
fuelling impossible.
Before travelling abroad, we
recommend that you check with
the CITROËN dealer network,
whether your vehicle is suitable
for the fuel pumps in the country
in which you want to travel.



Deactivation

Before refuelling using non-standard
Diesel fuel nozzles (present in some
countries), a tool allows you to tem-
porarily disable the misfuel prevention
device.

Use


)
With the handle vertical, introduce
the tool into the fi ller neck as far as it
will go.

)
Turn the tool a quarter turn to the
right or left.

)
Remove the tool completely.

)
Fill with fuel.
The misfuel prevention device
will be activated the next time a
standard nozzle is used.
