open bonnet Citroen C3 2012 2.G Owner's Manual

5
FAMILIARI
S
AT I
ON

Remote control keyFuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
A.
Unfolding/Folding the key.

B.
Unlocking the vehicle.



64




74




A.
Interior release lever.

B.
Exterior safety catch.

C.
Bonnet stay.



130




Bonnet


Other functions...


C.
Normal locking of the vehicle
Vehicle location. Tank capacity:


- approximately 50 litres (petrol),

- approximately 46 litres (Diesel),

- (depending on version: approximately
30 litres (petrol or Diesel)).

ACCESS

10
130
CHECKS
BONNET
Protects the components of the engine
and provides access for checking levels.

Opening


)
Push the exterior safety catch B
to
the left and raise the bonnet.
)
Unclip the bonnet stay C
from its
housing, holding it by its foam pro-
tection.

)
Fix the stay in the notch to hold the
bonnet open.
The location of the interior re-
lease lever prevents opening of
the bonnet while the front left
door is closed.
Closing


)
Take the stay out of the support
notch.

)
Clip the stay in its housing.

)
Lower the bonnet and release it at
the end of its travel.

)
Pull on the bonnet to check that it is
fully latched.

RUNNING OUT OF FUEL (DIESEL)

If your vehicle is fi tted with an HDi en-
gine, the fuel system must be primed if
you run out of fuel.
This system consists of a priming pump
and a transparent pipe under the bonnet.



)
Fill the fuel tank with at least fi ve li-
tres of Diesel.

)
Open the bonnet.

)
Depending on version, unclip the
cover to gain access to the priming
pump.

)
Squeeze and release the priming
pump until resistance is felt (could
be from the fi rst application) and fuel
appears in the transparent pipe with
the green connector.

)
Operate the starter until the engine
starts.

)
Depending on version, put the cover
back in position and clip it in place.

)
Close the bonnet.
If the engine does not start at the
fi rst attempt, do not try again.
Operate the priming pump again,
then the starter. When the engine is hot, handle
the exterior safety catch and the
stay with care.





Before doing anything under the
bonnet, switch off the Stop &
Start system to avoid any risk of
injury resulting from an automatic
change to START mode.


)
Open the front left door.

)
Pull the interior release lever A
,
located at the bottom of the door ap-
erture.

11
158
PRACTICAL INFORMATION

Starting using another battery



)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
.

)
Connect the other end of the green
or black cable to the remote nega-
tive terminal (-) of your vehicle .

)
Start the slave vehicle.

)
Operate the starter of the broken
down vehicle and let the engine
run.

)
Wait until the engine returns to idle
and disconnect the cables.

BATTERY

Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.
The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safe-
ty catch,

)
secure the bonnet stay,

)

lift the plastic cover on the (+) terminal.









The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
12 V lead-acid battery with spe-
cial technology and specifi cation;
the involvement of a CITROËN
dealer or a qualifi ed workshop is
essential when replacing or dis-
connecting the battery.
Failure to observe this recom-
mendation may cause prema-
ture wear of the battery.

After refi tting the battery by a
CITROËN dealer or a qualifi ed
workshop, the Stop & Start sys-
tem will only be active after a
continuous period of immobilisa-
tion of the vehicle, a period which
depends on the climatic condi-
tions and the state of charge of
the battery (up to about 8 hours).

237

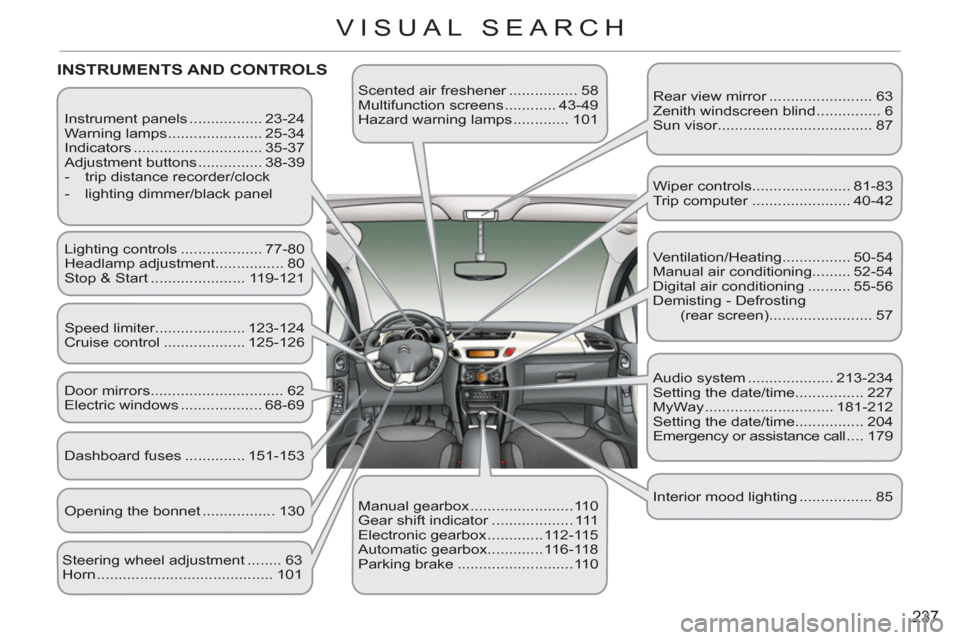

VISUAL SEARCH
Instrument panels ................. 23-24
Warning lamps ...................... 25-34
Indicators .............................. 35-37
Adjustment buttons ............... 38-39


- trip distance recorder/clock

- lighting dimmer/black panel

INSTRUMENTS AND CONTROLS

Lighting controls ................... 77-80
Headlamp adjustment................ 80
Stop & Start ...................... 119-121
Speed limiter..................... 123-124
Cruise control ................... 125-126
Dashboard fuses .............. 151-153
Opening the bonnet ................. 130 Rear view mirror ........................ 63
Zenith windscreen blind ............... 6
Sun visor.................................... 87

Wiper controls....................... 81-83
Trip computer ....................... 40-42
Audio system .................... 213-234
Setting the date/time................ 227
MyWay .............................. 181-212
Setting the date/time................ 204
Emergency or assistance call .... 179
Ventilation/Heating................ 50-54
Manual air conditioning......... 52-54
Digital air conditioning .......... 55-56
Demisting - Defrosting
(rear screen) ........................ 57

Interior mood lighting ................. 85
Steering wheel adjustment ........ 63
Horn ......................................... 101 Scented air freshener ................ 58
Multifunction screens ............ 43-49
Hazard warning lamps ............. 101
Manual gearbox ........................110
Gear shift indicator ................... 111
Electronic gearbox ............. 112-115
Automatic gearbox............. 116-118
Parking brake ...........................110 Door mirrors ............................... 62
Electric windows ................... 68-69

241
ALPHABETICAL INDEX
R Resetting the trip recorder ............ 38
Rev counter ............................ 23, 24
Reversing lamp .......................... 148
Risk areas (update) .................... 194
Routine checks ................... 134, 135
Running out of fuel (Diesel) ........ 130
S Safety
for children ..........92-100, 105, 107
Scented air freshener ................... 58
Screen, colour 16/9 ...... 48, 184, 205
Screen,
monochrome ............ 216, 228, 230
Screen, multifunction
(with audio equipment) ... 43, 45, 48
Screen-wash reservoir ............... 133
Screen menu map ...... 205, 228, 230
Screenwash ................................. 82
Screenwash fluid level ............... 133
Seat, rear bench ........................... 61
Seat adjustment ........................... 59
Seat belts ........................... 104, 105
Seats, rear .................................... 61
Serial number, vehicle ................ 177
Service indicator ........................... 35
Servicing ...................................... 21
Setting
the clock ............. 38, 204, 226, 227
Short-cut menus ................. 185, 186
Sidelamps .................... 77, 146, 148
Side repeater .............................. 146
Spare wheel ............................... 141
Speakers (fitting) ........................ 164
Speed limiter .............................. 123
Speedometer .......................... 23, 24 P Paint colour code ....................... 177
Parcel shelf, rear .......................... 91
Parking brake ..................... 110, 135
Parking sensors, rear ................. 127
Particle emission filter ........ 134, 135
Passenger compartment filter ...... 134
Player, CD MP3 ................. 199, 219
Port, USB ..................... 88, 220, 222
Priming the fuel system .............. 130
Protecting
children ................92-100, 105, 107
Puncture ..................................... 136
R Radio .................................. 197, 217
Radio pre-equipment .................. 164
Rear foglamp ........................ 78, 148
Rear screen (demisting) ............... 57
Recharging the battery ............... 159
Reduction of electrical load ........ 159
Regeneration of the particle
emissions filter ......................... 135
Reinitialising the electric windows .... 69
Reinitialising the remote control ..... 66
Remote control ....................... 64, 67
Removing a wheel ...................... 143
Removing the mat ........................ 89
Repair kit, puncture .................... 136
Replacing bulbs ...................145-150
Replacing fuses ...................151-157
Replacing the air filter ................ 134
Replacing the oil filter ................. 134
Replacing the passenger
compartment filter .................... 134
Replacing wiper blades ........ 83, 160
Resetting the service indicator ..... 36 L Locating your vehicle ................... 65
Locking from the inside ................ 71
Low fuel level ............................... 74
LPG ............................................ 170
M Main beam ........................... 77, 146
Maintenance ................................. 21
Markings,
identification ............................. 177
Mat ............................................... 89
Menu, main ................................ 216
Mirror, rear view ........................... 63
Mirrors, door ................................. 62
Misfuel prevention ........................ 76
Motorway function
(direction indicators) ................. 101
Mountings for ISOFIX
seats ..................................... 97, 99
MP3 CD .............................. 199, 219
Music media players .................. 198
MyWay ..........................48, 181-212
N Navigation .................................. 187
Number plate lamps ................... 148
O Oil filter ....................................... 134
Oil level ................................ 37, 133
Opening the bonnet .................... 130
Opening the boot .................... 64, 73
Opening the doors .................. 64, 70
Opening the fuel filler flap ............ 74
Operation indicator
lamps .....................................25-34
