Page 154 of 252

Citroen C3 2012 2.G Owners Manual 11
152
PRACTICAL INFORMATION

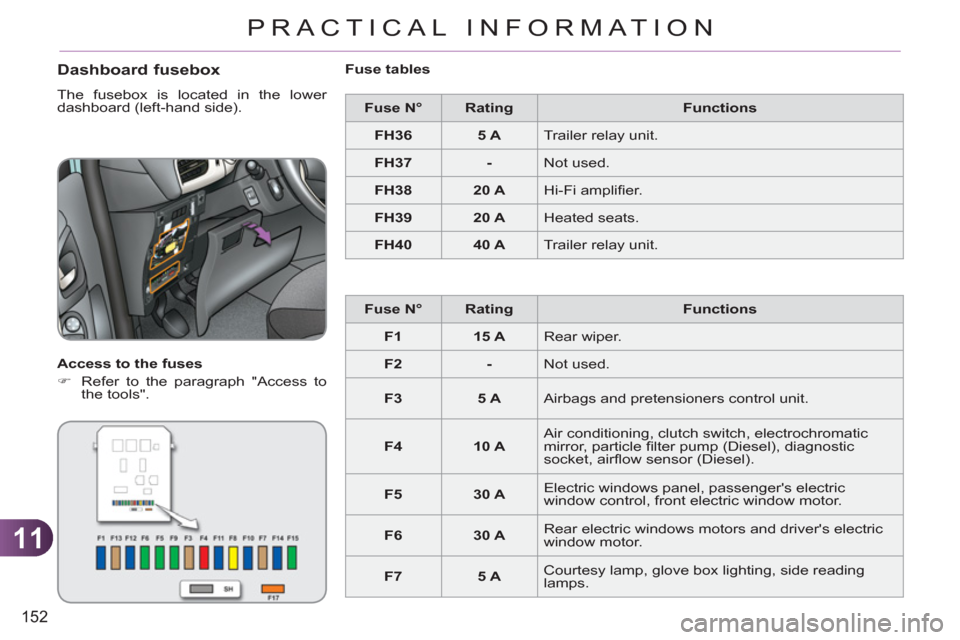

Dashboard fusebox

The fusebox is located in the lower
dashboard (left-hand side).

Access to the fuses


�)
  Refer to the paragraph "Access to
the tools

Page 155 of 252

Citroen C3 2012 2.G Owners Manual 11
153
PRACTICAL INFORMATION

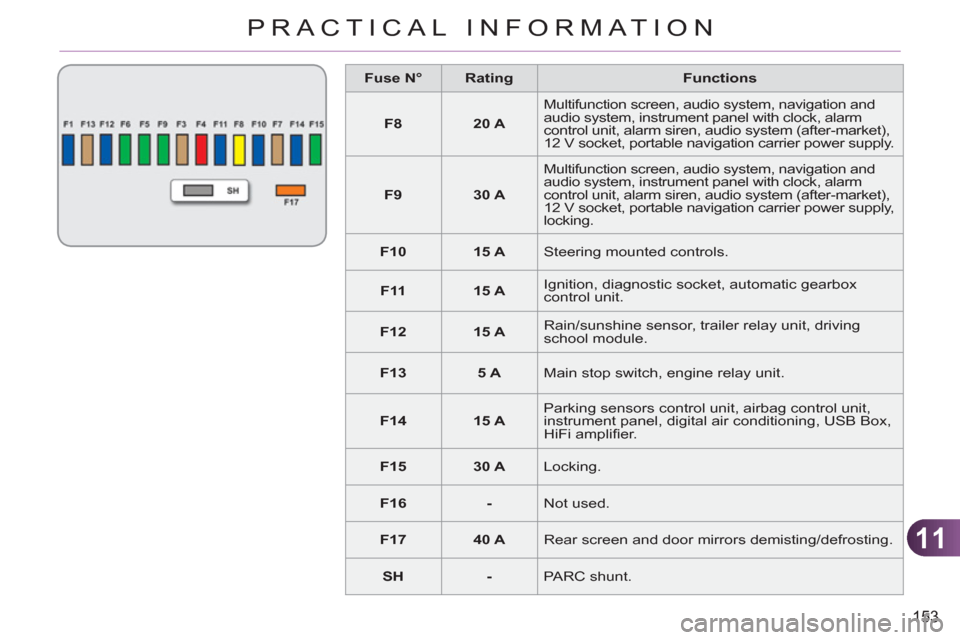

Fuse N°



Rating


Functions



F8



20 A

   Multifunction screen, audio system, navigation and
audio system, instrument panel with clo

Page 157 of 252

Citroen C3 2012 2.G Owners Manual 11
PRACTICAL INFORMATION

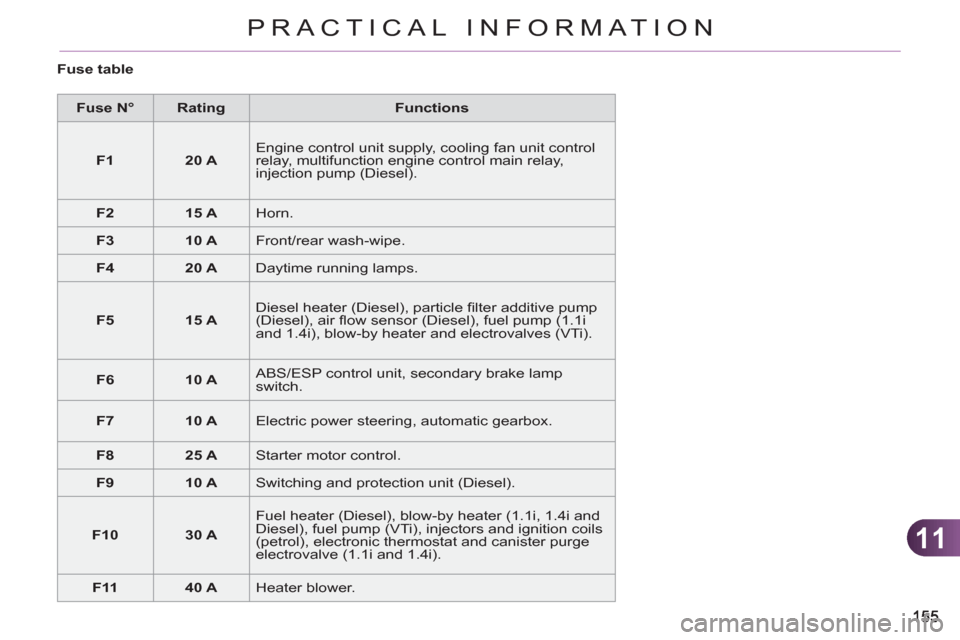

Fuse table


Fuse N°



Rating


Functions



F1



20 A

   Engine control unit supply, cooling fan unit control
relay, multifunction engi
